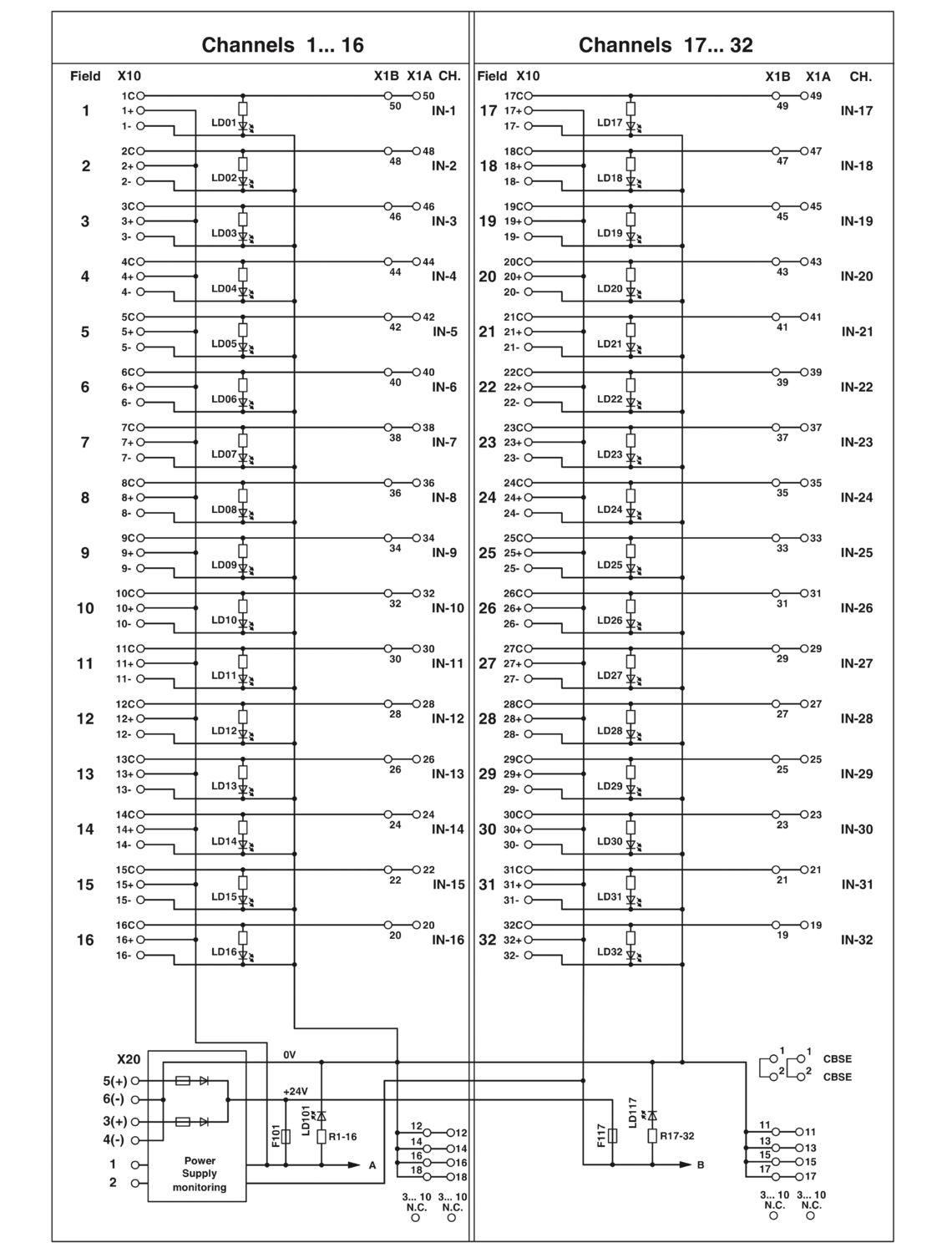

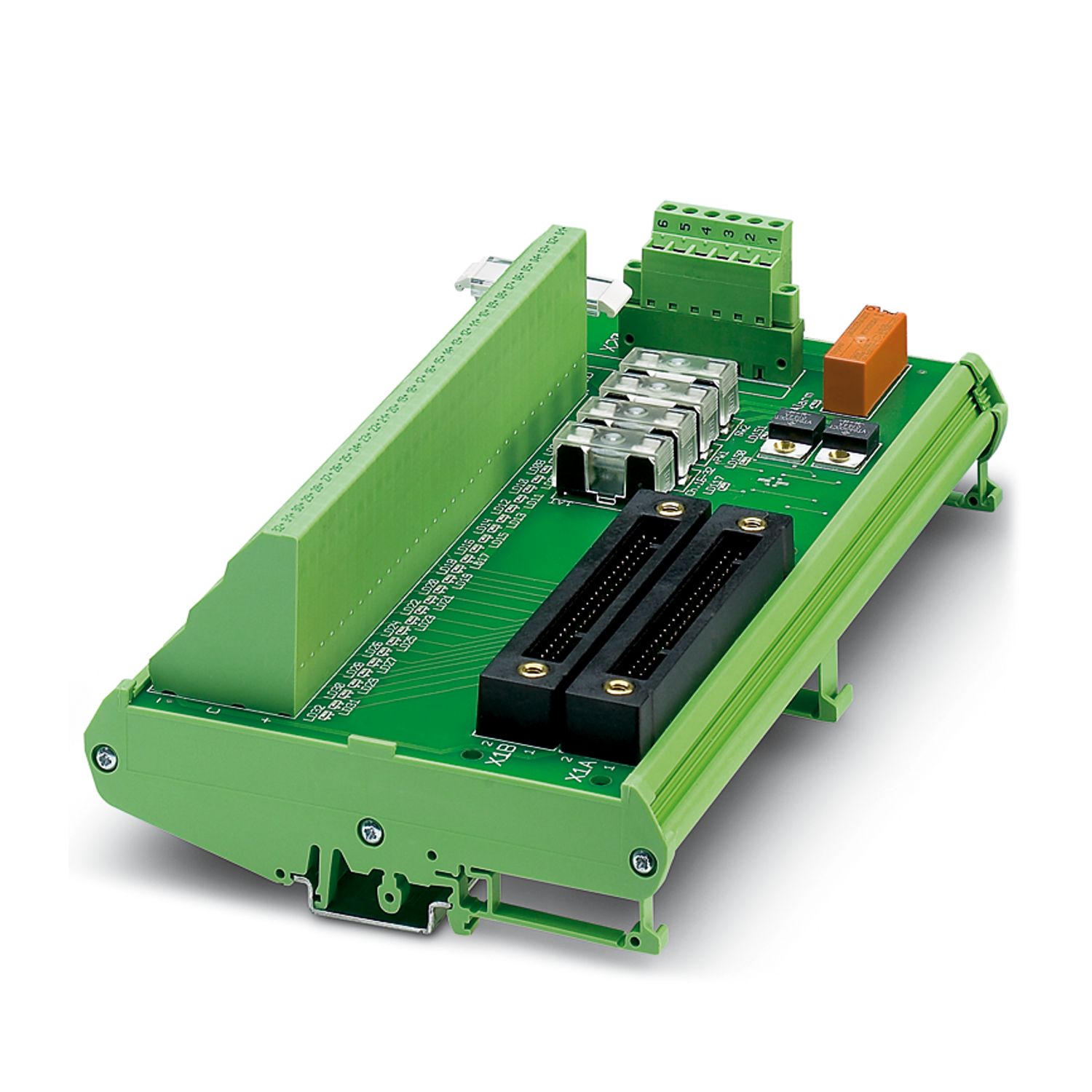

32-channel digital input module with spring-cage connection and redundant voltage supply. Suitable for Yokogawa ADV151 and ADV161 cards.
Tuotetiedot
Product type
Interface module
No. of channels
32
Insulation characteristics
Overvoltage category
II
Pollution degree
2
Nominal voltage UN
24 V DC ±10 %
Max. current carrying capacity per branch
100 mA
Rated surge voltage
0.5 kV
Supported controller YOKOGAWA CS3000 CentumVP
Suitable I/O card
ADV151
ADV161
Supported controller YOKOGAWA STARDOM
Suitable I/O card
NFDV151
NFDV161
Field level
Connection method
Spring-cage connection
Number of positions
32
Conductor cross section rigid
0.2 mm² ... 2.5 mm²
Conductor cross section flexible
0.2 mm² ... 1.5 mm²
Conductor cross section AWG
24 ... 14
Controller level
Connection method
Yokogawa, KS compatible
Number of connections
2
Number of positions
50
Note
Usable system cables: Phoenix Contact YUC50, Yokogawa AKB331
Tightening torque
0.5 Nm
Connection method
Screw connection
Number of connections
1
Number of positions
6
Conductor cross section rigid
0.2 mm² ... 2.5 mm²
Conductor cross section flexible
0.2 mm² ... 1.5 mm²
Conductor cross section AWG
24 ... 14
HART connector
Connection method
HART connector
Number of connections
1
Number of positions
26
Status display present
yes
Item dimensions
Width
215.5 mm
Height
125.4 mm
Depth
70.8 mm
Ambient conditions
Ambient temperature (operation)
-20 °C ... 50 °C
Ambient temperature (storage/transport)
-20 °C ... 70 °C
Standards/regulations
EN IEC 60664-1
Mounting type
DIN rail mounting
Mounting position
any
Notes on operation
Voltage monitoring on the module does not work in combination with upstream HESILED fuse terminal blocks with integrated LED display.
Notes on operation
For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.
Tuotenumero
2311360
Pakkausyksikkö
1 Kappaletta
Vähimmäistilausmäärä
1 Kappaletta
Tuoteavain
DK218N
Tuotekoodi
DK218N
GTIN
4046356317733
Paino kappaletta kohti (sis. pakkauksen)
617 g
Paino kappaletta kohti (ilman pakkausta)
300 g
Tullitariffinumero
85369010
Alkuperämaa
DE
ECLASS
ECLASS-13.0
27141152
ECLASS-15.0
27141152
ETIM
ETIM 9.0
EC002780
UNSPSC
UNSPSC 21.0
39121400
EAC
Hyväksyntätunnus: RU*-DE.*08.B.01829*
EU RoHS
Täyttää RoHS-direktiivin vaatimukset
Kyllä
poikkeussäännökset siltä osin kuin ne ovat tiedossa
7(a), 7(c)-I
China RoHS
Environment friendly use period (EFUP)
EFUP-50
Löydät tuotekohtaisen Kiinan RoHS-ilmoitusluettelon kunkin tuotteen latausalueelta Valmistajan ilmoitus -kohdasta. EFUP-E-merkinnän sisältäville tuotteille ei tarvita Kiinan RoHS-ilmoitusluetteloa, eikä sitä tarvitse siksi laatia.
