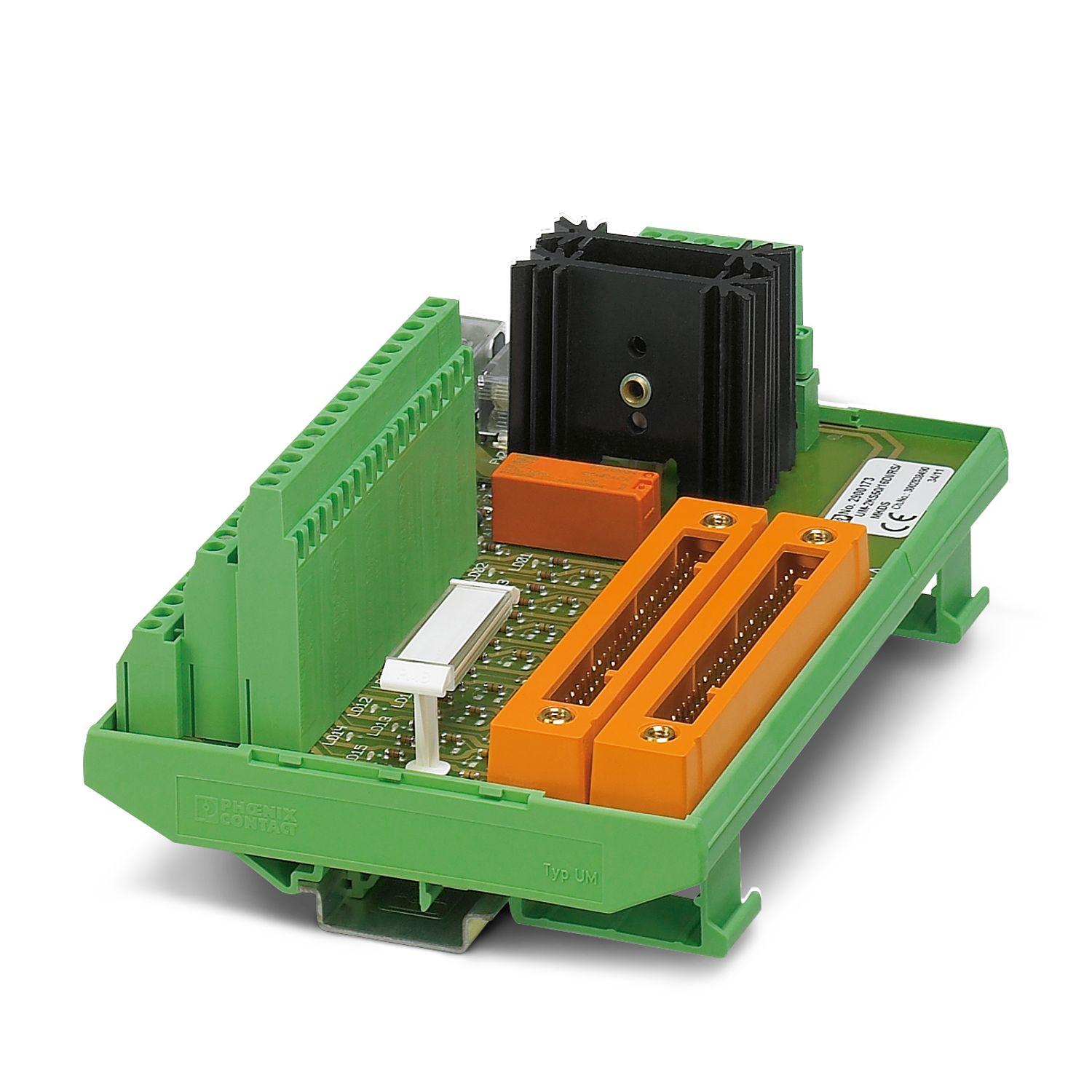

UM-2KS50/16DI/RS/MKDS - Input module

2900173

16-channel digital input module with screw connection and redundant voltage supply. Suitable for Yokogawa SDV 144 card.

Tuotetiedot

Product type	Interface module
Number of positions	50
No. of channels	16
Insulation characteristics: Air clearances and creepage distances
Insulation	Functional insulation
Overvoltage category	II
Pollution degree	2

Nominal voltage U_N	24 V DC ±5 %
Max. current carrying capacity per branch	100 mA
Max. total current of voltage supply	2 A (F150, F151) plug-in fuse (5x20, 2 A), DIN 41662
Air clearances and creepage distances
Rated insulation voltage	50 V
Rated surge voltage	0.5 kV (1.2/50 μs)
Supported controller YOKOGAWA ProSafe-RS
Suitable I/O card	SDV144

Field level
Connection method	Screw connection
Conductor cross section rigid	0.2 mm² ... 2.5 mm²
Conductor cross section flexible	0.2 mm² ... 1.5 mm²
Conductor cross section AWG	24 ... 14
Controller level
Connection method	Yokogawa, KS compatible
Number of connections	2
Number of positions	50
Tightening torque	0.5 Nm
Supply
Connection method	pluggable
Number of connections	1
Number of positions	6

Status display	Green LED (supply), yellow LED (channel)
Status display present	yes

Item dimensions
Width	161.8 mm
Height	111.8 mm
Depth	69.25 mm

Color	green (RAL 6021)
Housing insulation material	PVC

Ambient conditions
Degree of protection	IP00
Degree of protection (Installation location)	≥ IP54 (Installation location)
Ambient temperature (operation)	-20 °C ... 70 °C
Altitude	< 2000 m

Air clearances and creepage distances
Standards/regulations	EN IEC 60664-1

Mounting type	DIN rail mounting
Mounting position	any

Notes on operation	Voltage monitoring on the module does not work in combination with upstream HESILED fuse terminal blocks with integrated LED display.
Notes on operation	For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.

Kaupalliset tiedot

Tuotenumero	2900173
Pakkausyksikkö	1 Kappaletta
Vähimmäistilausmäärä	1 Kappaletta
Tuoteavain	DK2A8N
Tuotekoodi	DK2A8N
GTIN	4046356484053
Paino kappaletta kohti (sis. pakkauksen)	483 g
Paino kappaletta kohti (ilman pakkausta)	474 g
Tullitariffinumero	85369010
Alkuperämaa	DE

Luokitukset

Hyväksynnät

Approval Specification Data
	Nimellisjännite U_N	Nimellisvirta I_N	Poikkipinta AWG	Poikkipinta mm²
	24 V	2 A

Environmental product compliance

Yhteensopivat tuotteet

Lisätarvikkeet

ECLASS-13.0	27141152
ECLASS-15.0	27141152

EU RoHS
Täyttää RoHS-direktiivin vaatimukset	Kyllä
poikkeussäännökset siltä osin kuin ne ovat tiedossa	7(a), 7(c)-I
China RoHS
Environment friendly use period (EFUP)	EFUP-50 Löydät tuotekohtaisen Kiinan RoHS-ilmoitusluettelon kunkin tuotteen latausalueelta Valmistajan ilmoitus -kohdasta. EFUP-E-merkinnän sisältäville tuotteille ei tarvita Kiinan RoHS-ilmoitusluetteloa, eikä sitä tarvitse siksi laatia.
EU REACH SVHC
Huomautus REACH-kandidaattiaineesta (CAS-nro)	Lead (CAS-nro: 7439-92-1)
SCIP	f47ca7c2-64eb-4c63-851b-f496b18718dd
