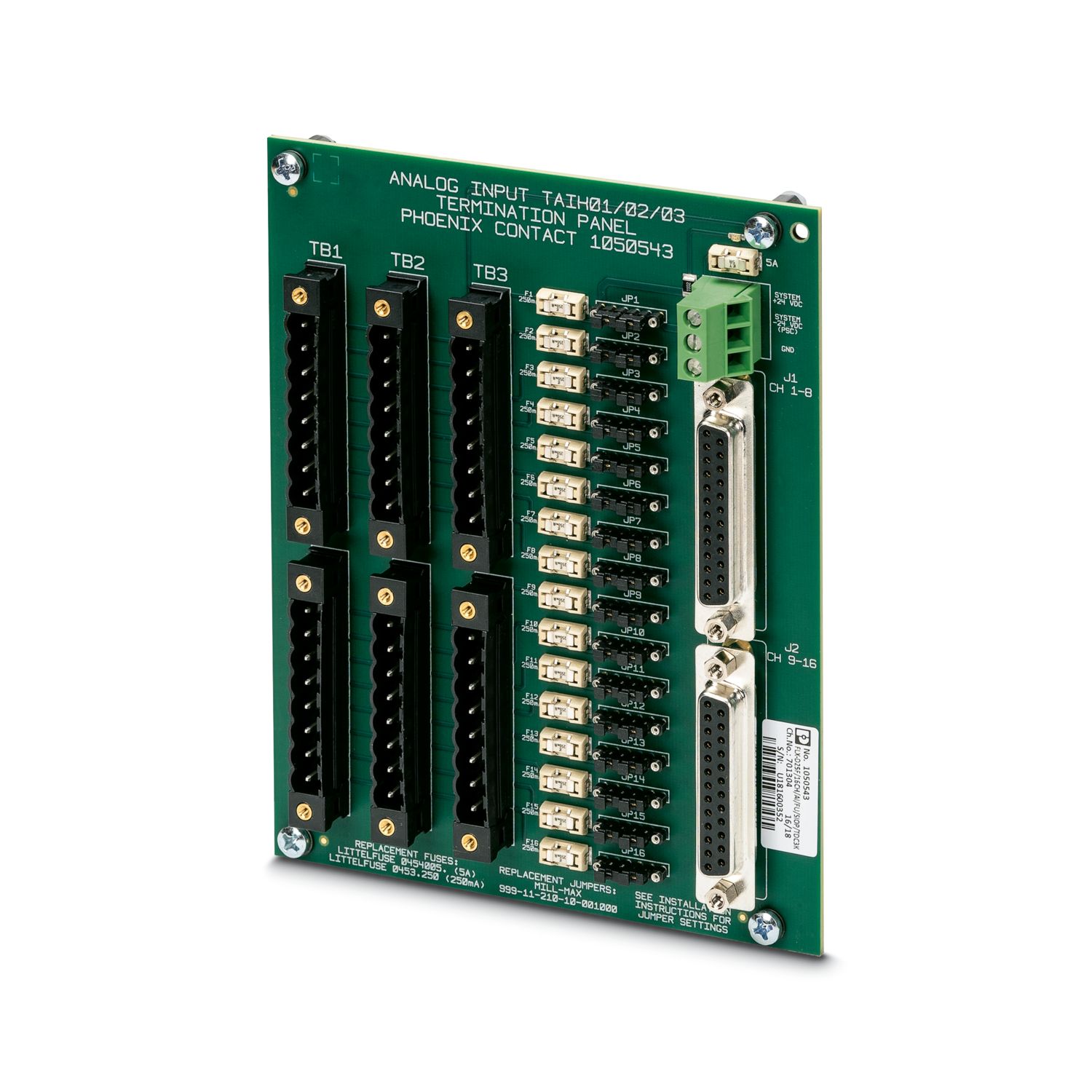

FLX-D25F/16CH/AI/FU/SIOP/TDC3K - Termination board

1050543

Migration board for converting TDC3000 to modern control platforms, analog input, 16 channel, fusing

Tuotetiedot

Tekniset tiedot

Product properties

Product type	Interface module
Insulation characteristics
Overvoltage category	II
Pollution degree	2

Electrical properties

Max. operating voltage U_max	30 V DC (Power supply)
Operating voltage	30 V DC
Max. current carrying capacity per branch	250 mA (fuse limited)
Maximum power voltage feed	5 A (fuse limited)
Supported controller HONEYWELL TDC3000
Suitable I/O card	TAIH01
	TAIH02
	TAIH03

Connection data

Controller level
Connection method	D-SUB-25 female connector
Number of connections	2
Number of positions	25
Field level
Connection method	pluggable

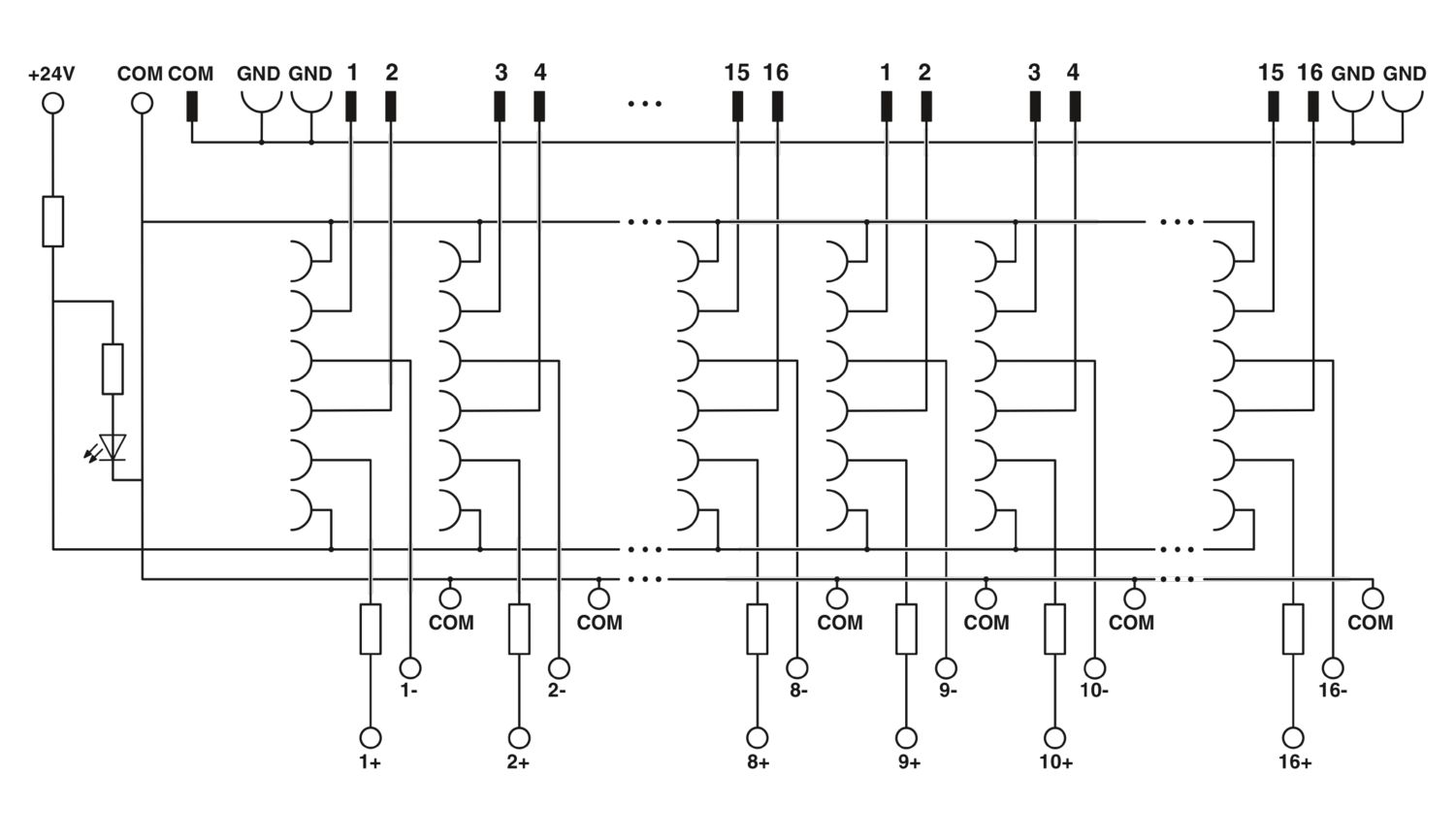

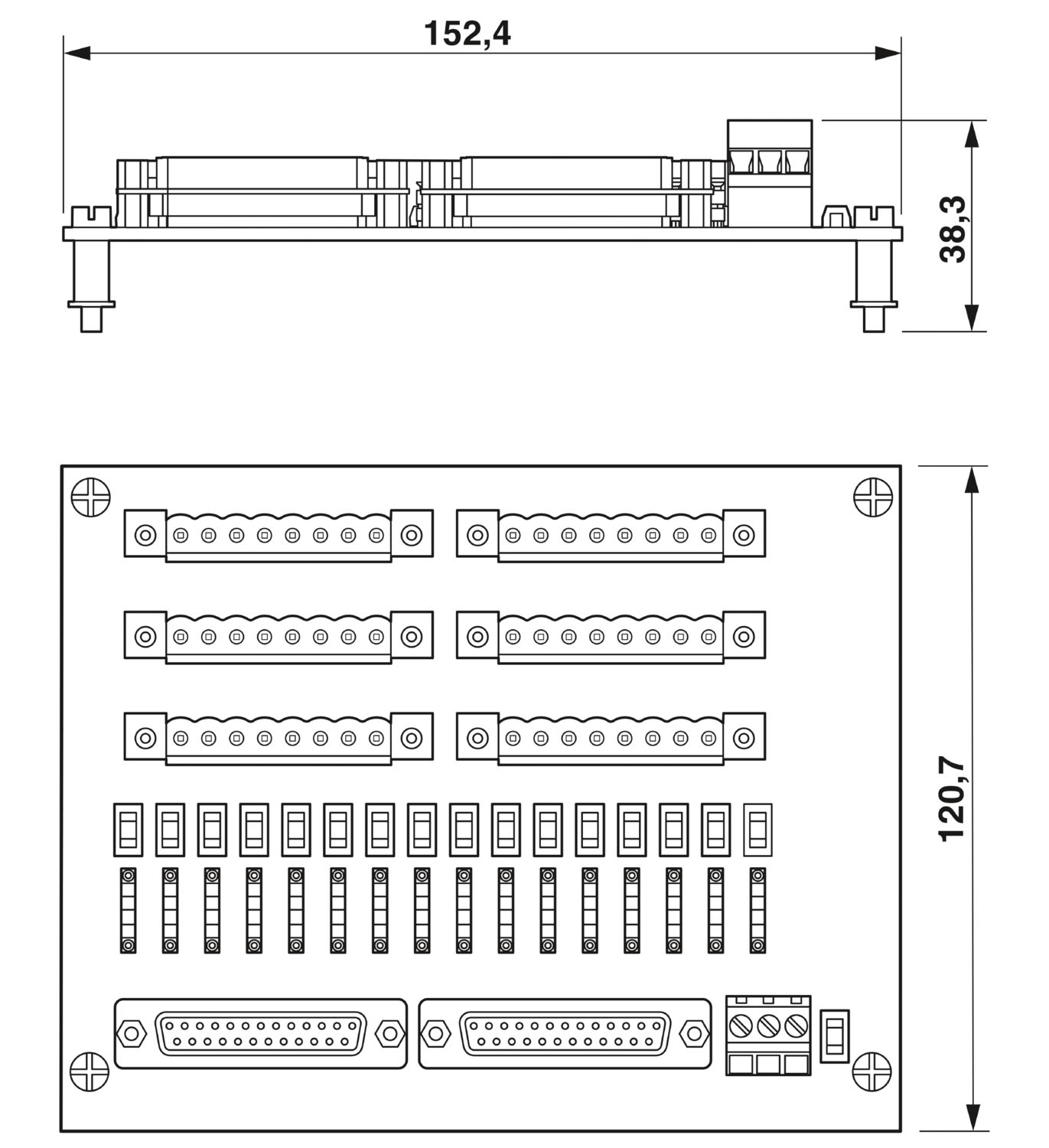

Dimensions

Item dimensions
Width	152.4 mm
Height	120.7 mm
Depth	38.3 mm

Environmental and real-life conditions

Ambient conditions
Ambient temperature (operation)	-40 °C ... 70 °C
Ambient temperature (storage/transport)	-40 °C ... 75 °C
Altitude	< 2000 m
Permissible humidity (operation)	< 90 %

Mounting

Mounting position	any

Notes

Notes on operation	For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.

Kaupalliset tiedot

Tuotenumero	1050543
Pakkausyksikkö	1 Kappaletta
Vähimmäistilausmäärä	1 Kappaletta
Tuoteavain	DK2B8H
Tuotekoodi	DK2B8H
GTIN	4055626666167
Paino kappaletta kohti (sis. pakkauksen)	378 g
Paino kappaletta kohti (ilman pakkausta)	360 g
Tullitariffinumero	85371098
Alkuperämaa	US

Luokitukset

Hyväksynnät

Approval Specification Data
	Nimellisjännite U_N	Nimellisvirta I_N	Poikkipinta AWG	Poikkipinta mm²
Power		5 A
Signal		0.25 A
Output		0.25 A

Approval Specification Data
	Nimellisjännite U_N	Nimellisvirta I_N	Poikkipinta AWG	Poikkipinta mm²
Power		5 A
Signal		0.25 A
Output		0.25 A

Approval Specification Data
	Nimellisjännite U_N	Nimellisvirta I_N	Poikkipinta AWG	Poikkipinta mm²
Power		5 A
Signal		0.25 A
Output		0.25 A

Approval Specification Data
	Nimellisjännite U_N	Nimellisvirta I_N	Poikkipinta AWG	Poikkipinta mm²
Power		5 A
Signal		0.25 A
Output		0.25 A

Environmental product compliance

Yhteensopivat tuotteet

Lisätarvikkeet

Edut

Panel mount to existing TDC3000 chassis

Compatable with existing pluggable field wiring connectors

DSUB control side connection

Per channel fusing

Terminal blocks for power supply

ECLASS-13.0	27141152
ECLASS-15.0	27141152

EU RoHS
Täyttää RoHS-direktiivin vaatimukset	Kyllä
poikkeussäännökset siltä osin kuin ne ovat tiedossa	6(c), 7(a), 7(c)-I
EU REACH SVHC
Huomautus REACH-kandidaattiaineesta (CAS-nro)	Lead (CAS-nro: 7439-92-1)
SCIP	bf17f172-1703-4c7b-ac8b-2b3e14edfe0e
