FLKM 50/KDS3-MT/PPA/AN/PLC - Passive module

2291587

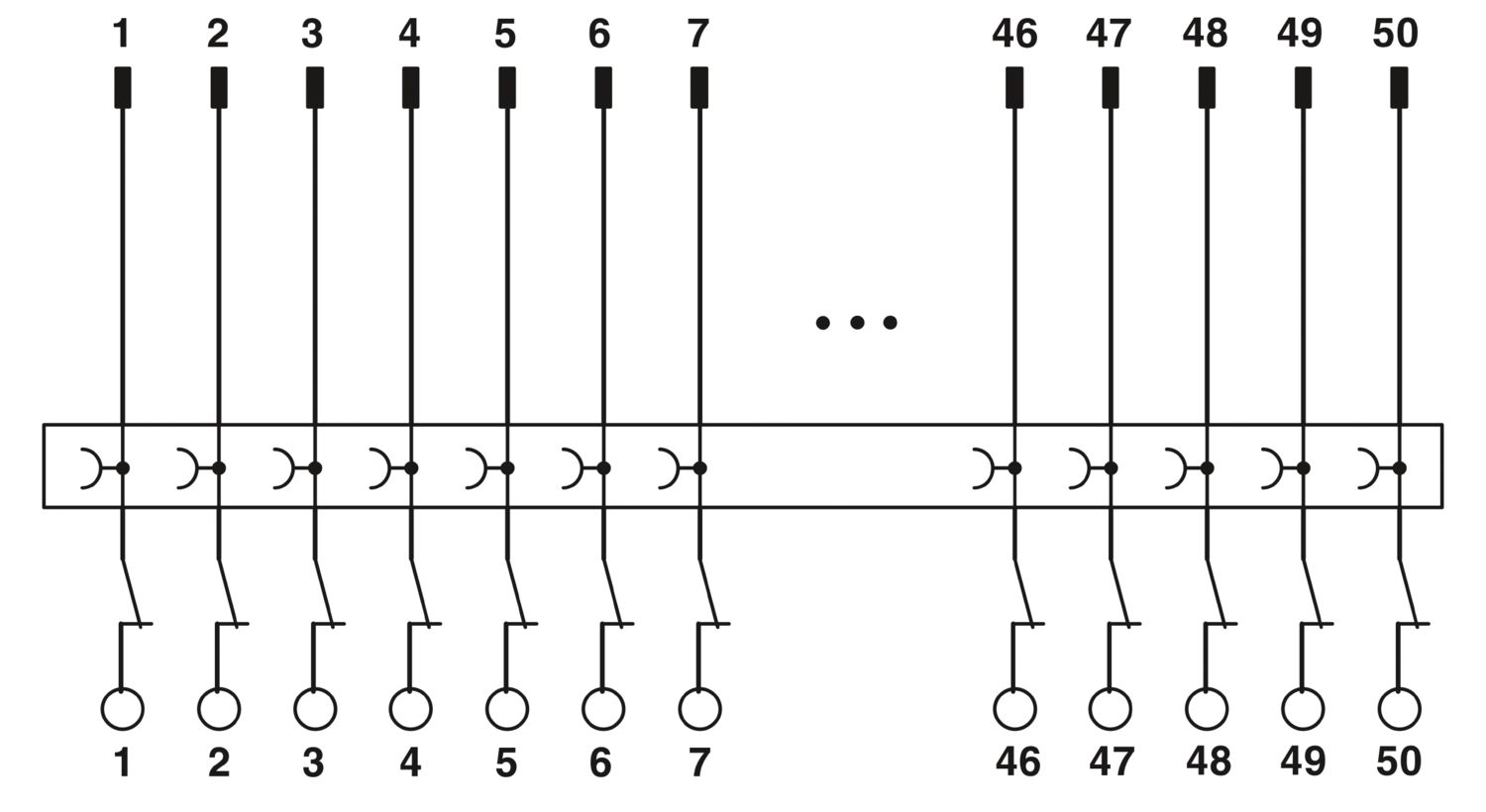

VARIOFACE termination board for Siemens SIMATIC® S7-400, with marking (1-50), knife-disconnect terminal block, and test pick-off, module width: 259 mm

Tuotetiedot

Product family	VARIOFACE
Number of positions	50
No. of channels	2
	4
	6
	8
	16
Insulation characteristics: Air clearances and creepage distances
Insulation	Functional insulation
Overvoltage category	II
Pollution degree	2

Operating voltage (DC)	≤ 60 V DC
Current (per branch)	≤ 1 A
Air clearances and creepage distances
Rated insulation voltage	63 V
Rated surge voltage	0.6 kV (1.2/50 μs)
Supported controller SIEMENS S7-400
Suitable I/O card	6ES7431-0HH0-0AB0
	6ES7431-1KF00-0AB0
	6ES7431-1KF10-0AB0
	6ES7431-1KF20-0AB0
	6ES7431-7KF00-0AB0
	6ES7431-7KF10-0AB0
	6ES7431-7QH00-0AB0
	6ES7432-1HF00-0AB0

Connection 1 (control level)
Connection in acc. with standard	IEC 60603-13
Connection method	IDC/FLK pin strip
Number of connections	1
Number of positions	50
Insertion/withdrawal cycles	> 50
Pitch	2.54 mm
Connection 2 (field level)
Connection method	Screw connection with disconnect knife
Stripping length	8 mm
Screw thread	M3
Number of positions	50
Conductor cross-section rigid	0.2 mm² ... 4 mm²
Conductor cross-section rigid (2 conductors with same cross section)	0.2 mm² ... 1 mm²
Conductor cross-section flexible	0.2 mm² ... 4 mm²
	0.25 mm² ... 2.5 mm² (Ferrule without plastic sleeve)
	0.25 mm² ... 1.5 mm² (Ferrule with plastic sleeve)
Conductor cross-section flexible (2 conductors with same cross section)	0.2 mm² ... 1 mm²
	0.25 mm² ... 0.75 mm² (Ferrule without plastic sleeve)
	0.5 mm² ... 1 mm² (TWIN ferrule with plastic sleeve)
Conductor cross-section AWG	24 ... 12
Tightening torque	0.5 Nm ... 0.6 Nm
Pitch	5.08 mm
Connection 3 (field level)
Connection method	Test socket
Number of positions	50

Status display present	no

Item dimensions
Width	258.4 mm
Height	77 mm
Depth	51.48 mm

Color	gray (RAL 7042)
Housing insulation material	PVC

Ambient conditions
Degree of protection (Module)	IP00
Degree of protection (Installation location)	≥ IP54
Ambient temperature (operation)	-20 °C ... 50 °C
Ambient temperature (storage/transport)	-20 °C ... 70 °C
Altitude	≤ 2000 m

UKCA
Certificate	UKCA-compliant

Air clearances and creepage distances
Standards/regulations	EN IEC 60664-1

Mounting type	DIN rail mounting
Mounting position	any

Notes on operation	For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.

Kaupalliset tiedot

Tuotenumero	2291587
Pakkausyksikkö	1 Kappaletta
Vähimmäistilausmäärä	1 Kappaletta
Tuoteavain	DK2181
Tuotekoodi	DK2181
GTIN	4017918184636
Paino kappaletta kohti (sis. pakkauksen)	549 g
Paino kappaletta kohti (ilman pakkausta)	464,34 g
Alkuperämaa	DE

Luokitukset

Hyväksynnät

Approval Specification Data
	Nimellisjännite U_N	Nimellisvirta I_N	Poikkipinta AWG	Poikkipinta mm²
keine
	24 V	1 A

Approval Specification Data
	Nimellisjännite U_N	Nimellisvirta I_N	Poikkipinta AWG	Poikkipinta mm²
keine
	24 V	1 A

Environmental product compliance

Yhteensopivat tuotteet

Lisätarvikkeet

Edut

Numerical labeling (1 - 50)

Specifically for S7-400 (in conjunction with the FLKM 50-PA-S400 (3-48) front adapter, Item No. 2294908)

ECLASS-13.0	27141152
ECLASS-15.0	27141152

EU RoHS
Täyttää RoHS-direktiivin vaatimukset	Kyllä
poikkeussäännökset siltä osin kuin ne ovat tiedossa	6(c)
China RoHS
Environment friendly use period (EFUP)	EFUP-50 Löydät tuotekohtaisen Kiinan RoHS-ilmoitusluettelon kunkin tuotteen latausalueelta Valmistajan ilmoitus -kohdasta. EFUP-E-merkinnän sisältäville tuotteille ei tarvita Kiinan RoHS-ilmoitusluetteloa, eikä sitä tarvitse siksi laatia.
EU REACH SVHC
Huomautus REACH-kandidaattiaineesta (CAS-nro)	Lead (CAS-nro: 7439-92-1)
SCIP	a1b5009d-48b6-4fae-8bd5-b1a7d0055b65
