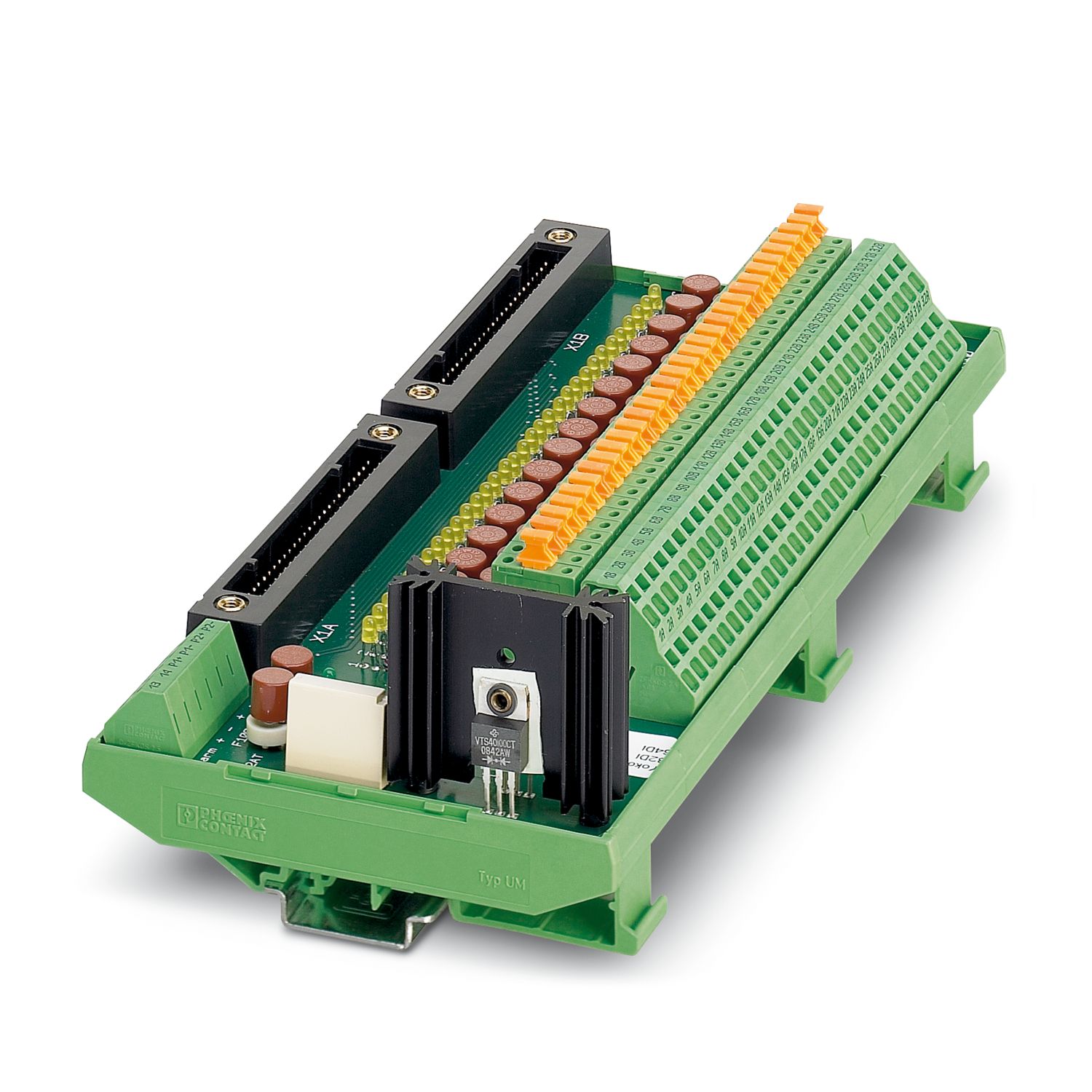

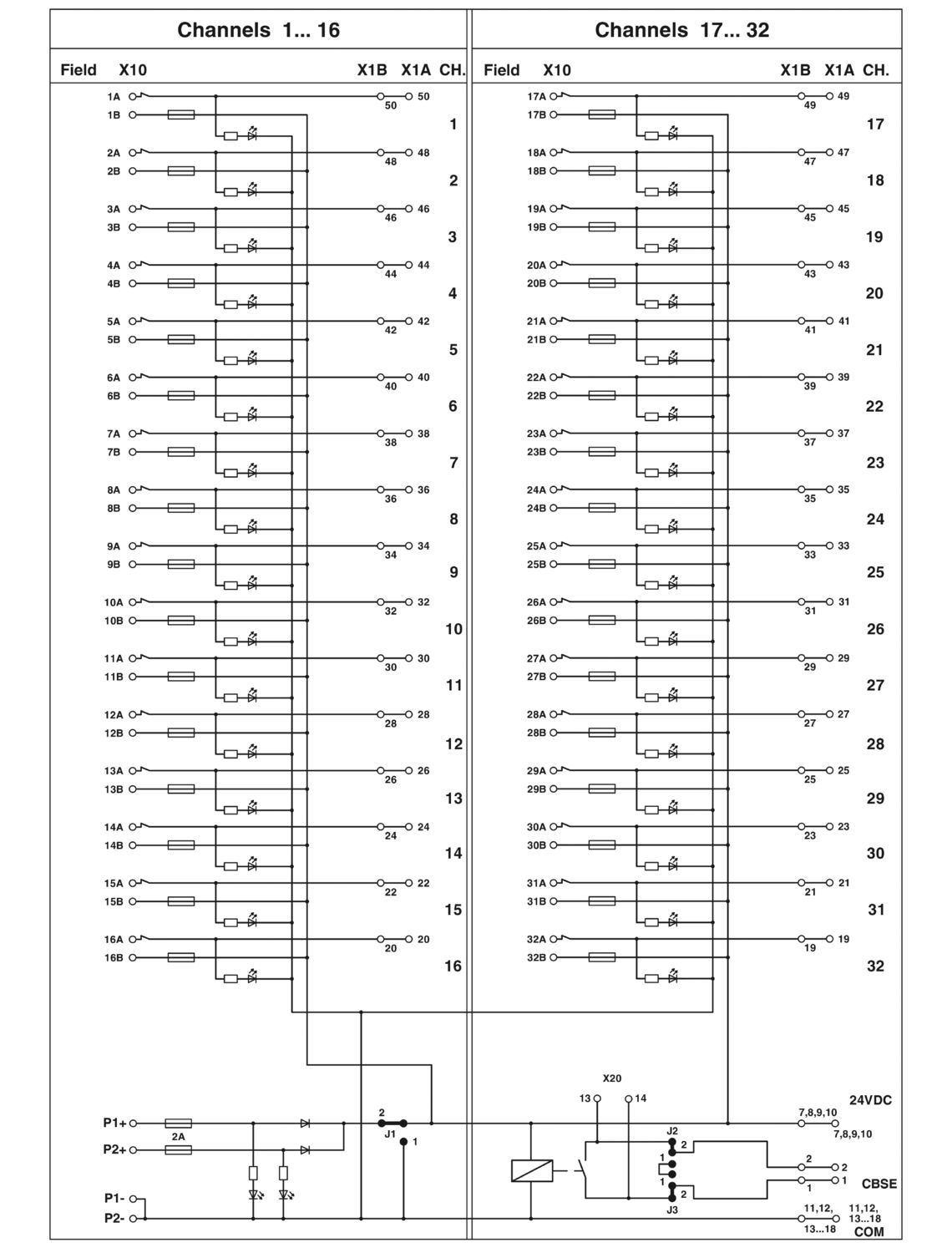

VARIOFACE input module with spring-cage connection, 32 channels, redundant connector for Yokogawa input modules ADV151, ADV161.
Tuotetiedot
Product type
Interface module
No. of channels
32
Operating mode
100% operating factor
Insulation characteristics: Air clearances and creepage distances between the power circuits
Insulation
Functional insulation
Overvoltage category
II
Pollution degree
2
Max. permissible current

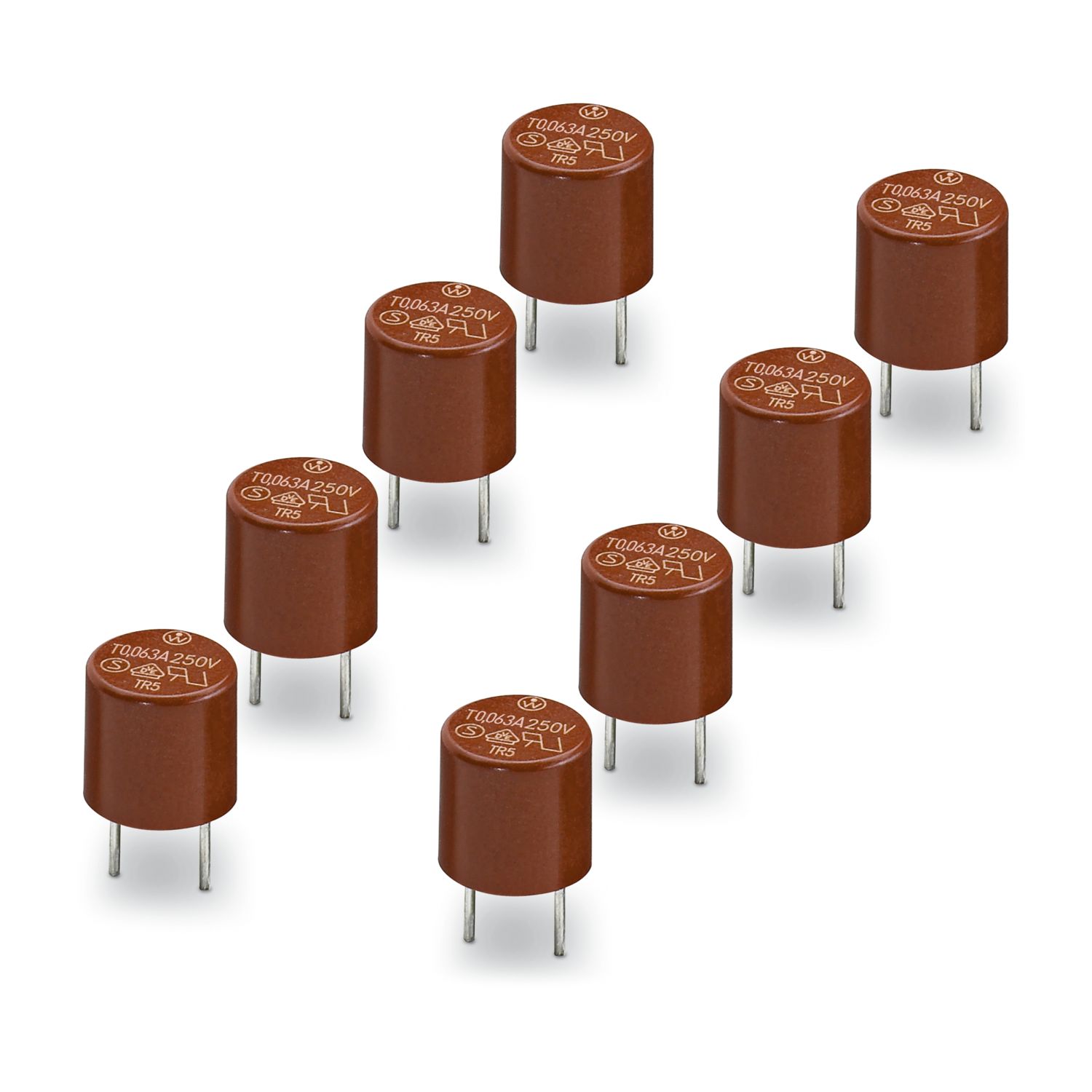

63 mA (per path, protected by slow fuse 63 mA, observe derating)
Max. permissible total current
2 A (protected by fuse (2 AT), observe derating)
Nominal voltage UN
24 V DC
19.2 V DC ... 30 V DC
Air clearances and creepage distances between the power circuits
Rated insulation voltage
50 V DC
Rated surge voltage
0.5 kV
Supported controller YOKOGAWA CS3000 CentumVP
Suitable I/O card
ADV151
ADV161
Supported controller YOKOGAWA STARDOM
Suitable I/O card
NFDV151
NFDV161
K1
Contact switching type
Double contact, 1 N/O contact
Contact material
AgNi 90/10, + 5 µm hard gold-plated
Maximum switching voltage
48 V DC
≤ 25 V AC
Limiting continuous current
1 A
Min. switching current
1 mA
Interrupting rating (ohmic load) max.
24 W (24 V DC)
48 W (48 V DC)
25 VA (25 V AC)
Mechanical service life
approx. 2x 107 cycles
Field level
Connection method
Spring-cage connection
Number of connections
1
Number of positions
64
Conductor cross section rigid
0.2 mm² ... 4 mm²
Conductor cross section flexible
0.2 mm² ... 2.5 mm²
Conductor cross section AWG
24 ... 12
Controller level
Connection method
Yokogawa, KS compatible
Number of connections
2
Number of positions
50
Note
Usable system cables: Phoenix Contact YUC50, Yokogawa AKB331
Tightening torque
0.5 Nm
Status display present
yes
Operating voltage display
Green LED

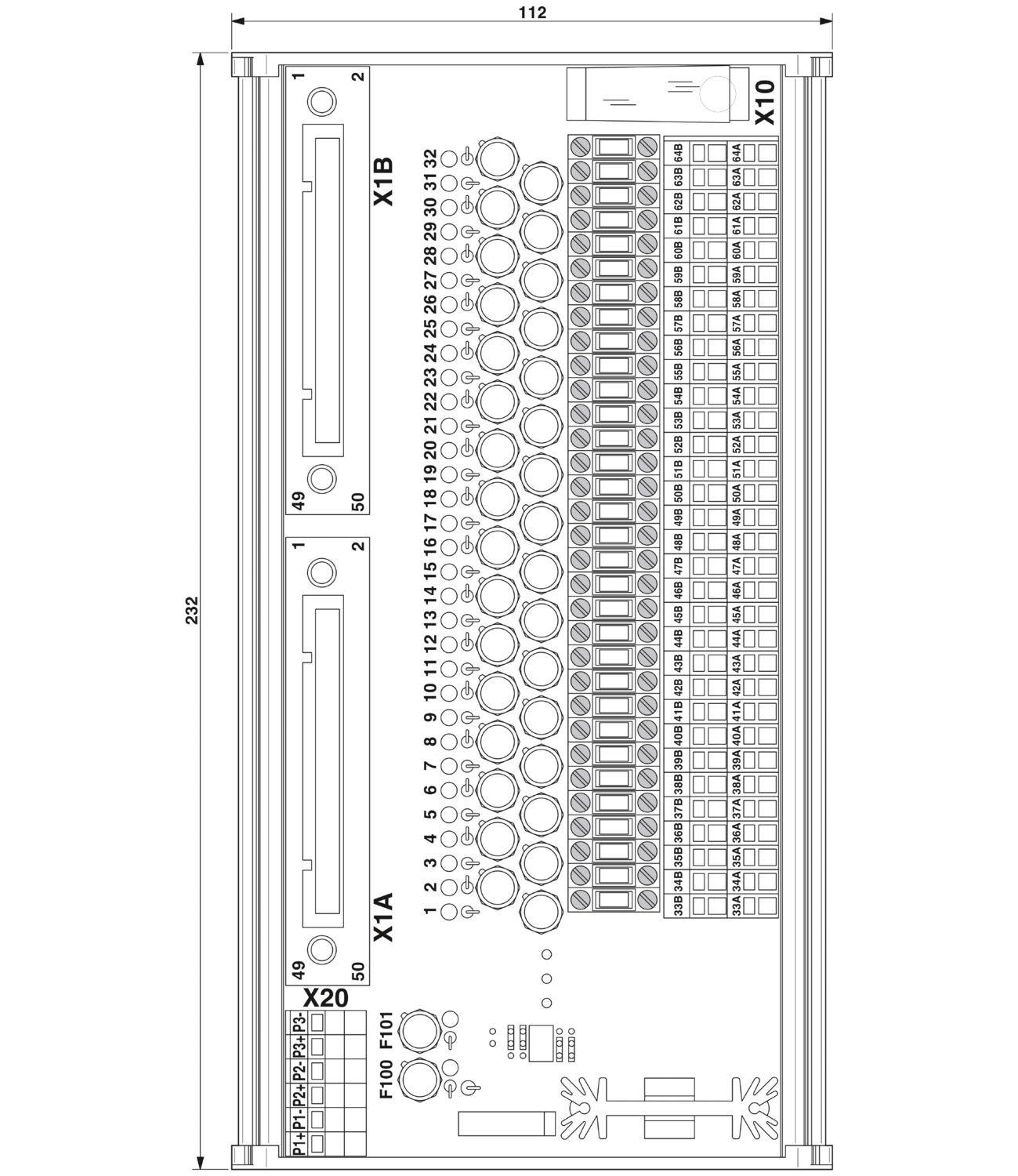

Item dimensions
Width
231.6 mm
Height
111.8 mm
Depth
65.5 mm
Ambient conditions
Degree of protection
IP00
Degree of protection (Installation location)
≥ IP54 (Installation location)
Ambient temperature (operation)
-20 °C ... 70 °C
Ambient temperature (storage/transport)
-20 °C ... 70 °C
Altitude
≤ 2000 m
Air clearances and creepage distances between the power circuits
Standards/regulations
EN IEC 60664-1
Mounting type
DIN rail mounting
Assembly note
in rows with zero spacing
Mounting position
any
Notes on operation
No additional touch protection is required when using a SELV/PELV voltage (≤ 25 V AC or 60 V DC).
Notes on operation
At least one functional insulation against adjacent modules is complied with (in the support rail direction). If the application has stricter requirements for the insulation (basic insulation or reinforced insulation), they must be realized by applying suitable measures (e. g. partition plates).
Notes on operation
For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.
Tuotenumero
2321923
Pakkausyksikkö
1 Kappaletta
Vähimmäistilausmäärä
1 Kappaletta
Tuoteavain
DK218N
Tuotekoodi
DK218N
GTIN
4046356418478
Paino kappaletta kohti (sis. pakkauksen)
670,1 g
Paino kappaletta kohti (ilman pakkausta)
643 g
Tullitariffinumero
85389091
Alkuperämaa
DE
ECLASS
ECLASS-13.0
27141152
ECLASS-15.0
27141152
ETIM
ETIM 9.0
EC002780
UNSPSC
UNSPSC 21.0
39121400
EU RoHS
Täyttää RoHS-direktiivin vaatimukset
Kyllä
poikkeussäännökset siltä osin kuin ne ovat tiedossa
6(c), 7(a)
China RoHS
Environment friendly use period (EFUP)
EFUP-50
Löydät tuotekohtaisen Kiinan RoHS-ilmoitusluettelon kunkin tuotteen latausalueelta Valmistajan ilmoitus -kohdasta. EFUP-E-merkinnän sisältäville tuotteille ei tarvita Kiinan RoHS-ilmoitusluetteloa, eikä sitä tarvitse siksi laatia.
EU REACH SVHC
Huomautus REACH-kandidaattiaineesta (CAS-nro)
Hexahydromethylphthalic anhydride(CAS-nro: Ei koske tätä tuotetta)
