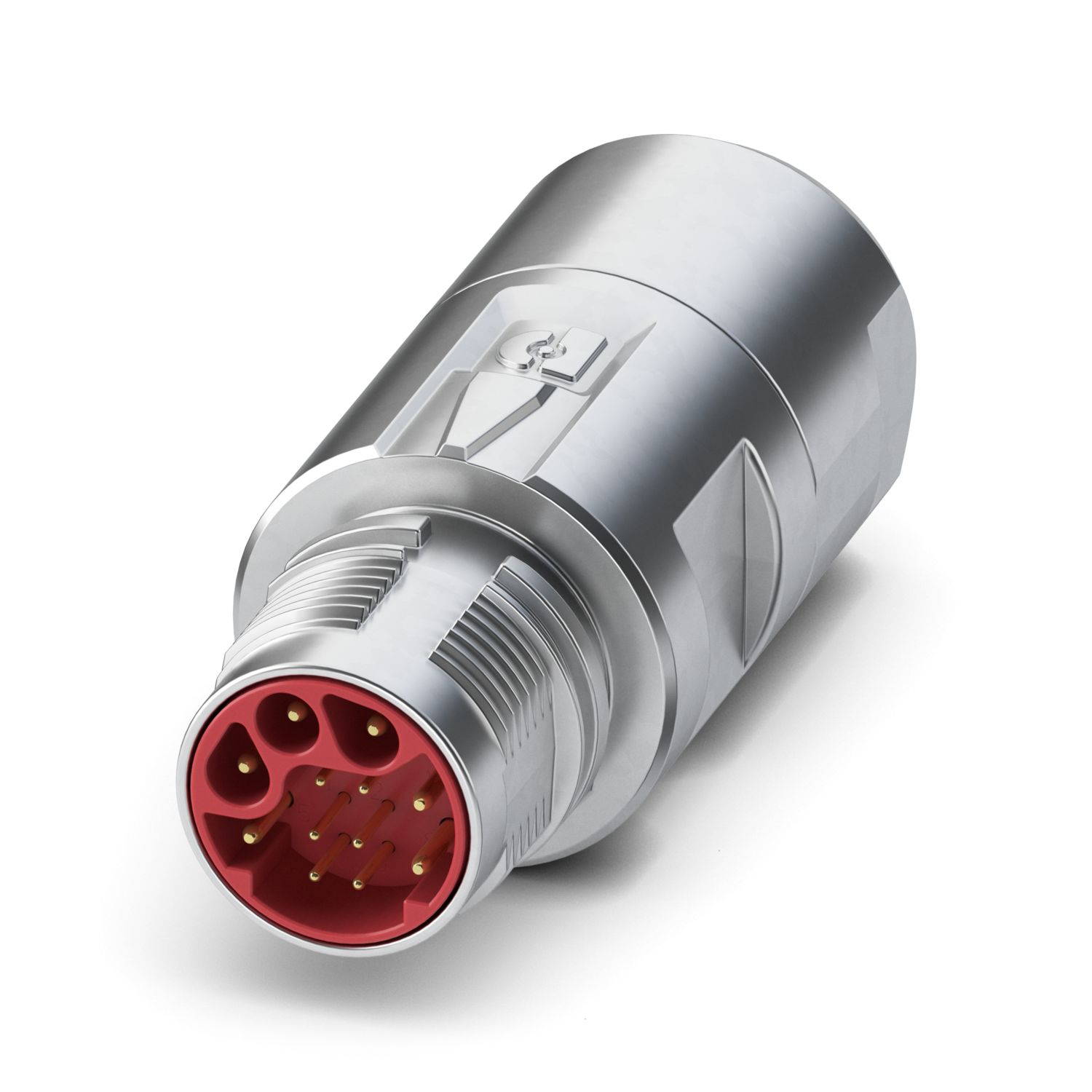

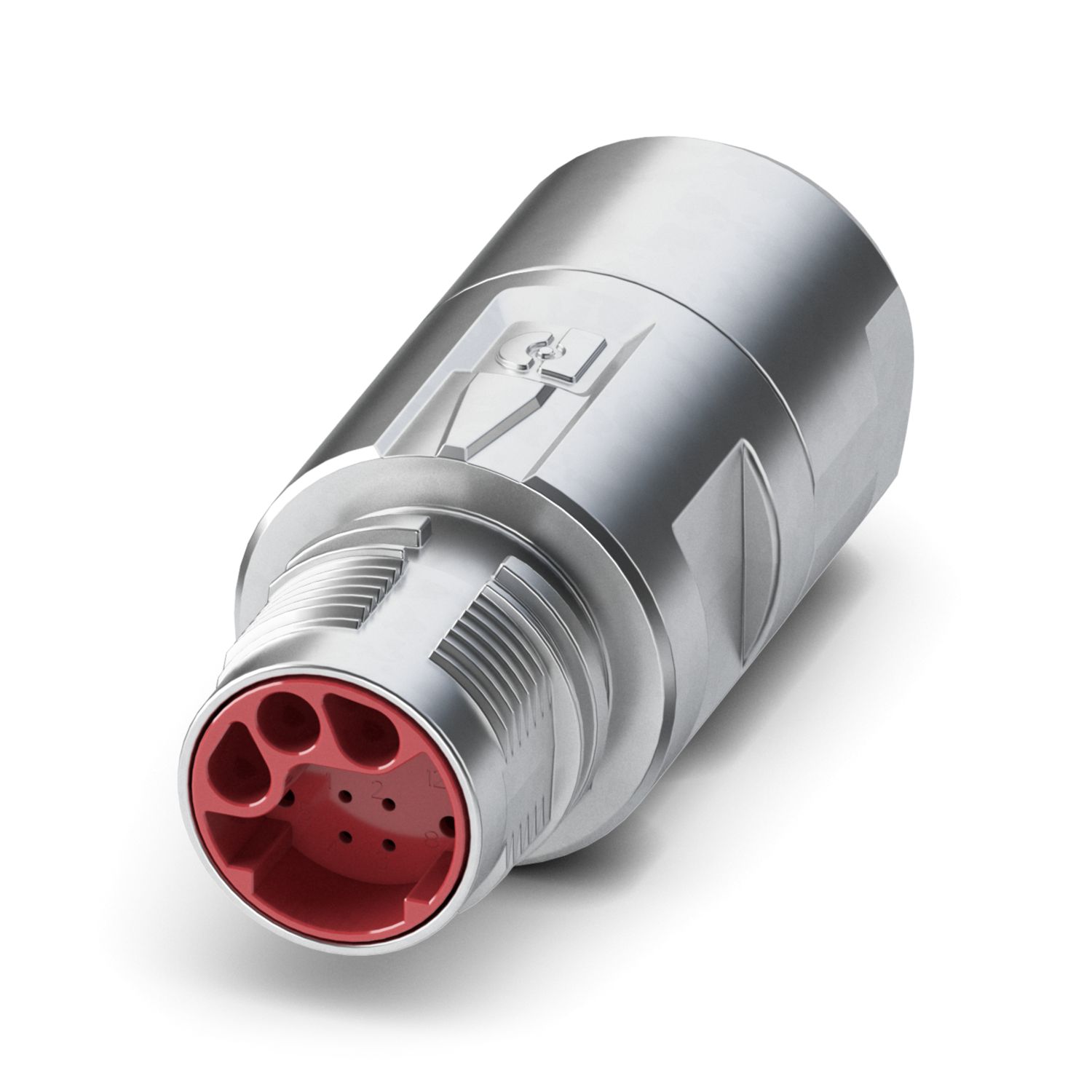

M17-08PSC8A9004S - Coupler connector - 1550188

Notes

Order information:	Order crimp contacts separately
Safety note
Safety note	WARNING: The connectors may not be plugged in or disconnected under load. Ignoring the warning or improper use may damage persons and/or property.
		• WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible.
		• WARNING: Only electrically qualified personnel may install and operate the product. They must observe the following safety notes. The qualified personnel must be familiar with the basics of electrical engineering. They must be able to recognize and prevent danger. The relevant symbol on the packaging indicates that only personnel familiar with electrical engineering are allowed to install and operate the product.
		• The products are suitable for applications in plant, controller, and electrical device engineering.
		• When operating the connectors in outdoor applications, they must be separately protected against environmental influences.
		• Assembled products may not be manipulated or improperly opened.
		• Only use mating connectors that are specified in the technical data of the standards listed (e.g. the ones listed in the product accessories online at phoenixcontact.com/products).
		• When using the product in direct connection with third-party manufacturers, the user is responsible.
		• For operating voltages > 50 V AC, conductive connector housings must be grounded
		• Ensure that the protective or functional ground has been properly connected.
		• VDE 0100/1.97 § 411.1.3.2 and DIN EN 60 204/11.98 § 14.1.3 are applicable when combining several circuits in a cable and/or connector
		• Only use tools recommended by Phoenix Contact
		• The installation notes/Design In documents online on the download page at phoenixcontact.com/products must be observed for this product.
		• Operate the connector only when it is fully plugged in and interlocked.
		• Ensure that when laying the cable, the tensile load on the connectors does not exceed the upper limit specified in the standards.
		• Observe the minimum bending radius of the cable. Lay the cable without twisting it.
		• The connector warms up in normal operation. Depending on the ambient conditions, the surface of the connector can continue to warm up. In this case, the user is responsible for posting warnings (e.g. DIN EN ISO 13732-1:2008-12).

Product properties

Product type	Circular connector (cable-side)
Series	M17 PRO

Connector

Insulating body
Note	Order information: Order crimp contacts separately. The contact assignment can be found in the installation notes.
Material (Insulating body)	PA 6.6
Flammability rating according to UL 94	V0
Insertion/withdrawal cycles	100
Connection method	Crimp connection
Contact switching type	Pin
Application	Data, signals, power
Number of positions	12
Connection profile	4+4+4
Number Contact (Power contacts)	4
Diameter Contact (Power contacts)	1 mm
Litz wire cross-section min. Contact (Power contacts)	0.06 mm²
Litz wire cross-section max. Contact (Power contacts)	1.5 mm²
Rated current Contact (Power contacts)	16 A (for max. connection cross section)
Rated voltage Contact (Power contacts)	50 V
Rated surge voltage	0.8 kV
Number Contact (Signal contacts)	2
Diameter Contact (Signal contacts)	1 mm
Litz wire cross-section min. Contact (Signal contacts)	0.06 mm²
Litz wire cross-section max. Contact (Signal contacts)	0.75 mm²
Nominal current per signal contact	11 A (for max. connection cross section)
Rated voltage Contact (Signal contacts)	50 V
Rated surge voltage	0.8 kV
Overvoltage category	III
Degree of pollution	3
Number Contact (Data contacts)	4
Diameter Contact (Data contacts)	0.6 mm
Litz wire cross-section min. Contact (Data contacts)	0.08 mm²
Litz wire cross-section max. Contact (Data contacts)	0.34 mm²
Rated current per data contact at 25°C	3.6 A (for max. connection cross section)
Rated voltage Contact (Data contacts)	50 V
Rated surge voltage	0.8 kV
Overvoltage category	III
Degree of pollution	3
Housing
Type	Coupling housing
Thread type	M17
Design	straight
Type of locking	for standard and ONECLICK fast locking system
Pg screw connection	none
Material (Housing)	GD-Zn
Degree of protection (plugged in)	IP67
Degree of protection (plugged in)		IP68 (2 m / 24 h)
Seal
External cable diameter	8.5 mm ... 12 mm

Standards and regulations

Standard designation	M17 Hybrid
Standards/specifications	based on IEC 61076-2-117

Артикул	1550188
Пакувальна одиниця	10 Шт.
Мінімальний обсяг замовлення	10 Шт.
Код виробу	ABRCAG
GTIN	4067923026704
Маса штуки (з упаковкою)	22,22 g
Маса штуки (без упаковки)	22,22 g
Митний тарифний номер	85366990
Країна походження	DE

ECLASS-13.0	27440116
ECLASS-15.0	27440116

EU RoHS
Відповідає вимогам Директиви RoHS	Так (Винятки відсутні)
China RoHS
Environment friendly use period (EFUP)	EFUP-E Відсутність небезпечних речовин, що перевищують граничні значення
EU REACH SVHC
Інформація щодо речовини-кандидата за Регламентом REACH (№ CAS)	Речовини з масовою часткою більше ніж 0,1 % відсутні
