TC MOBILE I/O X200 - SMS relay - 2903805

Notes

Utilization restriction
CCCex note	Use in potentially explosive areas is not permitted in China.

Product properties

Product type	Signaling system
MTTF	692 Years (SN 29500 standard, temperature 25°C, operating cycle 21%)
	338 Years (SN 29500 standard, temperature 40°C, operating cycle 34.25%)
	134 Years (SN 29500 standard, temperature 40°C, operating cycle 100%)

Electrical properties

Maximum power dissipation for nominal condition	3.85 W
Mains type	Cellular communication
Supply
Supply voltage range	10 V DC ... 60 V DC
Typical current consumption	50 mA (24 V DC)
Max. current consumption	80 mA

Input data

Digital
Description of the input	Digital input
Number of inputs	4
Switching threshold "0" signal in reference to U_N	≤ 0.3
Switching threshold "1" signal in reference to U_N	≥ 0.7
Analog
Description of the input	Analog input
Number of inputs	2
Input signal	Current or voltage
Resolution	15 bit
Input impedance	600 kΩ (Voltage inputs)
	50 Ω (Current inputs)
Voltage input signal	0 V DC ... 60 V DC
Current input signal	0 mA ... 20 mA
	4 mA ... 20 mA (configurable)
Precision	± 0.1 %

Output data

Switching
Output name	Relay output
Number of outputs	4
Contact switching type	N/O contact
Minimum switching voltage	5 V
Maximum switching voltage	60 V DC
	30 V AC
Limiting continuous current	6 A

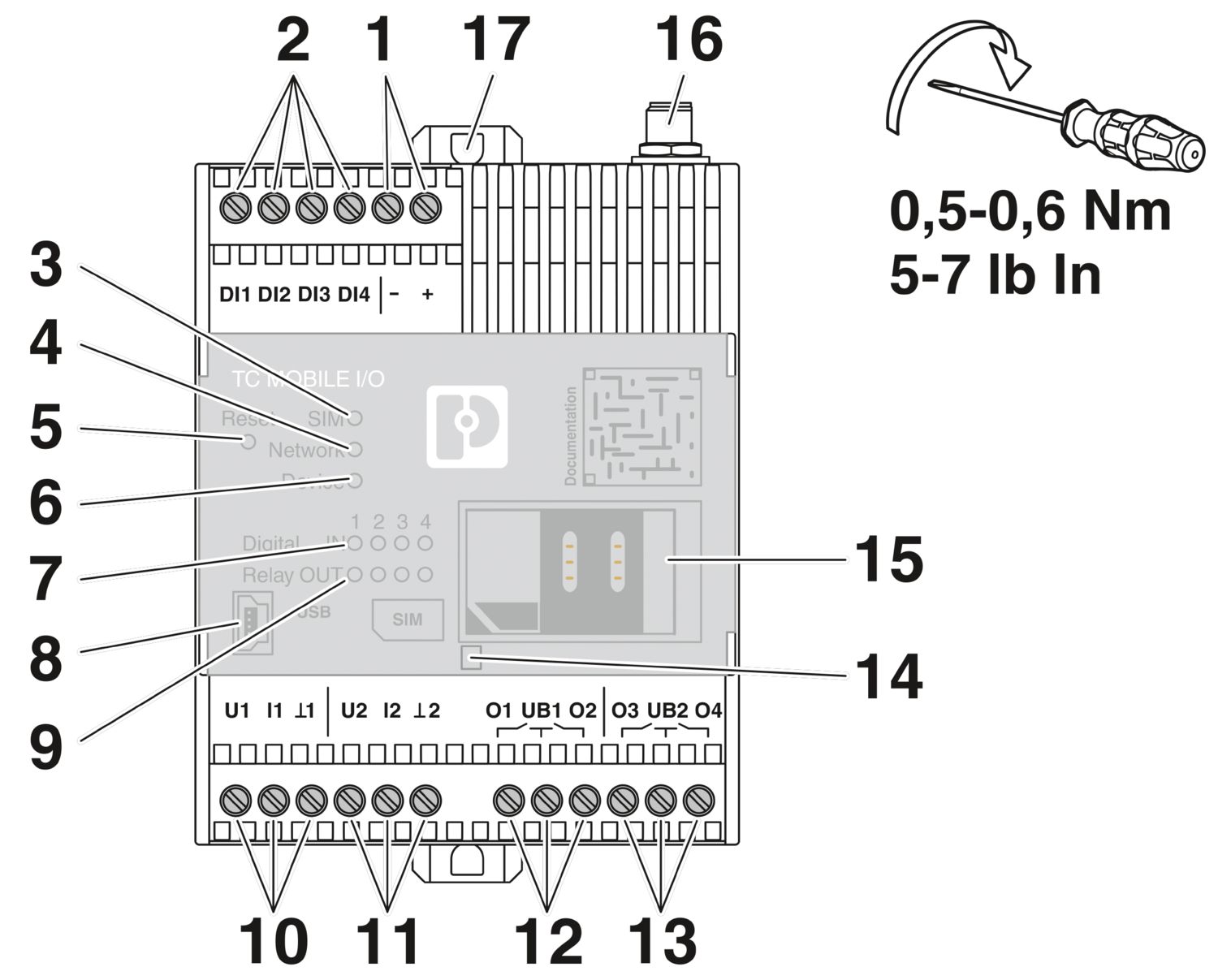

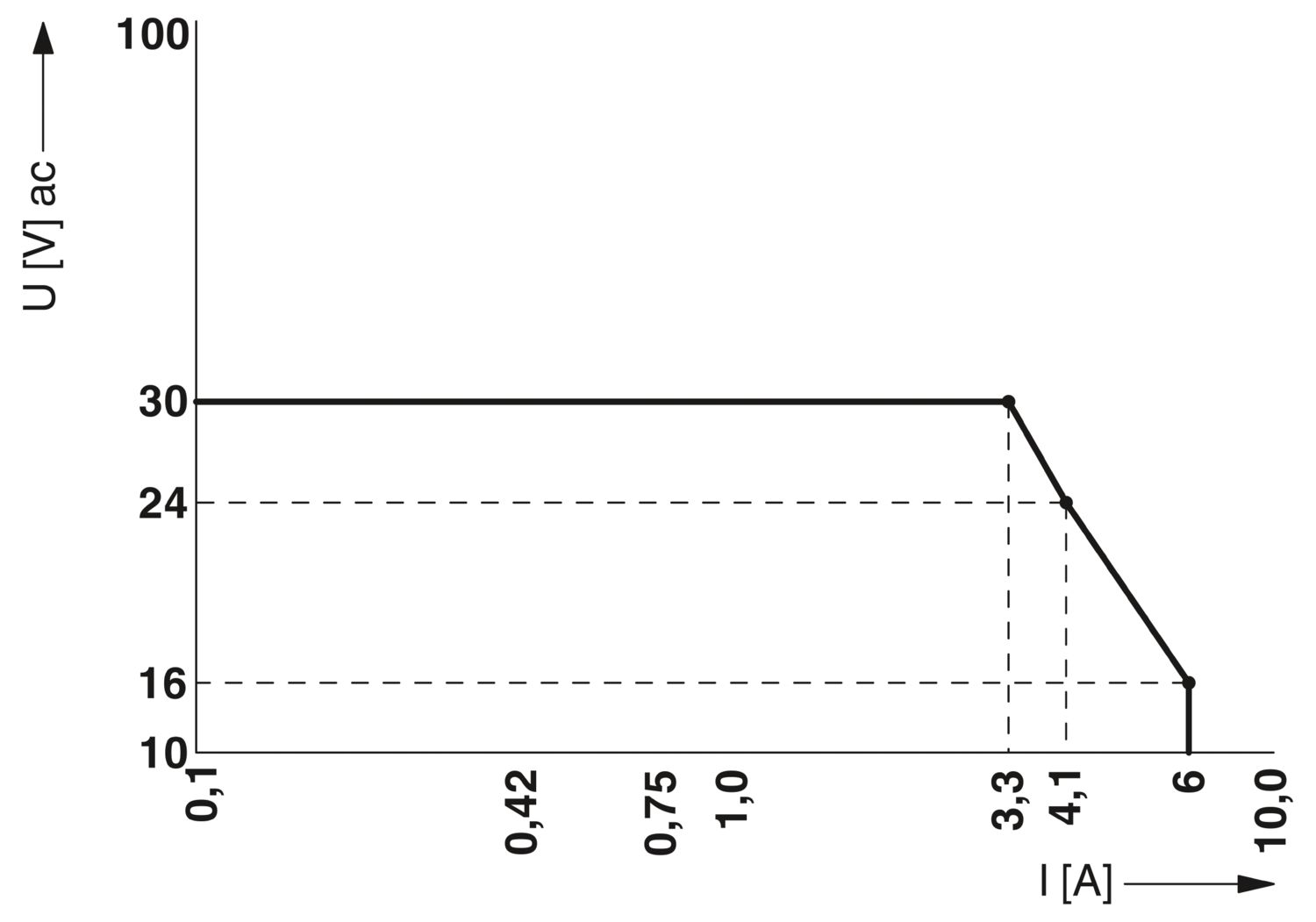

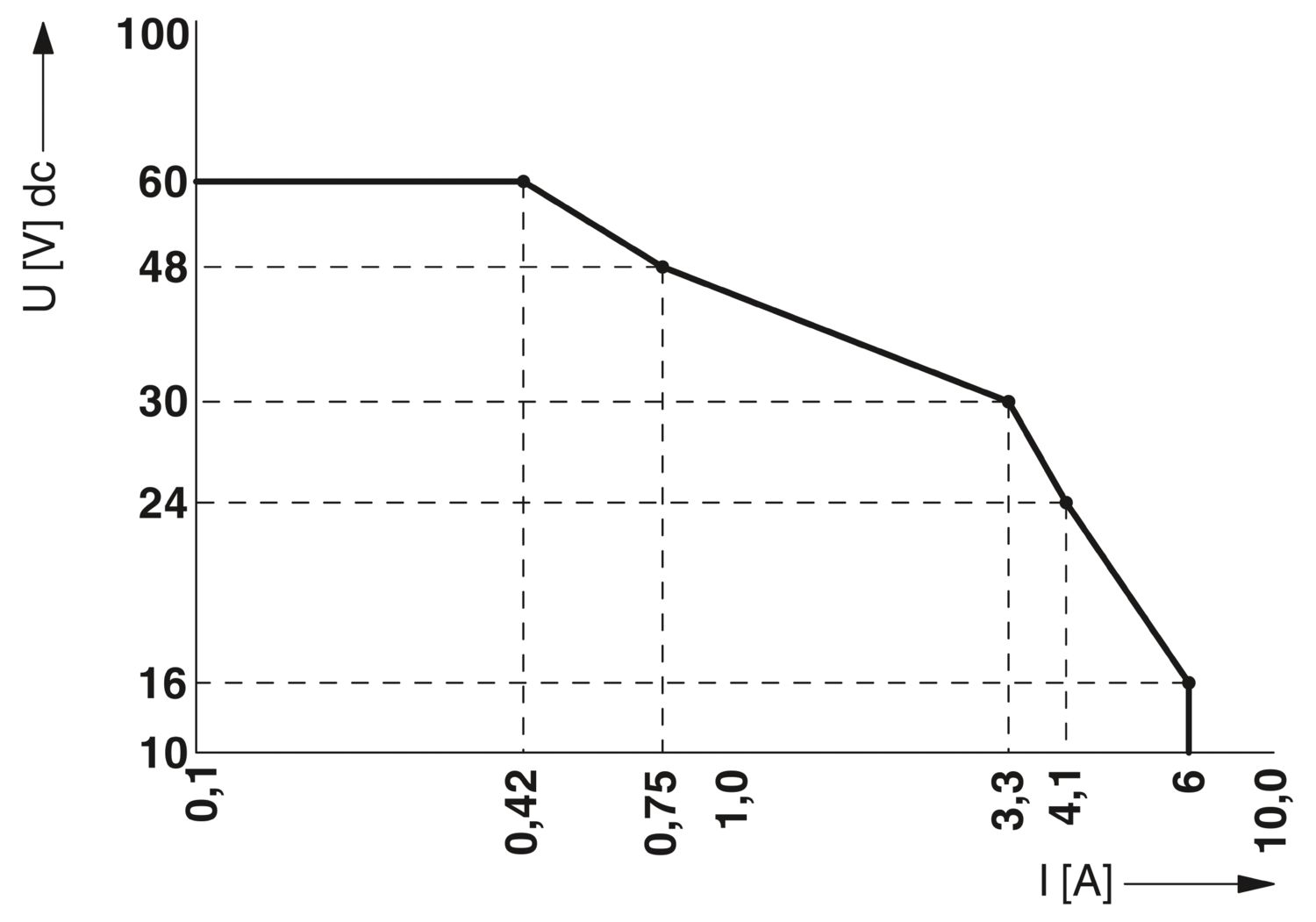

Switching capacity	100 W (Power Source PS2, P_out ≤100 W)
Electrical service life	5000 cycles

Connection data

Supply
Conductor cross section flexible, with ferrule without plastic sleeve	0.25 mm² ... 2.5 mm²
Conductor cross section, flexible, with ferrule, with plastic sleeve	0.25 mm² ... 2.5 mm²
Conductor cross section, flexible	0.20 mm² ... 2.50 mm²
Conductor cross section, rigid	0.20 mm² ... 2.50 mm²
Conductor cross section AWG	24 ... 14
Stripping length	6.50 mm
Tightening torque	0.5 Nm ... 0.6 Nm (5-7 lbs-in, screw terminal blocks)

Interfaces

Web server	yes
Data: USB 2.0
Connection method	Mini-USB type B, 5-pos.
Transmission length	≤ 3 m (only for configuration and diagnostics)
Wireless
Interface description	GSM / GPRS
Frequency range	850 MHz (2 W (EGSM))
	900 MHz (2 W (EGSM))
	1800 MHz (1 W (EGSM))
	1900 MHz (1 W (EGSM))
GPRS	Multislot Class 10

Dimensions

Width	72 mm
Height	90 mm
Depth	62 mm

Material specifications

Color (Upper housing part)	light gray (RAL 7035)
Color (Lower housing part)	black (RAL 9005)
Material (Housing)	Polycarbonate

Environmental and real-life conditions

Ambient conditions
Degree of protection	IP20
Ambient temperature (operation)	-25 °C ... 70 °C (SMS mode only, note the derating information in the technical documentation for data connection)
Ambient temperature (storage/transport)	-40 °C ... 85 °C
Altitude	2000 m
Permissible humidity (operation)	0 % ... 95 %

Approvals

CE
Certificate	CE-compliant
ATEX
Identification	 II 3 G Ex nA nC IIC T4 Gc X
Note	Please follow the special installation instructions in the documentation!
Wireless approval USA, FCC
Note	Part 15.107(a), 15.109(a)
Corrosive gas test
Identification	ISA-S71.04-1985 G3 Harsh Group A
Wireless approval, Europe
Note	RED 2014/53/EU

EMC data

Electromagnetic compatibility	Conformance with EMC Directive 2014/30/EU
Electrostatic discharge
Standards/regulations	EN 61000-4-2
Electrostatic discharge
Contact discharge	± 6 kV
Discharge in air	± 8 kV
Indirect discharge	± 6 kV
Comments	Criterion B
Electromagnetic HF field
Standards/regulations	EN 61000-4-3
Electromagnetic HF field
Frequency range	26 MHz ... 6 GHz
Field intensity	10 V/m
Comments	Criterion A
Fast transients (burst)
Standards/regulations	EN 61000-4-4
Fast transients (burst)
Input	± 2 kV (Unshielded supply line)
Signal	± 2 kV (Shielded signal line)
Signal		± 2 kV (Analog I/O cables, unshielded)
Comments	Criterion B
Surge current load (surge)
Standards/regulations	EN 61000-4-5
Surge current load (surge)
Input	± 0.5 kV (Symmetrical, unshielded supply line)
Input		± 0.5 kV (Asymmetrical, unshielded supply line)
Signal	± 1 kV (Data line, asymmetrical)
Comments	Criterion B
Conducted interference
Standards/regulations	EN 61000-4-6
Conducted interference
Frequency range	0.15 MHz ... 80 MHz
Comments	Criterion A
Voltage	10 V
Emitted interference
Emitted radio interference in acc. with EN 55011	Class B, area of application: Industry and residential
Criteria
Criterion A	Normal operating behavior within the specified limits.
Criterion B	Temporary impairment to operational behavior that is corrected by the device itself.

Standards and regulations

Standards/regulations	EN 50360
Standards/regulations	EN 50121-4

Mounting

Артикул	2903805
Пакувальна одиниця	1 Шт.
Мінімальний обсяг замовлення	1 Шт.
Код виробу	DNC423
Сторінка каталогу	Сторінка402C-6-2019
GTIN	4046356768832
Маса штуки (з упаковкою)	247,5 g
Маса штуки (без упаковки)	247,5 g
Митний тарифний номер	85176200
Країна походження	DE

EU RoHS
Відповідає вимогам Директиви RoHS	Так
винятки, якщо відомі	6(c), 7(a), 7(c)-I
China RoHS
Environment friendly use period (EFUP)	EFUP-50 Пов’язану зі статтею таблицю декларації RoHS для Китаю можна знайти в області завантаження для відповідного товару в розділі «Декларація виробника». Таблиця декларації RoHS для Китаю не видається й не вимагається для всіх товарів з позначкою EFUP-E.
EU REACH SVHC
Інформація щодо речовини-кандидата за Регламентом REACH (№ CAS)	Речовини з масовою часткою більше ніж 0,1 % відсутні
