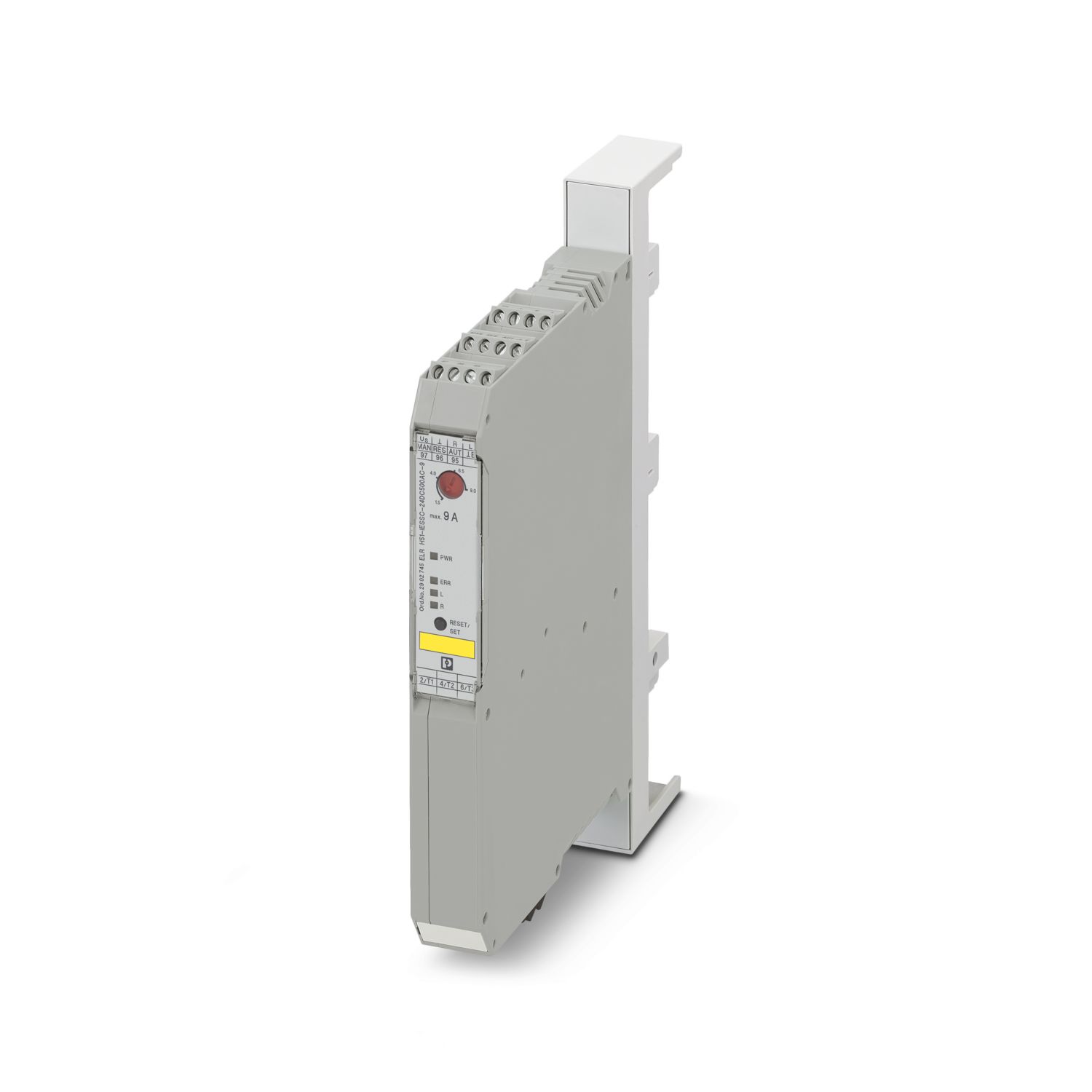

ELR-H51-9-BUSBAR-CLASSIC-SET - Hybrid motor starter - 2904338

Product properties

Product type	Hybrid motor starters
Product family	CONTACTRON
Operating mode	100% operating factor

Electrical properties

Number of phases	3
Motor starter type	Reversing starter
Switching frequency	≤ 2 Hz (Load-dependent)
Maximum power dissipation for nominal condition	11 W
Switching frequency	≤ 2 Hz (Load-dependent)
Maximum power dissipation	7 W
Minimum power dissipation	0.88 W
Coordination type	2
Supply
Rated control circuit supply voltage U_S	24 V DC
Control supply voltage range	19.2 V DC ... 30 V DC
Rated control supply current I_S	40 mA
Protective circuit	Surge protection
Protective circuit		Reverse polarity protection; Parallel polarity protection diode
Insulation characteristics
Rated insulation voltage	500 V
Rated surge voltage	6 kV
Overvoltage category	III
Degree of pollution	2
Insulation characteristics between the control input and control supply voltage, and auxiliary circuit to the main circuit	Safe isolation (IEC 60947-1) at operating voltage ≤ 300 V AC
		Safe isolation (EN 50178) at operating voltage ≤ 300 V AC
		Basic insulation (IEC 60947-1) at operating voltage 300 V AC ... 500 V AC
		Safe isolation (EN 50178) at operating voltage 300 ... 500 V AC
Isolation characteristics between the control input and control supply voltage to auxiliary circuit	Safe isolation (IEC 60947-1) in the auxiliary circuit ≤ 300 V AC
		Safe isolation (EN 50178) in the auxiliary circuit ≤ 300 V AC
Emergency tripping
Operate threshold	> 45 A
Response time	< 2 s

Input data

Control
Input name	Control input right/left
Rated actuating voltage U_C	24 V DC
Triggering voltage range	19.2 V DC ... 30 V DC
Rated actuating current I_C	5 mA
Switching threshold	9.6 V (“0” signal)
	19.2 V (“1” signal)
Switching level	< 5 V DC (For EMERGENCY STOP)
Typical turn-off time	< 30 ms

Output data

AC output
Rated operating voltage U_e	500 V AC
Operating voltage range	42 V AC ... 550 V AC
Mains frequency	50/60 Hz
Load current range	1.5 A ... 9 A
Trigger characteristic in acc. with IEC 60947-4-2	Class 10A
Cooling time	20 min (for auto reset)
Leakage current	0 mA
Protective circuit	Surge protection; Varistor
	Short-circuit protection; Fuse
Acknowledge output
Note	Confirmation: floating change-over contact, signal contact
Contact switching type	1 changeover contact
Switching capacity in accordance with IEC 60947-5-1	3 A (230 V, AC15)
	2 A (24 V (DC13))

Connection data

Control circuits
Connection method	Screw connection
Stripping length	8 mm
Screw thread	M3
Conductor cross section rigid	0.2 mm² ... 2.5 mm²
Conductor cross section flexible	0.2 mm² ... 2.5 mm²
Conductor cross section AWG	24 ... 14
Tightening torque	0.5 Nm ... 0.6 Nm
Tightening torque		5 lb_f-in. ... 7 lb_f-in.
Load circuit
Connection method	Screw connection
Stripping length	8 mm
Screw thread	M3
Conductor cross section rigid	0.2 mm² ... 2.5 mm²
Conductor cross section flexible	0.2 mm² ... 2.5 mm²
Conductor cross section AWG	24 ... 14
Tightening torque	0.5 Nm ... 0.6 Nm
Tightening torque		5 lb_f-in. ... 7 lb_f-in.

Signaling

Status display	LED (yellow)
Operating voltage display	Green LED
Error indication	Red LED

Material specifications

Flammability rating according to UL 94	V0 (Housing)

Environmental and real-life conditions

Ambient conditions
Degree of protection	IP20
Ambient temperature (operation)	-25 °C ... 70 °C (observe derating)
Ambient temperature (storage/transport)	-40 °C ... 80 °C
Altitude	≤ 2000 m

Approvals

ATEX
Identification	 II (2) G [Ex e] [Ex d] [Ex px]
Identification		 II (2) D [Ex t] [Ex p]
Certificate	PTB 07 ATEX 3145
UL approval
Certificate	NLDX.E228652
Safety Integrity Level (SIL, IEC 61508)
Identification	≤ 3
Note	Safe shutdown
Safety Integrity Level (SIL, IEC 61508)
Identification	2
Note	Motor protection
Performance Level (ISO 13849)
Identification	e
Note	Safe shutdown
Category (ISO 13849)
Identification	3
Note	Safe shutdown
UL data
SCCR	100 kA (480 V AC (fuse: 30 A class CC/30 A class J (high fault)))
SCCR		5 kA (480 V AC (fuse: 20 A RK5 (standard fault)))
FLA	6.5 A (480 V AC)
Group installation	20 A (class RK5, SCCR 5kA, #24 - 14 AWG max. solid and stranded)
Group installation		30 A (class CC or J, SCCR 100kA, #24 - 14 AWG max, solid and stranded)
Category code	NLDX / NRNT

Standards and regulations

Standards/regulations
Standards/regulations	IEC 60947-1
	EN 60947-4-2
	IEC 61508
	ISO 13849

Mounting

Mounting type	Bus bar mounting
Mounting type		DIN rail mounting
Assembly note	alignable, for spacing see derating
Mounting position	vertical (horizontal DIN rail, motor output below)

Артикул	2904338
Пакувальна одиниця	1 Шт.
Мінімальний обсяг замовлення	1 Шт.
Код виробу	DK7454
GTIN	4046356802987
Маса штуки (з упаковкою)	463,1 g
Маса штуки (без упаковки)	463 g
Митний тарифний номер	85371098
Країна походження	DE

EU RoHS
Відповідає вимогам Директиви RoHS	Так
винятки, якщо відомі	6(c), 7(a), 7(c)-I
China RoHS
Environment friendly use period (EFUP)	EFUP-50 Пов’язану зі статтею таблицю декларації RoHS для Китаю можна знайти в області завантаження для відповідного товару в розділі «Декларація виробника». Таблиця декларації RoHS для Китаю не видається й не вимагається для всіх товарів з позначкою EFUP-E.
EU REACH SVHC
Інформація щодо речовини-кандидата за Регламентом REACH (№ CAS)	Lead (№ CAS: 7439-92-1)
