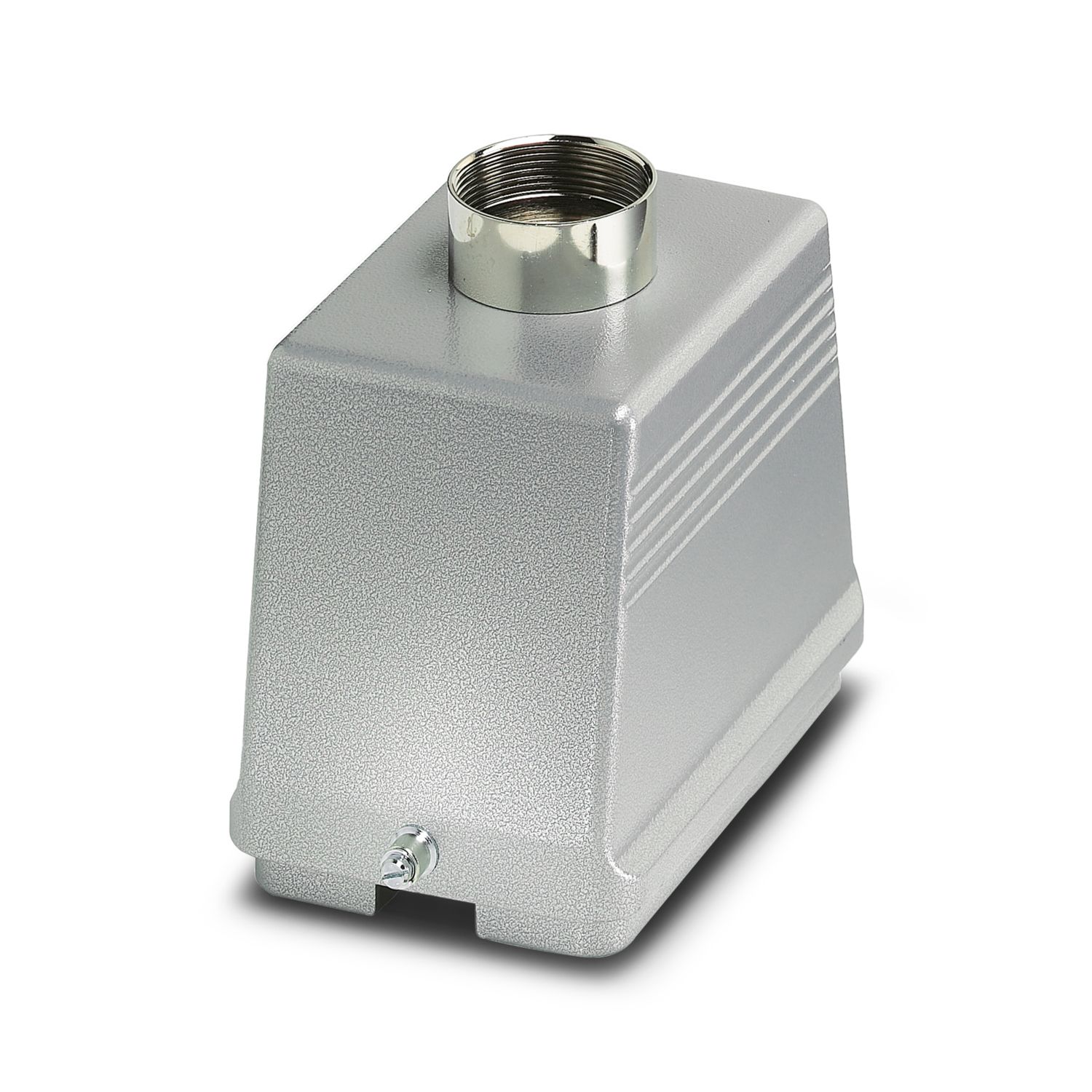

HC-B 48-TFL-96/O1PG29G
-
Housing
1675159
Sleeve housing, for single locking latch, height 96 mm, without screw connection, 1x Pg29, straight cable entry
Докладно про виріб
| General | For contact inserts HC-B48, DD216, M |
| Product type | Housing with locking latch |
| Housing type | Sleeve housing |
| Application | Standard |
| Type | B48 |
| No. of cable outlets | 1 |
| Type of the screw connection | 1x Pg29 |
| Cable outlet | straight |
| Pg screw connection | none |
| Dimensional drawing |
|
| Width | 89 mm |
| Height | 96 mm |
| Length | 131.5 mm |
| Housing material | Die-cast aluminum |
| Housing surface material | Powder-coated, gray |
| Mechanical data | |
| Type of the screw connection | 1x Pg29 |
| Locking type | Pin |
| Ambient conditions | |
| Degree of protection | IP65 |
| Ambient temperature (operation) | -40 °C ... 125 °C |
