HC-B 24-SML-84/O1M32
-
Housing
1645752

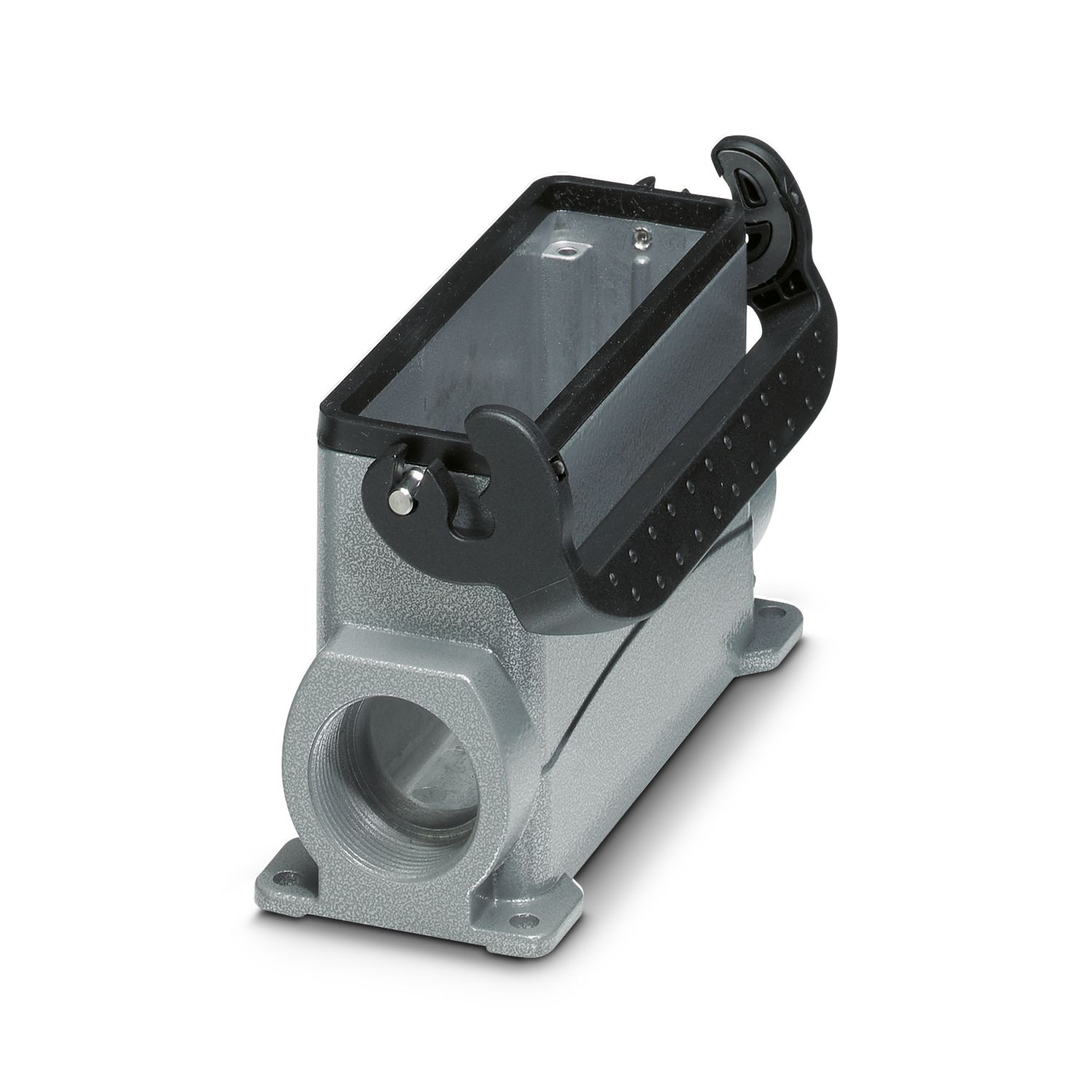

HEAVYCON box mounting base B24, with single locking latch, height 84 mm, with support 1x M32
Докладно про виріб
| General | For contact inserts HC-B24, BB46, D64, DD108, M |
| Product type | Housing with locking latch |
| Housing type | Surface mounting housing |
| Application | Standard |
| Type | B24 |
| No. of cable outlets | 1 |
| Type of the screw connection | 1x M32 |
| Shielded | no |
| Cable outlet | left (view of the opened single locking latch) |
| Pg screw connection | none |
| Dimensional drawing |
|
| Width | 57 mm |
| Height | 84 mm |
| Length | 144 mm |
| Seal material | NBR |
| Housing material | Die-cast aluminum |
| Housing surface material | Powder-coated, gray |
| Locking latch material | Stainless steel, handle: PA |
| Mechanical data | |
| Type of the screw connection | 1x M32 |
| Locking type | Latch |
| Assembly note | For half and full screw connections |
| Ambient conditions | |
| Degree of protection | IP65 |
| Ambient temperature (operation) | -40 °C ... 125 °C |
