UK 5-HESI - Fuse modular terminal block

3004100

Fuse modular terminal block, fuse type: Glass / ceramics / ..., fuse type: G / 5 x 20 / 5 x 25 / 5 x 30, nom. voltage: 800 V, nominal current: 6.3 A, number of positions: 1, connection method: Screw connection, Rated cross section: 1 mm², cross section: 0.2 mm²- 4 mm², mounting type: NS 35/7,5, NS 35/15, NS 32, color: black

Докладно про виріб

Note regarding marking	For terminal marking, please use marking material with 8.2 mm pitch.
Note regarding marking	For lever marking, please use marking material with 6.2 mm pitch.

Product type	Fuse terminal block
Number of positions	1
Number of connections	2
Number of rows	1
Potentials	1
Insulation characteristics
Overvoltage category	III
Degree of pollution	3

Fuse type	Glass / ceramics / ...
Rated surge voltage	8 kV
Maximum power dissipation for nominal condition	1.02 W
Fuse	G / 5 x 20 / 5 x 25 / 5 x 30

Number of connections per level	2
Nominal cross section	4 mm²
Level 1 above 1 below 1
Screw thread	M3
Tightening torque	0.6 ... 0.8 Nm
Stripping length	8 mm
Internal cylindrical gage	A4
Connection in acc. with standard	IEC 60947-7-3
Conductor cross section rigid	0.2 mm² ... 4 mm²
Cross section AWG	24 ... 12 (converted acc. to IEC)
Conductor cross section flexible	0.2 mm² ... 4 mm²
Conductor cross section, flexible [AWG]	24 ... 12 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)	0.25 mm² ... 4 mm²
Flexible conductor cross section (ferrule with plastic sleeve)	0.25 mm² ... 4 mm²
Cross-section with insertion bridge, rigid	4 mm²
Cross-section with insertion bridge, flexible	4 mm²
2 conductors with same cross section, solid	0.2 mm² ... 1.5 mm²
2 conductors with same cross section, flexible	0.2 mm² ... 1.5 mm²
2 conductors with same cross section, flexible, with ferrule without plastic sleeve	0.25 mm² ... 1.5 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve	0.5 mm² ... 1.5 mm²
Nominal current	6.3 A
Maximum load current	6.3 A (the current is determined by the fuse used)
Nominal voltage	800 V (As a fuse terminal block)
Nominal cross section	1 mm²
Connection in acc. with standard	IEC 60947-7-3
Conductor cross section rigid	0.2 mm² ... 4 mm²
Cross section AWG	24 ... 12 (converted acc. to IEC)
Conductor cross section flexible	0.2 mm² ... 4 mm²
Conductor cross-section flexible (ferrule without plastic sleeve)	0.25 mm² ... 4 mm²
Flexible conductor cross section (ferrule with plastic sleeve)	0.25 mm² ... 4 mm²
Cross-section with insertion bridge, rigid	4 mm²
Cross-section with insertion bridge, flexible	4 mm²
2 conductors with same cross section, solid	0.2 mm² ... 1.5 mm²
2 conductors with same cross section, flexible	0.2 mm² ... 1.5 mm²
2 conductors with same cross section, flexible, with ferrule without plastic sleeve	0.25 mm² ... 1.5 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve	0.5 mm² ... 1.5 mm²
Nominal current	6.3 A
Maximum load current	6.3 A
Nominal voltage	800 V (As a disconnect terminal block)
Nominal cross section	1 mm²

Width	8.2 mm
Height	72.5 mm
Depth on NS 32	61.5 mm
Depth on NS 35/7,5	56.5 mm
Depth on NS 35/15	64 mm

Color	black (RAL 9005)
Flammability rating according to UL 94	V0
Insulating material group	I
Insulating material	PA
Static insulating material application in cold	-60 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))	125 °C
Relative insulation material temperature index (Elec., UL 746 B)	130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26	HL 1 - HL 3
Calorimetric heat release NFPA 130 (ASTM E 1354)	27,5 MJ/kg
Surface flammability NFPA 130 (ASTM E 162)	passed
Specific optical density of smoke NFPA 130 (ASTM E 662)	passed
Smoke gas toxicity NFPA 130 (SMP 800C)	passed

Mechanical data
Open side panel	No

Oscillation/broadband noise
Specification	DIN EN 50155 (VDE 0115-200):2008-03
Spectrum	Long life test category 1, class B, body mounted
Frequency	f₁ = 5 Hz to f₂ = 150 Hz
ASD level	1.857 (m/s²)²/Hz
Acceleration	0.8g
Test duration per axis	5 h
Test directions	X-, Y- and Z-axis
Result	Test passed
Shocks
Specification	DIN EN 50155 (VDE 0115-200):2008-03
Pulse shape	Half-sine
Acceleration	5g
Shock duration	30 ms
Number of shocks per direction	3
Test directions	X-, Y- and Z-axis (pos. and neg.)
Result	Test passed
Ambient conditions
Ambient temperature (operation)	-60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.)
Ambient temperature (storage/transport)	-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly)	-5 °C ... 70 °C
Ambient temperature (actuation)	-5 °C ... 70 °C
Permissible humidity (operation)	20 % ... 90 %
Permissible humidity (storage/transport)	30 % ... 70 %

Connection in acc. with standard	IEC 60947-7-3
	IEC 60947-7-3

Mounting type	NS 35/7,5
	NS 35/15
	NS 32

Комерційні дані

Артикул	3004100
Пакувальна одиниця	50 Шт.
Мінімальний обсяг замовлення	50 Шт.
Код виробу	BE1234
Сторінка каталогу	Сторінка492C-1-2019
GTIN	4017918090623
Маса штуки (з упаковкою)	18,018 g
Маса штуки (без упаковки)	16 g
Митний тарифний номер	85369095
Країна походження	CN

Класифікації

Відповідність стандартам

Approval Specification Data
	Номінальна напруга U_N	Номінальний струм I_N	Поперечний переріз AWG
Use group B
	600 V	6.3 A	28 - 10
Use group C
	600 V	6.3 A	28 - 10

Approval Specification Data
	Номінальна напруга U_N	Номінальний струм I_N	Поперечний переріз AWG
Use group B
	600 V	12 A	26 - 10
Use group C
	600 V	12 A	26 - 10
Use group F
	600 V	12 A	26 - 10

Environmental product compliance

Сумісна продукція

Аксесуари

Переваги

Large-surface marking

Safety lever locked in end position

EU RoHS
Відповідає вимогам Директиви RoHS	Так
винятки, якщо відомі	6(c)
China RoHS
Environment friendly use period (EFUP)	EFUP-50 Пов’язану зі статтею таблицю декларації RoHS для Китаю можна знайти в області завантаження для відповідного товару в розділі «Декларація виробника». Таблиця декларації RoHS для Китаю не видається й не вимагається для всіх товарів з позначкою EFUP-E.
EU REACH SVHC
Інформація щодо речовини-кандидата за Регламентом REACH (№ CAS)	Lead (№ CAS: 7439-92-1)
SCIP	2a1d1022-6598-4131-8855-4dfc82edc144

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

UK 5-HESI - Fuse modular terminal block

3004100

Докладно про виріб

ECLASS

ETIM

UNSPSC

CSA

cULus Recognized

EAC

Сумісна продукція

Переваги

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

UK 5-HESI - Fuse modular terminal block 3004100

Докладно про виріб

ECLASS

ETIM

UNSPSC

Сумісна продукція

EBS 2- 8 - Insertion bridge 3118151

EBS 3- 8 - Insertion bridge 3118148

EBS 10- 8 - Insertion bridge 3118135

EB 1/3/5/7-8 - Insertion bridge 3072340

EB 1/3/5-8 - Insertion bridge 3072341

SBS 8:UNBEDRUCKT - Marker card 1007235

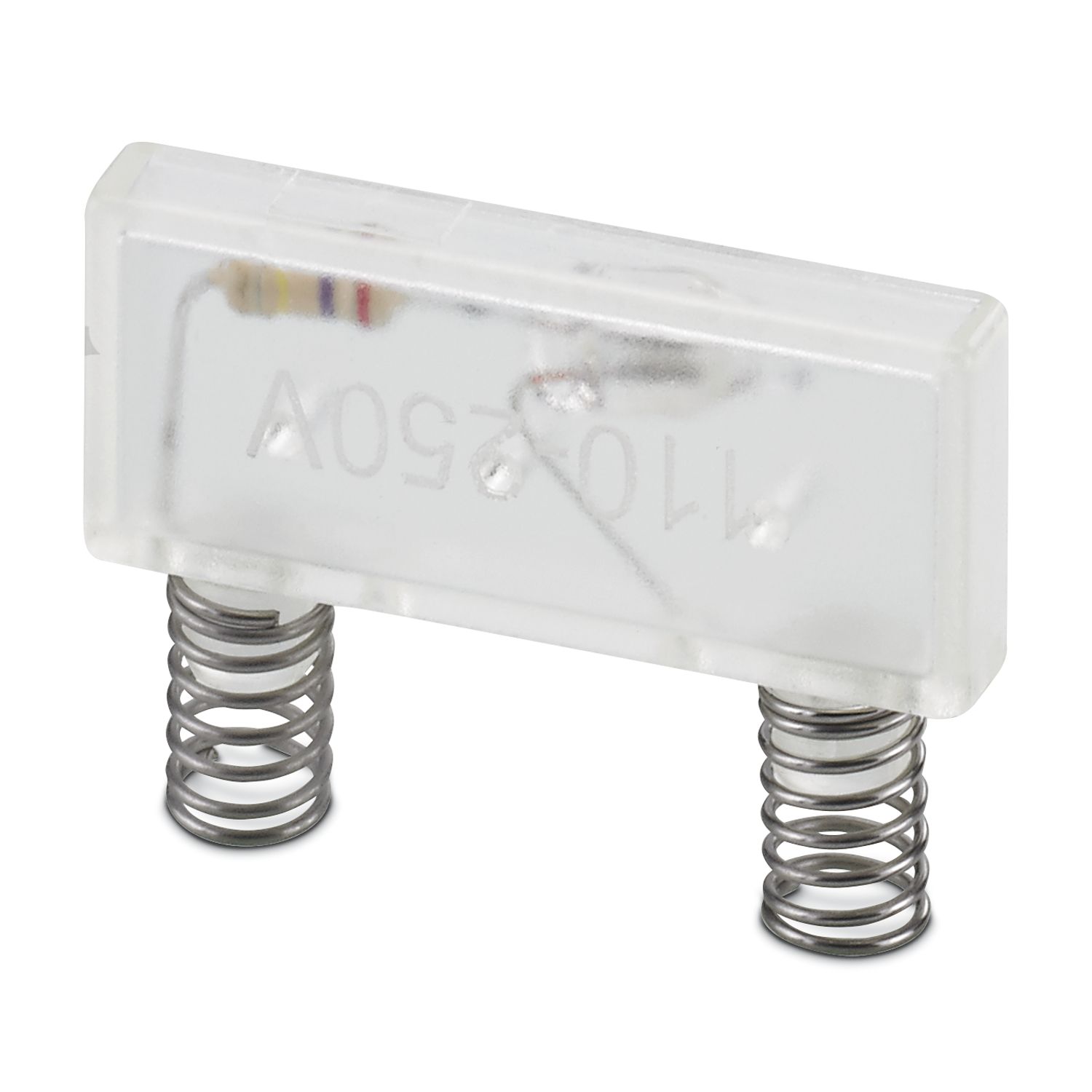

UK 5-HESI LEUCHTANZEIGE 24 - LED display 2202220
