HC-B 10-AMQ-EMV
-
EMC housing
1642522

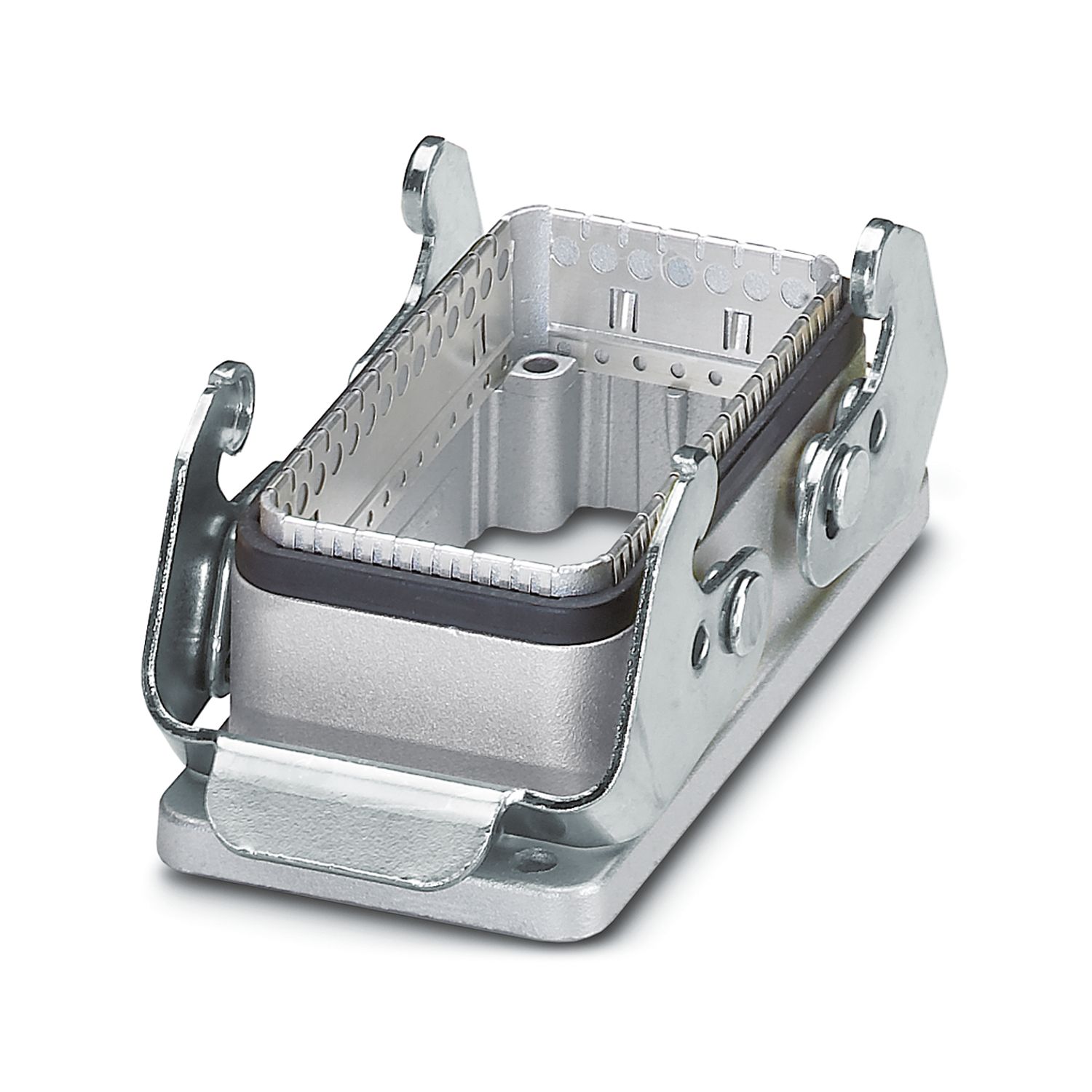

HEAVYCON panel mounting base B10, with double locking latch, EMC version. Not suitable for D series terminal adapters
Докладно про виріб
| General | For contact inserts HC-B10, BB18, DD42, M, K8/24 |
| Product type | Housing with locking latch |
| Housing type | Panel mounting base |
| Application | EMC |
| Type | B10 |
| Shielded | yes |
| Pg screw connection | none |

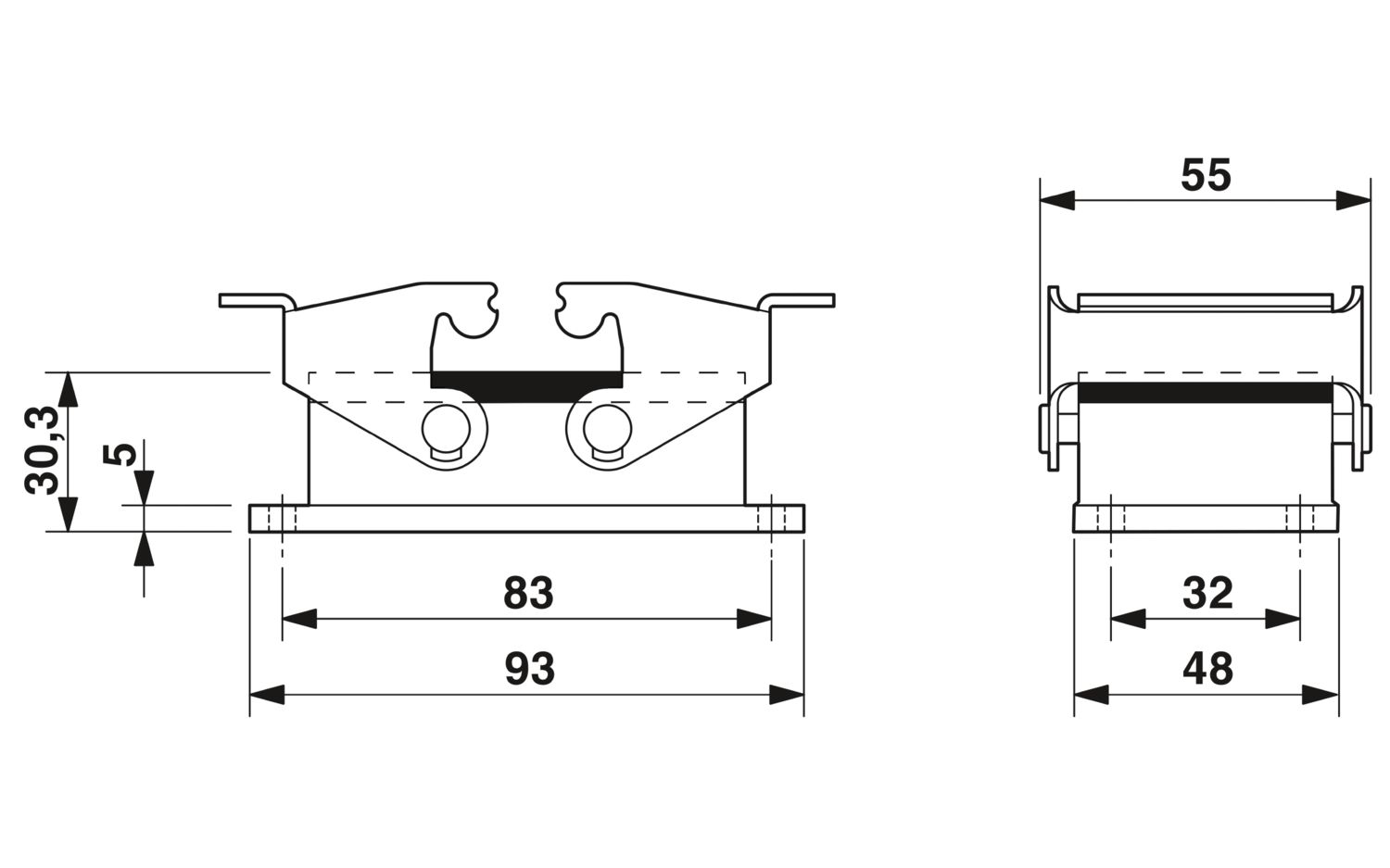

| Dimensional drawing |
|
| Width | 48 mm |
| Height | 30.5 mm |
| Length | 93 mm |

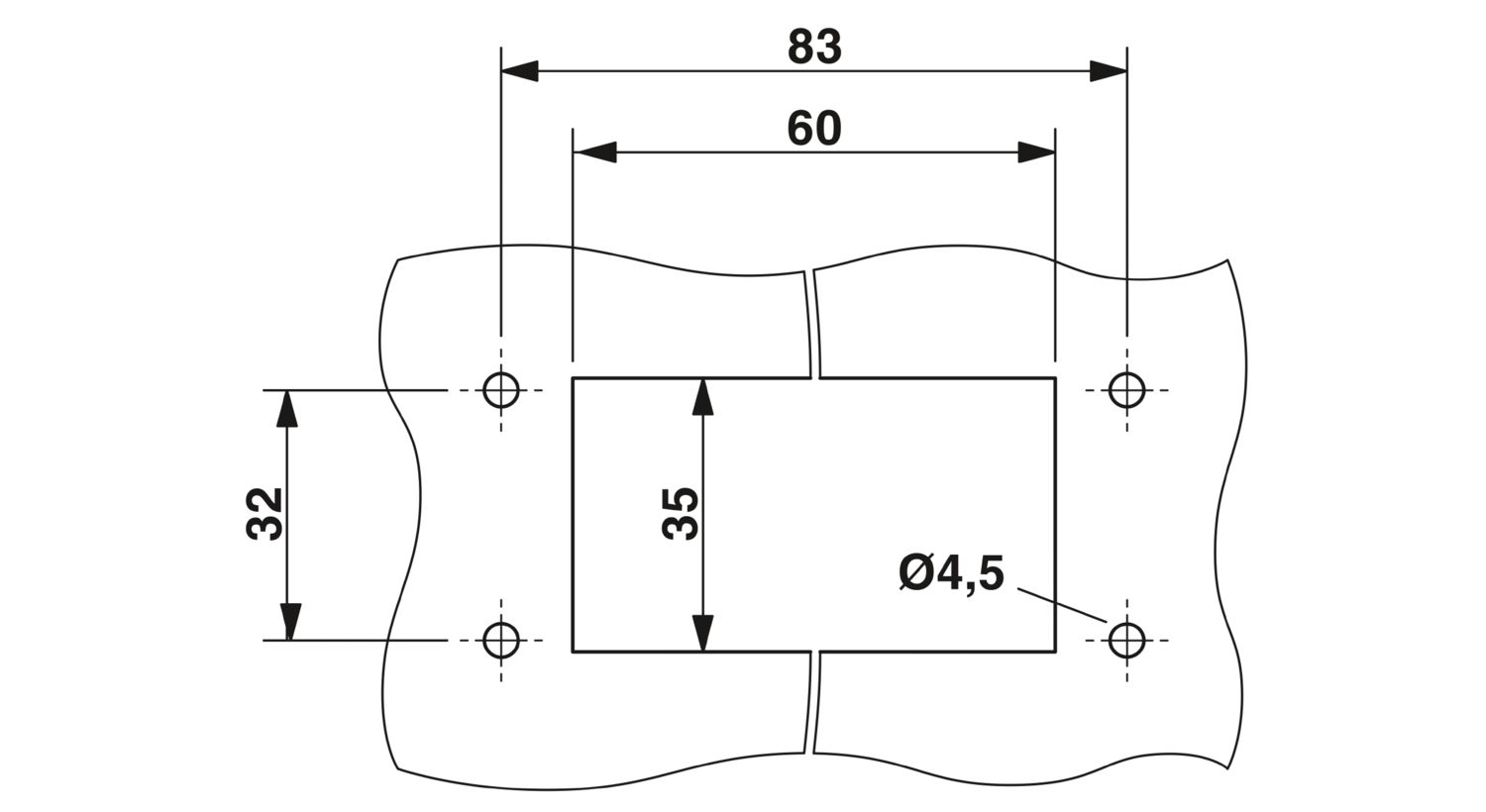

| Installation dimensions | |
| Width of the assembly cutout | 35 mm |
| Length of the assembly cutout | 60 mm |
| Seal material | NBR |
| Housing material | Die-cast aluminum |
| Housing surface material | EMC coating, silver |
| Locking latch material | Steel, galvanized |
| Mechanical data | |
| Locking type | Latch |
| Assembly note | Cannot be used for HC-D... series terminal adapters. |
| If insulating powder coating is present on the control cabinet panel, it should be removed from the profile gasket area in order to ensure optimum shielding. |
| Ambient conditions | |
| Degree of protection | IP65 |
| Ambient temperature (operation) | -40 °C ... 100 °C |
