HC-QA-B 6-BU/PER
-
Contact insert
1678871
HEAVYCON terminal adapter female insert, B6 series, 6-pos., protective conductor connection on the right for the left side of the control cabinet, QUICKON connection; contact inserts with screw, crimp, push-in and QUICKON connection can be used as mating connectors.
Докладно про виріб
| General | For HEAVYCON ADVANCE panel mounting flange and HEAVYCON panel mounting base of type B6. Contact inserts with screw, crimp, and QUICKON connections can be used as mating connectors. Connectors may be operated only when there is no load/voltage. |
| Product type | Terminal adapter |
| Type | B6 |
| Number of positions | 6 |
| Connection profile | 6+PE |
| Type | for the left side of the control cabinet |
| Insulation characteristics | |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Rated voltage for power contacts | 230/400 V |
| Rated surge voltage | 4 kV |
| Rated current | 16 A |
| Connection technology | |
| Connection technology | QUICKON connection |
| Connection in acc. with standard | IEC / EN |
| Conductor connection | |
| Conductor cross section | 0.5 mm² ... 1.5 mm² |
| Connection cross section AWG | 20 ... 16 |

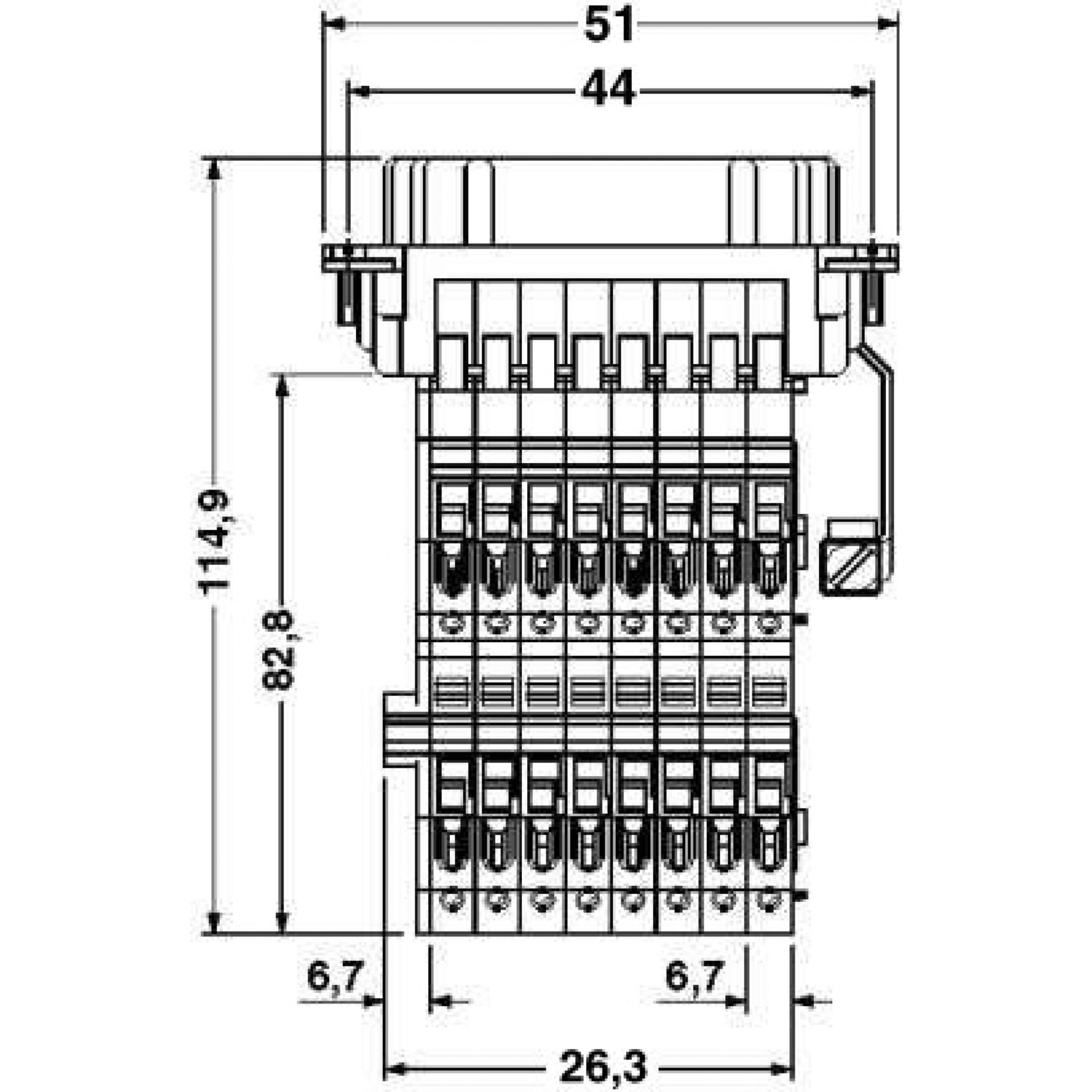

| Dimensional drawing |
|
| Width | 51 mm |
| Terminal adapter width | 26.3 mm |
| Height | 34 mm |
| Length | 114.9 mm |
| Material Wire insulation | PVC / PE |
| Flammability rating according to UL 94 | V0 |
| Contact material | Copper alloy |
| Contact surface material | Ag |
| Contact carrier material | PA/PC |
| Structure of individual litz in acc. with VDE 0295 / smallest wire diameter | VDE 0295 Cl.1-5 / 0.2 mm |
| Wire diameter including insulation | 3 mm |
| Mechanical data | |
| Insertion/withdrawal cycles | ≥ 500 |
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 125 °C |
| Temperature when conductor connected | -25 °C ... 50 °C |
| Assembly note | Cannot be used for mating connectors with spring-cage and Push-in connections. If the conductor contacts again, it must be cut off above the last contact point. |
