HC-B24/16-ADP-SS
-
Adapter plate
1034216
Adapter plate, design: B24 to B16
Detalhes dos produtos
| General | For wall cutouts of type B24 |
| Product type | Adapter plate |
| Type | B24 |
| Seal present | yes |

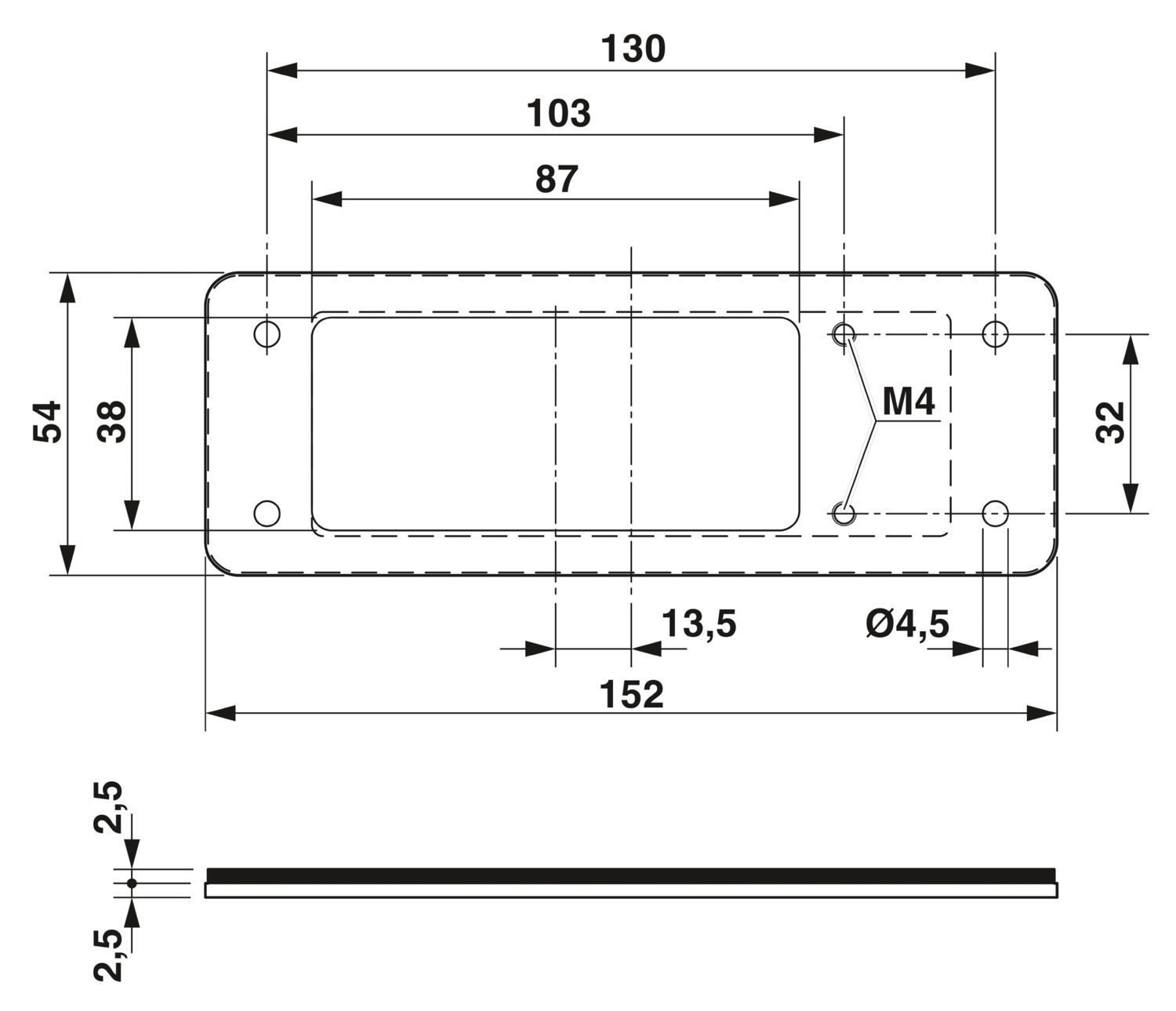

| Dimensional drawing |
|
| Width | 53 mm |
| Height | 5 mm |
| Length | 151 mm |
| Drill hole distance, horizontal | 130 mm |
| Drill hole distance, vertical | 32 mm |
| Hole diameter | 5.5 mm |
| Material | Stainless steel 1.4301/AISI 304 |
| Seal material | NBR/SBR |
| Ambient conditions | |
| Degree of protection | IP54 |
| IP65 | |
| Ambient temperature (operation) | -40 °C ... 125 °C |
| Assembly note | Torque of the mounting screws 1 ... 2 Nm |
