HC-COM-HCWS-PL-BK
-
Protective cover
1079395
Protective cover COM, with single locking latch, protective cover material: PA, height: 20.5 mm, seal: no, Standard, for pin inserts
Detalhes dos produtos
| Product type | Protective cover |
| Housing type | Protective cover |
| Series | HC-COM |
| Application | Standard |
| Type | COM |
| Retaining cord present | yes |
| Seal present | no |

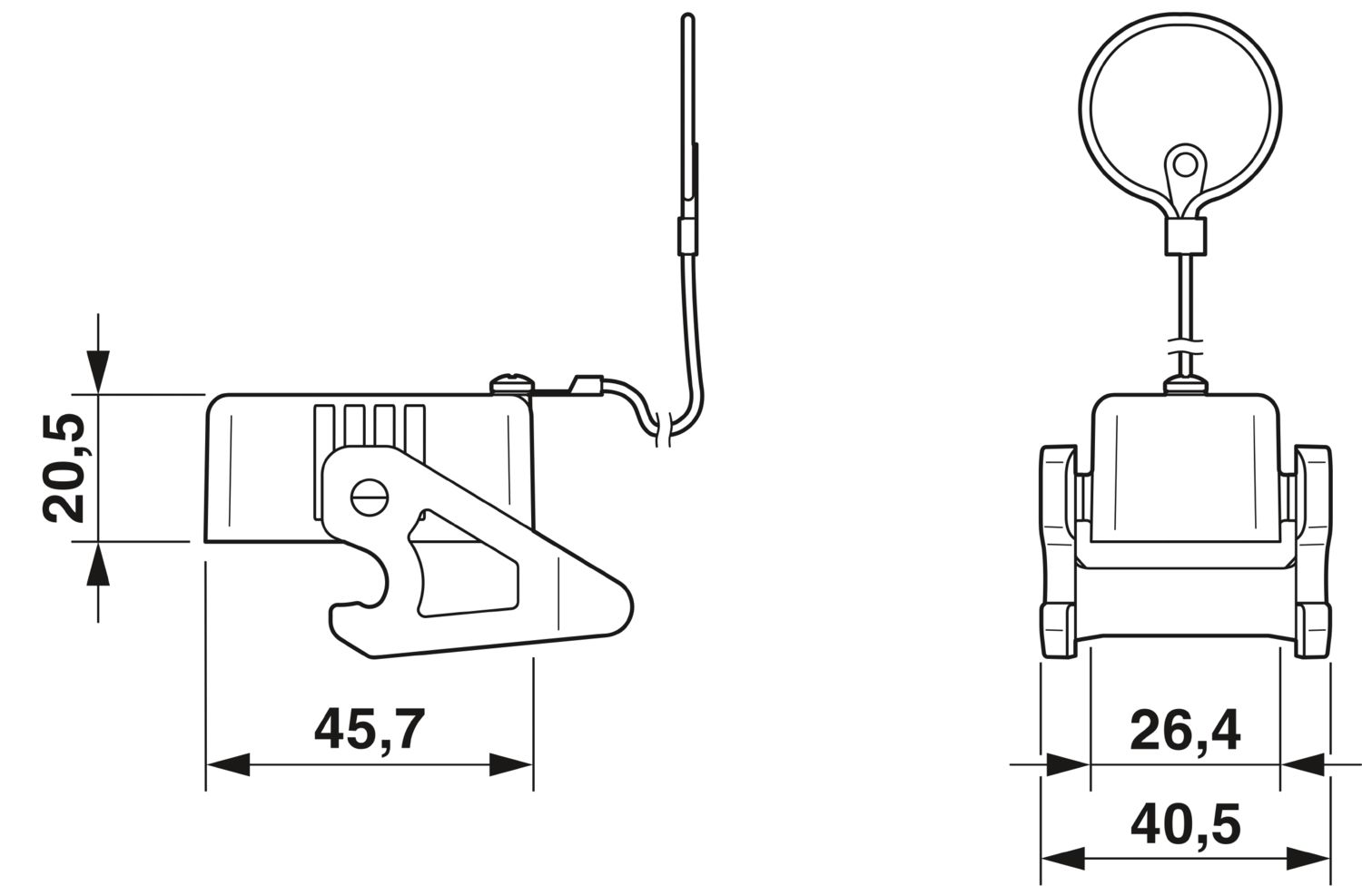

| Dimensional drawing |
|
| Width | 39 mm |
| Height | 20.5 mm |
| Length | 45.8 mm |
| Material Protective cover | PA |
| Flammability rating according to UL 94 | V0 |
| Material, protective cover | PA |
| Locking latch material | PA |
| Mechanical data | |
| Locking type | Latch |
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 125 °C |
