MINI MCR-2-U-I4 - Signal conditioner

2902029

3-way signal conditioner with plug-in connection technology for the electrical isolation of analog signals. Input signal: 0 V ... 10 V, output signal: 4 mA ... 20 mA, screw connection technology

Transferência gratuita disponível. Downloads

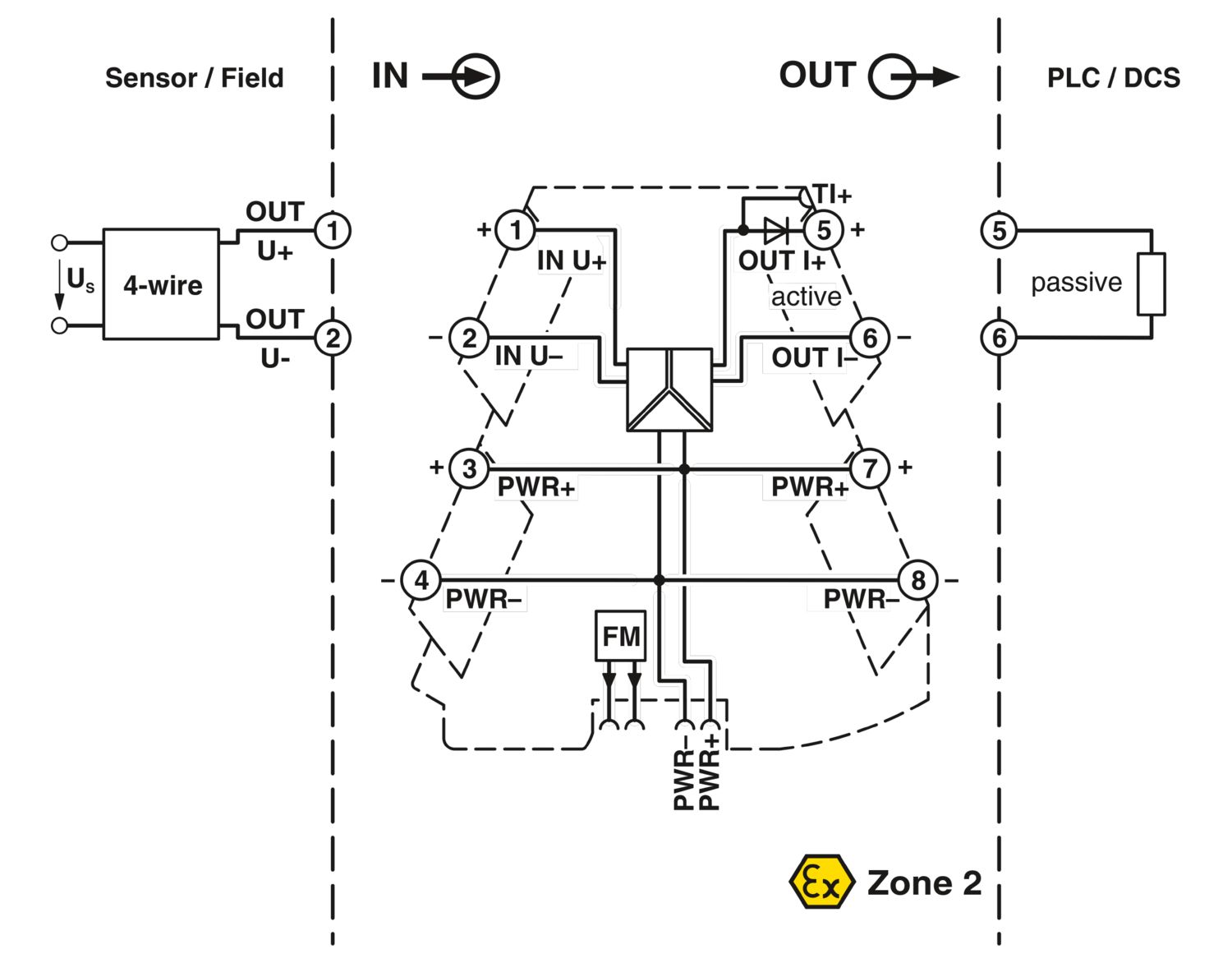

Detalhes dos produtos

Descrição do produto

Utilization restriction
EMC note	EMC: class A product, see manufacturer's declaration in the download area

Product type	Signal conditioner
Product family	MINI Analog Pro
No. of channels	1
Type	Signal conditioner
Insulation characteristics: GB Standard
Overvoltage category	II
Pollution degree	2

Electrical isolation	3-way isolation
Electrical isolation between input and output	yes
Limit frequency (3 dB)	 30 Hz
Protective circuit	Transient protection
Step response (10-90%)	 10 ms
Maximum temperature coefficient	0.01 %/K
Temperature coefficient, typical	0.01 %/K
Maximum transmission error	0.05 % (of final value)
Electrical isolation Input/output/power supply
Rated insulation voltage	300 V_rms
Test voltage	3 kV AC (50 Hz, 60 s)
Insulation	Reinforced insulation according to IEC/EN 61010-1
Supply
Nominal supply voltage	24 V DC
Supply voltage range	9.6 V DC ... 30 V DC (The DIN rail connector (ME 6,2 TBUS-2 1,5/5-ST-3,81 GN, item no. 2869728) can be used to bridge the supply voltage. It can be snapped onto a 35 mm DIN rail in accordance with EN 60715)
Typical current consumption	25 mA (24 V DC)
	54 mA (12 V DC)
Power consumption	≤ 800 mW (9.6 V DC)

Signal: Voltage
Number of inputs	1
Configurable/programmable	no
Voltage input signal	0 V ... 10 V
Input resistance of voltage input	 1 MΩ

Signal: Current
Number of outputs	1
Configurable/programmable	no
Non-load voltage	< 17 V
Current output signal	4 mA ... 20 mA
Max. current output signal	22 mA
Load/output load current output	≤ 600 Ω (20 mA)
Ripple	< 20 mV_PP (600 Ω)

Connection method	Screw connection
Stripping length	10 mm
Screw thread	M3
Conductor cross section rigid	0.2 mm² ... 1.5 mm² (with ferrule)
	0.14 mm² ... 2.5 mm² (without ferrule)
Conductor cross section flexible	0.14 mm² ... 2.5 mm²
Conductor cross section AWG	24 ... 12 (flexible)
Tightening torque	0.5 Nm ... 0.6 Nm

Ex installation (EPL)	Gc
	Div. 2

Status display	Green LED (supply voltage)

Width	6.2 mm
Height	109.81 mm
Depth	119.2 mm

Color	gray (RAL 7042)
Housing material	PBT
Fire protection for rail vehicles (DIN EN 45545-2) R22	HL 1 - HL 2
Fire protection for rail vehicles (DIN EN 45545-2) R23	HL 1 - HL 2
Fire protection for rail vehicles (DIN EN 45545-2) R24	HL 1 - HL 2

Ambient conditions
Degree of protection	IP20 (not assessed by UL)
Ambient temperature (operation)	-40 °C ... 70 °C
Ambient temperature (storage/transport)	-40 °C ... 85 °C
Altitude	≤ 2000 m
Permissible humidity (operation)	5 % ... 95 % (non-condensing)

CE
Certificate	CE-compliant
ATEX
Identification	 II 3 G Ex ec IIC T4 Gc
Certificate	BVS 19 ATEX E 047 X
IECEx
Identification	Ex ec IIC T4 Gc
Certificate	IECEx BVS 19.0041X
CCC / China-Ex
Identification	Ex ec IIC T4 Gc
UL, USA/Canada
Identification	UL 508 Listed
	Class I, Div. 2, Groups A, B, C, D T6
	Class I, Zone 2, Group IIC T6
Shipbuilding approval
Certificate	DNV GL TAA00002UA
EAC Ex
Identification	 2Ex ec IIC T4 Gc
Certificate	BY/112 02.01 TP012 103.01 00079
Shipbuilding data
Temperature	B
Humidity	B
Vibration	A
EMC	A
Enclosure	Required protection according to the Rules shall be provided upon installation on board

Electromagnetic compatibility	Conformance with EMC directive
Noise immunity	EN 61000-6-2
Note	When being exposed to interference, there may be minimal deviations.
Noise emission
Standards/regulations	EN 61000-6-4
Electrostatic discharge
Standards/regulations	EN 61000-4-2
Electrostatic discharge
Comments	Safety measures must be taken to prevent electrostatic discharge.
Electromagnetic HF field
Designation	Electromagnetic RF field
Standards/regulations	EN 61000-4-3
Fast transients (burst)
Designation	Fast transients (burst)
Standards/regulations	EN 61000-4-4
Surge current load (surge)
Standards/regulations	EN 61000-4-5
Conducted interference
Designation	Conducted interferences
Standards/regulations	EN 61000-4-6

Electrical isolation	3-way isolation
GB Standard
Standards/regulations	GB/T 3836.1
	GB/T 3836.3
	GB/T 3836.4

Mounting type	DIN rail mounting
Assembly note	The DIN rail connector can be used for bridging the supply voltage. It can be snapped onto a 35 mm EN 60715 DIN rail.
Mounting position	any

Dados comerciais

N.º de artigo	2902029
Pcs./Emb	1 Unidade
Quantidade mínima de pedido	1 Unidade
Chave comercial	DK1
Chave de produto	DK1121
Página de catálogo	Página 76 (C-5-2019)
GTIN	4046356649704
Peso por unidade (inclusive embalagem)	115 g
Peso por unidade (excluindo embalagem)	97 g
Número do imposto alfandegário	85437090
País de origem	DE
