LM-S-LS-H
-
Lightning monitoring system
2800616
Optical lightning sensor for the live monitoring system for the continuous detection and evaluation of lightning strikes. IP67 protection.
Este produto precisa de outros produtos para a operação.

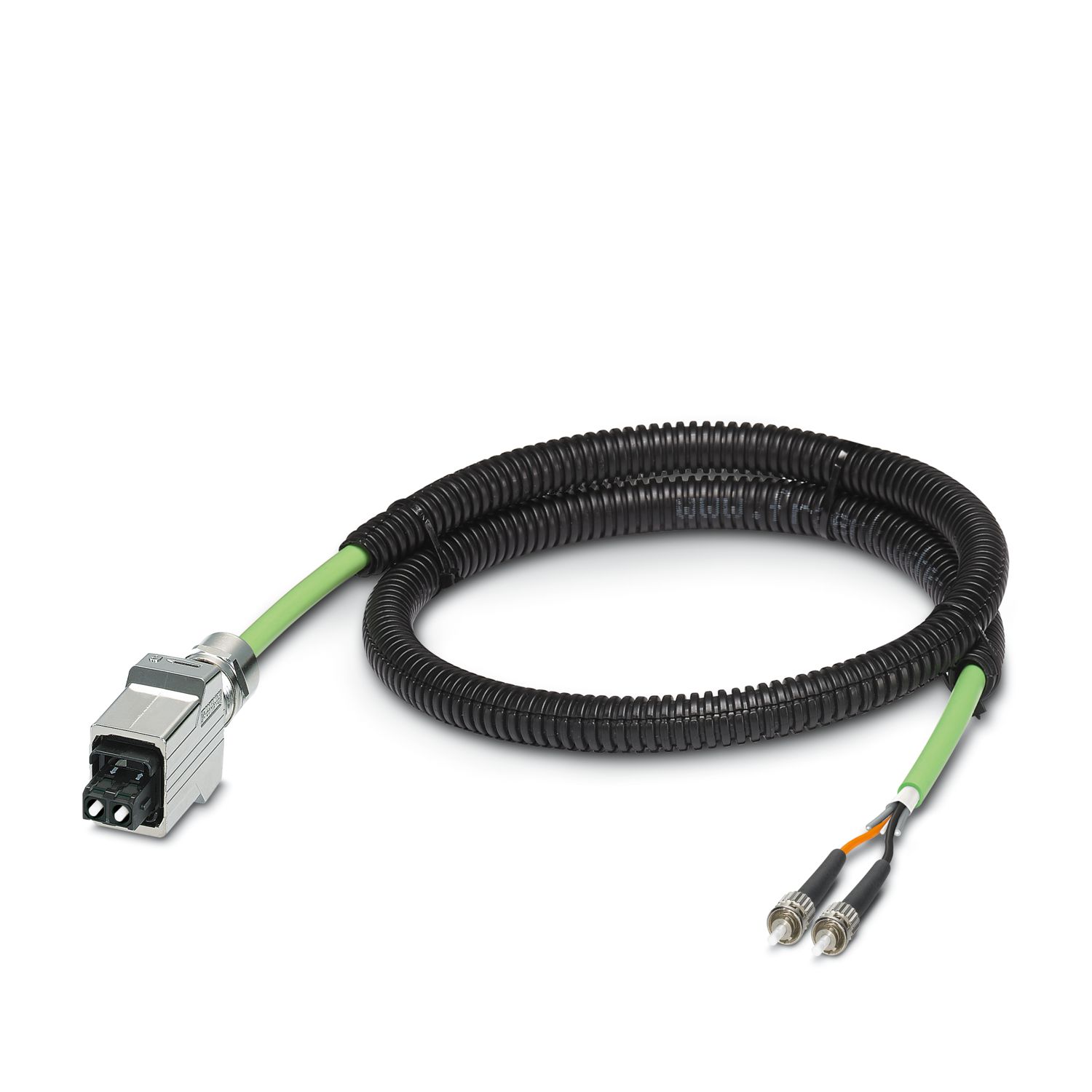

Acessórios necessários
Detalhes dos produtos
| Product type | Sensor |
| Product family | LM-S |
| Evaluation unit Sensor interfaces | |
| Interface | Fiber optic interface |
| Number of ports | 1 |
| Sensor | |
| Detectable values (current strength) | ± 5.00 kA ... 400.00 kA |
| Sensor Interfaces | |
| Interface | Fiber optic interface |
| Connection method | SC-RJ socket with push/pull connector, IP67 |

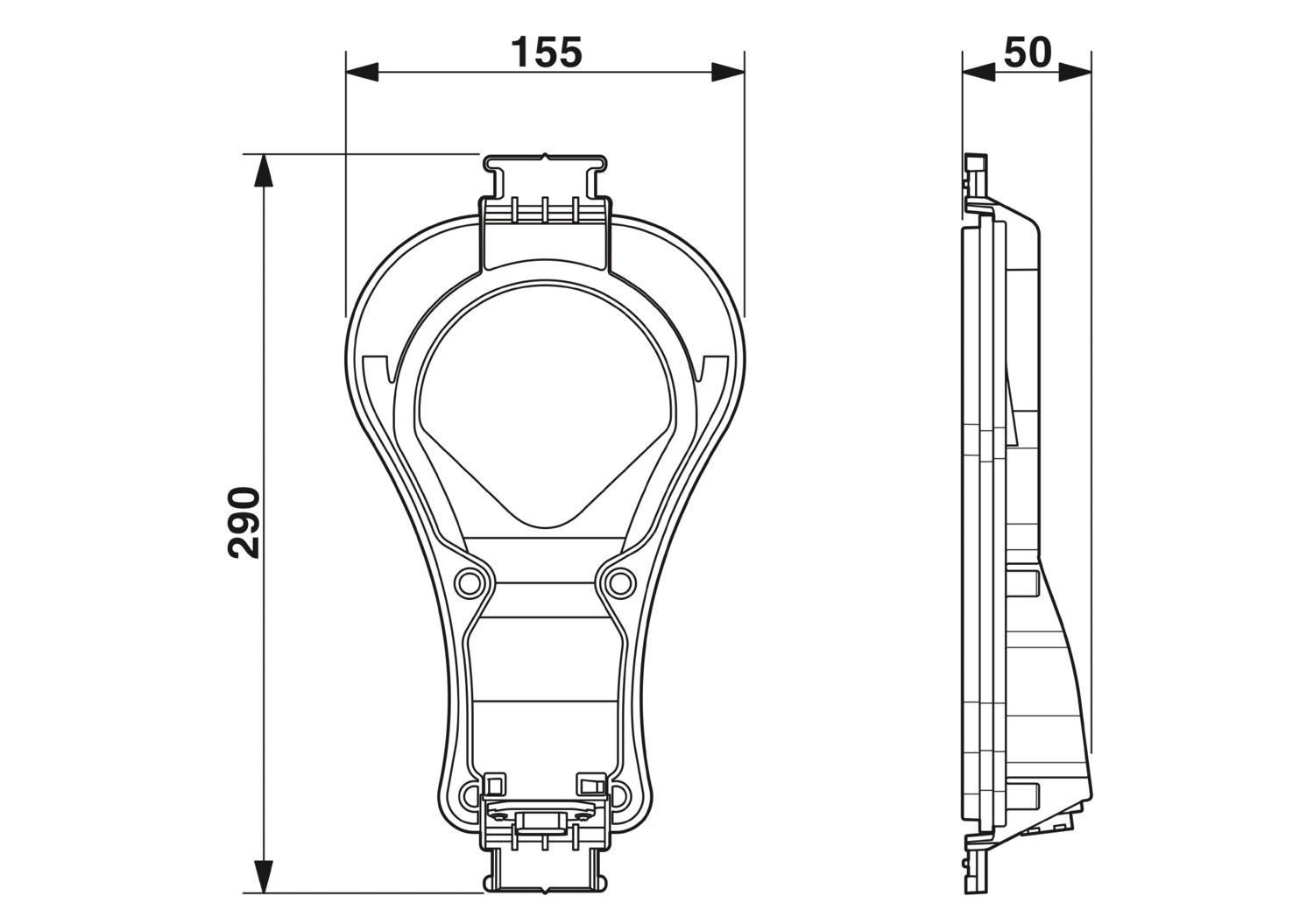

| Dimensional drawing |
|
| Width | 155 mm |
| Height | 290 mm |
| Depth | 50 mm |
| Color | black (RAL 9005) |
| Ferrule material | Zirconia ceramics |
| Housing material | XYRON 644Z |
| FO cable | |
| Fiber type | Quartz fiber |
| Ambient conditions | |
| Degree of protection | IP67 |
| Ambient temperature (operation) | -30 °C ... 60 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Altitude | ≤ 4000 m (amsl) |
| Permissible humidity (operation) | 30 % ... 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 30 % ... 95 % (non-condensing) |
| Mounting type | On lightning arrester cables |
Vantagens
Optical lightning sensor for measuring current strength
Robust design
Resistant to vibrations, temperature, and humidity
Good UV resistance
