CES-B24-WRG-BK
-
Flat gasket
0801727
Flat gasket made of NBR, size B24
Detalhes dos produtos
| Product type | Seal |
| Type | B24 |

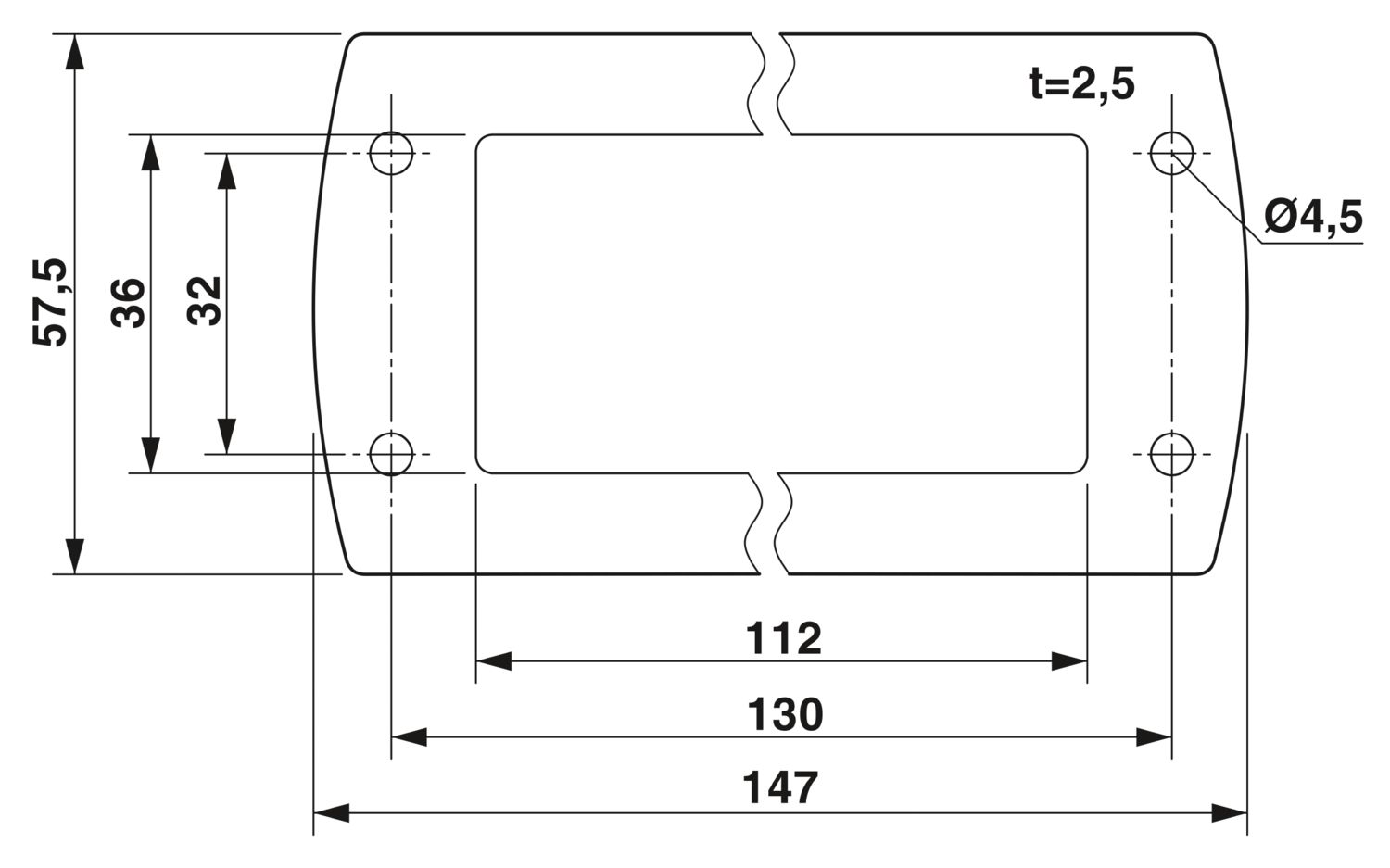

| Dimensional drawing |
|
| Width | 57.5 mm |
| Height | 2.5 mm |
| Length | 147 mm |
| Drill hole distance, horizontal | 130 mm |
| Drill hole distance, vertical | 32 mm |
| Hole diameter | 4.5 mm |
| Seal material | NBR |
| Ambient conditions | |
| Ambient temperature (operation) | -20 °C ... 80 °C (static) |
