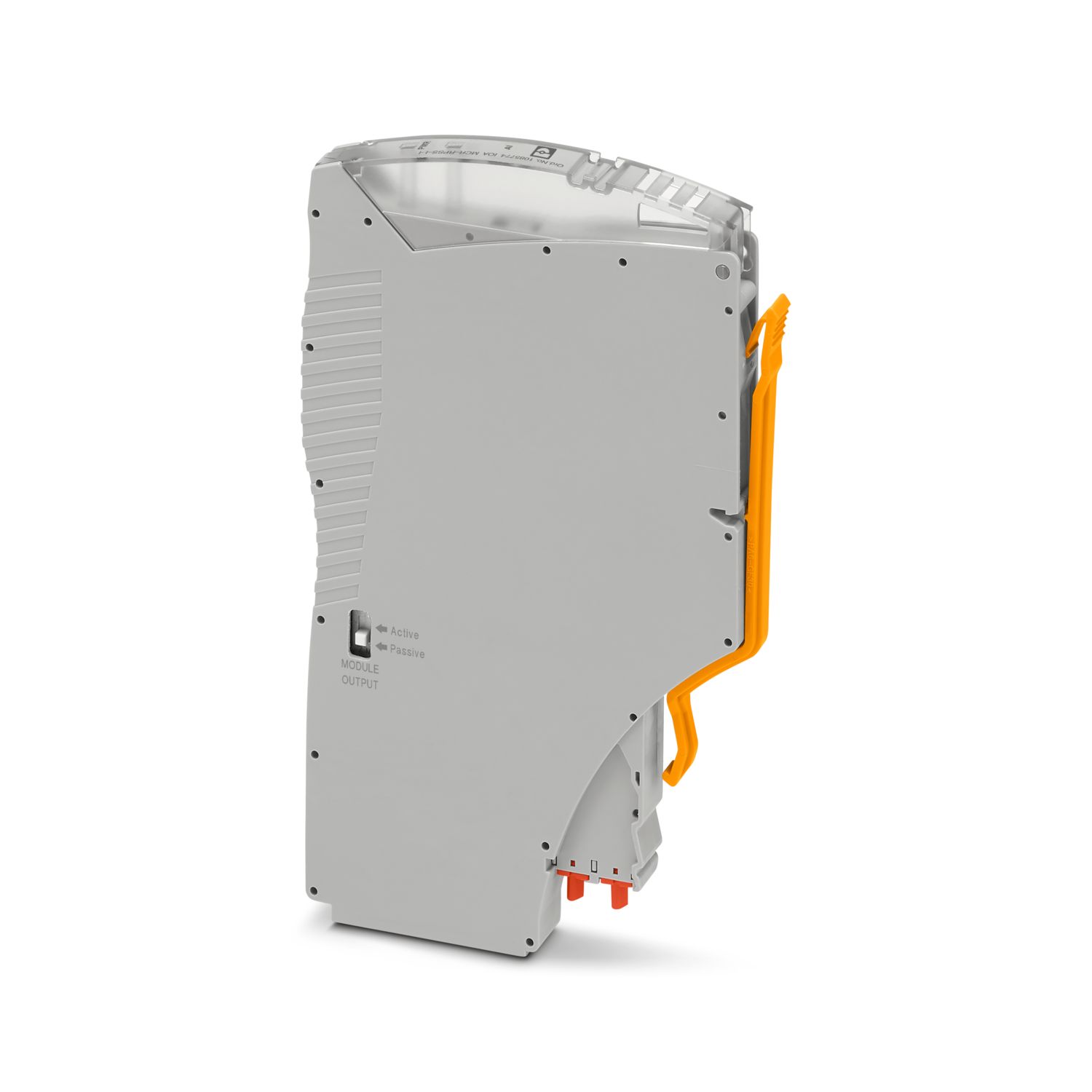

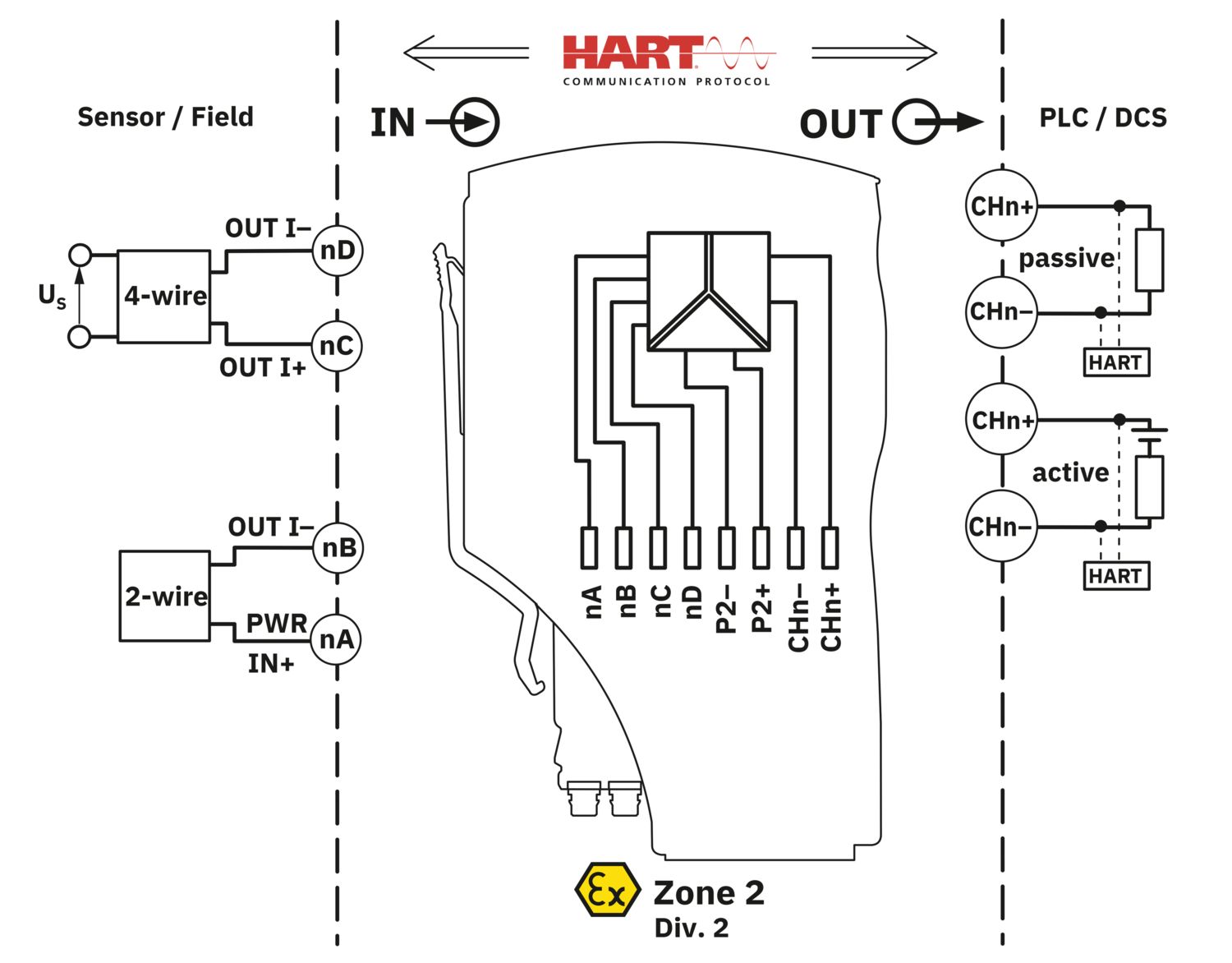

IOA MCR-RPSS-I-I - Power/input signal conditioner - 1085774

Product properties

Product type	Repeater power supply
Product family	VIP I/O-Marshalling
Application	Analog IN
No. of channels	1
Type	Signal conditioners with SIL functional safety

Electrical properties

Electrical isolation	3-way isolation
Signal transmission behavior	In = Out
Step response (10-90%)	< 200 µs (for jump 0 mA ... 20 mA, load 100 Ω)
Step response (10-90%)		< 400 µs (for jump 4 mA ... 20 mA, load 600 Ω)
Maximum temperature coefficient	< 0.01 %/K
Temperature coefficient, typical	< 0.004 %/K
Maximum transmission error	< 0.1 % (of final value)
Transmission error, typical	< 0.05 % (of final value)
Reverse polarity protection	yes
Electrical isolation
Overvoltage category	II (≤ 5000 m)
Pollution degree	2 (≤ 5000 m)
Electrical isolation Input/output/power supply IEC/EN 61010-1
Standards/regulations	IEC/EN 61010-1
Rated insulation voltage	200 V_rms
Test voltage	2.3 kV AC (50 Hz, 60 s)
Insulation	Double/reinforced insulation
Electrical isolation Input/output/power supply IEC/EN 60079-7
Standards/regulations	IEC/EN 60079-7
Rated insulation voltage	251 V_rms
Rated insulation voltage		355 V_P
Supply
Designation	Repeater power supply operation
Nominal supply voltage	24 V DC
Supply voltage range	19.2 V DC ... 30 V DC -20 % ... +25 %
Max. current consumption	< 62 mA (24 V DC / 20 mA / 600 Ω)
		< 77 mA (19.2 V DC / 20 mA / 600 Ω)
		< 54 mA (24 V DC / 20 mA / 250 Ω)
Power dissipation	< 0.8 W (24 V DC / 20 mA / 600 Ω)
		< 0.8 W (24 V DC / 20 mA / 250 Ω)
		< 1.2 W (24 V DC / 20 mA / 0 Ω)
Power consumption (Output active)	< 1.5 W (24 V DC / 20 mA / 600 Ω)
Power consumption (Output active)		< 1.3 W (24 V DC / 20 mA / 250 Ω)
Supply
Designation	Signal conditioner operation
Nominal supply voltage	24 V DC
Supply voltage range	19.2 V DC ... 30 V DC -20 % ... +25 %
Max. current consumption	< 35 mA (24 V DC / 20 mA / 600 Ω)
		< 44 mA (19.2 V DC / 20 mA / 600 Ω)
		< 27 mA (24 V DC / 20 mA / 250 Ω)
Power dissipation	< 0.6 W (24 V DC / 20 mA / 600 Ω)
		< 0.6 W (24 V DC / 20 mA / 250 Ω)
		< 1 W (24 V DC / 20 mA / 0 Ω)
Power consumption (Output active)	< 0.8 W (24 V DC / 20 mA / 600 Ω)
Power consumption (Output active)		< 0.6 W (24 V DC / 20 mA / 250 Ω)

Input data

Signal: Repeater power supply operation
Description of the input	Active current input
Number of inputs	1
Input signal	Current
Current input signal	4 mA ... 20 mA
Current limitation	23.5 mA
Transmitter supply voltage	> 21 V (20 mA)
Transmitter supply voltage		> 21 V (24 mA)
Polarization and surge protection	Yes
Underload/overload signal range	0 mA ... 23 mA (Extended transmission range for diagnostics)
Signal: Signal conditioner operation
Description of the input	Passive current input
Number of inputs	1
Current input signal	0 mA ... 20 mA
Current input signal		4 mA ... 20 mA
Voltage drop	< 3.5 V (in input isolating amplifier operation)
Underload/overload signal range	0 mA ... 24 mA (500 Ω)

Output data

Signal: Repeater power supply operation
Output description	Current output (active and passive)
Number of outputs	1
Current output signal	4 mA ... 20 mA (active)
Current output signal		4 mA ... 20 mA (Passive, external source voltage 19.2 V ... 26.4 V)
Load/output load current output	≤ 600 Ω (20 mA)
Output ripple	< 20 mV_rms
Output behavior in the event of an error	0 mA (Cable break in the input)
Output behavior in the event of an error		≥ 22.5 mA (Cable short-circuit in the input)
Underload/overload signal range	0 mA ... 24 mA (Extended transmission range for diagnostics)
Signal: Signal conditioner operation
Output description	Current output (active and passive)
Current output signal	0 mA ... 20 mA (active)
		4 mA ... 20 mA (active)
		0 mA ... 20 mA (Passive, external source voltage 19.2 V ... 26.4 V)
		4 mA ... 20 mA (Passive, external source voltage 19.2 V ... 26.4 V)
Load/output load current output	≤ 600 Ω (20 mA)
Output ripple	< 20 mV_rms
Output behavior in the event of an error	0 mA (Cable break in the input)
Output behavior in the event of an error		0 mA (Cable short-circuit in the input)
Underload/overload signal range	0 mA ... 22.5 mA (Extended transmission range for diagnostics)

Connection data

Connection method	Plug-in connection
Number of connections	1
Number of positions	11

Interfaces

Data communication (bypass)
HART function	HART transparency
Protocols supported	HART

Signaling

Status display	Green LED (supply voltage)

Dimensions

Width	10.3 mm
Height	80.1 mm
Depth	136 mm

Material specifications

Color	gray (RAL 7042)
Flammability rating according to UL 94	V0 (Housing)
Housing material	PA 6.6-FR

Environmental and real-life conditions

Ambient conditions
Degree of protection	IP20
Ambient temperature (operation)	-40 °C ... 70 °C (Any mounting position)
Ambient temperature (storage/transport)	-40 °C ... 85 °C
Permissible humidity (operation)	5 % ... 95 % (non-condensing)
Altitude range (IEC/EN 61010-1)
Height range	> 2000 m ... 3000 m
Ambient temperature (operation)	-40 °C ... 63 °C
Rated insulation voltage	150 V_rms (Input/output/power supply)
Insulation	Double/reinforced insulation
Altitude range (IEC/EN 61010-1)
Height range	> 3000 m ... 4000 m
Ambient temperature (operation)	-40 °C ... 56 °C
Rated insulation voltage	150 V_rms (Input/output/power supply)
Insulation	Double/reinforced insulation
Altitude range (IEC/EN 61010-1)
Height range	> 4000 m ... 5000 m
Ambient temperature (operation)	-40 °C ... 49 °C
Rated insulation voltage	150 V_rms (Input/output/power supply)
Insulation	Double/reinforced insulation
Altitude range (IEC/EN 60079-7)
Height range	> 2000 m ... 3000 m
Ambient temperature (operation)	-40 °C ... 63 °C
Rated insulation voltage	162 V_rms (Input/output/power supply)
Rated insulation voltage		230 V_P (Input/output/power supply)
Altitude range (IEC/EN 60079-7)
Height range	> 3000 m ... 4000 m
Ambient temperature (operation)	-40 °C ... 56 °C
Rated insulation voltage	60 V_rms (Input/output/power supply)
Rated insulation voltage		84 V_P (Input/output/power supply)
Altitude range (IEC/EN 60079-7)
Height range	> 4000 m ... 5000 m
Ambient temperature (operation)	-40 °C ... 49 °C
Rated insulation voltage	60 V_rms (Input/output/power supply)
Rated insulation voltage		84 V_P (Input/output/power supply)

Approvals

CE
Certificate	CE-compliant
Note	and EN 61326
ATEX
Identification	 II 3 G Ex ec IIC T4 Gc
Certificate	PxCIF08ATEX2865955X
IECEx
Identification	Ex ec IIC T4 Gc
Certificate	IECEx BVS 08.0016X
UL, USA/Canada
Identification	UL 61010-1
		UL 61010-2-201
		UL 61010-2-030
		CAN/CSA No. 61010-1-12
		CAN/CSA C22.2 No. 61010-2-201
		CSA C22.2 No. 61010-2-030
Certificate	E330267
Safety Integrity Level (SIL, IEC 61508)
Identification	2
Certificate	1435.IM.131623/19, V1.0
Systematic Capability
Identification	3
Corrosive gas test
Identification	ISA S71.04.2013 G3 Harsh Group A
UL data
Operating mode	Indoor use

EMC data

Electromagnetic compatibility	Conformance with EMC directive
Noise immunity	EN 61000-6-2
Note	When being exposed to interference, there may be minimal deviations.
Noise emission
Standards/regulations	EN 61000-6-4
Electromagnetic HF field
Designation	Electromagnetic RF field
Standards/regulations	EN 61000-4-3
Typical deviation from the measuring range final value	1 %
Fast transients (burst)
Designation	Fast transients (burst)
Standards/regulations	EN 61000-4-4
Typical deviation from the measuring range final value	1 %
Conducted interference
Designation	Conducted interferences
Standards/regulations	EN 61000-4-6
Typical deviation from the measuring range final value	1 %

Standards and regulations

Electrical isolation	3-way isolation

Mounting

Mounting type	Plug-in mounting
Mounting position	any

N.º de artigo	1085774
Pcs./Emb	1 Unidade
Quantidade mínima de pedido	1 Unidade
Chave de produto	DK1151
GTIN	4055626875439
País de origem	DE

EU RoHS
Cumpre os requisitos de substância segundo a Diretiva RoHS	Sim
isenções tanto quanto conhecido	7(a), 7(c)-I
China RoHS
Environment friendly use period (EFUP)	EFUP-50 Uma lista de declaração de acordo com a RoHS da China relativa a artigos encontra-se na área de transferências do respetivo artigo, em "Declaração do fabricante". Para todos os artigos com EFUP-E não é emitida nem necessária uma tabela de declaração de acordo com a RoHS da China.
EU REACH SVHC
Nota sobre as substâncias candidatas ao REACH (n.º CAS)	Lead (n.º CAS: 7439-92-1)
