UT 4/ 1P - Feed-through terminal block

3045583

Feed-through terminal block, nom. voltage: 800 V, nominal current: 32 A, number of connections: 2, connection method: Screw/plug-in connection, Rated cross section: 4 mm², cross section: 0.14 mm² - 6 mm², mounting type: NS 35/7,5, NS 35/15, color: gray

Detalhes dos produtos

General	Current and voltage are determined by the plug used.
General
Note	With a free-hanging connection, an insulating foil has to be placed between the plug connection and electrically conductive surfaces.

Product type	Plug-in terminal block
Product family	UT
Number of connections	2
Number of rows	1
Potentials	1
Insulation characteristics
Overvoltage category	III
Degree of pollution	3

Rated surge voltage	8 kV
Maximum power dissipation for nominal condition	1.02 W

Number of connections per level	2
Nominal cross section	4 mm²
Level 1 below 1
Screw thread	M3
Tightening torque	0.6 ... 0.8 Nm
Stripping length	9 mm
Internal cylindrical gage	A4
Connection in acc. with standard	IEC 61984
Conductor cross section rigid	0.14 mm² ... 6 mm²
Cross section AWG	26 ... 10 (converted acc. to IEC)
Conductor cross section flexible	0.14 mm² ... 6 mm²
Conductor cross section, flexible [AWG]	26 ... 10 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)	0.14 mm² ... 4 mm²
Flexible conductor cross section (ferrule with plastic sleeve)	0.14 mm² ... 4 mm²
Conductor cross-section flexible (2 conductors with the same cross-section, with TWIN ferrule and plastic sleeve)	0.5 mm² ... 2.5 mm²
2 conductors with same cross section, solid	0.14 mm² ... 1.5 mm²
2 conductors with same cross section, flexible	0.14 mm² ... 1.5 mm²
2 conductors with same cross section, flexible, with ferrule without plastic sleeve	0.14 mm² ... 1.5 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve	0.5 mm² ... 2.5 mm²
Nominal current	32 A
Maximum load current	32 A (with 6 mm² conductor cross section)
Nominal voltage	800 V
Nominal cross section	4 mm²

Width	6.2 mm
End cover width	2.2 mm
Height	47.6 mm
Depth on NS 35/7,5	47.5 mm
Depth on NS 35/15	55 mm

Color	gray (RAL 7042)
Flammability rating according to UL 94	V0
Insulating material group	I
Insulating material	PA
Static insulating material application in cold	-60 °C
Relative insulation material temperature index (Elec., UL 746 B)	130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26	HL 1 - HL 3
Surface flammability NFPA 130 (ASTM E 162)	passed
Specific optical density of smoke NFPA 130 (ASTM E 662)	passed
Smoke gas toxicity NFPA 130 (SMP 800C)	passed

Short-time withstand current 4 mm²	0.48 kA
Short-time withstand current 6 mm²	0.72 kA
Result	Test passed

Mechanical data
Open side panel	Yes

Mechanical strength
Result	Test passed
Attachment on the carrier
DIN rail/fixing support	NS 35
Test force setpoint	1 N
Result	Test passed
Test for conductor damage and slackening
Rotation speed	10 rpm
Revolutions	135
Conductor cross section/weight	0.14 mm² / 0.3 kg
	4 mm² / 0.9 kg
	6 mm² / 1.4 kg
Result	Test passed

Service life
Insertion/withdrawal cycles	100
Needle-flame test
Time of exposure	30 s
Result	Test passed
Oscillation/broadband noise
Specification	DIN EN 50155 (VDE 0115-200):2008-03
Spectrum	Long life test category 1, class B, body mounted
Frequency	f₁ = 5 Hz to f₂ = 150 Hz
ASD level	0.02g²/Hz
Acceleration	0.8g
Test duration per axis	5 h
Test directions	X-, Y- and Z-axis
Result	Test passed
Shocks
Specification	DIN EN 50155 (VDE 0115-200):2008-03
Pulse shape	Half-sine
Acceleration	5g
Shock duration	30 ms
Number of shocks per direction	3
Test directions	X-, Y- and Z-axis (pos. and neg.)
Result	Test passed
Ambient conditions
Ambient temperature (operation)	-60 °C ... 100 °C (max. operating temperature range including self-heating, see derating curve)
Ambient temperature (storage/transport)	-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly)	-5 °C ... 70 °C
Ambient temperature (actuation)	-5 °C ... 70 °C
Permissible humidity (operation)	20 % ... 90 %
Permissible humidity (storage/transport)	30 % ... 70 %

Connection in acc. with standard	IEC 61984

Mounting type	NS 35/7,5
	NS 35/15

Dados comerciais

N.º de artigo	3045583
Pcs./Emb	50 Unidade
Quantidade mínima de pedido	50 Unidade
Chave comercial	BE1
Chave de produto	BE1141
Página de catálogo	Página 329 (C-1-2019)
GTIN	4046356083096
Peso por unidade (inclusive embalagem)	9,055 g
Peso por unidade (excluindo embalagem)	8,46 g
Número do imposto alfandegário	85369010
País de origem	TR

Classificações

Certificações

Approval Specification Data
	Tensão nominal U_N	Corrente nominal I_N	Secção transversal American Wire Gauge	Secção transversal mm²
	800 V	32 A

Approval Specification Data
	Tensão nominal U_N	Corrente nominal I_N	Secção transversal American Wire Gauge	Secção transversal mm²
	800 V	32 A

Environmental product compliance

Produtos compatíveis

Acessórios

Vantagens

Terminal blocks that can be connected on both sides available

Compatible with standard UT terminal blocks

Uniform, touch-proof plug-in zone

Phoenix Contact S.A.

Sintra Business Park, Edifício n°1 Zona Industrial da Abrunheira, sala 0M, 2710-089 SINTRA

Fazer uma pergunta (+351) 21 911 2760 pt-info@phoenixcontact.com

EU RoHS
Cumpre os requisitos de substância segundo a Diretiva RoHS	Sim
isenções tanto quanto conhecido	6(c)
China RoHS
Environment friendly use period (EFUP)	EFUP-50 Uma lista de declaração de acordo com a RoHS da China relativa a artigos encontra-se na área de transferências do respetivo artigo, em "Declaração do fabricante". Para todos os artigos com EFUP-E não é emitida nem necessária uma tabela de declaração de acordo com a RoHS da China.
EU REACH SVHC
Nota sobre as substâncias candidatas ao REACH (n.º CAS)	Lead (n.º CAS: 7439-92-1)
SCIP	549545aa-9e29-487b-9a53-9c54ca7fff15

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

UT 4/ 1P - Feed-through terminal block

3045583

Detalhes dos produtos

ECLASS

ETIM

UNSPSC

CSA

IECEE CB Scheme

cULus Recognized

KEMA-KEUR

CSA

cULus Recognized

Produtos compatíveis

Vantagens

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

UT 4/ 1P - Feed-through terminal block 3045583

Detalhes dos produtos

ECLASS

ETIM

UNSPSC

Produtos compatíveis

FBS 2-6 - Plug-in bridge 3030336

FBS 3-6 - Plug-in bridge 3030242

FBS 4-6 - Plug-in bridge 3030255

FBS 5-6 - Plug-in bridge 3030349

FBS 6-6 - Plug-in bridge 1008238

FBS 10-6 - Plug-in bridge 3030271

FBS 20-6 - Plug-in bridge 3030365

FBS 50-6 - Plug-in bridge 3032224

FBSR 2-6 - Plug-in bridge 3033715

FBSR 3-6 - Plug-in bridge 3001594

FBSR 4-6 - Plug-in bridge 3001595

FBSR 5-6 - Plug-in bridge 3001596

FBSR 10-6 - Plug-in bridge 3033716

FBSRH 2-6 - Short-circuit connector 3033812

FBS 2-6 BU - Plug-in bridge 3036932

FBS 3-6 BU - Plug-in bridge 3036945

FBS 4-6 BU - Plug-in bridge 3036958

FBS 5-6 BU - Plug-in bridge 3036961

FBS 10-6 BU - Plug-in bridge 3032198

FBS 20-6 BU - Plug-in bridge 3032208

FBS 50-6 BU - Plug-in bridge 3032211

RB ST 10-(2,5/4) - Reducing bridge 3030873

RB UT 10-(2,5/4) - Reducing bridge 3047060

RB UT 35-(2,5/4) - Reducing bridge 3047277

RB UT 16-(2,5/4) - Reducing bridge 3047073

RB UT 6-(2,5/4) - Reducing bridge 3047251

D-UT 2,5/1P - End cover 3047154

ATP-UT - Partition plate 3047167

PC - Coding star 3040588

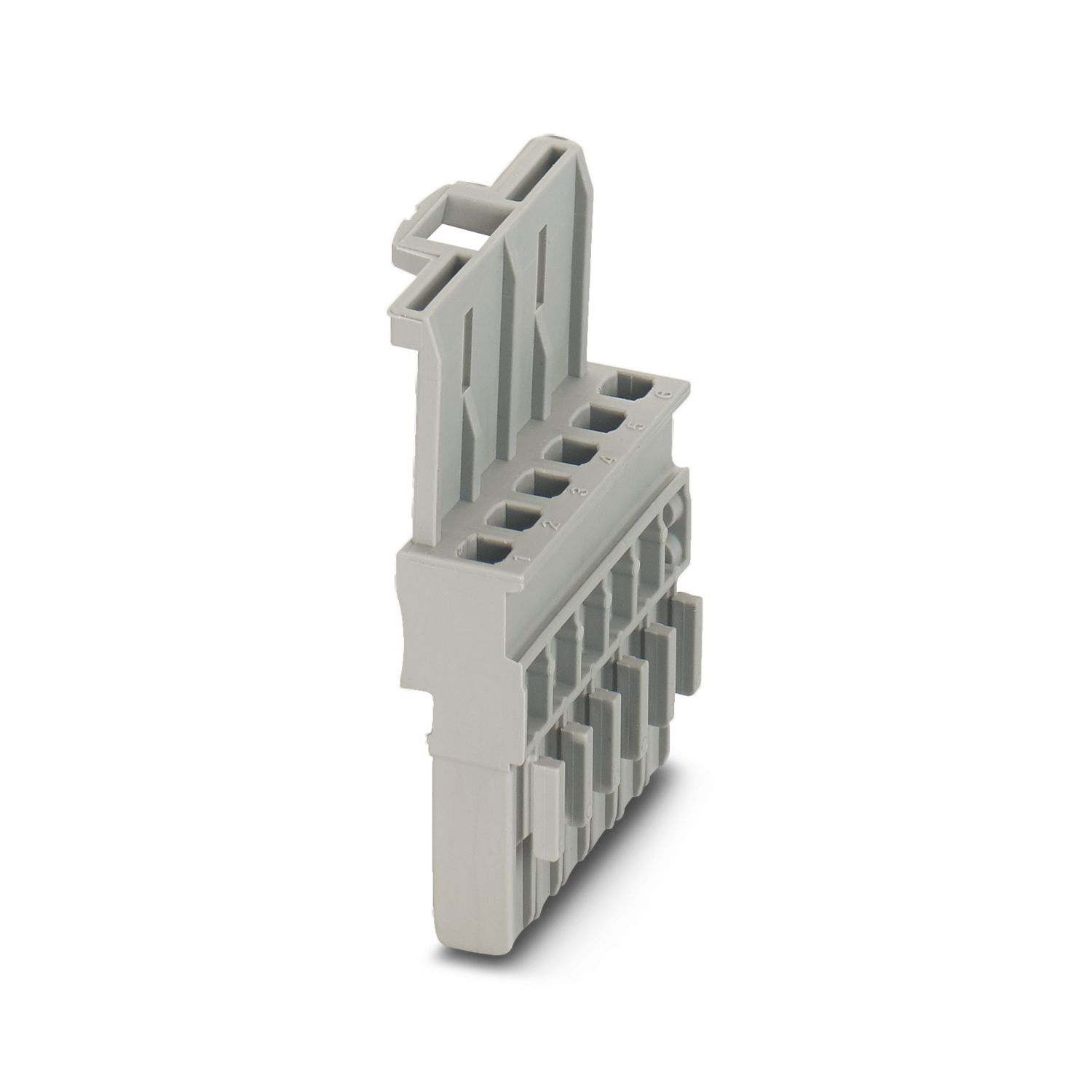

CP 4/6 - Connector housing 3061049
