MINI MCR-2-TB - Feed-through terminal block

2902068

Feed-through terminal block with plug-in connection technology for the transmission of signals already electrically isolated. Screw connection technology

Transferência gratuita disponível. Downloads

Detalhes dos produtos

Descrição do produto

Note on application
Note on application	As things stand now, we are preparing the product so that, as of December 11, 2027, it will comply with the requirements of the EU Cyber Resilience Act (CRA) based on the information currently available regarding the CRA.
Utilization restriction
EMC note	EMC: class A product, see manufacturer's declaration in the download area

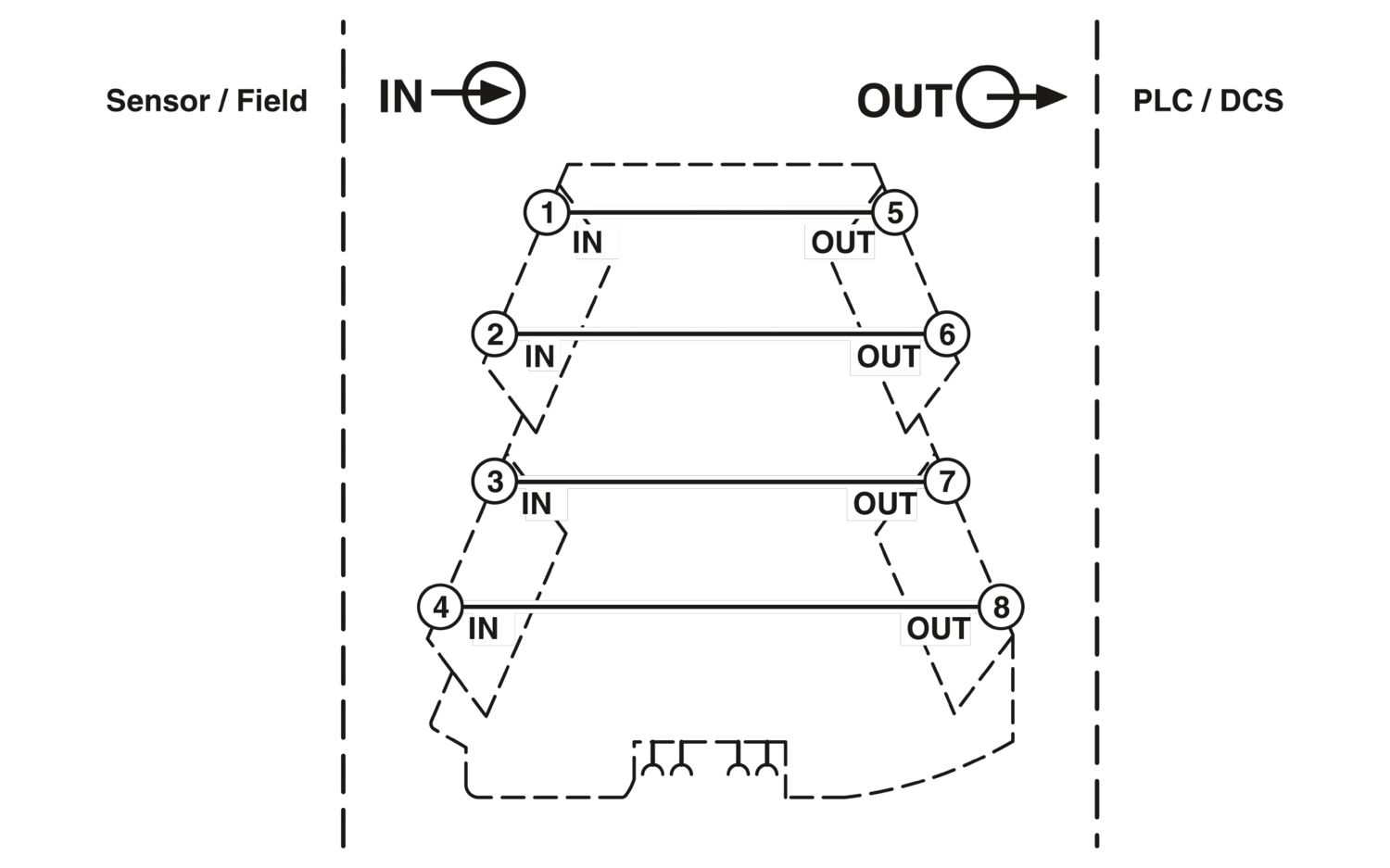

Product type	Feed-through terminal block
Product family	MINI Analog Pro

Current carrying capacity	4 A (Total)
Electrical isolation
Overvoltage category	II
Pollution degree	2
Supply
Nominal supply voltage	24 V AC/DC

Signal: Voltage/current
Number of inputs	4
Max. voltage input signal	30 V AC/DC (per channel)
Max. current input signal	1 A (per channel)

Connection method	Screw connection
Stripping length	10 mm
Conductor cross-section rigid	0.14 mm² ... 2.5 mm²
Conductor cross-section flexible	0.14 mm² ... 2.5 mm²
Conductor cross-section AWG	24 ... 12
Tightening torque	0.5 Nm ... 0.6 Nm

Ex installation (EPL)	Gc
	Div. 2

Width	6.2 mm
Height	109.81 mm
Depth	119.2 mm

Color	gray (RAL 7042)
Housing material	PBT
Fire protection for rail vehicles (DIN EN 45545-2) R22	HL 1 - HL 2
Fire protection for rail vehicles (DIN EN 45545-2) R23	HL 1 - HL 2
Fire protection for rail vehicles (DIN EN 45545-2) R24	HL 1 - HL 2

Ambient conditions
Degree of protection	IP20 (not assessed by UL)
Ambient temperature (operation)	-40 °C ... 70 °C
Ambient temperature (storage/transport)	-40 °C ... 85 °C
Permissible humidity (operation)	5 % ... 95 % (non-condensing)
Altitude range (≤ 2000 m)
Altitude	≤ 2000 m (The technical data refers to altitudes ≤2000 m above mean sea level. For altitudes >2000 m above mean sea level, refer to the data sheet.)
Ambient temperature (operation)	-40 °C ... 70 °C
Rated insulation voltage	50 V AC/DC
Altitude range (≤ 3000 m)
Height range	> 2000 m ... 3000 m
Ambient temperature (operation)	-40 °C ... 63 °C
Rated insulation voltage	40 V AC/DC
Altitude range (≤ 4000 m)
Height range	> 3000 m ... 4000 m
Ambient temperature (operation)	-40 °C ... 56 °C
Rated insulation voltage	30 V AC/DC
Altitude range (≤ 5000 m)
Height range	> 4000 m ... 5000 m
Ambient temperature (operation)	-40 °C ... 49 °C
Rated insulation voltage	30 V AC/DC

CE
Certificate	CE-compliant
ATEX
Identification	 II 3 G Ex ec IIC Gc
Certificate	PxCIF16ATEX2901993U
IECEx
Identification	Ex ec IIC Gc
Certificate	IECEx BVS 22.0005U
CCC / China-Ex
Identification	Ex ec IIC Gc
UL, USA/Canada
Identification	UL 508 Listed
	Class I, Div. 2, Groups A, B, C, D T6
	Class I, Zone 2, Group IIC T6
Shipbuilding approval
Certificate	DNV GL TAA00002UA
Shipbuilding data
Temperature	B
Humidity	B
Vibration	A
EMC	A
Enclosure	Required protection according to the Rules shall be provided upon installation on board

GB Standard
Standards/regulations	GB/T 3836.1
	GB/T 3836.3

Mounting type	NS 35/7,5
	NS 35/15
	NS 35/15-2,3
	DIN rail mounting
Mounting position	any

Dados comerciais

N.º de artigo	2902068
Pcs./Emb	1 Unidade
Quantidade mínima de pedido	1 Unidade
Chave comercial	DK1
Chave de produto	DK112Z
GTIN	4046356649957
Peso por unidade (inclusive embalagem)	91,8 g
Peso por unidade (excluindo embalagem)	82 g
Número do imposto alfandegário	85389099
País de origem	DE
