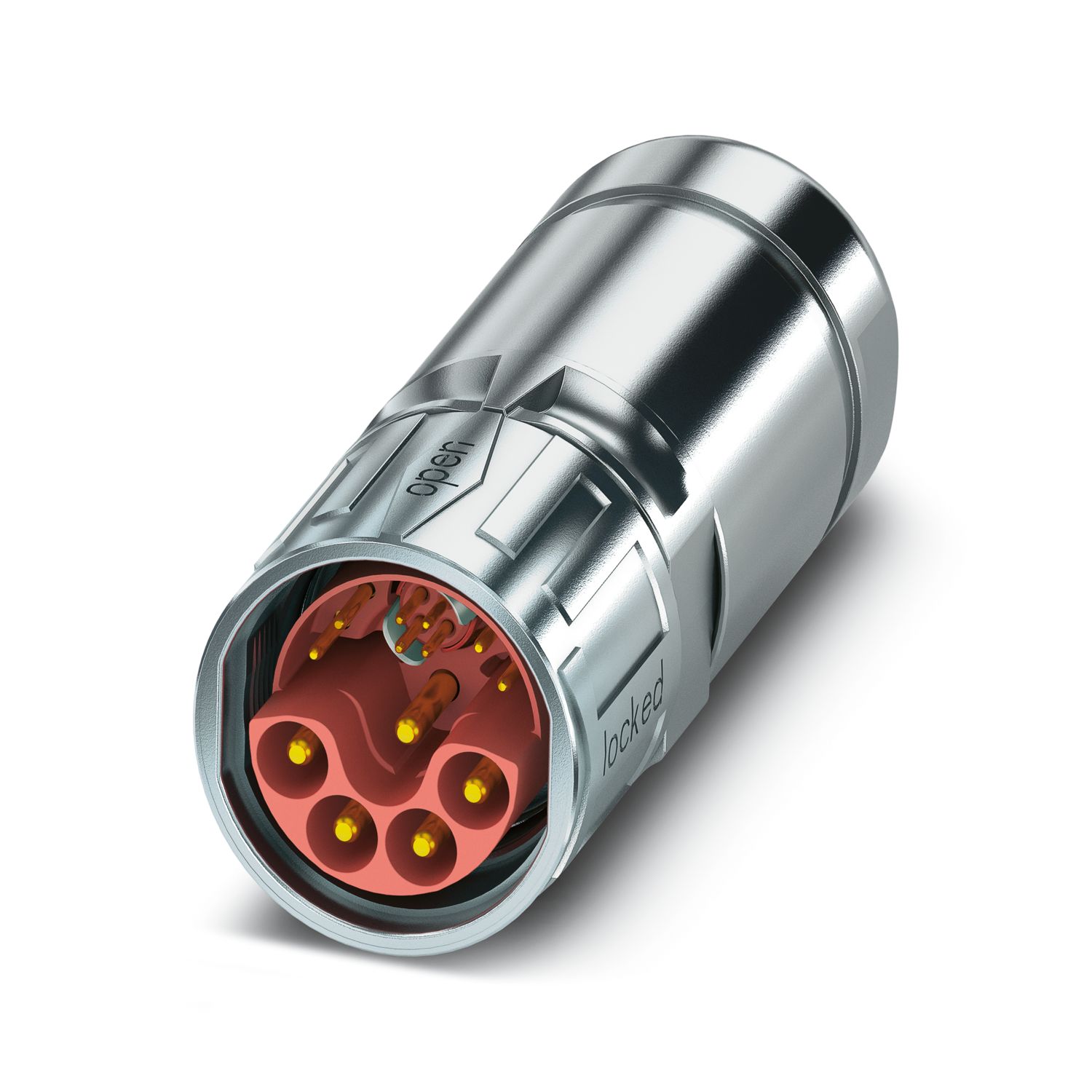

SH-8EPC58A8LB2S - Cable connector - 1621532

Detalhes dos produtos

Dados técnicos

Notes

Order information:	Crimp contacts, 4x Ø 0.8 mm, 4x Ø 1 mm, 5x Ø 2 mm, order separately
Safety note
Safety note	WARNING: The connectors may not be plugged in or disconnected under load. Ignoring the warning or improper use may damage persons and/or property.
		• WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible.
		• WARNING: Only electrically qualified personnel may install and operate the product. They must observe the following safety notes. The qualified personnel must be familiar with the basics of electrical engineering. They must be able to recognize and prevent danger. The relevant symbol on the packaging indicates that only personnel familiar with electrical engineering are allowed to install and operate the product.
		• The products are suitable for applications in plant, controller, and electrical device engineering.
		• When operating the connectors in outdoor applications, they must be separately protected against environmental influences.
		• Assembled products may not be manipulated or improperly opened.
		• Only use mating connectors that are specified in the technical data of the standards listed (e.g. the ones listed in the product accessories online at phoenixcontact.com/products).
		• When using the product in direct connection with third-party manufacturers, the user is responsible.
		• For operating voltages > 50 V AC, conductive connector housings must be grounded
		• Ensure that the protective or functional ground has been properly connected.
		• VDE 0100/1.97 § 411.1.3.2 and DIN EN 60 204/11.98 § 14.1.3 are applicable when combining several circuits in a cable and/or connector
		• Only use tools recommended by Phoenix Contact
		• The installation notes/Design In documents online on the download page at phoenixcontact.com/products must be observed for this product.
		• Operate the connector only when it is fully plugged in and interlocked.
		• Ensure that when laying the cable, the tensile load on the connectors does not exceed the upper limit specified in the standards.
		• Observe the minimum bending radius of the cable. Lay the cable without twisting it.
		• The connector warms up in normal operation. Depending on the ambient conditions, the surface of the connector can continue to warm up. In this case, the user is responsible for posting warnings (e.g. DIN EN ISO 13732-1:2008-12).

Product properties

Product type	Circular connector (cable-side)
Application	Hybrid

Mechanical properties

Mechanical data
Insertion/withdrawal cycles	100

Connector

Connection 1
Head design	Pin
Insulating body
Note	Order information: Crimp contacts, 4x Ø 0.8 mm, 4x Ø 1 mm, 5x Ø 2 mm, order separately
Protection against electric shock	IEC 61984 and VDE 0623
Data rate	100 Mbps
Flammability rating according to UL 94	V0
Contact material	CuZn
Contact surface material	Au
Insertion/withdrawal cycles	100
Connection method	Crimp connection
Contact switching type	Pin
Application	Hybrid
Number of positions	13
Connection profile	4+4+4+PE / 3+N+PE
Number Contact (Power contacts)	5
Diameter Contact (Power contacts)	2 mm
Litz wire cross-section min. Contact (Power contacts)	0.25 mm²
Litz wire cross-section max. Contact (Power contacts)	4 mm²
Rated current Contact (Power contacts)	30 A (for max. connection cross section)
Rated voltage Contact (Power contacts)	630 V AC (Overvoltage category III/3)
Rated voltage Contact (Power contacts)		850 V DC (Overvoltage category II/3)
Rated surge voltage	6 kV
Overvoltage category	III
Degree of pollution	3
Number Contact (Signal contacts)	4
Diameter Contact (Signal contacts)	1 mm
Litz wire cross-section min. Contact (Signal contacts)	0.06 mm²
Litz wire cross-section max. Contact (Signal contacts)	1 mm²
Nominal current per signal contact	8 A (for max. connection cross section)
Rated voltage Contact (Signal contacts)	50 V (Contact 1 ... 4)
Rated surge voltage	1.5 kV
Overvoltage category	III
Degree of pollution	3
Number Contact (Data contacts)	4
Diameter Contact (Data contacts)	0.8 mm
Litz wire cross-section min. Contact (Data contacts)	0.08 mm²
Litz wire cross-section max. Contact (Data contacts)	0.5 mm²
Rated current per data contact at 25°C	3.6 A (for max. connection cross section)
Rated voltage Contact (Data contacts)	50 V
Rated surge voltage	1.5 kV
Overvoltage category	II, III
Degree of pollution	3
Installation height	2000 m (4000 m at 300 V system voltage in accordance with DIN EN 606664-1)
Housing
Notes on operation	The suitability for assembly must be checked when fully assigned with maximum wire cross sections.
Thread type	M23
Type of locking	SPEEDCON
Type of locking		Knurl tightening torque >1 Nm
Pg screw connection	none
Housing material	Metal
Material for screw connection	Metal
Degree of protection (plugged in)	IP67
		IP68
		IP69K
Seal
External cable diameter	12 mm ... 15 mm

Environmental and real-life conditions

Ambient conditions
Ambient temperature (operation)	-40 °C ... 115 °C (see derating curve)
Permissible humidity (storage/transport)	50 % ... 65 %

Dados comerciais

N.º de artigo	1621532
Pcs./Emb	1 Unidade
Quantidade mínima de pedido	1 Unidade
Chave comercial	ABR
Chave de produto	ABRCDB
GTIN	4046356936552
Peso por unidade (inclusive embalagem)	138 g
Peso por unidade (excluindo embalagem)	122,536 g
Número do imposto alfandegário	85366990
País de origem	DE

Classificações

Certificações

Approval Specification Data
	Tensão nominal U_N	Corrente nominal I_N	Secção transversal American Wire Gauge	Secção transversal mm²
Power	600 V	21.4 A	12
Control	50 V	4 A	18

Approval Specification Data
	Tensão nominal U_N	Corrente nominal I_N	Secção transversal American Wire Gauge	Secção transversal mm²
Power	600 V	24 A	12
Control	50 V	4 A	18

Approval Specification Data
	Tensão nominal U_N	Corrente nominal I_N
Power	600 V	16 A
Signal	50 V	4 A
Data	30 V	1 A

Environmental product compliance

ECLASS-13.0	27440116
ECLASS-15.0	27440116

EU RoHS
Cumpre os requisitos de substância segundo a Diretiva RoHS	Sim
isenções tanto quanto conhecido	6(c)
China RoHS
Environment friendly use period (EFUP)	EFUP-50 Uma lista de declaração de acordo com a RoHS da China relativa a artigos encontra-se na área de transferências do respetivo artigo, em "Declaração do fabricante". Para todos os artigos com EFUP-E não é emitida nem necessária uma tabela de declaração de acordo com a RoHS da China.
EU REACH SVHC
Nota sobre as substâncias candidatas ao REACH (n.º CAS)	Lead (n.º CAS: 7439-92-1)
SCIP	4b6b2d2d-5290-4edd-bf81-7e9910683255
