QUINT4-CAP/24DC/10/8KJ - DC UPS with integrated capacity - 2320571

Detalhes dos produtos

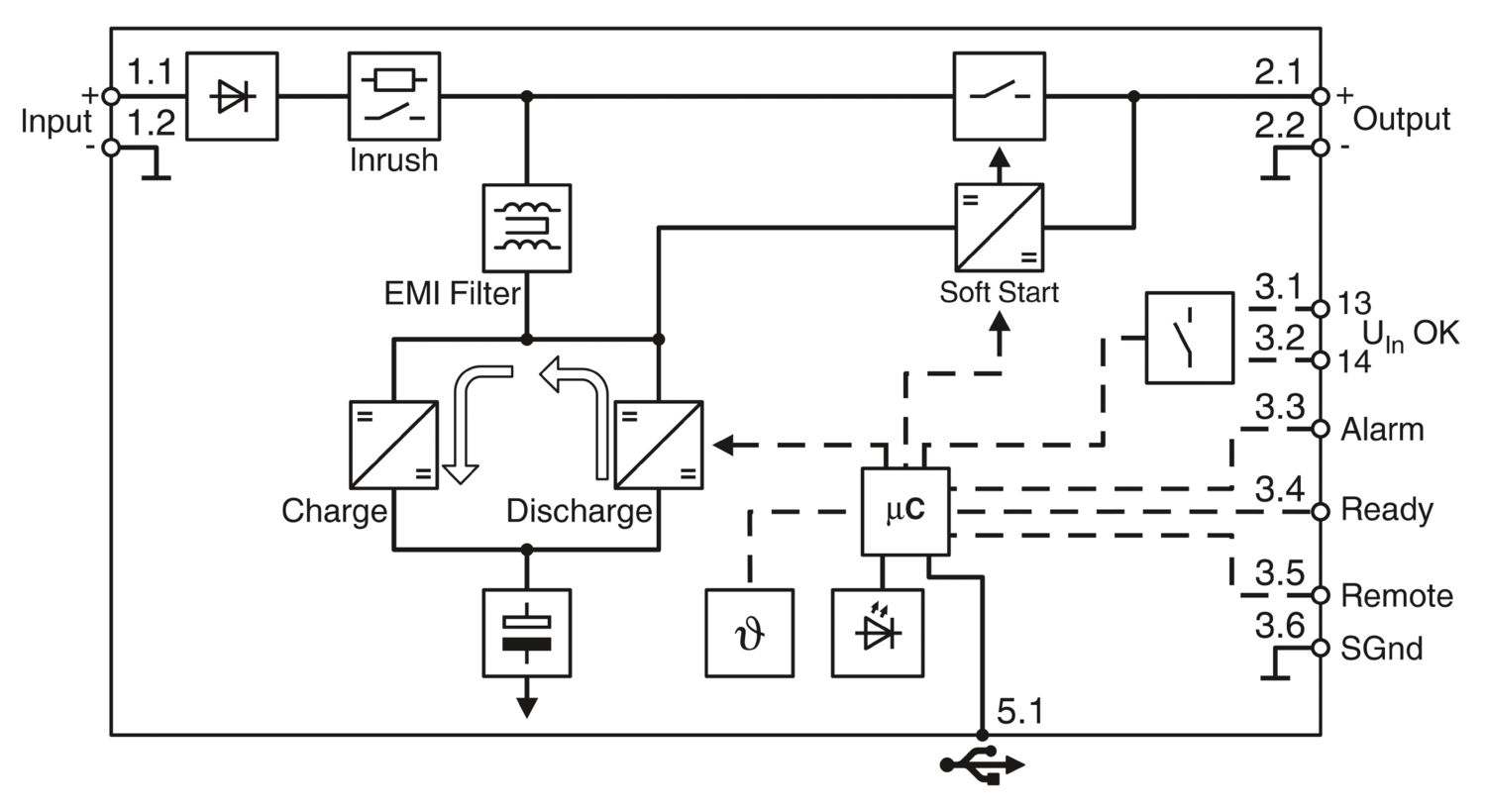

Descrição do produto

Dados técnicos

Input data

DC operation
Input voltage	24 V DC (SELV)
Input voltage range	22.5 V DC ... 30 V DC
Fixed backup threshold	< 22 V DC
Fixed backup threshold		> 30 V DC
Current consumption I_N (U_N, I_OUT = I_N, I_charge = 0)	13.5 A (max.)
Current consumption I_max (U_N, I_OUT = I_Stat.Boost, I_Charge= max)	13.5 A
Current consumption I_No-Load(U_N, I_OUT = 0, I_charge = 0)	0.1 A (No-load)
Current consumption I_charge (U_N, I_OUT = 0, I_charge = max)	1 A (charging process)
Power consumption P_max (U_N, I_OUT = I_Stat.Boost, I_charge = max)	324 W
Power consumption P_N (U_N, I_OUT = I_N, I_charge = 0)	245 W
Power consumption P_charge (U_N, I_OUT = 0, I_charge = max)	24 W

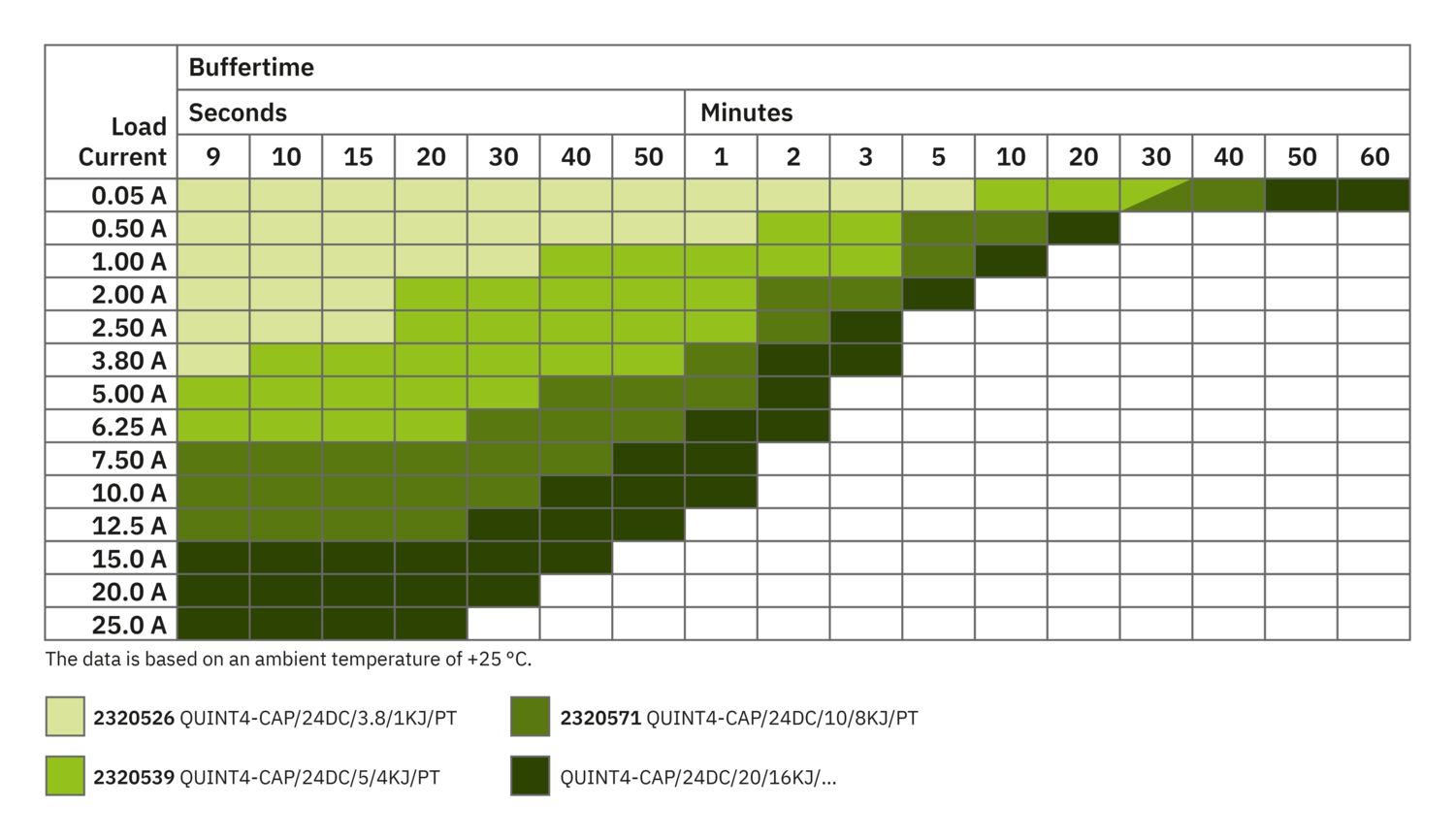

Buffer time	5 min (1 A)
		30 s (10 A)
		30 s (10 A)
Charging time	approx. 22 min
Recharging time	approx. 12 min
Inrush current	≤ 7 A ( 4 ms)
Switch-on time	1 ms (buffer mode)
Internal input fuse	no
Dielectric strength	max. 35 V DC (Reverse polarity protection)
Voltage drop, input/output	0.5 V DC

Output data

Efficiency	> 97 % (with charged energy storage device)
Connection in parallel	no
Connection in series	no
Mains operation
Output voltage	24 V DC (depending on the input voltage)
Output current I_N	10 A
Static Boost (I_Stat.Boost)	12.5 A
Output power P_OUT (U_N, I_OUT = I_N)	240 W
Output power P_OUT (U_N, I_OUT = I_stat.Boost)	300 W
Power dissipation No load (U_N, I_Out = 0, I_Charge = 0)	2.5 W
Power dissipation Nominal load (U_N, I_Out = I_N, I_Charge = 0)	6 W
Short-circuit-proof	yes (with input fuse)
Idling-proof	yes
Battery operation
Output voltage	22 V DC (typical)
Output current I_N	10 A (depending on output current)
Static Boost (I_Stat.Boost)	12.5 A
Output power P_OUT (U_N, I_OUT = I_N)	240 W
Output power P_OUT (U_N, I_OUT = I_stat.Boost)	300 W
Short-circuit-proof	yes
Idling-proof	yes

Energy storage

Input
Nominal capacity	0.08 Ah
General
Capacity	8 kJ
IQ-Technology	no
Storage medium	Double-layer capacitor
Buffer time	5 min (1 A)
	30 s (10 A)
	30 s (10 A)

Connection data

Input
Position	1.x
Connection technology
Position marking	1.1 (+), 1.2 (-)
Conductor connection
Connection method	Screw connection
rigid	0.2 mm² ... 2.5 mm²
flexible	0.2 mm² ... 2.5 mm²
flexible with ferrule without plastic sleeve	0.25 mm² ... 2.5 mm²
flexible with ferrule with plastic sleeve	0.25 mm² ... 2.5 mm²
rigid (AWG)	30 ... 12
Stripping length	6.5 mm
Tightening torque	0.5 Nm ... 0.6 Nm
Drive form screw head	Slotted L
2-conductor connection
rigid	0.2 mm² ... 0.75 mm²
flexible	0.2 mm² ... 0.75 mm²
flexible with TWIN ferrule with plastic sleeve	0.5 mm² ... 1.5 mm²
Output
Position	2.x
Connection technology
Position marking	2.1 (+), 2.2 (-)
Conductor connection
Connection method	Screw connection
rigid	0.2 mm² ... 2.5 mm²
flexible	0.2 mm² ... 2.5 mm²
flexible with ferrule without plastic sleeve	0.25 mm² ... 2.5 mm²
flexible with ferrule with plastic sleeve	0.25 mm² ... 2.5 mm²
rigid (AWG)	30 ... 12
Stripping length	6.5 mm
Tightening torque	0.5 Nm ... 0.6 Nm
Drive form screw head	Slotted L
2-conductor connection
rigid	0.2 mm² ... 0.75 mm²
flexible	0.2 mm² ... 0.75 mm²
flexible with TWIN ferrule with plastic sleeve	0.5 mm² ... 1.5 mm²
Signal
Position	3.x
Conductor connection
Connection method	Push-in connection
rigid	0.2 mm² ... 1.5 mm²
flexible	0.2 mm² ... 1.5 mm²
flexible with ferrule without plastic sleeve	0.2 mm² ... 1.5 mm²
flexible with ferrule with plastic sleeve	0.2 mm² ... 0.75 mm²
rigid (AWG)	24 ... 18
Stripping length	8 mm

Interfaces

Interface	USB (Modbus/RTU)
Number of interfaces	1
Connection method	MINI-USB Type B
Position	5.x
Locking	Screw
Transmission physics	USB 2.0
Topology	Point-to-point
Transmission speed	9600 baud
Transmission length	max. 5 m
Access time	≤ 2 s
Chipset	Silicon Labs CP2104-F03-GM
Electrical isolation	Yes, UL approved

Signaling

Signal state Remote
Connection labeling	3.5
Channel	DI (digital input)
State (configurable)	Remote
State condition	Remote
Low signal	<3 kΩ to SGnd
High signal	open (>470 k between Remote and SGnd)
Signal - state assignment	low - active
Reference potential	3.6 (SGnd, identical to 1.2, 2.2)
Signal state Alarm
Connection labeling	3.3
Channel	DO (digital output)
Switching output	Transistor
State (configurable)	Group alarm
State condition (configurable)	Alarm
Output voltage	24 V (U_N - 1 V (typical))
Output can be loaded	max. 20 mA
State - signal assignment	active - low
Reference potential	3.6 (SGnd, identical to 1.2, 2.2)
LED status indicator	red (Alarm)
Signal state UIN OK
Connection labeling	3.1, 3.2
Channel	DO (digital output)
Switching output	Electronic relays (OptoMOS)
State (configurable)	U_In OK
State condition (configurable)	U_In > 22,5 V DC, U_In < 30 V DC
Output voltage	max. 30 V
Output can be loaded	300 mA
State - signal assignment	active - high
LED status indicator	green (U_In OK)
Signal state Ready
Connection labeling	3.4
Channel	DO (digital output)
Switching output	Transistor
State (configurable)	Ready
State condition (configurable)	State of charge = 100% or buffer mode
Output voltage	24 V (U_N - 1 V (typical))
Output can be loaded	max. 20 mA
State - signal assignment	active - high
Reference potential	3.6 (SGnd, identical to 1.2, 2.2)
LED status indicator	Green (state of charge - SOC)
Signal ground SGnd
Connection labeling	3.6
Switching voltage	0 V
Current carrying capacity	max. 60 mA
Function	Signal ground
Reference potential	3.3 Alarm, 3.4 Ready, 3.5 Remote

Electrical properties

Insulation voltage input, output / housing	500 V

Product properties

Product family	QUINT DC UPS with integrated capacitor
MTBF (IEC 61709, SN 29500)	2102818 h (25 °C)
	1387185 h (40 °C)
	697626 h (60 °C)
Insulation characteristics
Protection class	III (SELV)
Degree of pollution	2
Life expectancy (electrolytic capacitors)
Time	83352 h

Dimensions

Item dimensions
Width	118 mm
Height	130 mm
Depth	125 mm
Installation dimensions
Installation distance right/left	0 mm / 0 mm
Installation distance top/bottom	50 mm / 50 mm

Mounting

Mounting type	DIN rail mounting
Assembly note	alignable: horizontally 0 mm, vertically 50 mm
Mounting position	horizontal DIN rail NS 35, EN 60715

Material specifications

Flammability rating according to UL 94 (housing / terminal blocks)	V0
Housing material	Metal

Environmental and real-life conditions

Ambient conditions
Degree of protection	IP20
Ambient temperature (operation)	-25 °C ... 60 °C (> 40 °C Derating: 1 %/K)
Ambient temperature (storage/transport)	-40 °C ... 60 °C
Ambient temperature (start-up type tested)	-40 °C
Maximum altitude	≤ 4000 m
Climatic class	3K3 (in acc. with EN 60721)
Max. permissible relative humidity (operation)	≤ 95 %
Shock	30g, 18 ms per spatial direction (in accordance with IEC 60068-2-27)
Vibration (operation)	0,7g

Standards and regulations

Protective extra-low voltage
Standard designation	Protective extra-low voltage
Standards/specifications	UL 61010-2-201

Approvals

UL
Identification	UL/C-UL Listed UL 508
UL
Identification	UL/C-UL Recognized UL 60950-1
UL
Identification	UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D (Hazardous Location)
UL
Identification	CAN/CSA-C22.2 No. 107.1-01
CB scheme
Identification	UL 60950-1

EMC data

Electromagnetic compatibility	Conformance with EMC Directive 2014/30/EU
Low Voltage Directive	Conformance with Low Voltage Directive 2014/35/EC
EMC requirements for noise emission	EN 61000-6-3
EMC requirements for noise emission		EN 61000-6-4
EMC requirements for noise immunity	EN 61000-6-1
EMC requirements for noise immunity		EN 61000-6-2
Noise emission
Standards/regulations	EN 55016
Standards/regulations		EN 61000-6-3
Electrostatic discharge
Standards/regulations	EN 61000-4-2
Electrostatic discharge
Contact discharge	6 kV (Test Level 3)
Discharge in air	8 kV (Test Level 3)
Comments	Criterion B
Electromagnetic HF field
Standards/regulations	EN 61000-4-3
Electromagnetic HF field
Frequency range	80 MHz ... 6 GHz
Test field strength	10 V/m
Comments	Criterion A
Fast transients (burst)
Standards/regulations	EN 61000-4-4
Fast transients (burst)
Input	2 kV (Test Level 3 - asymmetrical)
Output	2 kV (Test Level 3 - asymmetrical)
Signal	2 kV (Test Level 3 - asymmetrical)
Comments	Criterion B
Surge voltage load (surge)
Standards/regulations	EN 61000-4-5
Surge voltage load (surge)
Signal	1 kV (Test Level 2 - asymmetrical)
Comments	Criterion B
Input/Output	1 kV (Test Level 2 - symmetrical)
Input/Output		2 kV (Test Level 3 - asymmetrical)
Conducted interference
Standards/regulations	EN 61000-4-6
Conducted interference
Frequency range	0.15 MHz ... 80 MHz
Comments	Criterion A
Voltage	10 V
Criteria
Criterion A	Normal operating behavior within the specified limits.
Criterion B	Temporary impairment to operational behavior that is corrected by the device itself.

Dados comerciais

N.º de artigo	2320571
Pcs./Emb	1 Unidade
Quantidade mínima de pedido	1 Unidade
Chave comercial	CMU
Chave de produto	CMUIC3
GTIN	4055626246901
Peso por unidade (inclusive embalagem)	1 837 g
Peso por unidade (excluindo embalagem)	1 579 g
Número do imposto alfandegário	85322900
País de origem	CN

Classificações

Certificações

Environmental product compliance

EU RoHS
Cumpre os requisitos de substância segundo a Diretiva RoHS	Sim
isenções tanto quanto conhecido	6(c), 7(a), 7(c)-I
China RoHS
Environment friendly use period (EFUP)	EFUP-25 Uma lista de declaração de acordo com a RoHS da China relativa a artigos encontra-se na área de transferências do respetivo artigo, em "Declaração do fabricante". Para todos os artigos com EFUP-E não é emitida nem necessária uma tabela de declaração de acordo com a RoHS da China.
EU REACH SVHC
Nota sobre as substâncias candidatas ao REACH (n.º CAS)	Diboron trioxide (n.º CAS: 1303-86-2)
		Lead monoxide (lead oxide) (n.º CAS: 1317-36-8)
		Lead (n.º CAS: 7439-92-1)
SCIP	f60b5ad5-67a9-44e9-ac7f-cb1bae63ab4d
EF3.1 Alterações climáticas
CO2e kg	30,45 kg CO2e
