FL SFP LX - Media module

2891767

Gigabit SFP module for transmission up to 30 km with a wavelength of 1310 nm.

Detalhes dos produtos

Width	13.7 mm
Height	8.95 mm
Length	56.5 mm

Note on application
Note on application	Only for industrial use

Housing material	Metal

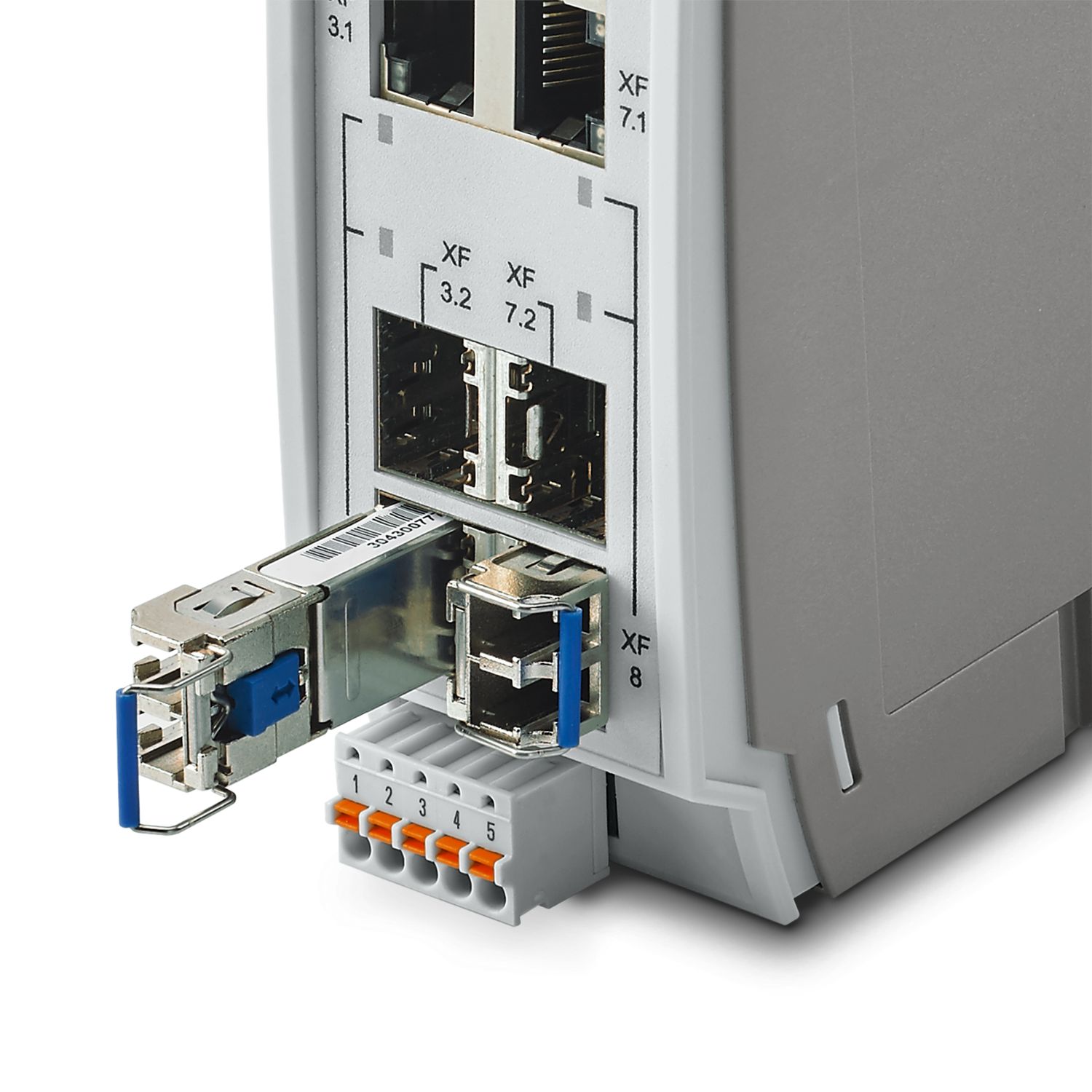

Mounting type	Insert in SFP slot

Ethernet FO
Connection method	LC
Transmission speed	1 Gbps
Transmit capacity, minimum	-5 dBm
Transmit capacity, maximum	0 dBm
Minimum receiver sensitivity	-24 dBm
Maximum receiver sensitivity	-3 dBm
Transmission physics	Single-mode fiberglass
Transmission length	30 km (Fiberglass 9/125)
	250 m (Fiberglass 62.5/125)
Wavelength	1310 nm
Signal LEDs	depending on the Factoryline device
No. of channels	1 (LC single mode)
Transmit capacity, minimum	-5 dBm
Transmit capacity, maximum	0 dBm
Minimum receiver sensitivity	-3 dBm
Maximum receiver sensitivity	-24 dBm

Product type	SFP module
Type	Factoryline devices with SFP slot
MTTF	748 Years (Telcordia SR-332, temperature factor at 40°C = 1, stress factor at 50% = 1, environmental factor = 1)
Format	SFP (Small Form-factor Pluggable)
Basic functions	SFP module as FO port

Status display	via a Factoryline device

Current consumption	300 mA
Maximum power dissipation for nominal condition	1 W
Transmission medium	FO
Supply
Supply voltage	3.3 V (via Factoryline switch)
Power supply connection	via SFP slot
Max. current consumption	300 mA
Current consumption	300 mA

Connection method	To insert in SFP slot

Ambient conditions
Degree of protection	IP20
Ambient temperature (operation)	-40 °C ... 85 °C (non-condensing)
Ambient temperature (storage/transport)	-40 °C ... 85 °C (non-condensing)
Permissible humidity (operation)	5 % ... 95 % (non-condensing)
Permissible humidity (storage/transport)	30 % ... 95 % (non-condensing)
Vibration (operation)	in acc. with IEC 60068-2-6: 5g, 150 Hz
Air pressure (operation)	86 kPa ... 108 kPa (1500 m above sea level)
Air pressure (storage/transport)	66 kPa ... 108 kPa (3500 m above sea level)

Standard designation	Laser equipment safety
Standards/specifications	IEC 60825

Dados comerciais

N.º de artigo	2891767
Pcs./Emb	1 Unidade
Quantidade mínima de pedido	1 Unidade
Chave comercial	DNN
Chave de produto	DNN613
GTIN	4046356166775
Peso por unidade (inclusive embalagem)	30,6 g
Peso por unidade (excluindo embalagem)	30,6 g
Número do imposto alfandegário	85176200
País de origem	TW

Classificações

Certificações

Environmental product compliance

Produtos compatíveis

Acessórios

Vantagens

MSA compliant
