MSTB 2,5/18-GF-5,08 - PCB header

1776663

PCB headers, nominal cross section: 2.5 mm², color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Sn, contact connection type: Pin, number of potentials: 18, number of rows: 1, number of positions: 18, number of connections: 18, product range: MSTB 2,5/..-GF, pitch: 5.08 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.23 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2,5, Pin connector pattern alignment: Standard, locking: Screw locking mechanism, mounting method: Threaded flange, type of packaging: packed in cardboard

Detalhes dos produtos

Product type	PCB headers
Product family	MSTB 2,5/..-GF
Product line	COMBICON Connectors M
Type	Standard
Number of positions	18
Pitch	5.08 mm
Number of connections	18
Number of rows	1
Number of potentials	18
Mounting flange	Threaded flange
Pin layout	Linear pinning
Solder pins per potential	1

Properties
Nominal current I_N	12 A
Nominal voltage U_N	320 V
Contact resistance	1 mΩ
Rated voltage (III/3)	250 V
Rated surge voltage (III/3)	4 kV
Rated voltage (III/2)	320 V
Rated surge voltage (III/2)	4 kV
Rated voltage (II/2)	400 V
Rated surge voltage (II/2)	4 kV

Mounting type	Wave soldering
Pin layout	Linear pinning
Flange
Tightening torque	0.3 Nm
Attachment on the PCB
Tightening torque	0.3 Nm
Screw	Sheet metal screw ISO 1481-ST 2,2x6,5 C or ISO 7049-ST 2,2x6,5 C

Material data - contact
Note	WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact material	Cu alloy
Surface characteristics	Tin-plated
Metal surface contact area (top layer)	Tin (3 - 5 µm Sn)
Metal surface contact area (middle layer)	Nickel (1.3 - 3 µm Ni)
Metal surface soldering area (top layer)	Tin (3 - 5 µm Sn)
Metal surface soldering area (middle layer)	Nickel (1.3 - 3 µm Ni)
Material data - housing
Color (Housing)	green (6021)
Insulating material	PBT
Insulating material group	IIIa
CTI according to IEC 60112	225
Flammability rating according to UL 94	V0

Notes on operation	In accordance with IEC 61984, COMBICON connectors have no switching power (COC). During designated use, they must not be plugged in or disconnected when carrying voltage or under load.

Dimensional drawing
Pitch	5.08 mm
Width [w]	101.6 mm
Height [h]	11.8 mm
Length [l]	12 mm
Installed height	8.57 mm
Solder pin length [P]	3.23 mm
Pin dimensions	1 x 1 mm
PCB design
Hole diameter	1.4 mm

Visual inspection
Specification	IEC 60512-1-1:2002-02
Result	Test passed
Dimension check
Specification	IEC 60512-1-2:2002-02
Result	Test passed
Resistance of inscriptions
Specification	IEC 60068-2-70:1995-12
Result	Test passed
Polarization and coding
Specification	IEC 60512-13-5:2006-02
Result	Test passed
Contact holder in insert
Specification	IEC 60512-15-1:2008-05
Contact holder in insert Requirements >20 N	Test passed
Insertion and withdrawal forces
Result	Test passed
No. of cycles	25
Insertion strength per pos. approx.	8 N
Withdraw strength per pos. approx.	6 N

Thermal test \| Test group C
Specification	IEC 60512-5-1:2002-02
Tested number of positions	16
Insulation resistance
Specification	IEC 60512-3-1:2002-02
Insulation resistance, neighboring positions	> 5 MΩ
Air clearances and creepage distances \|
Specification	IEC 60664-1:2007-04
Insulating material group	IIIa
Comparative tracking index (IEC 60112)	CTI 225
Rated insulation voltage (III/3)	250 V
Rated surge voltage (III/3)	4 kV
minimum clearance value - non-homogenous field (III/3)	3 mm
minimum creepage distance (III/3)	4 mm
Rated insulation voltage (III/2)	320 V
Rated surge voltage (III/2)	4 kV
minimum clearance value - non-homogenous field (III/2)	3 mm
minimum creepage distance (III/2)	3.2 mm
Rated insulation voltage (II/2)	400 V
Rated surge voltage (II/2)	4 kV
minimum clearance value - non-homogenous field (II/2)	3 mm
minimum creepage distance (II/2)	4 mm

Vibration test
Specification	IEC 60068-2-6:2007-12
Frequency	10 - 150 - 10 Hz
Sweep speed	1 octave/min
Amplitude	0.35 mm (10 Hz ... 60.1 Hz)
Acceleration	5g (60.1 Hz ... 150 Hz)
Test duration per axis	2.5 h
Test directions	X-, Y- and Z-axis
Durability test
Specification	IEC 60512-9-1:2010-03
Impulse withstand voltage at sea level	4.8 kV
Contact resistance R₁	1 mΩ
Contact resistance R₂	1 mΩ
Insertion/withdrawal cycles	25
Insulation resistance, neighboring positions	> 5 MΩ
Climatic test
Specification	ISO 6988:1985-02
Corrosive stress	0.2 dm³SO₂on 300 dm³/40 °C/1 cycle
Thermal stress	105 °C/168 h
Power-frequency withstand voltage	2.21 kV
Shocks
Specification	IEC 60068-2-27:2008-02
Pulse shape	Semi-sinusoidal
Acceleration	30g
Shock duration	18 ms
Test directions	X-, Y- and Z-axis (pos. and neg.)
Ambient conditions
Ambient temperature (operation)	-40 °C ... 105 °C (dependent on the derating curve)
Ambient temperature (storage/transport)	-40 °C ... 70 °C
Relative humidity (storage/transport)	30 % ... 70 %
Ambient temperature (assembly)	-5 °C ... 100 °C

Type of packaging	packed in cardboard

Dados comerciais

N.º de artigo	1776663
Pcs./Emb	50 Unidade
Quantidade mínima de pedido	50 Unidade
Chave comercial	AAC
Chave de produto	AACSHD
Página de catálogo	Página 167 (CC-2005)
GTIN	4017918038830
Peso por unidade (inclusive embalagem)	9,32 g
Peso por unidade (excluindo embalagem)	8,343 g
Número do imposto alfandegário	85366930
País de origem	DE

Classificações

Certificações

Approval Specification Data
	Tensão nominal U_N	Corrente nominal I_N
Use group B
	300 V	10 A
Use group D
	300 V	10 A

Approval Specification Data
	Tensão nominal U_N	Corrente nominal I_N
Use group B
	300 V	15 A
Use group D
	300 V	10 A

Approval Specification Data
	Tensão nominal U_N	Corrente nominal I_N	Secção transversal American Wire Gauge	Secção transversal mm²
	250 V	12 A

Environmental product compliance

Produtos compatíveis

Contrapeças adequadas

Acessórios

Vantagens

Maximum flexibility when it comes to device design – one header for connectors with different connection technologies

Easy PCB replacement thanks to plug-in modules

Well-known mounting principle allows worldwide use

Plug-in direction parallel to the PCB

Screwable flange for superior mechanical stability

Phoenix Contact S.A.

Sintra Business Park, Edifício n°1 Zona Industrial da Abrunheira, sala 0M, 2710-089 SINTRA

Fazer uma pergunta (+351) 21 911 2760 pt-info@phoenixcontact.com

EU RoHS
Cumpre os requisitos de substância segundo a Diretiva RoHS	Sim (Sem regras de exceção)
China RoHS
Environment friendly use period (EFUP)	EFUP-E Nenhuma substância perigosa acima dos valores-limite
EU REACH SVHC
Nota sobre as substâncias candidatas ao REACH (n.º CAS)	Nenhuma substância numa proporção superior a 0,1 % em massa

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

MSTB 2,5/18-GF-5,08 - PCB header

1776663

Detalhes dos produtos

ECLASS

ETIM

UNSPSC

CSA

cULus Recognized

DNV GL

VDE approval of drawings

Produtos compatíveis

Vantagens

Automate

Connect

Mark, assemble, and install

Supply, charge, and protect

Switch, Measure and Monitor

MSTB 2,5/18-GF-5,08 - PCB header 1776663

Detalhes dos produtos

ECLASS

ETIM

UNSPSC

Produtos compatíveis

MSTB-BL - Accessories 1755477

SK 5,08/3,8:FORTL.ZAHLEN - Marker card 0804293

CR-MSTB - Coding section 1734401

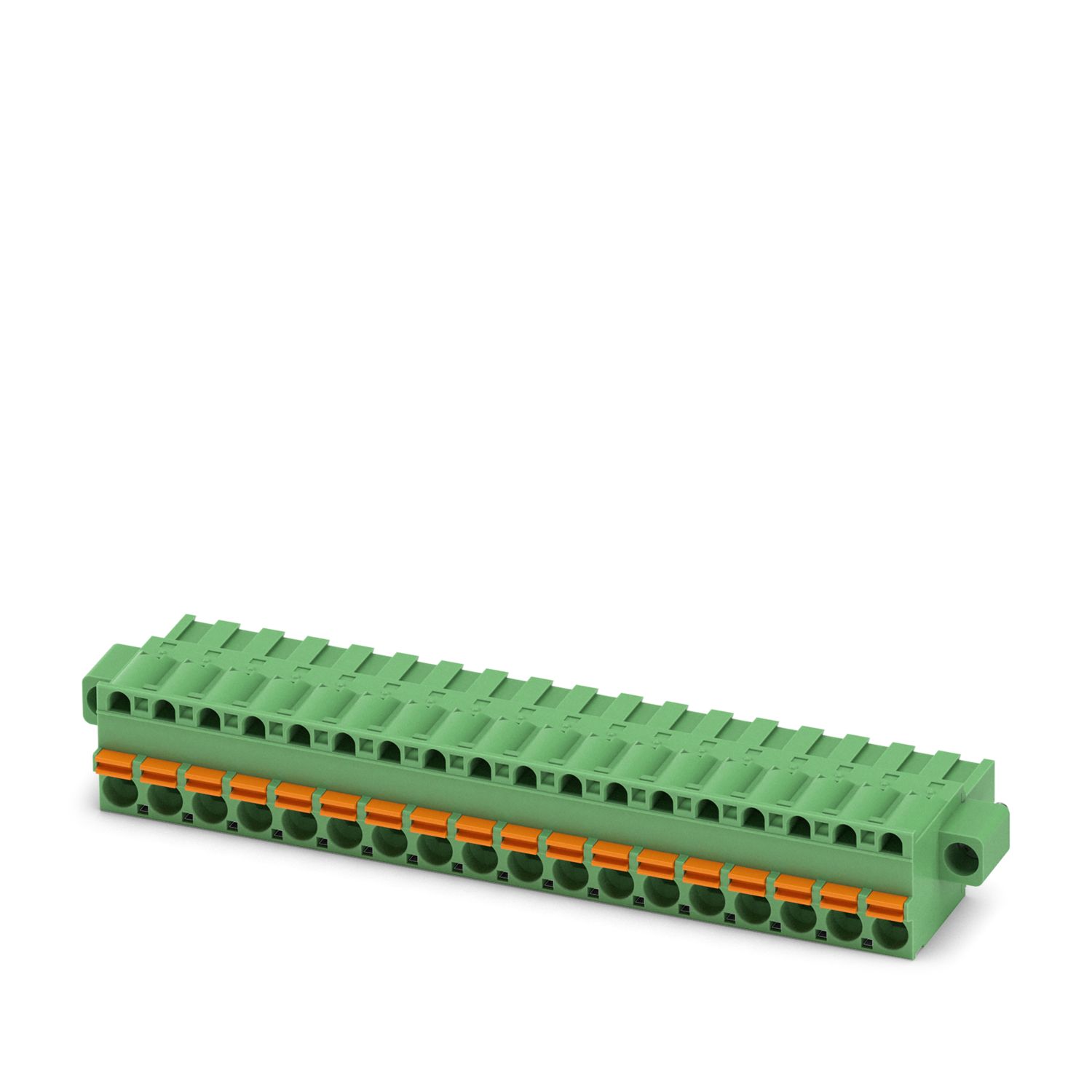

FKCN 2,5/18-STF-5,08 - PCB connector 1754953
