VS-08-A-RJ45/LP-1-IP67
-
Panel-mount frame
1689446
RJ45 panel mounting frame, IP67, for PCB connection, for square panel cutout, with grommet, without mounting screws, color: gray
Detalhes dos produtos
| Product type | Panel-mount frame |
| Application | PCB |
| Type | Version 6 |
| Number of positions | 8 |
| Connection profile | RJ45 |
| Number of slots | 1 |
| Type | RJ45 |
| Insulation characteristics | |
| Degree of pollution | 2 |
| Transmission medium | Copper |

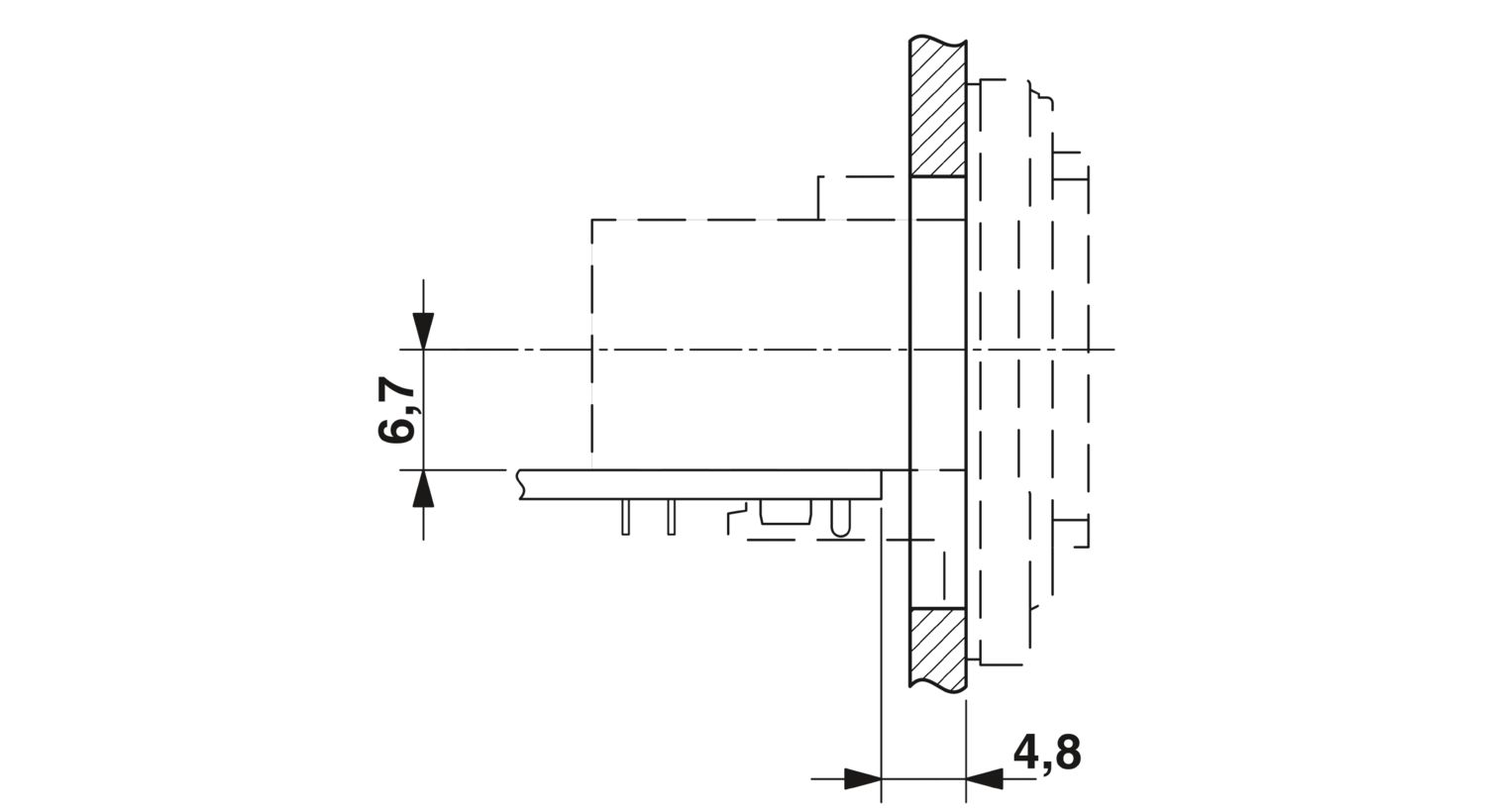

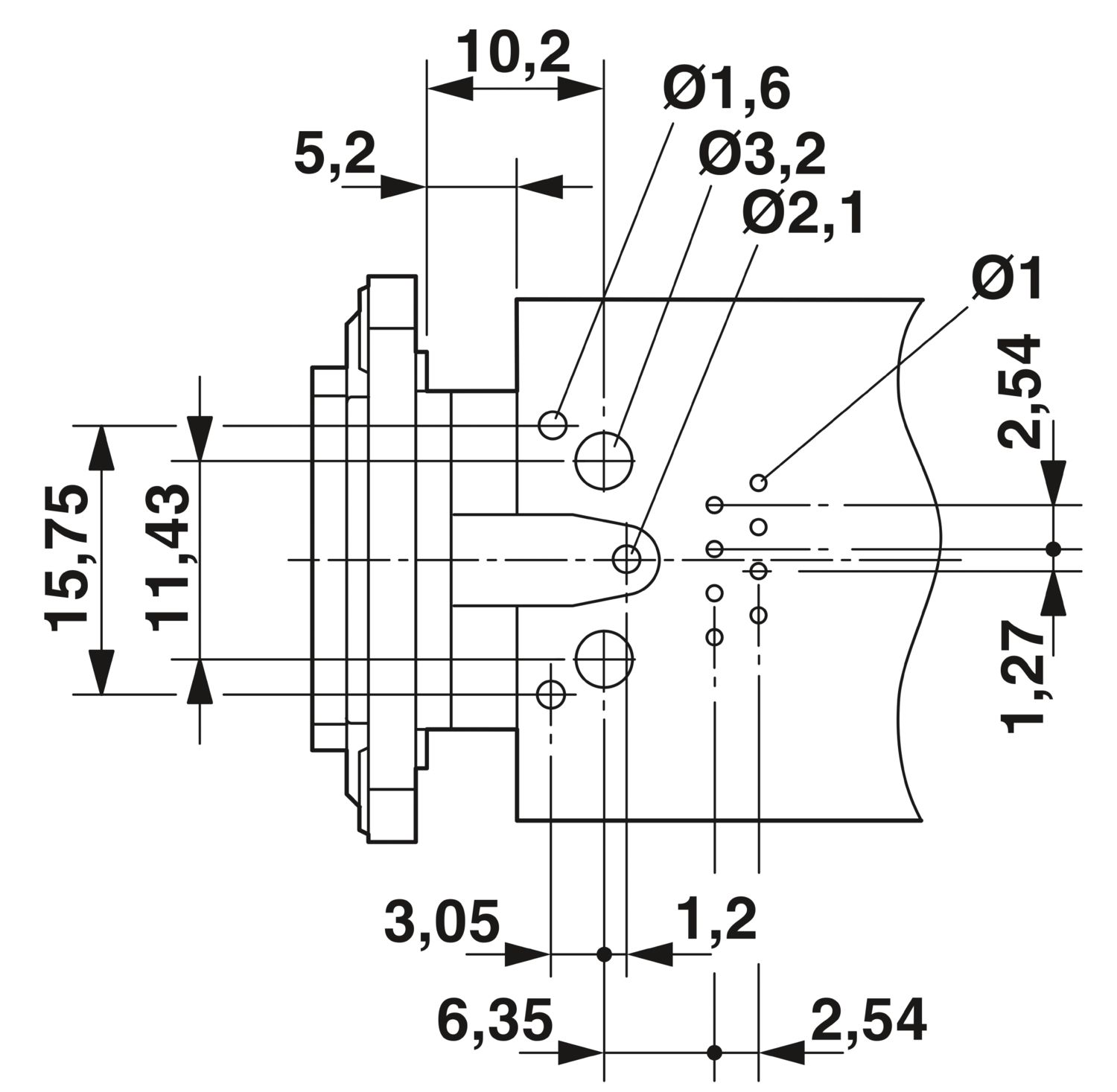

| Dimensional drawing |
|
| Width | 32.5 mm |
| Height | 32.5 mm |
| Depth | 20 mm |
| Length | 20 mm |
| Color | gray |
| Material | Plastic |
| Flammability rating according to UL 94 | V0 |
| Seal material | NBR |
| Seal material, flat gasket | NBR |
| Housing material | Plastic |
| Housing surface material | PA, light gray |
| Contact surface material | Au/Ni |
| Contact carrier material | Polyester GF |
| Mechanical data | |
| Insertion/withdrawal cycles | ≥ 1000 |
| Ambient conditions | |
| Degree of protection | IP65/IP67 |
| Ambient temperature (operation) | -40 °C ... 80 °C |
| Mounting type | Front mounting |
