FOC-OE-OE-GZ04/...
-
FO cable
1411566

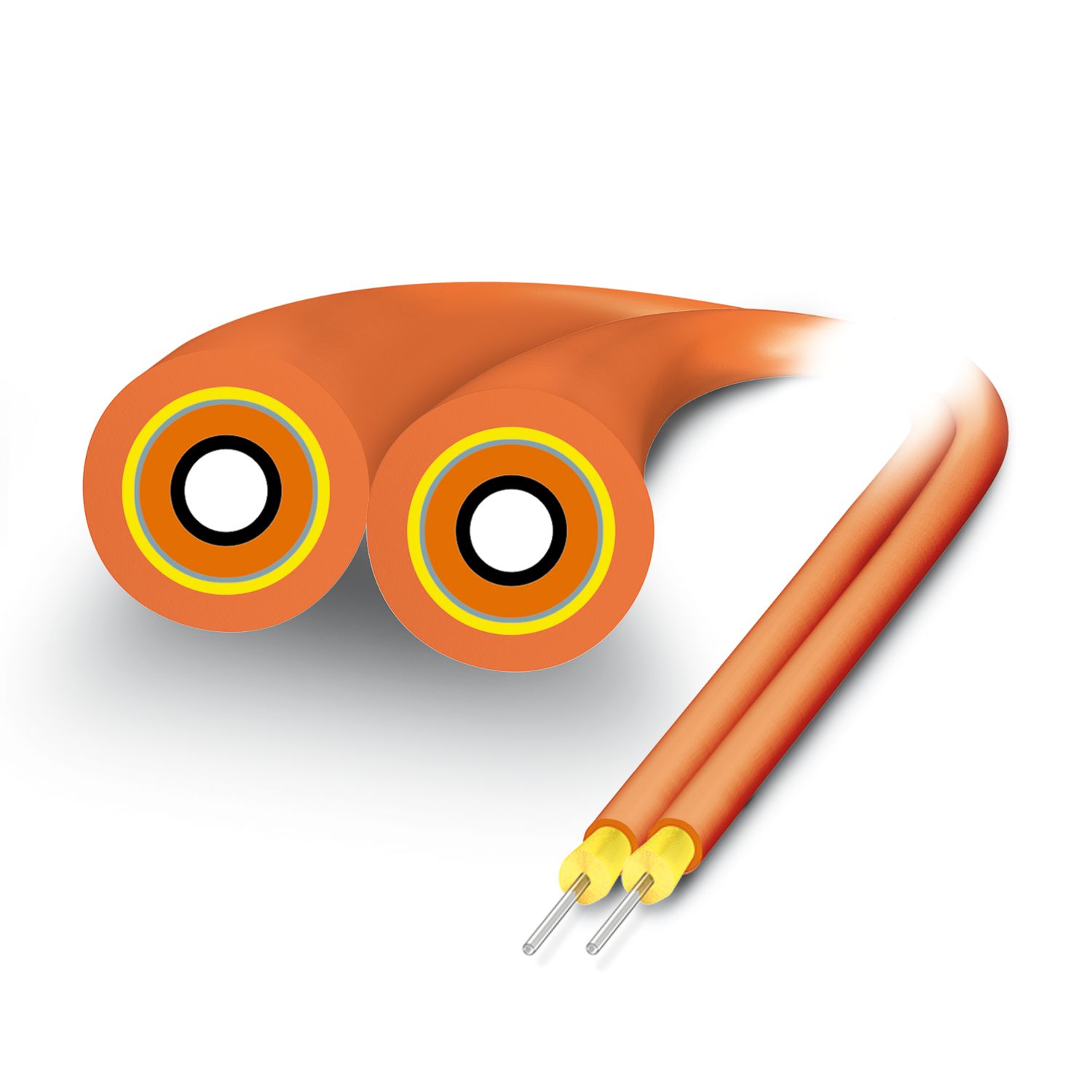

Fiber optic cable, multi-mode fiberglass 62.5/125 µm, OM1, length: various
Detalhes dos produtos
| Product type | Data cable by the meter |
| Application | Indoor installation |
| Number of positions | 2 |
| No. of conductors | 2 |
| Attenuation | ≤ 3 dB/km (with 850 nm) |
| ≤ 0.8 dB/km (with 1300 nm) | |
| Transmission medium | FO |
| Transmission speed | 1 Gbps |
| External dimensions | |
| External diameter min. | 2 mm |
| External diameter max. | 4.2 mm |
| Color | orange |
| Flammability rating according to UL 94 | V0 |
| Outer sheath, material | LSZH |
| Connection 2 | |
| Type | free cable end |
| Degree of protection | IP20 |
| Cable length | 2.50 m |
| Cable weight | 8.30 kg/km |
| Cable type | Fiberglass |
| Cable type | Zip cord |
| Cable abbreviation | I-V(ZN)H |
| External cable diameter | 2.00 mm (Zip cord) |
| Outer sheath, material | LSZH |
| External sheath, color | orange |
| Individual wire diameter | 900 µm |
| Single wire, color | - |
| Smallest bending radius, fixed installation | 30 mm |
| Smallest bending radius, movable installation | 60 mm |
| Tensile strength short-term/long-term | 600 N |
| Cable, attenuation | 3.2 dB/km (at 850 nm); 0.9 dB/km (at 1300 nm) |
| Halogen-free | According to IEC 60754-2 |
| Flame resistance | yes |
| FO cable | |
| Number of fibers | 2 |
| Fiber | 62.5/125 µm |
| Fiber type | Multimode fiberglass 62.5/125 µm |
| Transmission medium | Multi-mode fiberglass |
| Wavelength | 850, 1300 nm |
| Tensile strength short-term/long-term | 600 N |
| Mechanical data | |
| Smallest bending radius | 30 mm |
| Attenuation | ≤ 3 dB/km (with 850 nm) |
| Ambient conditions | |
| Degree of protection | IP20 |
| Ambient temperature (operation) | -25 °C ... 70 °C |
| Ambient temperature (storage/transport) | -25 °C ... 70 °C |
| Ambient temperature (assembly) | -5 °C ... 50 °C |
| Flame resistance | yes |
| cable layer type | Indoors |
| N.º de artigo | 1411566 |
| Pcs./Emb | 1 Unidade |
| Quantidade mínima de pedido | 1 Unidade |
| Observação | Produção ligada a pedido (sem devolução) |
| Chave comercial | ABN |
| Chave de produto | ABNICC |
| Página de catálogo | Página 414 (C-2-2019) |
| Número do imposto alfandegário | 85447000 |
| País de origem | DE |
ECLASS
| ECLASS-13.0 | 27061803 |
ETIM
| ETIM 9.0 | EC000034 |
UNSPSC
| UNSPSC 21.0 | 26121600 |
| EU RoHS | |
| Cumpre os requisitos de substância segundo a Diretiva RoHS | Sim (Sem regras de exceção) |
| China RoHS | |
| Environment friendly use period (EFUP) |
EFUP-E
Nenhuma substância perigosa acima dos valores-limite
|
| EU REACH SVHC | |
| Nota sobre as substâncias candidatas ao REACH (n.º CAS) | Nenhuma substância numa proporção superior a 0,1 % em massa |
Vantagens
Ideal for assembly with fiberglass connectors
Exceptional fiber quality for reliable data transmission
Very high data rates possible for demanding applications
Satisfies UL 94, V0
