CSA
认证ID: 13631| 额定电压UN | 额定电流IN | 接线容量AWG | 接线容量mm2 | |
|---|---|---|---|---|
| B | ||||
| 600 V | 75 A | 16 - 4 | ||
| C | ||||
| 600 V | 75 A | 16 - 4 | ||
IECEE-CB方案
认证ID: DE1-62884cULus认证
认证ID: E60425| 额定电压UN | 额定电流IN | 接线容量AWG | 接线容量mm2 | |
|---|---|---|---|---|
| B | ||||
| 600 V | 85 A | 16 - 4 | ||
| C | ||||
| 600 V | 85 A | 16 - 4 | ||

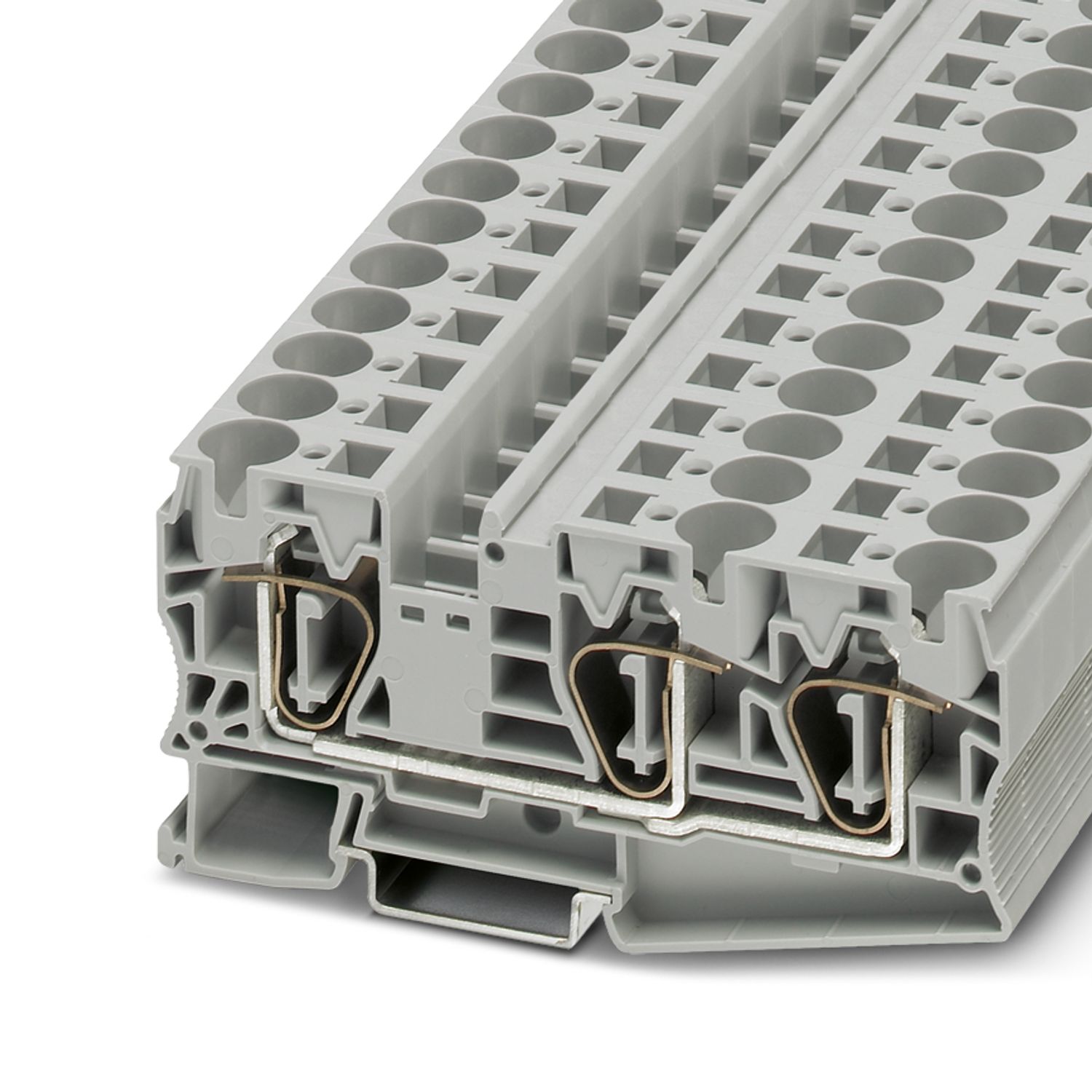

ST 16-TWIN
-
直通式接线端子
3035328
直通式接线端子， 标称工作电压: 1000 V， 额定电流: 76 A， 连接量: 3， 接线方式: 回拉式弹簧连接， 额定接线容量: 16 mm2， 横截面: 0.2 mm2 - 25 mm2， 安装方式: NS 35/15， NS 35/7,5， 颜色: 灰色
产品详情
优势
Simple wiring of very small, flexible conductors
Enables one-handed wiring
No restriction on cross-sections when using conductors with ferrules
Reliable vibration resistance thanks to spring-loaded contact elements
Compact wiring of three conductors in a single terminal block
Full flexibility thanks to the standardized CLIPLINE complete bridging, marking, and testing accessories
