E PE A 160X260X91
-
Empty enclosure
0899351
Empty enclosure, material: Polyester fiberglass reinforced, squirrell grey RAL 7000, 160 mm x 260 mm x 91 mm, type of locking: Screw-on cover
Este produto precisa de outros produtos para a operação.
Acessórios necessários
Detalhes dos produtos
| General | Prepared for direct installation of a DIN rail |
| Product type | Terminal box |
| Type | Empty enclosure with cover |
| Insulation characteristics | |
| Protection class | II |

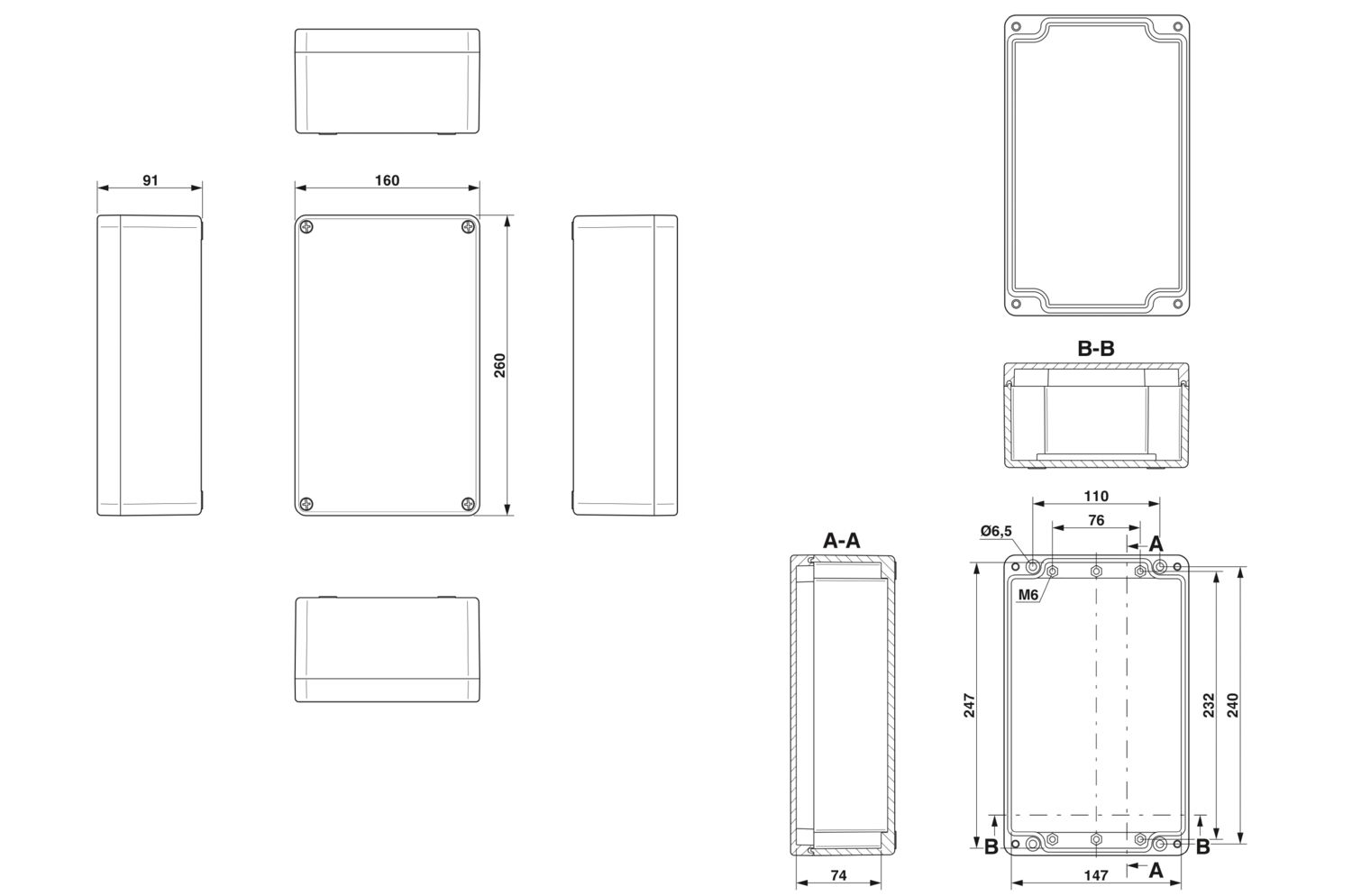

| Dimensional drawing |
|
| Width | 160 mm |
| Height | 260 mm |
| Depth | 91 mm |
| Clearance width, maximum DIN rail length | 245 mm |
| max. assembly length | 222 mm |
| Color | squirrell grey RAL 7000 |
| Material | Polyester fiberglass reinforced |
| Flammability rating according to UL 94 | V0 |
| Seal material | Chloroprene |
| Components | halogen-free |
| General | |
| Type of locking (GRP) | Screw-on cover Plus/minus screw |
| Degree of protection (IP code) | |
| Degree of protection | IP66 |
| Ambient conditions | |
| Degree of protection | IP66 |
| Ambient temperature (operation) | -40 °C ... 100 °C |
| Assembly note | Integrated blind hole |
| External fixing clips available as an option | |
| Direct DIN rail mounting | yes |
| Useable DIN rail type | NS 35 |
