HC-B24-HCLFD-PR-BK
-
Protective cover
1414633

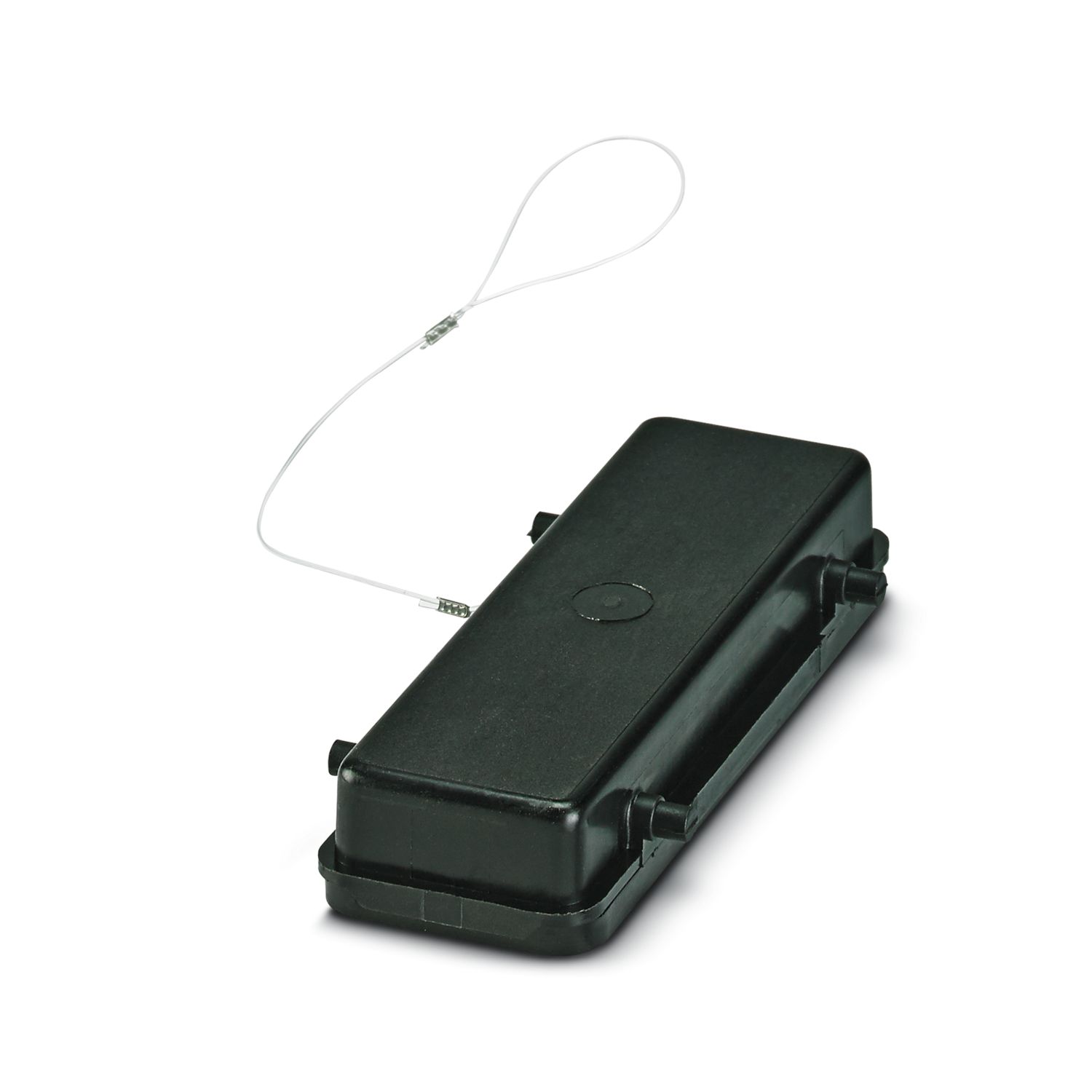

Protective cover B24, for double locking latch, protective cover material: PA, height: 21.6 mm, seal: yes
Detalhes dos produtos
| General | Protective cover for supporting base element with double locking latch |
| Product type | Protective cover |
| Housing type | Protective cover |
| Type | B24 |
| Seal present | yes |
| Dimensional drawing |
|
| Width | 46 mm |
| Height | 21.6 mm |
| Length | 124 mm |
| Diameter | 30 mm |
| Material Protective cover | PA |
| Flammability rating according to UL 94 | HB |
| Seal material | NBR |
| Material, protective cover | PA |
| Mechanical data | |
| Locking type | Pin |
| Ambient conditions | |
| Degree of protection | IP66 |
| Ambient temperature (operation) | -20 °C ... 100 °C |
| Assembly note | Plastic protective cover for short-term protection |
