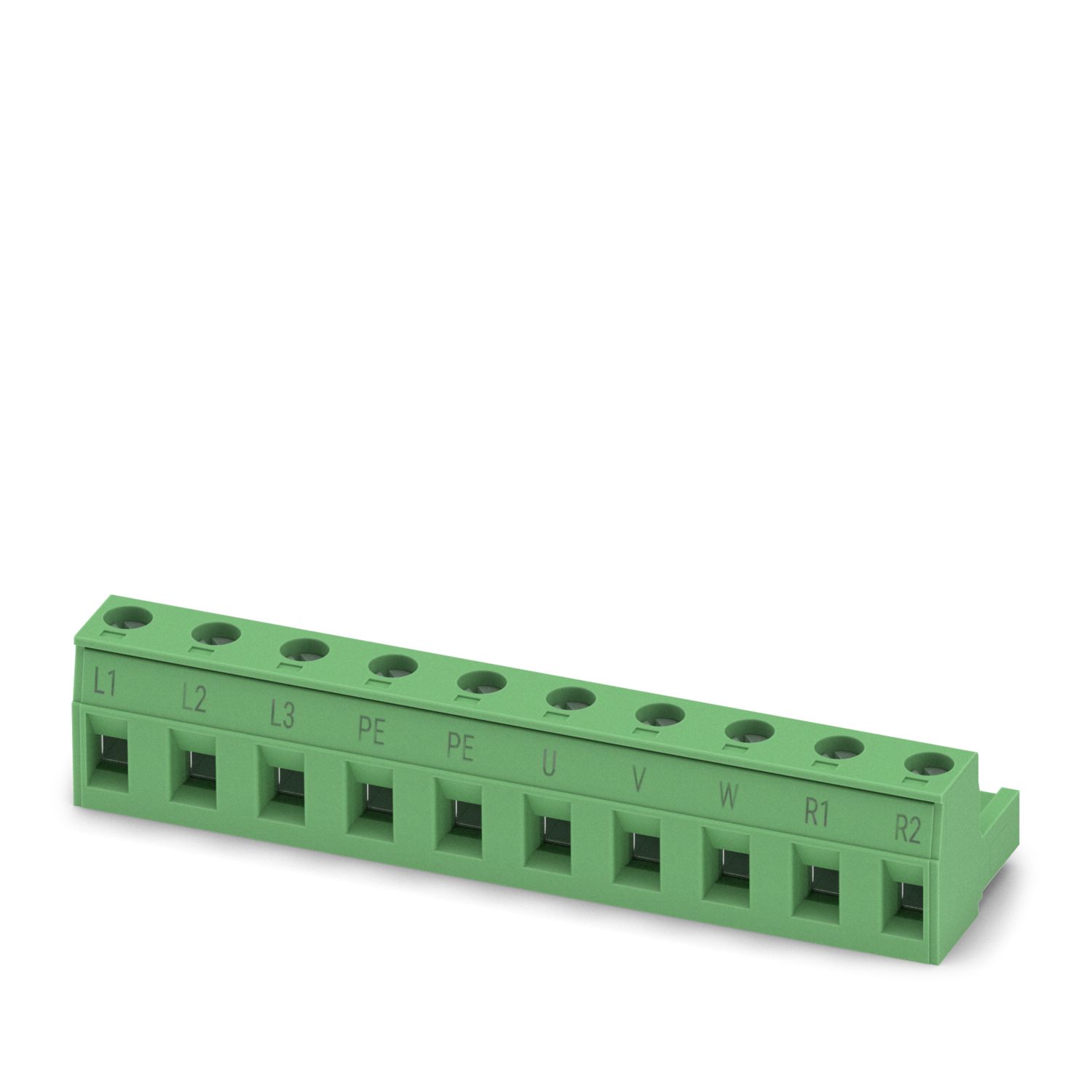

GMSTB 2,5/10-ST-7,62 BD:L1-R2 - PCB connector - 1918599

Detalhes dos produtos

Dados técnicos

Product properties

Product type	PCB connector
Product family	GMSTB 2,5/..-ST
Product line	COMBICON Connectors M
Type	Standard
Number of positions	10
Pitch	7.62 mm
Number of connections	10
Number of rows	1
Number of potentials	10
Mounting type	without

Electrical properties

Properties
Nominal current I_N	12 A
Nominal voltage U_N	630 V
Contact resistance	1.3 mΩ
Rated voltage (III/3)	400 V
Rated surge voltage (III/3)	6 kV
Rated voltage (III/2)	630 V
Rated surge voltage (III/2)	6 kV
Rated voltage (II/2)	1000 V
Rated surge voltage (II/2)	6 kV

Connection data

Connection technology
Type	Standard
Connector system	COMBICON MSTB 2,5
Nominal cross section	2.5 mm²
Contact connection type	Socket
Interlock
Locking type	without
Mounting type	without
Conductor connection
Connection method	Screw connection with tension sleeve
Conductor/PCB connection direction	0 °
Conductor cross-section rigid	0.2 mm² ... 2.5 mm²
Conductor cross-section flexible	0.2 mm² ... 2.5 mm²
Conductor cross-section AWG	24 ... 12
Conductor cross-section flexible, with ferrule without plastic sleeve	0.25 mm² ... 2.5 mm²
Conductor cross-section, flexible, with ferrule, with plastic sleeve	0.25 mm² ... 2.5 mm²
2 conductors with same cross section, solid	0.2 mm² ... 1 mm²
2 conductors with same cross section, flexible	0.2 mm² ... 1.5 mm²
2 conductors with same cross section, flexible, with ferrule without plastic sleeve	0.25 mm² ... 1 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve	0.5 mm² ... 1 mm²
Cylindrical gauge a x b / diameter	2.8 mm x 2.0 mm / 2.4 mm
Stripping length	7 mm
Drive form screw head	Slotted (L)
Tightening torque	0.5 Nm ... 0.6 Nm
Specifications for ferrules without insulating collar
recommended crimping tool	1212034 CRIMPFOX 6
Specifications for ferrules with insulating collar
recommended crimping tool	1212034 CRIMPFOX 6

Material specifications

Material data - contact
Note	WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact material	Cu alloy
Surface characteristics	hot-dip tin-plated
Metal surface terminal point (top layer)	Tin (5 - 7 µm Sn)
Metal surface contact area (top layer)	Tin (5 - 7 µm Sn)
Material data - housing
Color (Housing)	green (6021)
Insulating material	PA
Insulating material group	I
CTI according to IEC 60112	600
Flammability rating according to UL 94	V0
Glow wire flammability index GWFI according to EN 60695-2-12	850
Glow wire ignition temperature GWIT according to EN 60695-2-13	775
Temperature for the ball pressure test according to EN 60695-10-2	125 °C

Dimensions

Dimensional drawing
Pitch	7.62 mm
Width [w]	74.2 mm
Height [h]	15 mm
Length [l]	18.2 mm

Notes

Notes on operation	In accordance with IEC 61984, COMBICON connectors have no switching power (COC). During designated use, they must not be plugged in or disconnected when carrying voltage or under load.

Mechanical tests

Test for conductor damage and slackening
Specification	IEC 60999-1:1999-11
Result	Test passed
Pull-out test
Specification	IEC 60999-1:1999-11
Conductor cross-section/conductor type/tractive force setpoint/actual value	0.2 mm² / solid / > 10 N
		0.2 mm² / flexible / > 10 N
		2.5 mm² / solid / > 50 N
		2.5 mm² / flexible / > 50 N
Insertion and withdrawal forces
Specification	IEC 60512-13-2:2006-02
Result	Test passed
No. of cycles	25
Insertion strength per pos. approx.	8 N
Withdraw strength per pos. approx.	6 N
Torque test
Specification	IEC 60999-1:1999-11
Resistance of inscriptions
Specification	IEC 60068-2-70:1995-12
Result	Test passed
Polarization and coding
Specification	IEC 60512-13-5:2006-02
Result	Test passed
Visual inspection
Specification	IEC 60512-1-1:2002-02
Result	Test passed
Dimension check
Specification	IEC 60512-1-2:2002-02
Result	Test passed

Environmental and real-life conditions

Vibration test
Specification	IEC 60068-2-6:2007-12
Frequency	10 - 150 - 10 Hz
Sweep speed	1 octave/min
Amplitude	0.35 mm (10 Hz ... 60.1 Hz)
Acceleration	5g (60.1 Hz ... 150 Hz)
Test duration per axis	2.5 h
Test directions	X-, Y- and Z-axis
Durability test
Specification	IEC 60512-9-1:2010-03
Impulse withstand voltage at sea level	7.3 kV
Contact resistance R₁	1.3 mΩ
Contact resistance R₂	1.3 mΩ
Insertion/withdrawal cycles	25
Insulation resistance, neighboring positions	> 5 MΩ
Climatic test
Specification	ISO 6988:1985-02
Corrosive stress	0.2 dm³SO₂on 300 dm³/40 °C/1 cycle
Thermal stress	100 °C/168 h
Power-frequency withstand voltage	3.31 kV
Ambient conditions
Ambient temperature (operation)	-40 °C ... 100 °C (dependent on the derating curve)
Ambient temperature (storage/transport)	-40 °C ... 70 °C
Relative humidity (storage/transport)	30 % ... 70 %
Ambient temperature (assembly)	-5 °C ... 100 °C

Electrical tests

Thermal test \| Test group C
Specification	IEC 60512-5-1:2002-02
Tested number of positions	12
Insulation resistance
Specification	IEC 60512-3-1:2002-02
Insulation resistance, neighboring positions	> 5 MΩ
Air clearances and creepage distances \|
Specification	IEC 60664-1:2007-04
Insulating material group	I
Comparative tracking index (IEC 60112)	CTI 600
Rated insulation voltage (III/3)	400 V
Rated surge voltage (III/3)	6 kV
minimum clearance value - non-homogenous field (III/3)	5.5 mm
minimum creepage distance (III/3)	5.5 mm
Note on connection cross section	With connected conductor 2.5 mm² (stranded).
Rated insulation voltage (III/2)	630 V
Rated surge voltage (III/2)	6 kV
minimum clearance value - non-homogenous field (III/2)	5.5 mm
minimum creepage distance (III/2)	5.5 mm
Rated insulation voltage (II/2)	1000 V
Rated surge voltage (II/2)	6 kV
minimum clearance value - non-homogenous field (II/2)	5.5 mm
minimum creepage distance (II/2)	5.5 mm

Packaging specifications

Type of packaging	packed in cardboard

Dados comerciais

N.º de artigo	1918599
Pcs./Emb	50 Unidade
Quantidade mínima de pedido	50 Unidade
Observação	Produção ligada a pedido (sem devolução)
Chave comercial	AAC
Chave de produto	AACAIB
GTIN	4017918477776
Peso por unidade (inclusive embalagem)	19,67 g
Peso por unidade (excluindo embalagem)	18,878 g
Número do imposto alfandegário	85366990
País de origem	DE

Classificações

Certificações

Approval Specification Data
	Tensão nominal U_N	Corrente nominal I_N	Secção transversal American Wire Gauge
B
	300 V	10 A	28 - 12
D
	300 V	10 A	28 - 12

Approval Specification Data
	Tensão nominal U_N	Corrente nominal I_N	Secção transversal American Wire Gauge
B
	300 V	15 A	30 - 12
D
	300 V	10 A	30 - 12

Approval Specification Data
	Tensão nominal U_N	Corrente nominal I_N	Secção transversal American Wire Gauge	Secção transversal mm²
keine
	400 V	12 A		0.2 - 2.5

Environmental product compliance

Produtos compatíveis

ECLASS-13.0	27460202
ECLASS-15.0	27460202

EU RoHS
Cumpre os requisitos de substância segundo a Diretiva RoHS	Sim (Sem regras de exceção)
China RoHS
Environment friendly use period (EFUP)	EFUP-E Nenhuma substância perigosa acima dos valores-limite
EU REACH SVHC
Nota sobre as substâncias candidatas ao REACH (n.º CAS)	Nenhuma substância numa proporção superior a 0,1 % em massa
EF3.0 Alterações climáticas
CO2e kg	0,224 kg CO2e
