FPM 17.3 69K SP - Monitor

1261656

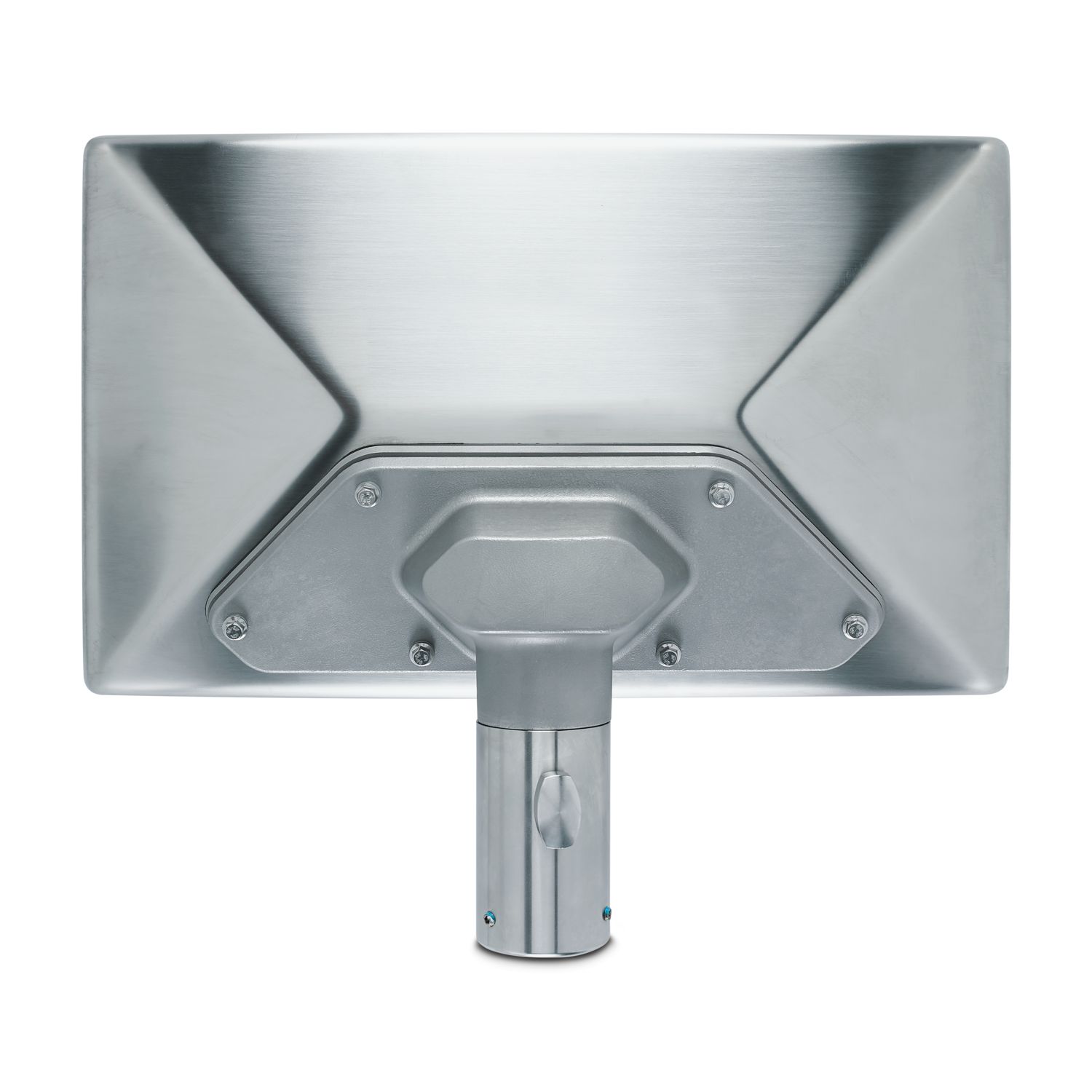

Hygiene monitor with 43.9 cm/17.3" TFT display (capacitive multi-touchscreen), 1920 x 1080 pixels (Full HD) in all-around closed stainless-steel housing without screws or sharp edges. With shatter protection film.

Este produto precisa de outros produtos para a operação. Acessórios necessários

Order information:	Please note that an adapter listed under “Accessories” is required to operate the device.
Note on application
Note on application	Only for industrial use
Utilization restriction
EMC note	EMC: class A product, see manufacturer's declaration in the download area

Product type	Monitor
Computer data
Processor	without processor
Operating system	without operating system
RAM	without RAM
Data storage system	without data storage
Cooling	passive
Slots	without slots
Extras	Shatter protection film
Display
Display type	43.9 cm / 17.3"-TFT
Screen resolution	1920 x 1080 Pixel(s) (Full HD)
Touch technology	projective-capacitive (PCAP)
Display lighting type	LED
Brightness	250 cd/m²
MTBF	50000 h
Color spectrum	16.2 million colors
Reading angle left	89.00 °
Reading angle right	89.00 °
Reading angle top	89.00 °
Reading angle bottom	89.00 °

User software	without user software

Supply
Supply voltage	24 V DC
Supply voltage range	18 V DC ... 30 V DC

Interfaces	3x USB 2.0
	1x USB server
Optional interfaces	Without optional interface
Monitor output	1x DisplayPort
	1x HDMI
Network	without network
Bus system	without bus system

External dimensions
Width / Height / Depth	431 mm / 261 mm / 68 mm

Material front plate	Glass (3 mm), hardened and non-reflective
Housing material	Stainless steel, fully enclosed

Ambient conditions
Degree of protection	IP69K
Ambient temperature (operation)	0 °C ... 50 °C
Permissible humidity (operation)	10 % ... 85 % (non-condensing)
Permissible humidity (storage/transport)	10 % ... 85 % (non-condensing)
Shock	DIN EN 60068-2-27
Vibration (operation)	DIN EN 60068-2-6

Mounting type	VESA holder (via adapter)
	Tube mounting (via adapter)
Holder system	VESA MIS-D 100 C

N.º de artigo	1261656
Pcs./Emb	1 Unidade
Quantidade mínima de pedido	1 Unidade
Observação	Produção ligada a pedido (sem devolução)
Chave comercial	DRB
Chave de produto	DRBBAC
GTIN	4063151371838
Peso por unidade (inclusive embalagem)	5 250 g
Peso por unidade (excluindo embalagem)	5 000 g
Número do imposto alfandegário	85285210
País de origem	DE

Produtos compatíveis

Acessórios necessários

Acessórios

Vantagens

Robust and high-performance under extreme conditions

Stable and resistant with a closed stainless-steel housing

Hygienic design with passive cooling

Easy mounting with boom adapter or VESA adapter

Capacitive multi-touch display for convenient multi-finger operation with gloves
