HC-DS-PG11-E
-
Pressure screw set
1675476
Pg pressure screw set, standard version; for housing with Pg11 support; consisting of pressure screw, notched seal and 2 washers
Detalhes dos produtos
| Product type | Half screw connection |
| No. of conductors | 1 |
| Shielded | no |

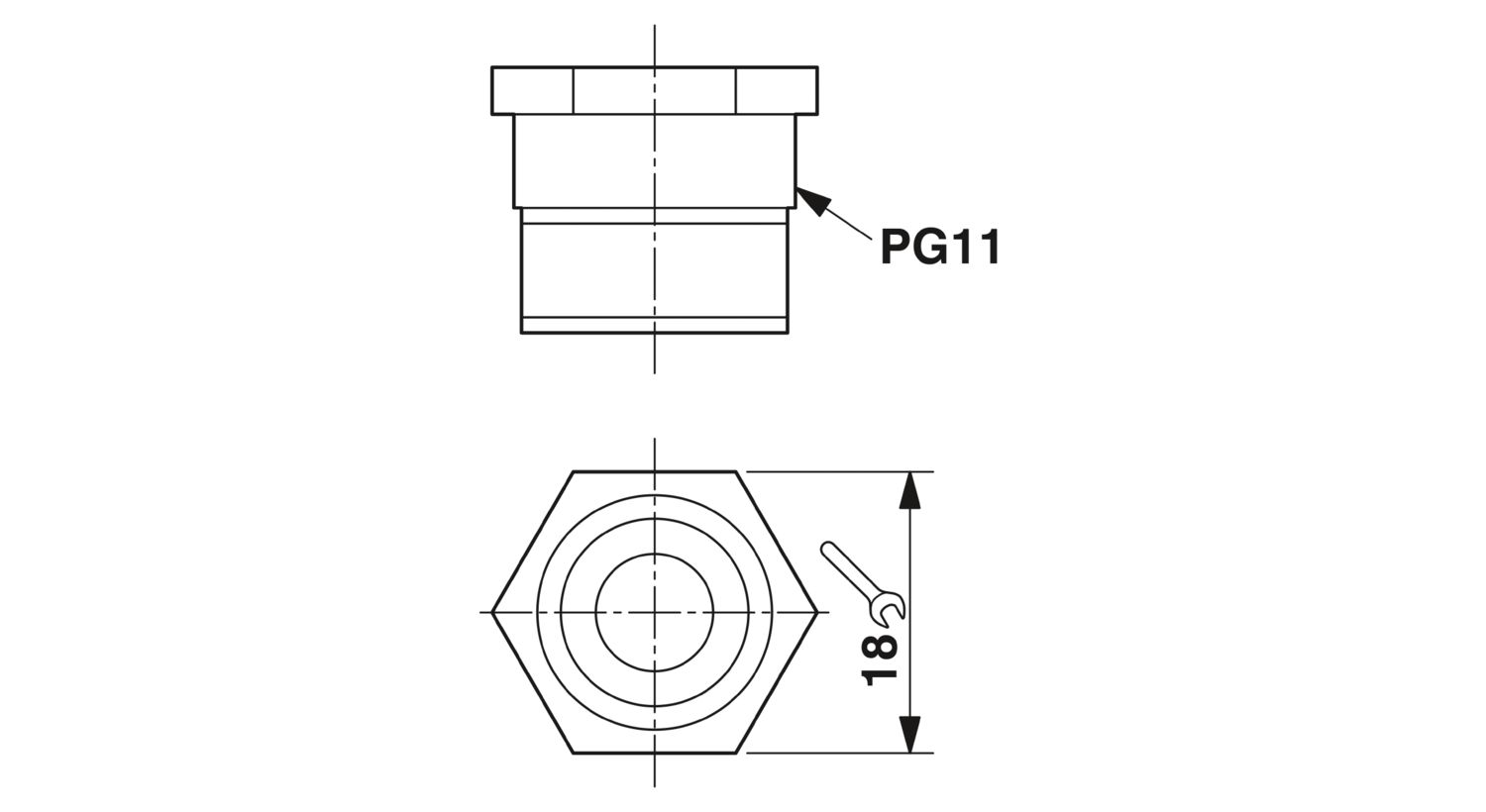

| Dimensional drawing |
|
| Wrench size, union nut | 18 mm |
| Material Pressure screw | Brass, nickel-plated |
| Seal material Cable seal | Perbunan |
| External cable diameter Cable 1 | 7.5 mm ... 12.5 mm |
| Conductor sealing range | 7.50 mm ... 12.50 mm |
| Ambient conditions | |
| Degree of protection | IP54 |
| Ambient temperature (operation) | -20 °C ... 80 °C |
