EM-PSAFE-GATEWAY-IFS
-
Data interface
1188207

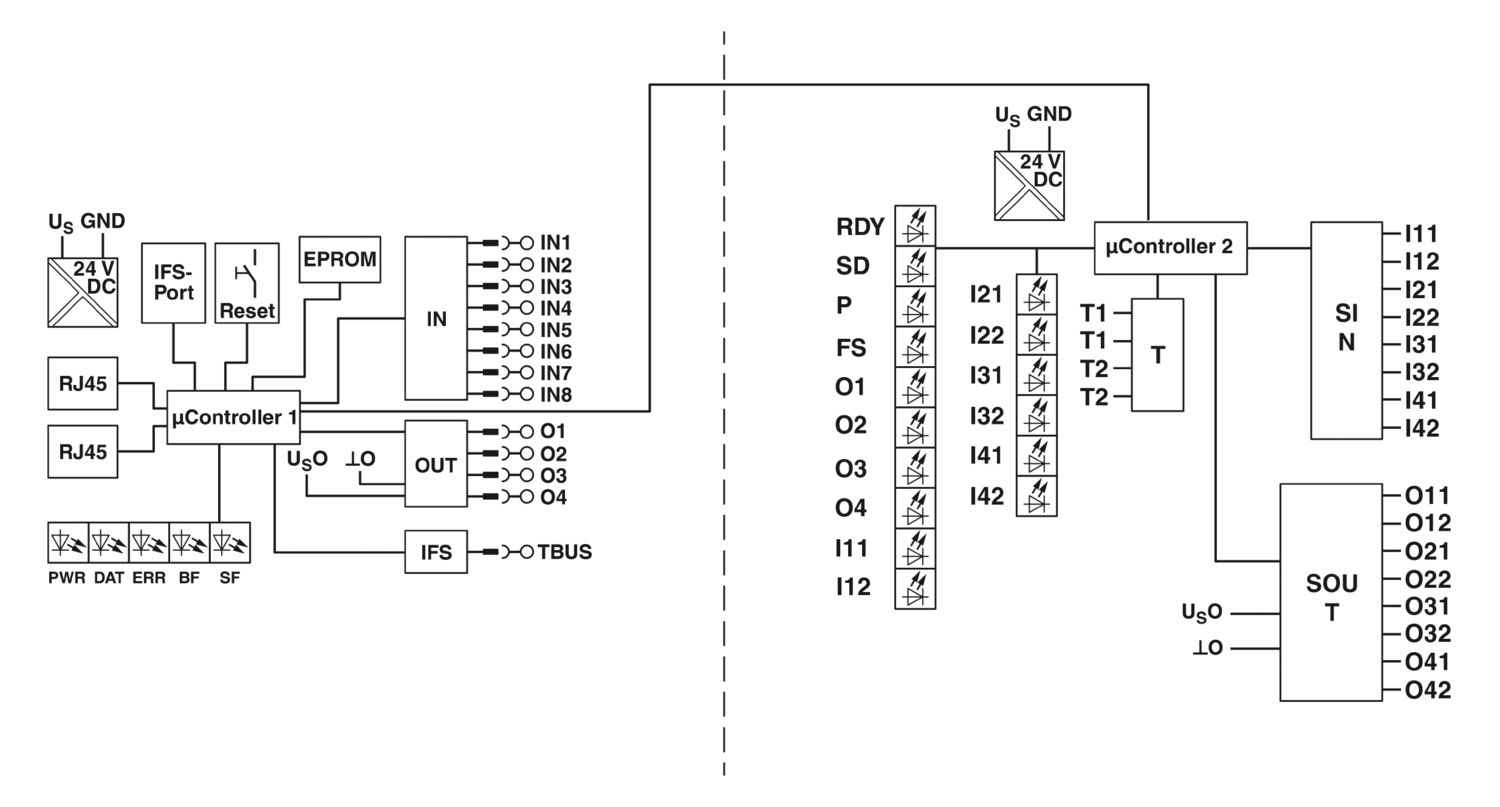

Gateway for the connection of up to 15 Interface system devices to a higher-level safe controller via PROFIsafe. The system devices are connected to the gateway via DIN rail connectors. The DIN rail connectors are provided.
Transferência gratuita disponível.
Downloads
Detalhes dos produtos
| Product type | Gateways/Proxies |
| Insulation characteristics | |
| Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
| Insulation characteristics | |
| Overvoltage category | III |
| Pollution degree | 2 |
| Supply | |
| Nominal supply voltage | 24 V DC |
| Current consumption | 67 mA (without connected sensors) |
| Fuse | ≤ 8 A (external) Slow-blow |
| Supply | |
| Nominal supply voltage | 24 V DC |
| Current consumption | 52 mA (without actuators connected) |
| Fuse | ≤ 8 A (external) Slow-blow |
| Digital | |
| Rated actuating voltage UC | 24 V DC ±20 % |
| Rated actuating current IC | 3 mA |
| Protective circuit | Reverse polarity protection |
| Digital: Switching outputs | |
| Residual voltage | 1 V |
| Maximum switching voltage | 23 V DC (UB - Uresid. of the output) |
| Max. switching current | 500 mA (per output) |
| Protective circuit | Reverse polarity protection |
| Digital: Safe digital outputs | |
| Rated output voltage USO | 24 V DC (from safe USO) |
| Protective circuit | Overload protection |
| Short-circuit protection | |
| Supply | |
| Connection method | Push-in connection |
| Stripping length | 10 mm |
| Conductor cross-section rigid | 0.2 mm² ... 2.5 mm² |
| Conductor cross-section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross-section AWG | 24 ... 12 |
| Programming connection | |
| Connection method | S-PORT (socket) |
| Number of connections | 1 |
| Number of positions | 12 |
| INTERFACE system | |
| Connection method | DIN rail bus connector |
| Number of connections | 1 |
| Number of positions | 5 |
| PROFINET (PROFIsafe) | |
| Connection method | RJ45 |
| Number of connections | 2 |
| Data: Network interface | |
| Communication protocol | PROFINET |
| Connection method | RJ45 jack |
| Number of connections | 2 |
| Note | PROFIsafe tunneled |
| Transmission speed | 10 Mbps |
| 100 Mbps | |
| Data: Service interface | |
| Communication protocol | Interface-System |
| Connection method | S-PORT (socket) |
| Number of connections | 1 |
| Number of positions | 12 |
| Data: Device bus | |
| Communication protocol | Interface-System |
| Connection method | DIN rail bus connector |
| Number of connections | 1 |
| Number of positions | 5 |
| Transmission speed | 76.8 kbps |
| Width | 45 mm |
| Height | 107.8 mm |
| Depth | 113.8 mm |
| Color | gray (RAL 7042) |
| Housing material | Polyamide PA non-reinforced |
| Ambient conditions | |
| Degree of protection | IP20 (DIN EN 60529) |
| Ambient temperature (operation) | -35 °C ... 50 °C |
| Ambient temperature (storage/transport) | -35 °C ... 80 °C |
| Altitude | ≤ 3000 m |
| Permissible humidity (storage/transport) | 75 % (non-condensing) |
| Air pressure (operation) | 70 kPa ... 108 kPa |
| Air pressure (storage/transport) | 66 kPa ... 108 kPa (≤ 3500 m) |
| UKCA | |
| Certificate | UKCA-compliant |
| Electromagnetic compatibility | Conformance with EMC directive |
| Noise immunity | EN 61000-6-2 |
| Electrostatic discharge | |
| Standards/regulations | IEC/EN 61000-4-2 |
| Electrostatic discharge | |
| Contact discharge | 6 kV |
| Discharge in air | 8 kV |
| Comments | Criterion A |
| Electromagnetic HF field | |
| Standards/regulations | IEC/EN 61000-4-3 |
| Electromagnetic HF field | |
| Test field strength | 10 V/m |
| Comments | Criterion A |
| Fast transients (burst) | |
| Standards/regulations | IEC/EN 61000-4-4 |
| Fast transients (burst) | |
| Signal | 2 kV (test voltage) |
| Comments | Criterion A |
| Surge current load (surge) | |
| Standards/regulations | IEC/EN 61000-4-5 |
| Surge current load (surge) | |
| Signal | 1 kV (symmetrical(test severity level 2)) |
| 2 kV (asymmetrical(test severity level 2)) | |
| Comments | Criterion A |
| Conducted interference | |
| Standards/regulations | IEC/EN 61000-4-6 |
| Conducted interference | |
| Comments | Criterion A |
| Voltage | 10 V (test voltage) |
| Emitted interference | |
| Standards/regulations | EN 55011 |
| Comments | Class A, industrial applications |
| Standards/regulations | EN 61131-2 |
| EN ISO 13849-1 | |
| IEC 61508 | |
| IEC 62061 | |
| Air clearances and creepage distances | |
| Standards/regulations | IEC 60664-1 |
| Mounting type | DIN rail mounting |
| Assembly note | in rows with zero spacing |
| Mounting position | any |
| N.º de artigo | 1188207 |
| Pcs./Emb | 1 Unidade |
| Quantidade mínima de pedido | 1 Unidade |
| Chave comercial | DK7 |
| Chave de produto | DK7711 |
| GTIN | 4063151231675 |
| Peso por unidade (inclusive embalagem) | 299,7 g |
| Peso por unidade (excluindo embalagem) | 257 g |
| Número do imposto alfandegário | 85176200 |
| País de origem | DE |
ECLASS
| ECLASS-13.0 | 27242608 |
| ECLASS-15.0 | 27242608 |
ETIM
| ETIM 10.0 | EC001604 |
| EU RoHS | |
| Cumpre os requisitos de substância segundo a Diretiva RoHS | Sim |
| isenções tanto quanto conhecido | 7(a), 7(c)-I |
| China RoHS | |
| Environment friendly use period (EFUP) |
EFUP-50
Uma lista de declaração de acordo com a RoHS da China relativa a artigos encontra-se na área de transferências do respetivo artigo, em "Declaração do fabricante". Para todos os artigos com EFUP-E não é emitida nem necessária uma tabela de declaração de acordo com a RoHS da China.
|
| EU REACH SVHC | |
| Nota sobre as substâncias candidatas ao REACH (n.º CAS) | Lead (n.º CAS: 7439-92-1) |
| 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol (n.º CAS: 79-94-7) | |
