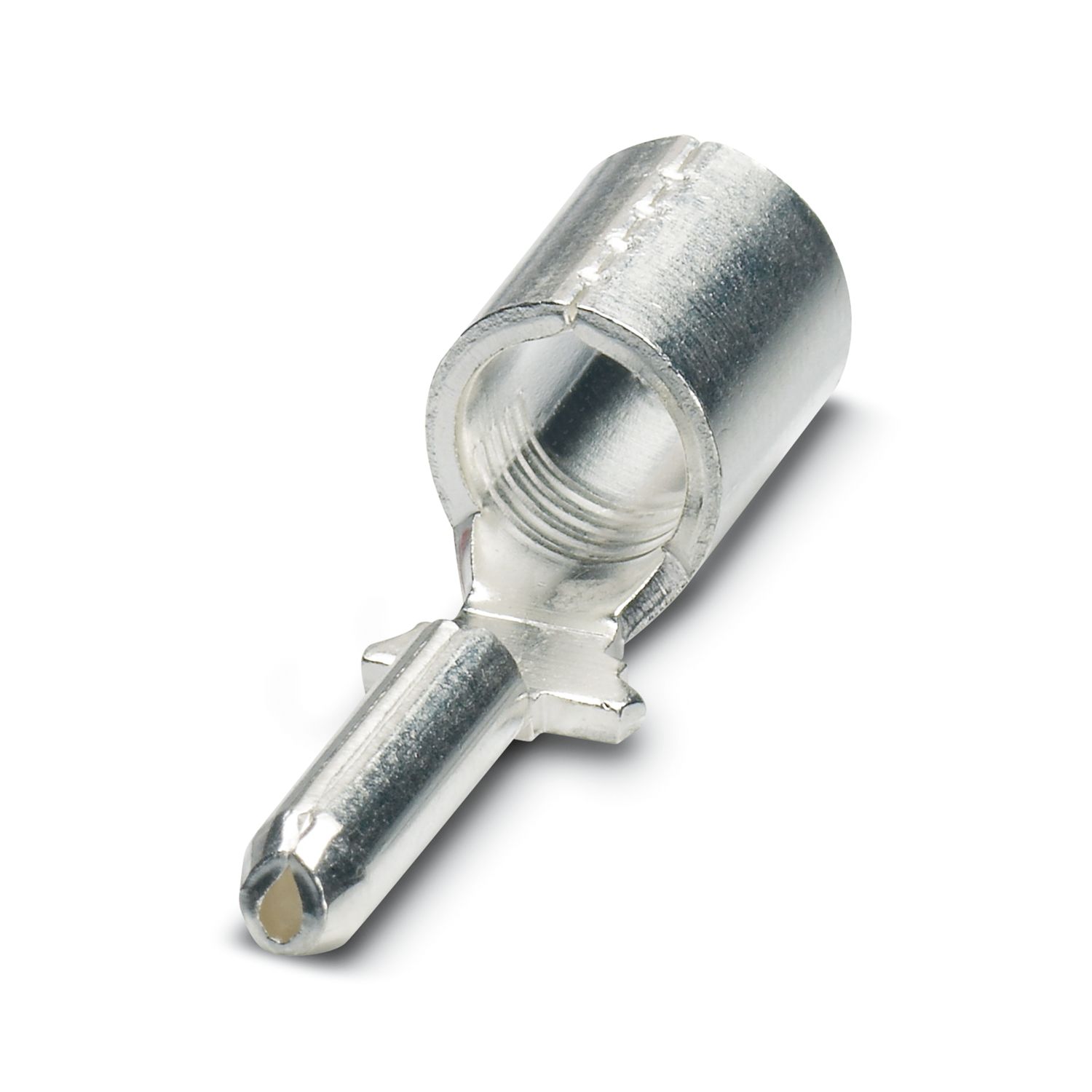

IPCC 16-16-MT
-
Crimp contact
1733367
Single crimp pin contact for stranded conductors with 16 mm2 cross section. Can only be crimped by machine, not with manual crimping pliers.
Detalhes dos produtos
| Product type | Crimp contact |
| Product family | IPCC 16-MT |
| Series | VC-D |
| Pitch | 0 mm |
| Contact material type | rolled |
| Connection method | Crimp connection |
| Contact connection type | Pin |
| Connection technology | Crimp connection |
| Conductor cross section | 16 mm² |
| Stripping length of the individual wire | 8 mm |
| Contact surface | Tin Sn |
| Contact surface material | Tin |
| Metal surface contact area (top layer) | Tin Sn) |

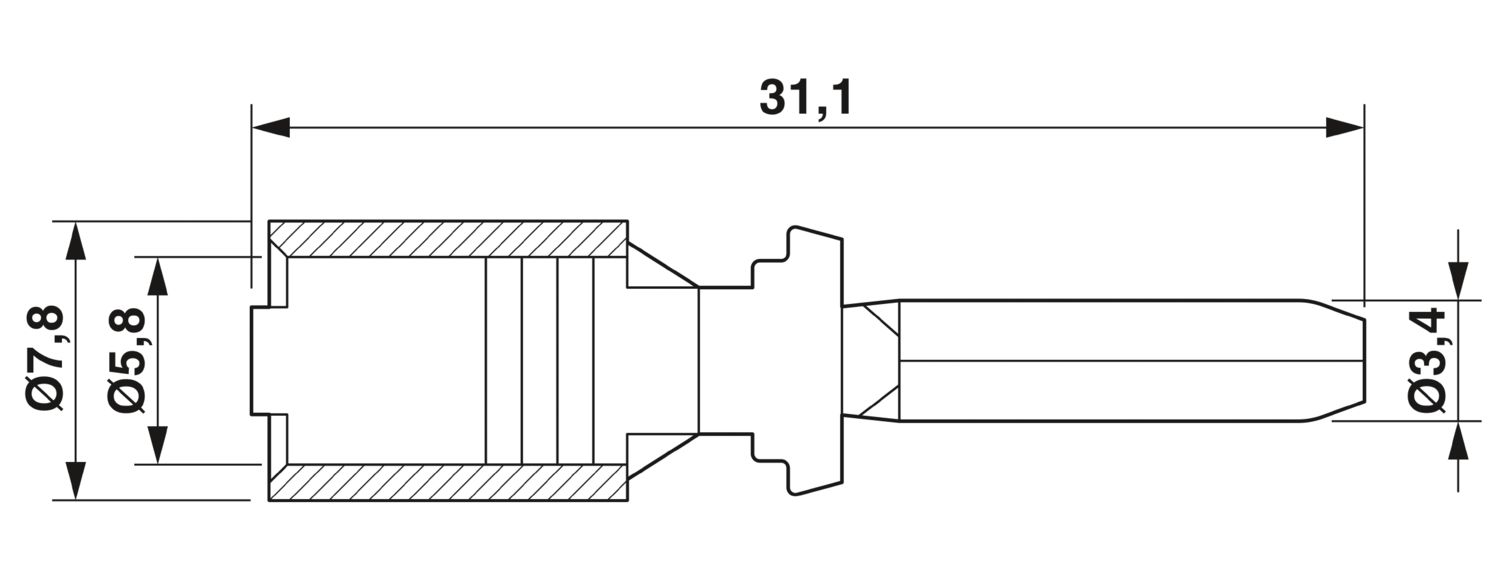

| Dimensional drawing |
|
| Pitch | 0 mm |
| Mechanical characteristics | |
| Contact diameter | 3.4 mm |
| Maximum load current | 60 A |
| Rated current | 60 A |
| Mechanical data | |
| Insertion/withdrawal cycles | ≥ 50 |
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 100 °C |
