AH-ME
-
Covering hood
3240265
Cover, for the contact- and dust-protected encapsulation of the components
Detalhes dos produtos
| Product type | Cover profile |

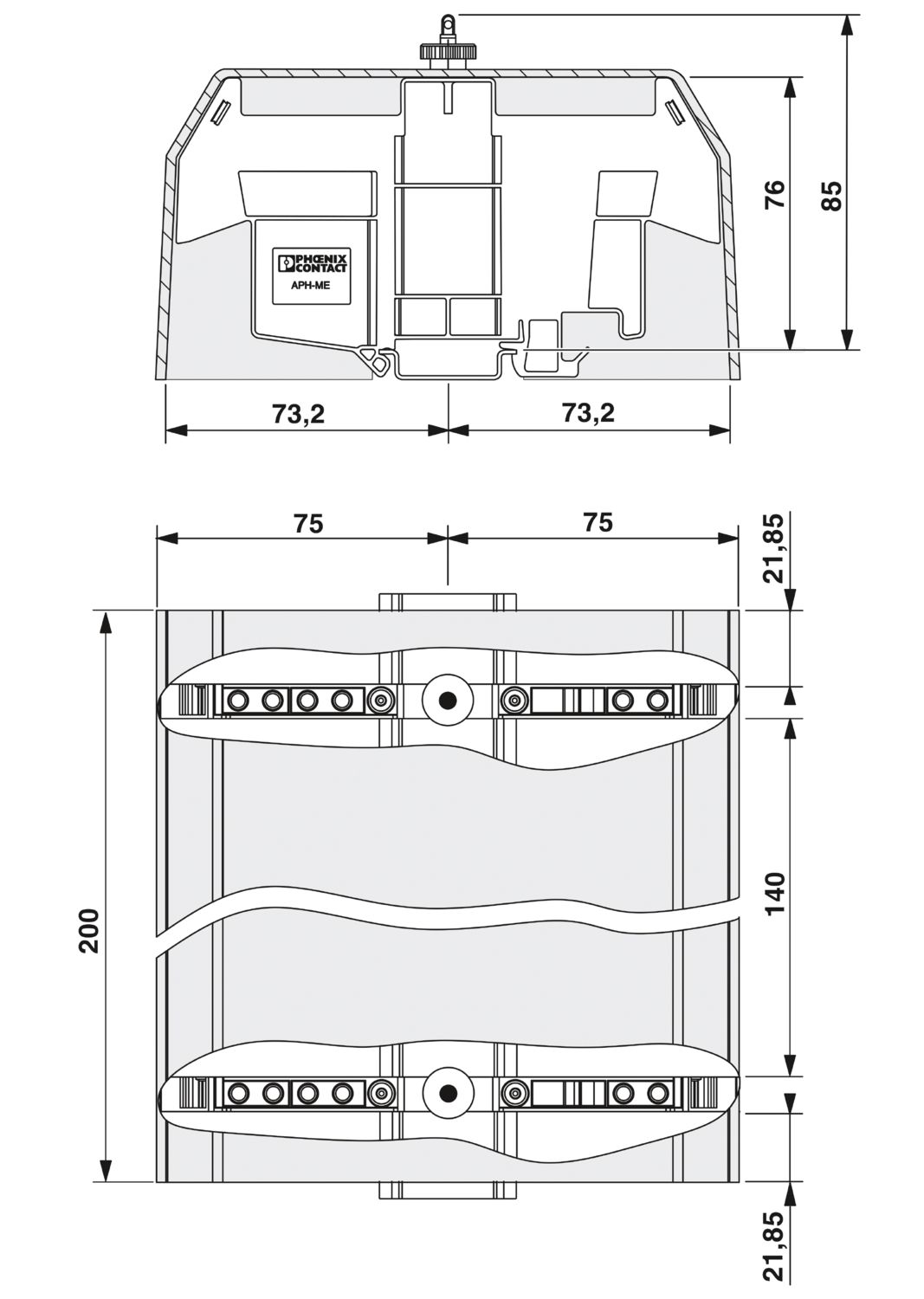

| Dimensional drawing |
|
| Width | 150 mm |
| Height | 200 mm |
| Depth | 78 mm |
| Color | transparent |
| Material | PC |
| Flammability rating according to UL 94 | V2 |
| Relative insulation material temperature index (Elec., UL 746 B) | 125 °C |
| Ambient conditions | |
| Ambient temperature (operation) | -60 °C ... 105 °C (max. short-term operating temperature RTI Elec.) |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
Vantagens
The cover can be securely snapped onto the corresponding APH‑ME end brackets and sealed as an option
Cover profiles provide protection against unauthorized actuation of terminal strips
This profile has been specially adapted to the shape of the test disconnect terminal blocks

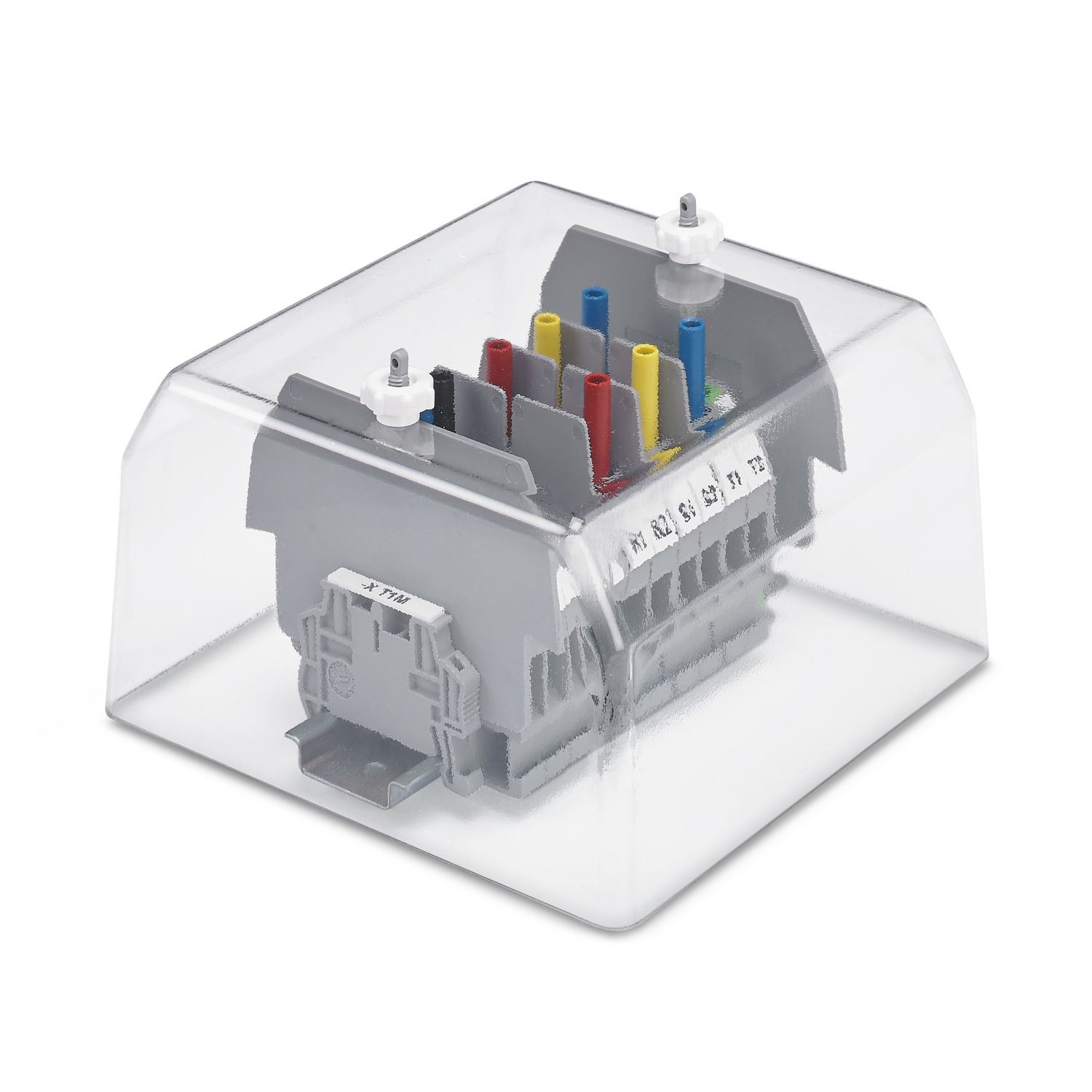

The AH-ME cover, which is enclosed on all sides, is snapped onto the end brackets and can be sealed as an option
