FLT 35/3
-
Type 1+2 combined lightning current and surge arrester
2800129
Type 1 / Class I / B arrester (lightning current arrester) with encapsulated arc chopping spark gap, 3-channel. Housing width: 52.5 mm (3 Div.)
Detalhes dos produtos
Product type | Combination type |
IEC test classification | I |
T1 | |
EN type | T1 |
IEC power supply system | TT |
TN-C | |
Type | DIN rail module, one-piece |
Number of positions | 3 |
Surge protection fault message | none |
Insulation characteristics | |
Overvoltage category | III |
Pollution degree | 2 |
Nominal frequency fN | 50 Hz |
60 Hz | |
Nominal voltage UN | 230 V AC (400 V AC) |
Connection method | Screw connection |
Screw thread | M5 |
Tightening torque, min | 4.5 Nm |
Stripping length | 14.5 mm |
Conductor cross section flexible min. | 0.5 mm² |
Conductor cross section flexible max. | 25 mm² |
Conductor cross section, rigid min. | 0.5 mm² |
Conductor cross section, rigid max. | 35 mm² |
Dimensional drawing |
|
Width | 53 mm |
Height | 94 mm |
Depth | 65.7 mm |
Horizontal pitch | 3 Div. |
Flammability rating according to UL 94 | V0 |
Housing material | PA-GF |
Mechanical data | |
Open side panel | No |

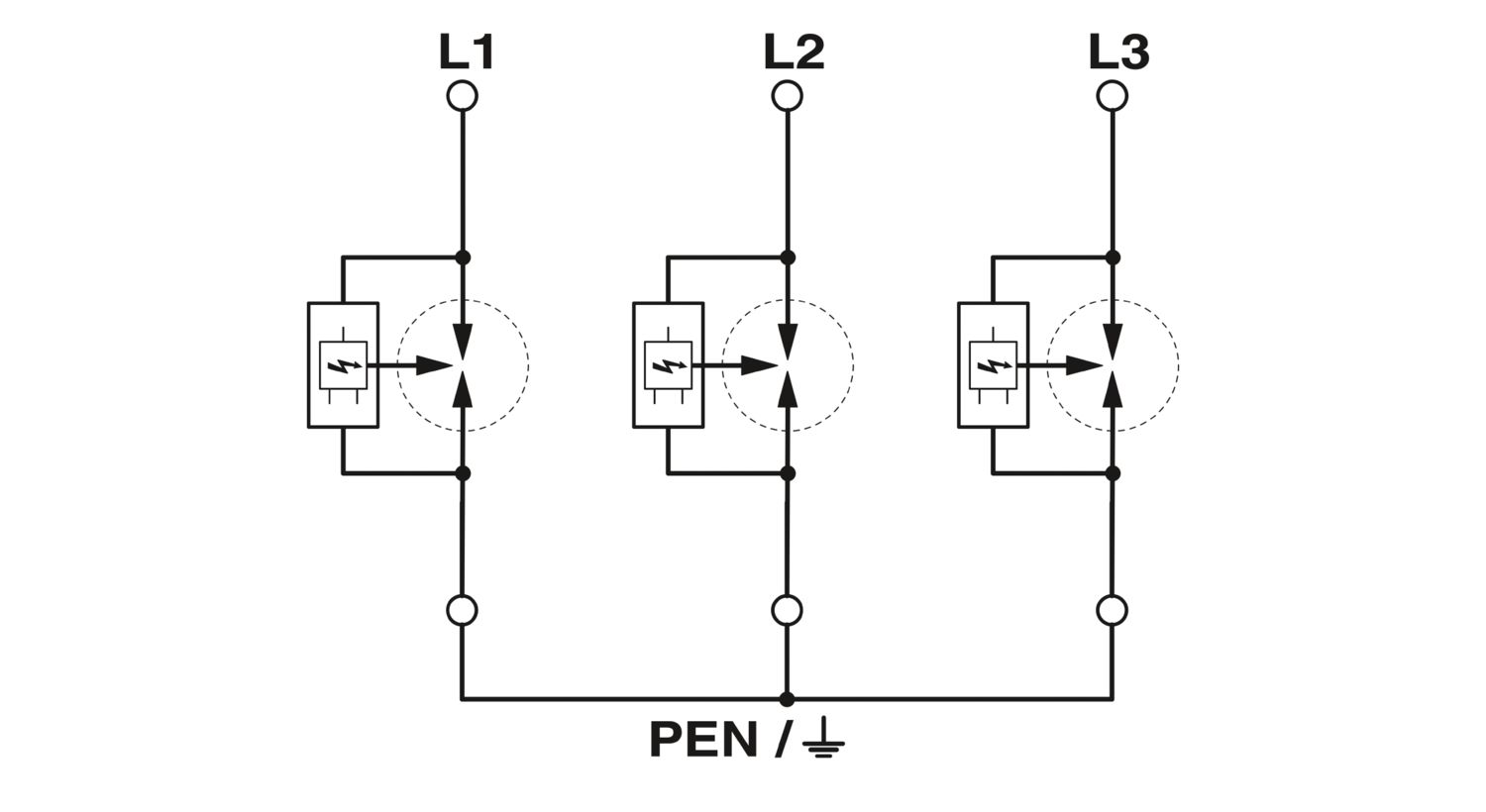

Direction of action | 3L-PEN |
Nominal frequency fN | 50 Hz |
60 Hz | |
Maximum continuous voltage UC | 350 V AC |
Maximum continuous operating voltage UC (L-PEN) | 350 V AC |
Protective conductor current IPE | ≤ 0.3 mA |
Standby power consumption PC | ≤ 105 mVA |
Nominal discharge current In (8/20) µs | 35 kA |
100 kA (all channels) | |
Maximum discharge current Imax (8/20) µs | 35 kA |
100 kA (all channels) | |
Impulse discharge current (10/350) µs, charge | 17.5 As |
Impulse discharge current (10/350) µs, specific energy | 306 kJ/Ω |
Impulse discharge current (10/350) µs, peak value limp | 35 kA |
Follow current quenching capacity Ifi (L-N) | 1.5 kA (350 V AC) |
Follow current quenching capacity Ifi (L-PEN) | 3 kA (260 V AC) |
Voltage protection level Up (L-N) | ≤ 5 kV |
Voltage protection level Up (L-PEN) | ≤ 5 kV |
Response time tA | ≤ 100 ns |
Max. backup fuse with branch wiring | 400 A (gL) |
Ambient conditions | |
Degree of protection | IP20 |
Ambient temperature (operation) | -40 °C ... 85 °C |
Permissible humidity (operation) | ≤ 95 % |
Air clearances and creepage distances | |
Standards/regulations | EN 60664-1 / EN 61643-11 |
Standards | |
Standards/regulations | IEC 61643-1 |
DIN EN 61643-11 | |
DIN EN 61643-11/A11 | |
Standards/specifications | IEC 61643-1 |
Note | 2005 |
Standards/specifications | DIN EN 61643-11 |
Note | 2002 |
Standards/specifications | DIN EN 61643-11/A11 |
Note | 2007 |
Mounting type | DIN rail: 35 mm |
N.º de artigo | 2800129 |
Pcs./Emb | 1 Unidade |
Quantidade mínima de pedido | 1 Unidade |
Observação | Produção ligada a pedido (sem devolução) |
Chave comercial | CL1 |
Chave de produto | CL1131 |
GTIN | 4046356496414 |
Peso por unidade (inclusive embalagem) | 502,6 g |
Peso por unidade (excluindo embalagem) | 502,6 g |
Número do imposto alfandegário | 85363010 |
País de origem | DE |
EU REACH SVHC | |
Nota sobre as substâncias candidatas ao REACH (n.º CAS) | Nenhuma substância numa proporção superior a 0,1 % em massa |
