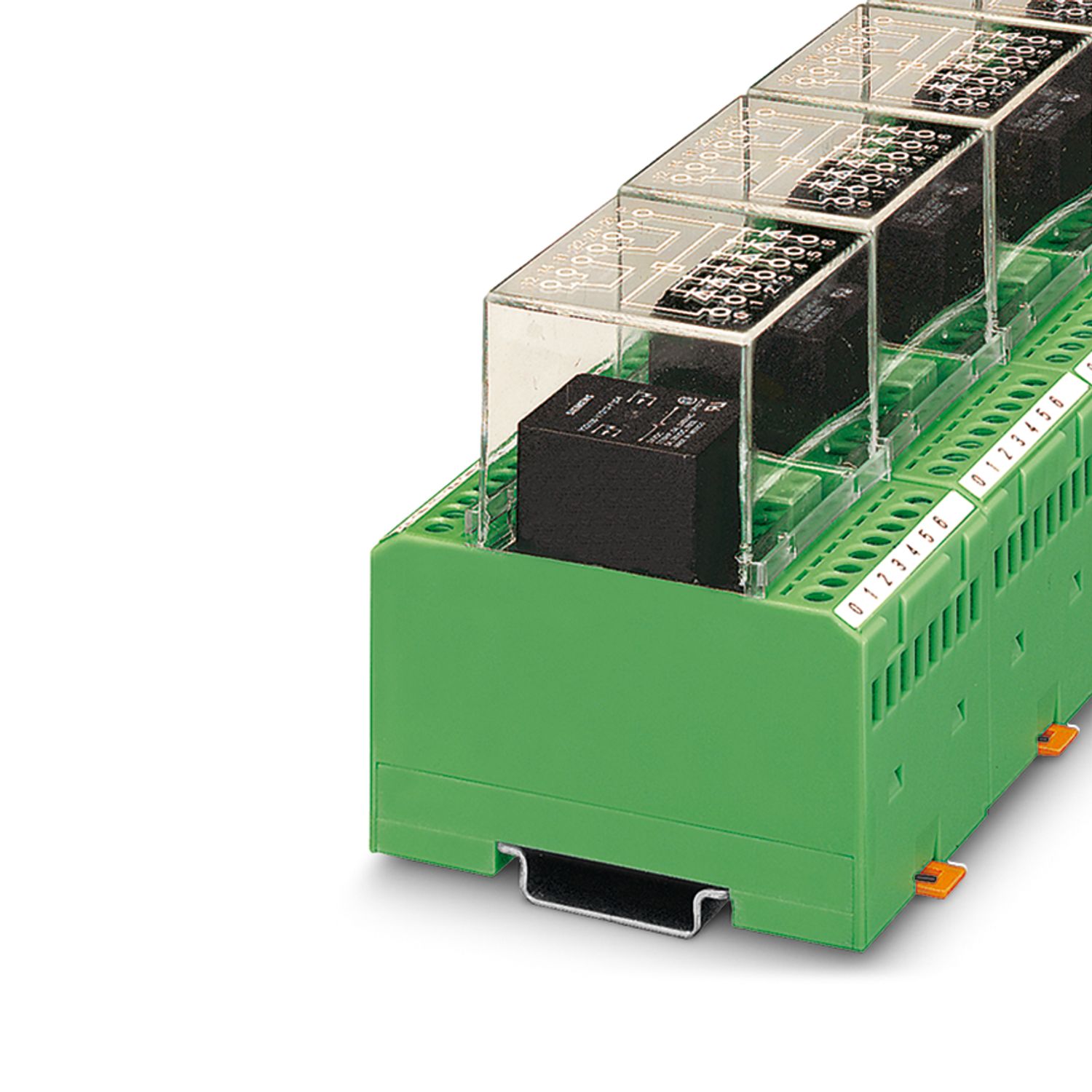

EMG 45-REL/IR-W 24/HWR
-
Relay module
2949376
Relay module, with soldered-in industrial relay, contact: 2 changeover contacts, for multi-input fault warnings, with input diode gate in P polarity (6 diodes 1N4007) and capacitor parallel to the coil as well as a multi-input LED display, input voltage 24 V AC
Detalhes dos produtos
| Notes on operation | During installation, the system must be connected in phase. |
| Product type | Relay Module |
| Application | Fault reporting system |
| Mechanical service life | approx. 5x 107 cycles |
| Insulation characteristics | |
| Overvoltage category | II |
| Pollution degree | 2 |
| Data management status | |
| Date of last data management | 20.04.2023 |
| Maximum power dissipation for nominal condition | 1.25 W |
| Test voltage (Winding/contact) | 2 kV AC (50 Hz, 1 min., winding/contact) |
| Diode | |
| Description of the input | 6 diodes, with P polarity |
| Diode type | 1 N 4007 |
| Max. operating voltage Umax | 250 V AC |
| Peak reverse voltage per diode | 1300 V |
| Reverse current per diode | 30 µA |
| Conducting state voltage per diode | approx. 0.8 V |
| Conducting state current per diode | 0.7 A (with single load) |
| 0.2 A (with simultaneous loads) | |
| Coil side | |
| Nominal input voltage UN | 24 V AC |
| Input voltage range | 21.6 V AC ... 26.4 V AC |
| Input voltage range in reference to UN | 0.9 ... 1.1 |
| Drive and function | monostable |
| Typical input current at UN | approx. 52 mA |
| Typical response time | 5 ms ... 15 ms |
| Typical release time range | 15 ms ... 30 ms |
| Protective circuit | Decoupling diodes; Decoupling diodes |
| Capacitor; Capacitor | |
| Operating voltage display | LED red |
| Coil resistance | 770 Ω |
| Nominal power consumption | approx. 740 mW |
| Switching | |
| Contact switching type | Single contact, 2 changeover contacts |
| Type of switch contact | Single contact |
| Contact material | AgNi |
| Maximum switching voltage | 250 V AC/DC |
| Limiting continuous current | 3 A |
| Maximum inrush current | 5 A |
| Interrupting rating (ohmic load) max. | 1250 VA (for 250 V AC) |
| Coil side | |
| Connection method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
| Contact side | |
| Connection method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
| Width | 45 mm |
| Height | 75 mm |
| Depth | 82.5 mm |
| Color | green (RAL 6021) |
| Ambient conditions | |
| Ambient temperature (operation) | -20 °C ... 50 °C |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
| Standards/regulations | DIN VDE 0110b, Gr. C for 250 V DC |
| DIN EN 50178/VDE 0160 (in relevant parts) |
| Mounting type | DIN rail mounting |
| Assembly note | in rows with zero spacing |
| Mounting position | any |
| N.º de artigo | 2949376 |
| Pcs./Emb | 5 Unidade |
| Quantidade mínima de pedido | 1 Unidade |
| Observação | Produção ligada a pedido (sem devolução) |
| Chave comercial | CK6 |
| Chave de produto | DK6147 |
| GTIN | 4017918083762 |
| Peso por unidade (inclusive embalagem) | 126,56 g |
| Peso por unidade (excluindo embalagem) | 126,56 g |
| Número do imposto alfandegário | 85364190 |
| País de origem | DE |
| China RoHS | |
| Environment friendly use period (EFUP) |
EFUP-50
Uma lista de declaração de acordo com a RoHS da China relativa a artigos encontra-se na área de transferências do respetivo artigo, em "Declaração do fabricante". Para todos os artigos com EFUP-E não é emitida nem necessária uma tabela de declaração de acordo com a RoHS da China.
|
| EU REACH SVHC | |
| Nota sobre as substâncias candidatas ao REACH (n.º CAS) | Nenhuma substância numa proporção superior a 0,1 % em massa |
