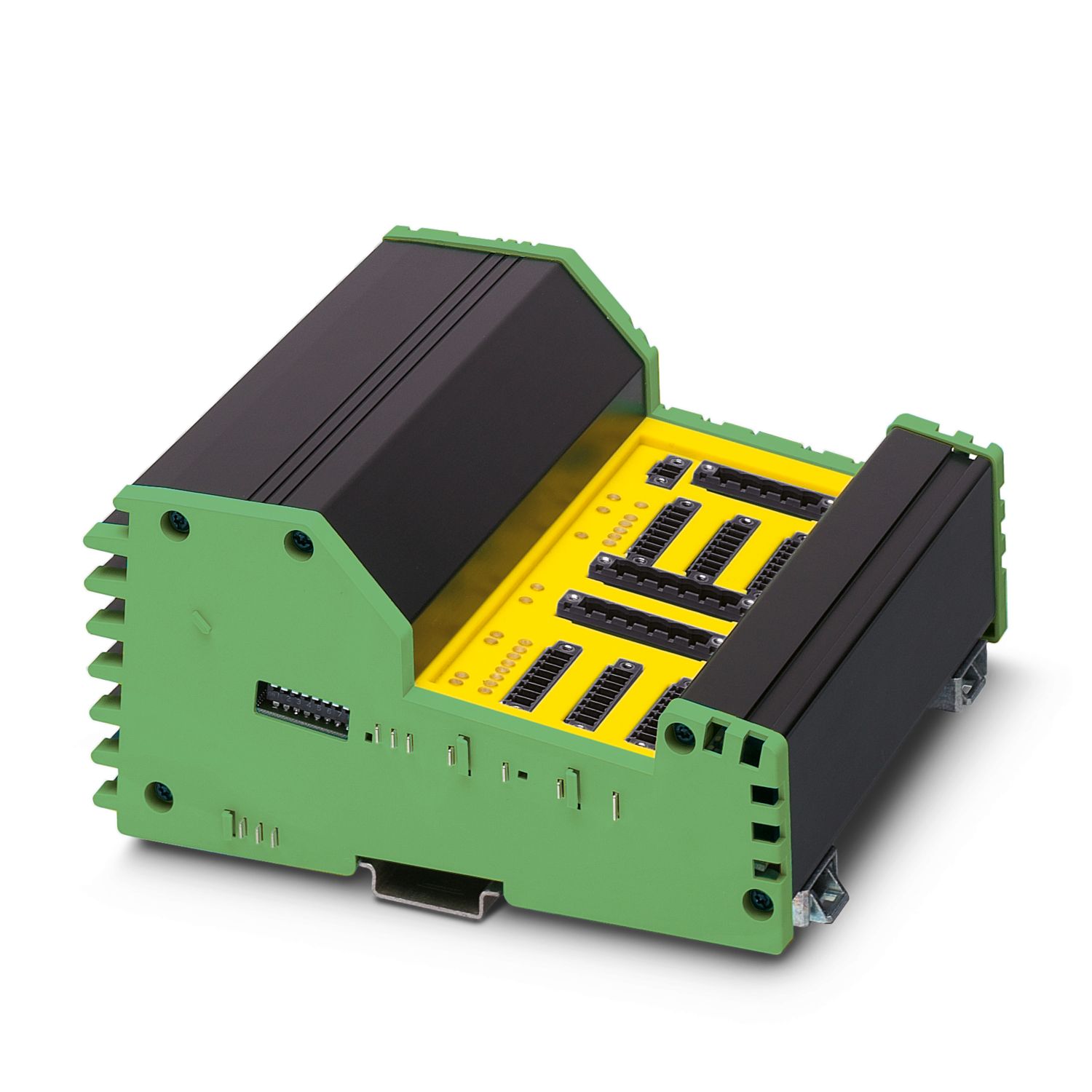

Digital input/output module, IP20 degree of protection, four safety-oriented digital inputs, four safety-oriented digital outputs, one fail-safe relay output or one safety-oriented output for the segment circuit
IB IL 24 SDIO 4/4/1
-
I/O module
2863740
Digital input/output module, protection type IP20, 4 safe digital inputs, 4 safe relay outputs, 1 safe relay output or 1 safe output for the segment circuit
Detalhes dos produtos
Width | 183.5 mm |
Height | 119.8 mm |
Depth | 71.5 mm |
Note on dimensions | Housing dimensions |
Color | yellow |
Inline local bus | |
Connection method | Inline data jumper |
Module | |
ID code (dec.) | 175 |
ID code (hex) | AF |
Digital: | |
Input name | Digital inputs |
Number of inputs | 8 |
Connection method | Spring-cage connection |
Connection technology | 2-, 3-, 4-conductor |
Input voltage | 24 V DC (parameterizable; see technical data.) |
Input voltage range "0" signal | -3 V DC ... 5 V DC |
Input voltage range "1" signal | 11 V DC ... 30 V DC |
Typical response time | See technical data |
Digital: | |
Output name | Digital outputs |
Connection method | Spring-cage connection |
Connection technology | 2-, 3-, 4-conductor |
Number of outputs | 8 |
Protective circuit | Overload protection, short-circuit protection of outputs |
Output voltage | 24 V DC (US - 1 V) |
Maximum output current per group | 4 A |
Maximum output current per channel | 1 A |
Maximum output current per module / terminal block | 4 A |
Maximum output current per module | 4 A |
Nominal output voltage | 24 V DC |
Nominal load, inductive | see safety data |
Nominal load, lamp | see safety data |
Nominal load, ohmic | see safety data |
Behavior with inductive overload | Output can be destroyed |
Product type | I/O component |
Product family | Inline |
Type | modular |
Diagnostics messages | Short-circuit or overload of the digital outputs Error message in diagnostics code (bus) and display by means of the LED on the motor |
Transmission medium | Copper |
Potentials: Communications power (UL) | |
Supply voltage | 7.5 V DC (see safety data) |
Current draw | max. 230 mA (see safety data) |
Potentials: Main circuit supply (UM) | |
Supply voltage | 24 V DC (see safety data) |
Potentials: Segment circuit supply (US) | |
Supply voltage | 24 V (see safety data) |
Supply: Module electronics | |
Supply voltage | 24 V DC (via voltage jumper) |
Supply voltage range | 19.2 V DC ... 30 V DC |
Electrical isolation/isolation of the voltage ranges | |
Test voltage: 5 V supply, incoming remote bus/7.5 V supply (bus logics) | 500 V AC, 50 Hz, 1 min |
Test voltage: 5 V supply, outgoing remote bus/7.5 V supply (bus logics) | 500 V AC, 50 Hz, 1 min |
Test voltage: 7.5 V supply (bus logics)/24 V supply (I/O) | 500 V AC, 50 Hz, 1 min |
Test voltage: 24 V supply (I/O) / functional ground | 500 V AC, 50 Hz, 1 min |
Ambient conditions | |
Ambient temperature (operation) | -25 °C ... 55 °C |
Degree of protection | IP20 |
Air pressure (operation) | 800 hPa ... 1060 kPa (up to 3000 m above sea level) |
Air pressure (storage/transport) | 66 hPa ... 108 kPa (up to 3000 m above sea level) |
Ambient temperature (storage/transport) | -25 °C ... 85 °C |
Permissible humidity (operation) | 10 % ... 85 % (Take suitable measures against increased air humidity within the permitted temperature range.) |
Permissible humidity (storage/transport) | 10 % ... 85 % (Take suitable measures against increased air humidity within the permitted temperature range.) |
Protection class | III (IEC 61140, EN 61140, VDE 0140-1) |
Mounting type | DIN rail mounting |
N.º de artigo | 2863740 |
Pcs./Emb | 1 Unidade |
Quantidade mínima de pedido | 1 Unidade |
Observação | Produção ligada a pedido (sem devolução) |
Chave comercial | DNA |
Chave de produto | DNA441 |
GTIN | 4046356046343 |
Peso por unidade (inclusive embalagem) | 444 g |
Peso por unidade (excluindo embalagem) | 444 g |
Número do imposto alfandegário | 85389091 |
País de origem | DE |
EU REACH SVHC | |
Nota sobre as substâncias candidatas ao REACH (n.º CAS) | Nenhuma substância numa proporção superior a 0,1 % em massa |
