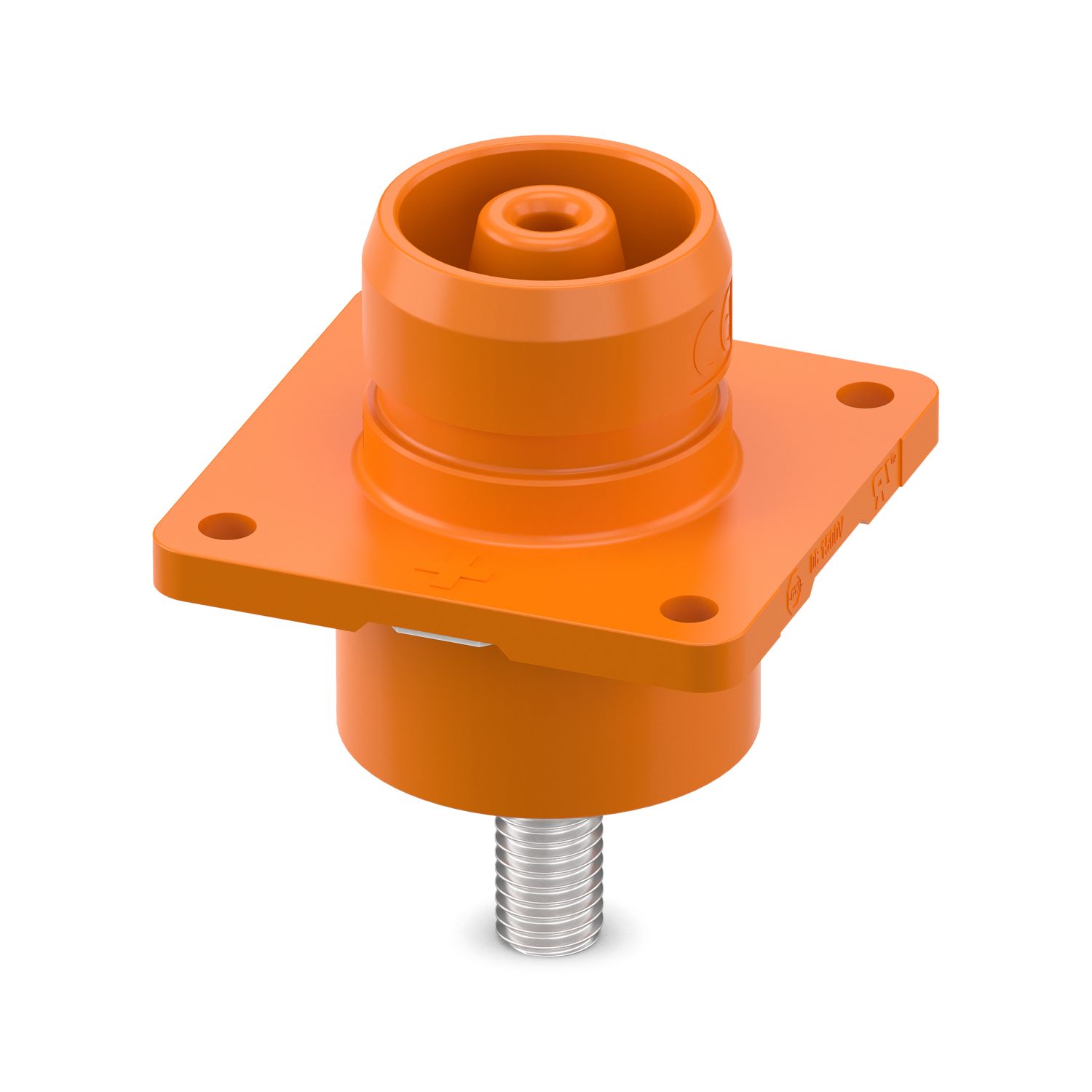

BPC 400 FT S 95-120 OG - Connector

1571333

Connector, color: orange, number of positions: 1, min. conductor cross-section: 95 mm², max. conductor cross-section: 120 mm², rated voltage: 1500 V DC, rated current: 350 A, Connection method: Thread connection

Detalhes dos produtos

Safety note
Safety note	• WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible.
	• WARNING: Only electrically qualified personnel may install and operate the product. They must observe the following safety notes. The qualified personnel must be familiar with the basics of electrical engineering. They must be able to recognize and prevent danger. The relevant symbol on the packaging indicates that only personnel familiar with electrical engineering are allowed to install and operate the product.
	WARNING: The connectors may not be plugged in or disconnected under load. Ignoring the warning or improper use may damage persons and/or property.
	• The products are suitable for applications in plant, controller, and electrical device engineering.
	• Assembled products may not be manipulated or improperly opened.
	• Only use mating connectors that are specified in the technical data of the standards listed (e.g. the ones listed in the product accessories online at phoenixcontact.com/products).
	• When using the product in direct connection with third-party manufacturers, the user is responsible.
	• For operating voltages > 50 V AC, conductive connector housings must be grounded
	• Ensure that the protective or functional ground has been properly connected.
	• Observe the corresponding technical data. You will find information: o On the product o On the packing label o In the supplied documentation o Online at phoenixcontact.com/products under the product
	• The installation notes/Design In documents online on the download page at phoenixcontact.com/products must be observed for this product.
	• Use a protective cap to protect connectors that are not in use. The suitable accessories are available online in the accessory section of the product at phoenixcontact.com/products
	• The connector warms up in normal operation. Depending on the ambient conditions, the surface of the connector can continue to warm up. In this case, the user is responsible for posting warnings (e.g. DIN EN ISO 13732-1:2008-12).
	• Operate the connector only when it is fully plugged in and interlocked.
	• Ensure that when laying the cable, the tensile load on the connectors does not exceed the upper limit specified in the standards.
	• Observe the minimum bending radius of the cable. Lay the cable without twisting it.

Product type	Connectors for energy storage
Number of positions	1
Insulation characteristics
Degree of pollution	2

Rated voltage (III/2)	1500 V DC
Nominal voltage ATD	1500 V DC (III/2.00)
	1000 V AC (III/2.00)
Rated current	350 A (with 120 mm² conductor cross-section, in accordance with IEC 61984)
	300 A (with 95 mm² conductor cross-section, in accordance with IEC 61984)
Contact resistance	≤ 0.5 mΩ
Insulation resistance	1000 MΩ
Nominal voltage U_N	1500 V DC

Connection method	Thread connection
Tightening torque	... 0.8 Nm

Color	orange
Material Housing	Polyamide
Material Contact	Copper alloy
Material Seal	Rubber
Flammability rating according to UL 94	V0
Insulating material	PA
Contact surface material	Ni/Ag

Single wire, cross section	95 mm² 120 mm²
Halogen-free	yes

Mechanical data
Insertion/withdrawal cycles	100
Insertion force	≤ 75 N
Withdrawal force	≥ 10 N

Ambient conditions
Degree of protection	IP65 (The panel is feed-through hole)
	IP67 (The panel is blind hole)
Ambient temperature (operation)	-40 °C ... 125 °C (incl. temperature increase)
Ambient temperature (storage/transport)	-40 °C ... 80 °C
Altitude	4000 m

Standard designation	TÜV (PPP 51090B)
Standards/specifications	UL 4128

Dados comerciais

N.º de artigo	1571333
Pcs./Emb	15 Unidade
Quantidade mínima de pedido	15 Unidade
Chave comercial	ABL
Chave de produto	ABLDBA
GTIN	4067923059528
Peso por unidade (inclusive embalagem)	86,43 g
Peso por unidade (excluindo embalagem)	78,4 g
Número do imposto alfandegário	85359000
País de origem	CN

Classificações

Certificações

Approval Specification Data
	Tensão nominal U_N	Corrente nominal I_N	Secção transversal American Wire Gauge	Secção transversal mm²
keine
	1500 V	350 A		95 - 120

Approval Specification Data
	Tensão nominal U_N	Corrente nominal I_N	Secção transversal American Wire Gauge	Secção transversal mm²
keine
	1500 V	350 A	3/0 - 4/0

Environmental product compliance

Produtos compatíveis

Vantagens

Patented design, with 3 proofs and one rotation

Safety lock

360° free rotation and flexible wiring

Foolproof mechanism installed

Touch-proof

Mismatching and short circuit proof

Phoenix Contact S.A.

Sintra Business Park, Edifício n°1 Zona Industrial da Abrunheira, sala 0M, 2710-089 SINTRA

Fazer uma pergunta (+351) 21 911 2760 pt-info@phoenixcontact.com

ECLASS-13.0	27440209
ECLASS-15.0	27440209

EU RoHS
Cumpre os requisitos de substância segundo a Diretiva RoHS	Sim (Sem regras de exceção)
China RoHS
Environment friendly use period (EFUP)	EFUP-E Nenhuma substância perigosa acima dos valores-limite
EU REACH SVHC
Nota sobre as substâncias candidatas ao REACH (n.º CAS)	Nenhuma substância numa proporção superior a 0,1 % em massa
