EMG 50-LG/O
-
Electronics housing
2940870
Electronic housing, for PCB insertion, without screw connection terminal blocks and cover, with open terminal space
Este produto precisa de outros produtos para a operação.
Acessórios necessários
Detalhes dos produtos
| Product type | Complete housing |
| Housing type | Component housing |
| Product family | EMG...-LG |
| Type | Lower part of housing, removable cover optional |
| Type | Lower and upper part, with snap-on foot, with open clamping space |

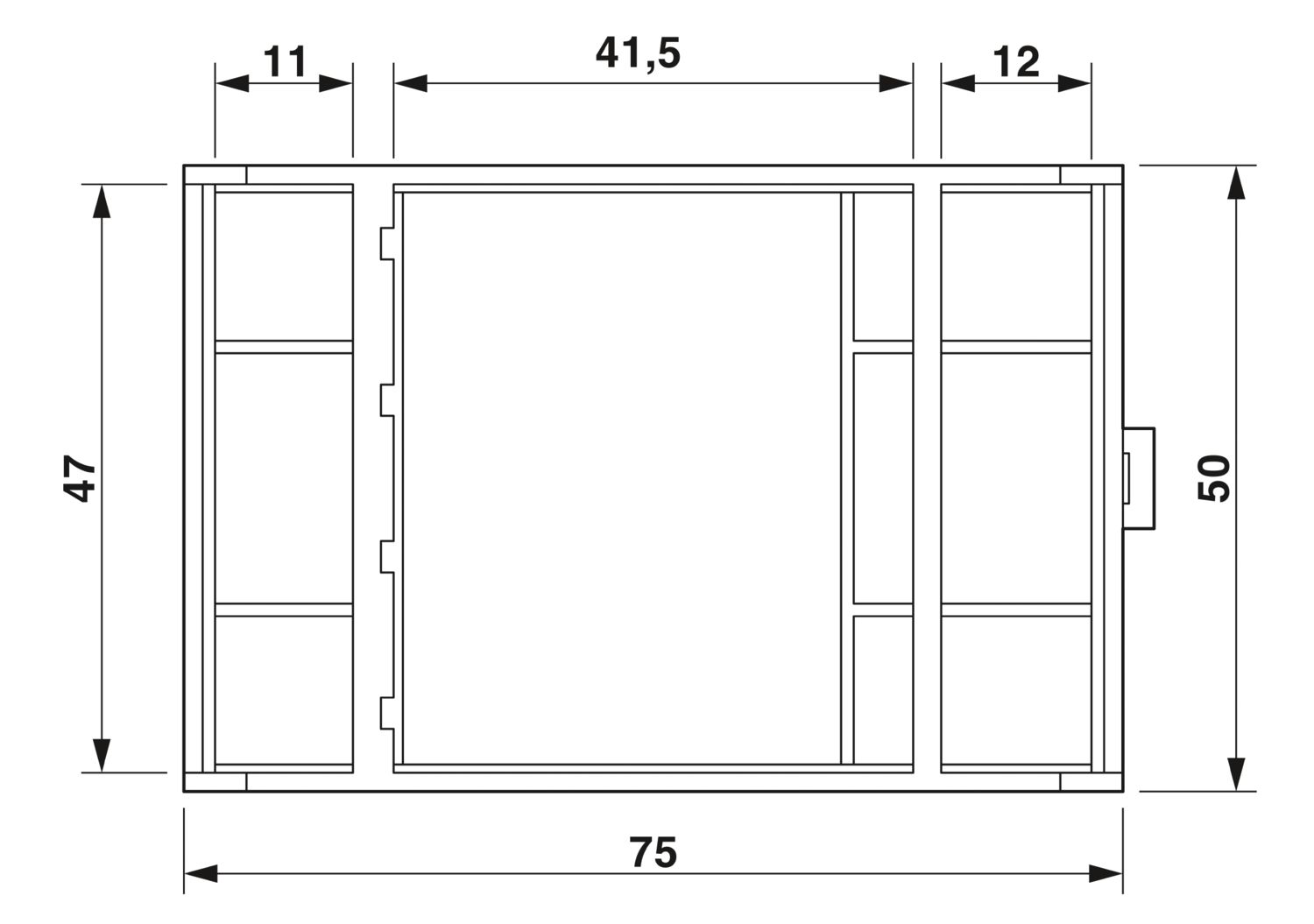

| Dimensional drawing |
|
| Width | 50 mm |
| Installed height | 47.5 mm |
| Height NS 35/7,5 | 55 mm |
| 83 mm | |
| Depth | 75 mm |
| Length | 75 mm |
| Color | green |
| Flammability rating according to UL 94 | V0 |
| Housing material | Polycarbonate fiber reinforced |
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 125 °C |
