Energy meters for billing purposes enable cost-center-specific energy data billing. EMpro AC energy meters with MID approval record all important electrical parameters such as currents, voltages, power factors, power ratings, and energy values in all four quadrants. EMpro DC energy meters enable the direct measurement of currents and voltages up to 650 A/1,000 V DC. The measurement data is provided via standard communication interfaces.
3-phase energy meter with direct measurement up to 100 A AC, Modbus/RTU interface, 2 pulse outputs, 4 tariffs (via Modbus), operating temperature up to +70°C, certified in accordance with Measuring Instruments Directive (MID)
3-phase energy meter with direct measurement up to 100 A AC, Modbus/TCP interface, operating temperature up to +70°C, certified in accordance with Measuring Instruments Directive (MID)
3-phase energy meter with current transformer measurement 1 A/5 A AC, Modbus/TCP interface, operating temperature up to +70°C, certified in accordance with Measuring Instruments Directive (MID)
1-phase energy meter with direct measurement up to 45 A AC, Modbus/RTU interface, 2 pulse outputs, operating temperature up to +70°C, certified in accordance with Measuring Instruments Directive (MID)
3-phase energy meter with current transformer measurement 1 A/5 A AC, Modbus/RTU interface, 2 pulse outputs, 4 tariffs (via Modbus), operating temperature up to +70°C, certified in accordance with Measuring Instruments Directive (MID)
Direct current energy meter with direct measurement up to 1000 V/650 A, with RS-485 interfaces for the programming software and the DC charging controller, correction of charging cable losses, operating temperature up to +80°C, certified for billing purposes
EMpro AC energy meters with MID approval in accordance with 2014/32/EU enable cost-center-specific energy data billing (submetering). They record all key parameters such as currents, voltages, power factors, powers, and energy values in all four quadrants.
 |
 |
|
|---|---|---|
|
EMpro AC energy meters
|
EMpro DC energy meters | |
| Maximum input current | Direct measurement: 45 A AC (1-phase); 100 A AC (3-phase) | Direct measurement up to 650 A DC |
| . | Current transformer: 1 A / 5 A AC (3-phase) | |
| Input voltage range | 1-phase: 1x 184 V … 276 V | 1,000 V DC |
| . | 3-phase: 3x 173 V … 480 V (Ph/Ph) / 100 V … 276 V (Ph/N) | |
| Communication protocols | Modbus/TCP and Modbus/RTU | SLIP (Serial Line Internet Protocol) |
EMpro energy meters with MID certification enable submetering, i.e., cost center-specific energy data billing. The measuring devices record the key electrical parameters such as currents, voltages, power factors, powers, and energy values in all four quadrants. This provides you with information on the feed-in and drawing of active and reactive energy. The data is forwarded to a higher-level control system, such as an energy management system, via conventional communication interfaces.
EMpro AC energy meters support single-phase 2-conductor, three-phase 3-conductor, and three-phase 4-conductor applications and are available as direct measurement or current transformer versions. Currents up to 100 A AC can be measured directly over the entire temperature range from -40 to +70°C. The measurement input via current transformer can be configured for 1 A or 5 A current transformers, whereby the transformer ratio can be parameterized.
An accurate device that is MID-certified by an external notified body gives you a high degree of certainty. The European Measuring Instruments Directive 2014/32/EU (MID) distinguishes between accuracy classes A, B and C, corresponding to IEC 62053-21 classes 2, 1 and 0.5. EMpro AC energy meters meet accuracy class C and 0.5 and are suitable for increased requirements in the commercial and industrial sectors.
When installed, energy meters can be networked with each other via common communication protocols, such as Modbus/RTU or Modbus/TCP, and communicate directly with the energy data management system. This eliminates any time-consuming direct reading on site. The energy values in all four quadrants are observed for the most part. Your specific application requirements will determine which protocol is right for you.
Different types of measuring devices are used in many applications. Multifunctional energy measuring devices are used for measurement at feed-in, while energy meters with MID approval are used for billing. Our energy measuring devices all speak the same language. The Modbus registers of the EMpro energy meters are based on the multifunctional EMpro energy measuring devices. This saves programming effort and ultimately additional costs.
It must be possible to easily read and export data under the conditions of intended use in accordance with EN 50470-1. All electrical characteristic values and the configuration parameters available via the display pages are displayed on the backlit LCD display of the EMpro AC energy meters. Other configuration parameters can be configured via the communication interface. Four mechanical buttons on the front are used for data control and programming.

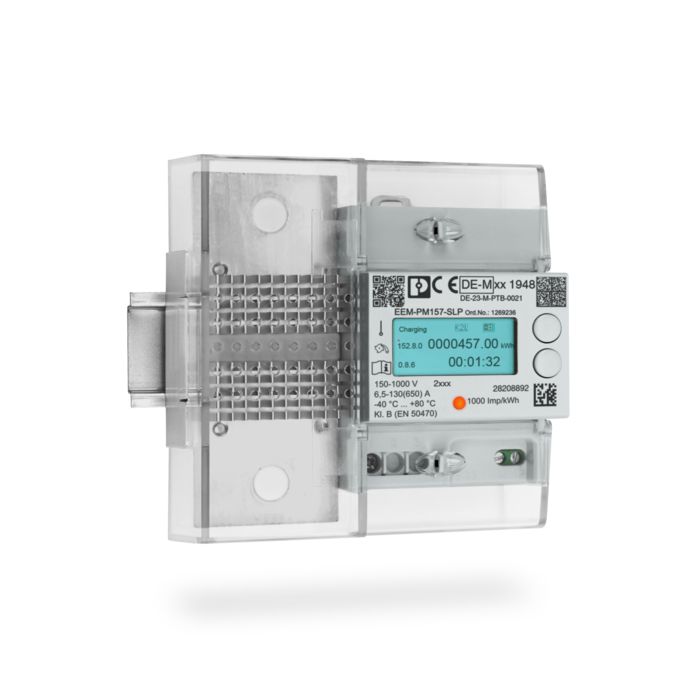

The space-saving EMpro DC energy meters enable direct measurement of currents and voltages up to 650 A/1,000 V DC for billing purposes. The tamper-proof design with data in OCMF format and the calibration log are ideal for use in charging infrastructure.
EMpro DC energy meters measure powers up to 650 kW in accordance with accuracy class B (EN 50470-3). The measurement is taken directly via a shunt. The compact dimensions save valuable space in your application.
The EMpro DC energy meters have the corresponding approvals for use in kWh-based billing systems. The tamper-proof hardware and firmware design provides protection against unauthorized access. In addition, all events that have an impact on billing are recorded in the calibration log.
EMpro DC energy meters offer you high reliability with an extended temperature application range: despite their compact design, the products ensure efficient heat dissipation and are suitable for outputs up to 650 kW DC at temperatures up to +80°C. They can also be used at extremely low temperatures as low as -40°C without any concerns.
The integrated RS-485 interface with the simplified SLIP protocol (Serial Line Internet Protocol) enables the communication of measurement data to higher-level control systems. Save cabling effort with the RJ12 connectors which facilitate the connection of several DC energy meters in series due to their versatile design.
By storing the energy data, permanent traceability of the charging processes is guaranteed. In addition, all billing-related events, such as adjustment of the cable resistance, are recorded in the calibration log. Send billing-related data in OCMF format to end devices identified as being secure. Benefit from integrated network solutions consisting of a CHARX DC charging controller, an EMpro DC meter, and other products from Phoenix Contact.
