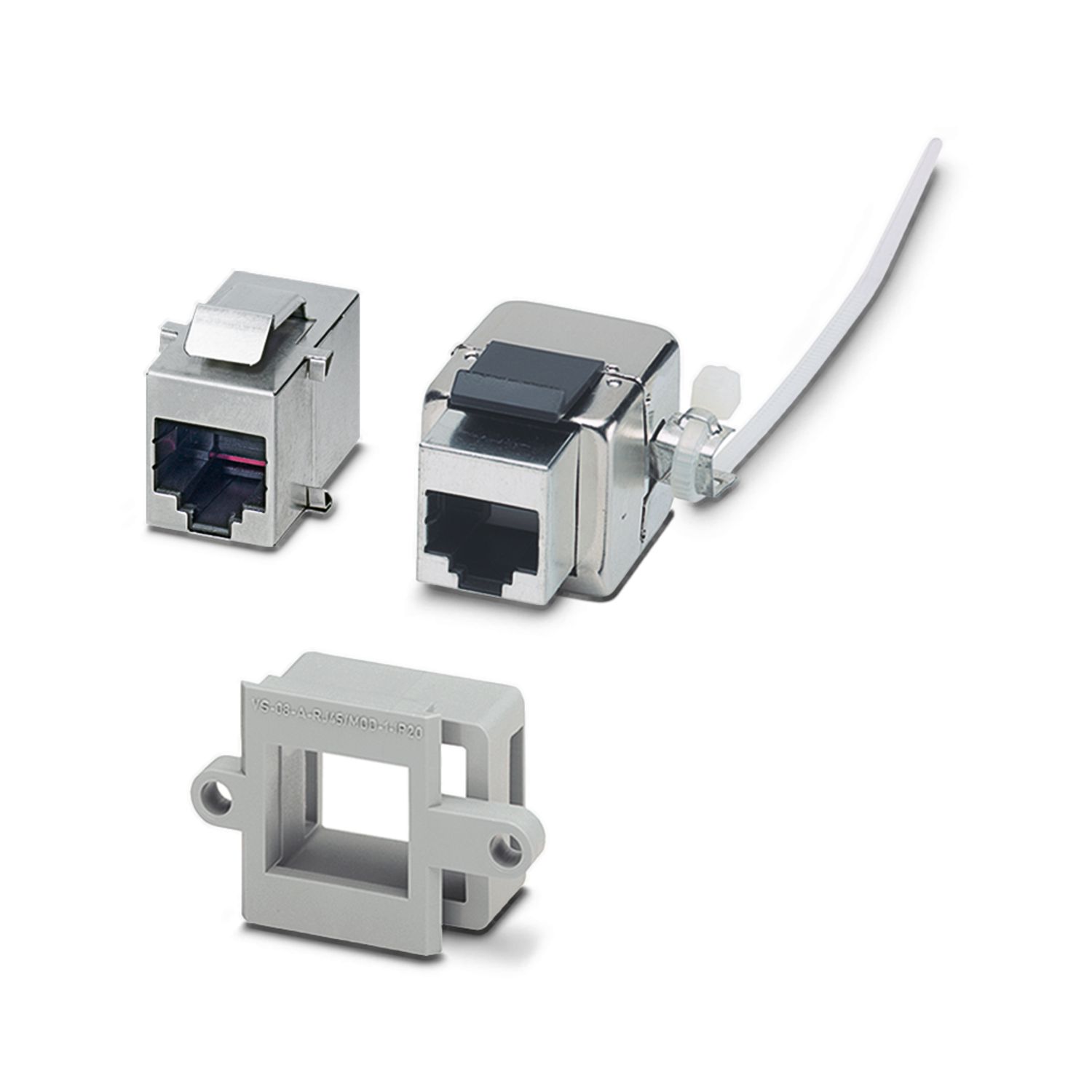

VS-08-A-RJ45/MOD-1-IP20
-
Panel-mount frame
1689433
RJ45 panel mounting frame, 1x, IP20, for modular socket inserts (Keystone), without mounting screws
Product details
| Product type | Panel-mount frame |
| Application | Modular insert |
| Type | RJ45 |
| Number of positions | 8 |
| Connection profile | RJ45 |
| Number of slots | 1 |
| Type | RJ45 |
| Dimensional drawing |
|
| Width | 35.5 mm |
| Height | 22.5 mm |
| Depth | 13.4 mm |
| Color | gray |
| Material | Plastic |
| Flammability rating according to UL 94 | V0 |
| Seal material | NBR |
| Housing material | Plastic |
| Housing surface material | PA, light gray |
| Contact surface material | Au/Ni |
| Contact carrier material | Polyester GF |
| Ambient conditions | |
| Degree of protection | IP20 |
| Ambient temperature (operation) | -40 °C ... 80 °C |
| Mounting type | Front mounting |
