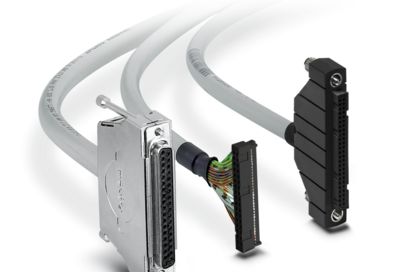

VARIOFACE termination boards ensure your reliable signal transmission between the field and automation levels. Reliable signal transmission: the universal termination boards couple high-position connectors to screw, Push-in or spring-cage terminal blocks – for IDC/FLK, D-SUB, ELCO, DIN rail, or RJ45. In conjunction with our universal system cables, you benefit from quick 1:1 wiring protects against polarity reversal.
VARIOFACE module, with screw connection and flat-ribbon cable connector, for mounting on NS 35 rails, with pin strip and short and long locking latches for socket strips, 50-pos.
VARIOFACE SLIM LINE, with screw connection and D-subminiature socket strip, for assembly at a right angle on NS 35/7.5, 9 positions
Termination board, connection 1: Screw connection, connection 2: EDAC / ELCO pin strip 1x 56-position (ELCO pin strip type 8016/EDAC pin strip type 516, left)
VARIOFACE module for connecting a RJ45 socket with spring-cage double connection terminal blocks in direct plug-in method.
VARIOFACE module, with push-in connections and D-SUB 37 socket connector, for mounting on NS 35 rails
Termination board, connection 1: Screw connection, connection 2: EDAC / ELCO pin strip 1x 56-position (ELCO pin strip type 8016/EDAC pin strip type 516, right)
VARIOFACE module, with spring-cage terminal blocks and M12-SAC plug, 5-pos.
VARIOFACE module, with push-in connection and D-SUB miniature socket strip, for mounting on NS 35 rails, 9-pos.
VARIOFACE module, with screw connection and flat-ribbon cable connector, for mounting on NS 35 rails, with pin strip and short and long locking latches for socket strips, 14-pos.
VARIOFACE module, with screw connection and flat-ribbon cable connector, for mounting on NS 35 rails, with pin strip and short and long locking latches for socket strips, 16-pos.
Configurator for system cabling for controllers
Configure your individual plug-and-play solution. Intuitive user interface and 3D models ensure easy handling. With just a few clicks, you can select your solution components consisting of front adapters, system cables, and signal transfer modules.

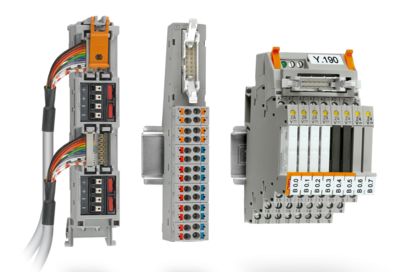

The VARIOFACE portfolio is made up of various components that ensure smooth signal transmission. When it comes to connecting the field level to the control level, VARIOFACE Professional is ideal for universal use. With the new VARIOFACE Front Connect, it is now possible to establish a connection between the field level and remote I/O systems in an overall width of just 19 mm. Eliminate the need for hard wiring with relay modules and use a plug-in solution for this connection with the V8 adapter from the VARIOFACE product family.
 |
 |
 |
|
|---|---|---|---|
| VARIOFACE Professional | VARIOFACE Front Connect | VARIOFACE PLC-V8 adapters | |
| Connection technology | Push-in, screw | Push-in | Plug-in contacts to relay modules for PLC-INTERFACE 6.2 mm / 14 mm relays and RIFLINE complete |
| Connectors | D-SUB, HD-SUB, IDC/FLK, RJ45 | D-SUB, IDC/FLK | D-SUB, IDC/FLK |
| Number of positions | 9, 15, 25, 37, 50 (D-SUB) / 15, 26, 44, 62 (HD-SUB) / 10, 14, 16, 20, 26, 34, 40, 50, 60, 64 (IDC/FLK) | 9, 15 (D-SUB) / 14, 16, 20 (IDC/FLK) | 15-pos. (D-SUB) / 14-pos. (IDC/FLK) |
| Special versions | Potential distributor / feed-through modules / LED indicator | no | no |
| Overall width | Type-dependent | 19 mm | 50 mm (6.2 mm PLC-INTERFACE) / 112.5 mm (14 mm PLC-INTERFACE) / 128 mm (RIFLINE complete) |
Use universal termination boards to connect the control level and field level. VARIOFACE Professional offers a coordinated, modular, and robust system that saves space. This solution can be used wherever connectors need to be connected with single-core wires. Modules for signal transmission and potential distribution are available, depending on your application.
The versatile VARIOFACE potential distributors are suitable for both operating voltage and control voltage distribution. They are designed for applications up to 250 V/30 A. Benefit from the simple and precise distribution of electrical signals, especially in confined spaces.
Error-free wiring and space savings in the control cabinet are key features of VARIOFACE Front Connect. This addition between the remote I/O system and field level supports decentralized peripherals with high flexibility and a narrow design.
Reduce your wiring time significantly with Push-in Technology. Clear marking and color push buttons make handling easier and ensure intuitive wiring.
Easily integrate VARIOFACE Front Connect into your planning and documentation thanks to more available CAD data and EPLAN macros.
The VARIOFACE Front Connect product range includes tailored accessories such as system cables with free cable ends for universal connections.
Use system cabling adapters to ensure the error-free connection of relay modules to the control level. Here, the features of PLC-INTERFACE and VARIOFACE system cabling are combined in one solution. Depending on your switching requirements, channel-specific assembly of the input and output module is possible.
The PLC-V8 adapters are simply plugged into eight adjacent PLC-INTERFACE relays. As a result, the relays can be connected quickly and, in particular, without errors to I/O cards with IDC/FLK or D-SUB connectors.
The system cables coming from the controller, which are preassembled with connectors, are plugged into the PLC-V8 adapters.
The PLC-INTERFACE relays have bridge shafts. To establish a connection, the PLC-V8 adapters are plugged into the bridge shafts.
The PLC-INTERFACE relays form the coupling level between control level and field level.
The sensors and actuators located in the field level are connected to the PLC-INTERFACE relays.
