VARIOFACE SLIM LINE, with screw connection and D-subminiature socket strip, for assembly at a right angle on NS 35/7.5, 37 positions

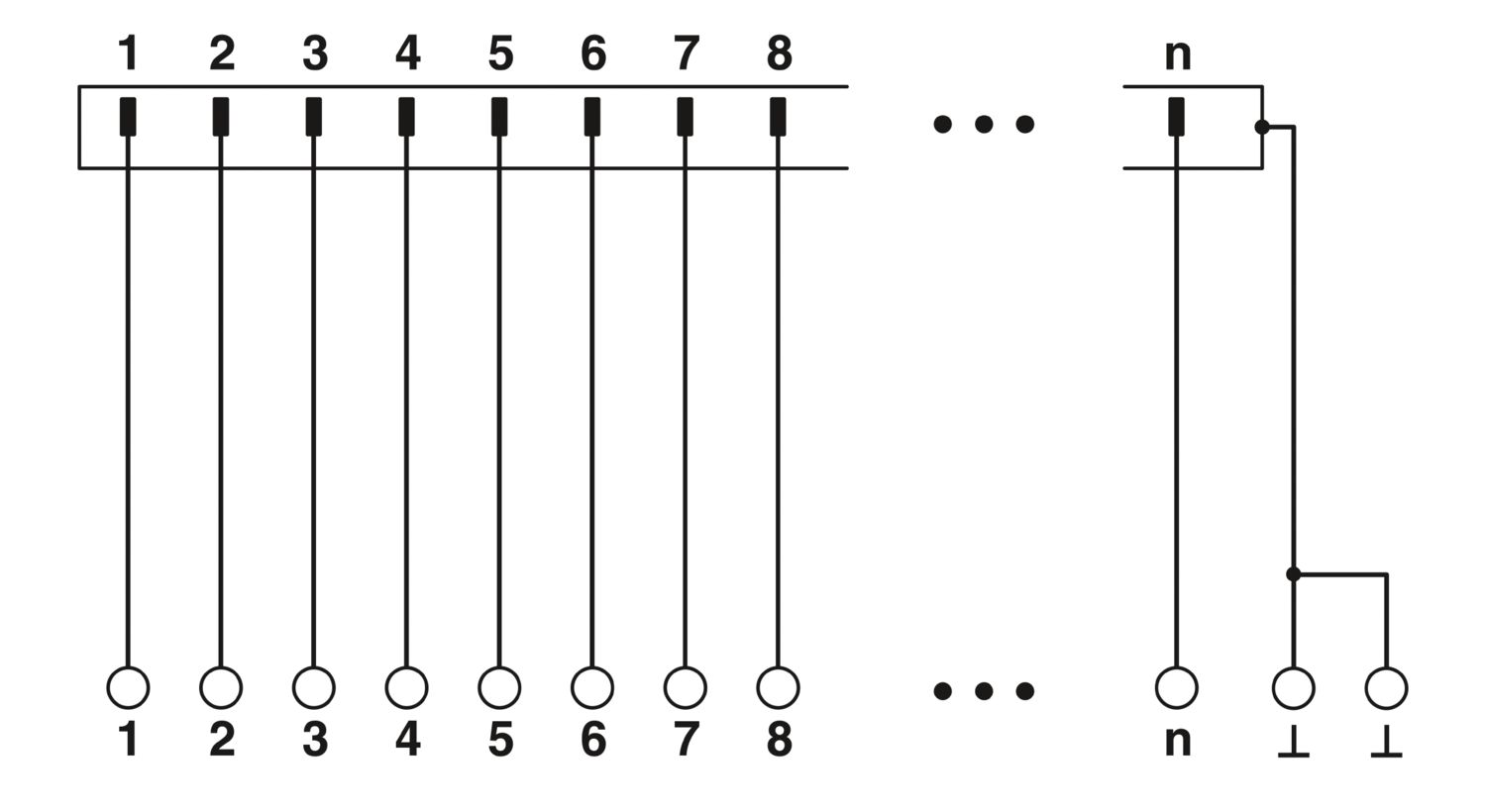

Product details
Product type
Interface module
Number of positions
37
Insulation characteristics: Air clearances and creepage distances
Insulation
Functional insulation
Overvoltage category
II
Pollution degree
2
Operating voltage (AC)
≤ 30 V AC
Operating voltage (DC)
≤ 60 V DC
Current (per branch)
≤ 2.5 A
Current (Total current)
≤ 55.5 A
Air clearances and creepage distances
Rated insulation voltage
125 V
Rated surge voltage
1.2 kV (1.2/50 μs)
Connection 1 (control level)
Connection in acc. with standard
IEC 60807-2
Connection method
D-SUB socket strip
Screw thread
UNC 4-40
Number of connections
1
Number of positions
37
Insertion/withdrawal cycles
> 500
Pitch
2.77 mm
Connection 2 (field level)
Connection method
Screw connection
Stripping length
9 mm
Screw thread
M3
Number of positions
38
Conductor cross section rigid
0.2 mm² ... 2.5 mm²
Conductor cross-section rigid (2 conductors with same cross section)
0.2 mm² ... 0.75 mm²
Conductor cross section flexible
0.2 mm² ... 2.5 mm²
0.25 mm² ... 1.5 mm² (Ferrule without plastic sleeve)
0.25 mm² ... 1.5 mm² (Ferrule with plastic sleeve)
Conductor cross section flexible (2 conductors with same cross section)
0.2 mm² ... 0.75 mm²
0.25 mm² ... 0.34 mm² (Ferrule without plastic sleeve)
Conductor cross section AWG
24 ... 14
Tightening torque
0.4 Nm ... 0.5 Nm
Pitch
5 mm
Status display present
no
Item dimensions
Width
45 mm
Height
156 mm
Depth
46.6 mm
Color
green (RAL 6021)
Housing insulation material
PVC
Ambient conditions
Degree of protection (Module)
IP20
Degree of protection (Installation location)
≥ IP54
Ambient temperature (operation)
-20 °C ... 50 °C
Ambient temperature (storage/transport)
-20 °C ... 70 °C
Altitude
≤ 2000 m
UKCA
Certificate
UKCA-compliant
Air clearances and creepage distances
Standards/regulations
EN IEC 60664-1
Mounting type
DIN rail mounting
Mounting position
any
Notes on operation
For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.
