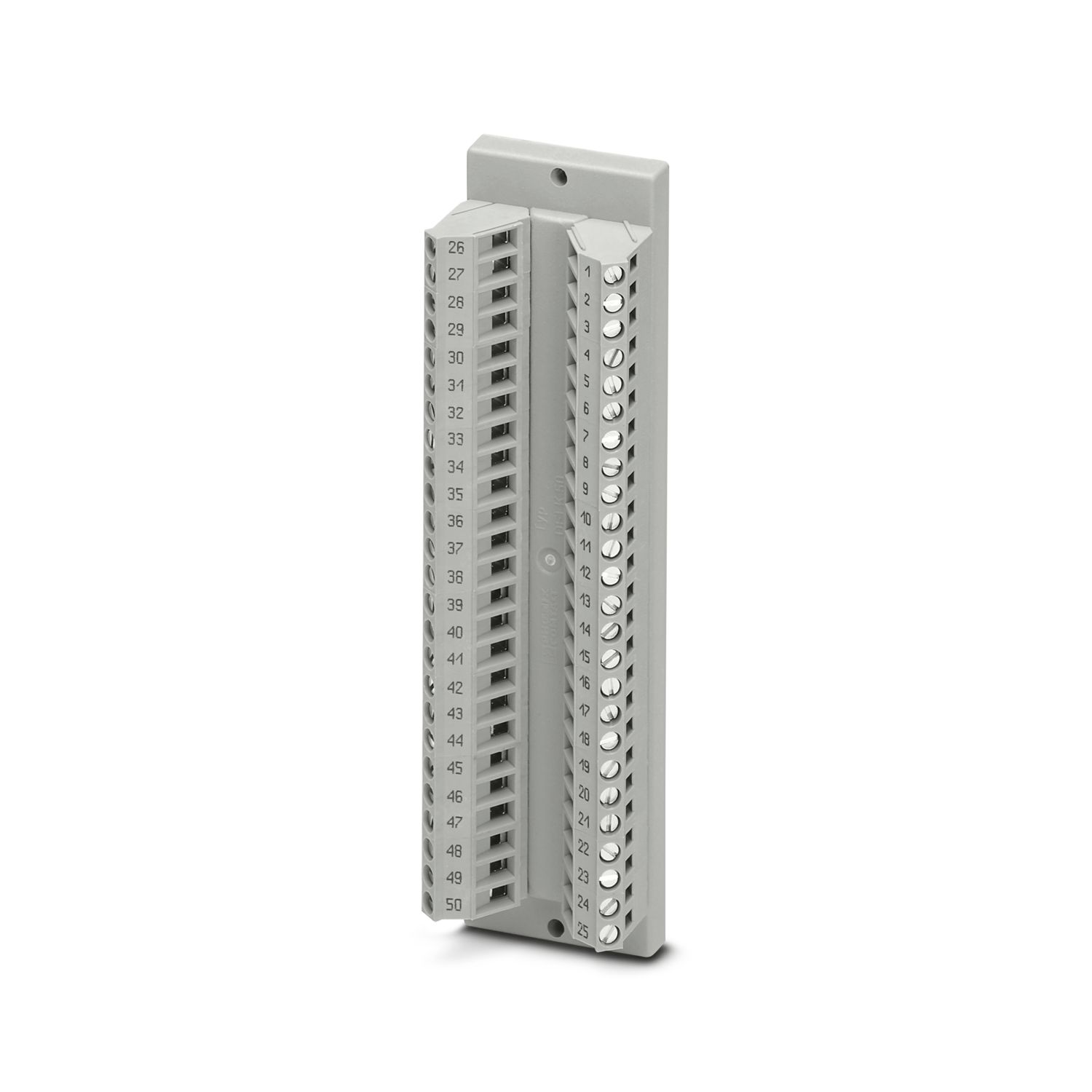

DFLK-D50 SUB/B - Termination board

2287669

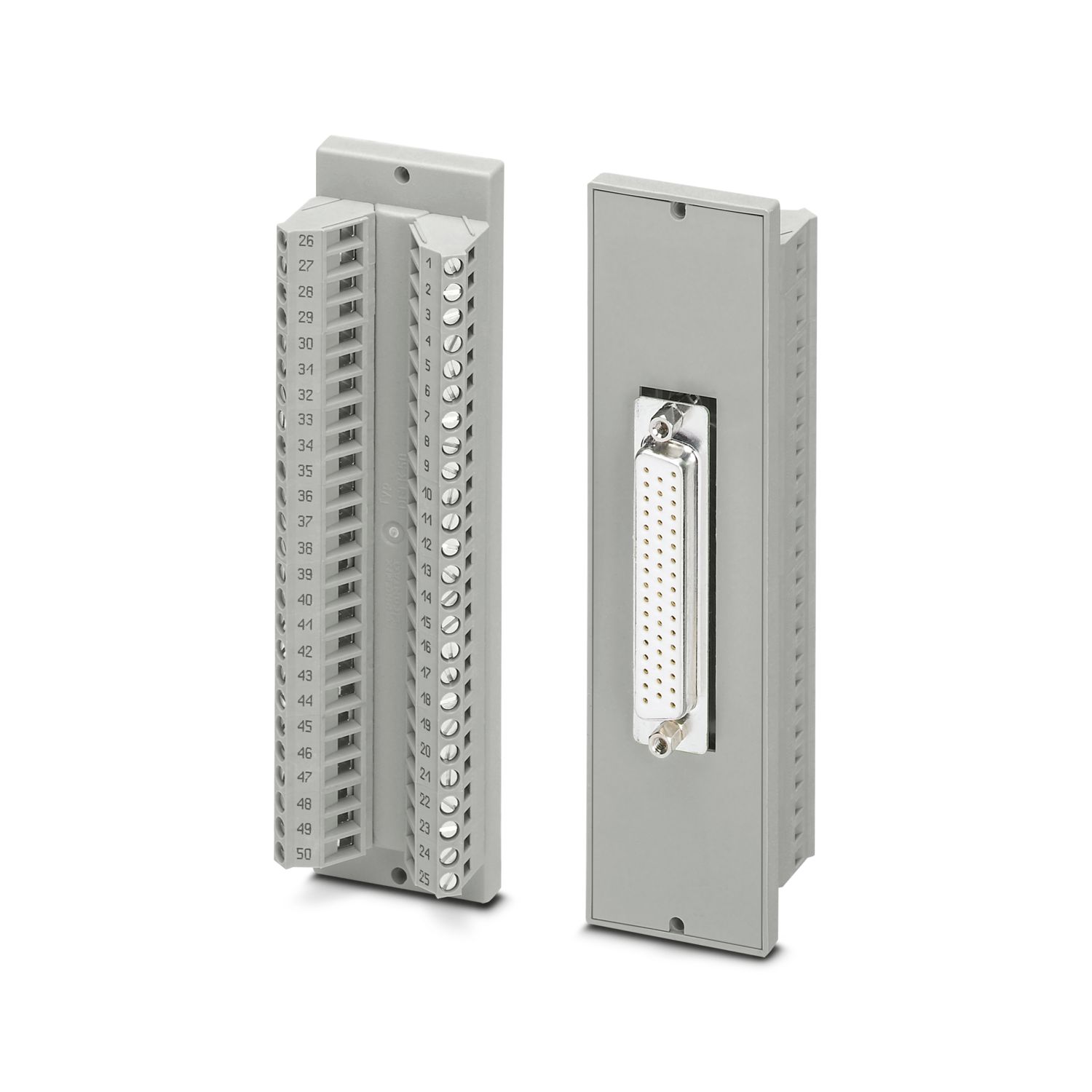

The VARIOFACE feed-through module implements a 1:1 connection between plug-in screw connection terminal blocks and a D-SUB miniature female strip (number of positions: 50). There is no separate ground pick-off available.

Product details

Product type	Interface module
Product family	VARIOFACE
Number of positions	50
Insulation characteristics: Air clearances and creepage distances
Insulation	Functional insulation
Overvoltage category	II
Pollution degree	2

Operating voltage (AC)	≤ 30 V AC
Operating voltage (DC)	≤ 60 V DC
Current (per branch)	≤ 2.5 A
Current (Total current)	≤ 50 A (50 °C)
Air clearances and creepage distances
Rated insulation voltage	125 V
Rated surge voltage	1.2 kV (1.2/50 μs)

Connection 1 (control level)
Connection in acc. with standard	IEC 60807-2
Connection method	D-SUB socket strip
Screw thread	UNC 4-40
Number of connections	1
Number of positions	50
Insertion/withdrawal cycles	> 500
Pitch	2.77 mm
Connection 2 (field level)
Connection method	Screw connection
Stripping length	8 mm
Screw thread	M3
Number of positions	16
Conductor cross section rigid	0.2 mm² ... 4 mm²
Conductor cross-section rigid (2 conductors with same cross section)	0.2 mm² ... 1.5 mm²
Conductor cross section flexible	0.2 mm² ... 2.5 mm²
	0.25 mm² ... 2.5 mm² (Ferrule without plastic sleeve)
	0.25 mm² ... 2.5 mm² (Ferrule with plastic sleeve)
Conductor cross section flexible (2 conductors with same cross section)	0.2 mm² ... 1.5 mm²
	0.25 mm² ... 0.75 mm² (Ferrule without plastic sleeve)
	0.5 mm² ... 1.5 mm² (TWIN ferrule with plastic sleeve)
Conductor cross section AWG	24 ... 12
Tightening torque	0.5 Nm ... 0.6 Nm
Pitch	5 mm

Status display present	no

Item dimensions
Width	39.88 mm
Height	143.4 mm
Depth	33.07 mm

Color	gray (RAL 7042)
Housing insulation material	Polyamide PA non-reinforced

Ambient conditions
Degree of protection (Module)	IP20
Degree of protection (Installation location)	≥ IP54
Ambient temperature (operation)	-20 °C ... 50 °C
Ambient temperature (storage/transport)	-20 °C ... 70 °C
Altitude	≤ 2000 m

UKCA
Certificate	UKCA-compliant

Air clearances and creepage distances
Standards/regulations	EN IEC 60664-1

Mounting type	Rear mounting
Mounting position	any

Notes on operation	For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.

Commercial data

Item number	2287669
Packing unit	5 pc
Minimum order quantity	1 pc
Product key	DK21C2
GTIN	4017918102159
Weight per piece (including packing)	162.8 g
Weight per piece (excluding packing)	162 g
Customs tariff number	85369010
Country of origin	DE

Classifications

Approvals

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
	125 V	2.5 A	30 - 12

Approval Specification Data
	Nominal voltage U_N	Nominal current I_N	Cross section AWG	Cross section mm²
	125 V	2.5 A	30 - 12

Environmental product compliance

Compatible products

Accessories

Your advantages

9-pos. ... 50-pos.

50-pos.: no ground pick-off

9-˽...˽37-pos.: separate ground pick-off

In accordance with IEC˽60807-2

1:1 connection

Screw connection

D-SUB 4-40 UNC thread

EU RoHS
Fulfills EU RoHS substance requirements	Yes (No exemptions)
China RoHS
Environment friendly use period (EFUP)	EFUP-E No hazardous substances above the limits
EU REACH SVHC
REACH candidate substance (CAS No.)	No substance above 0.1 wt%
