A 70-25
-

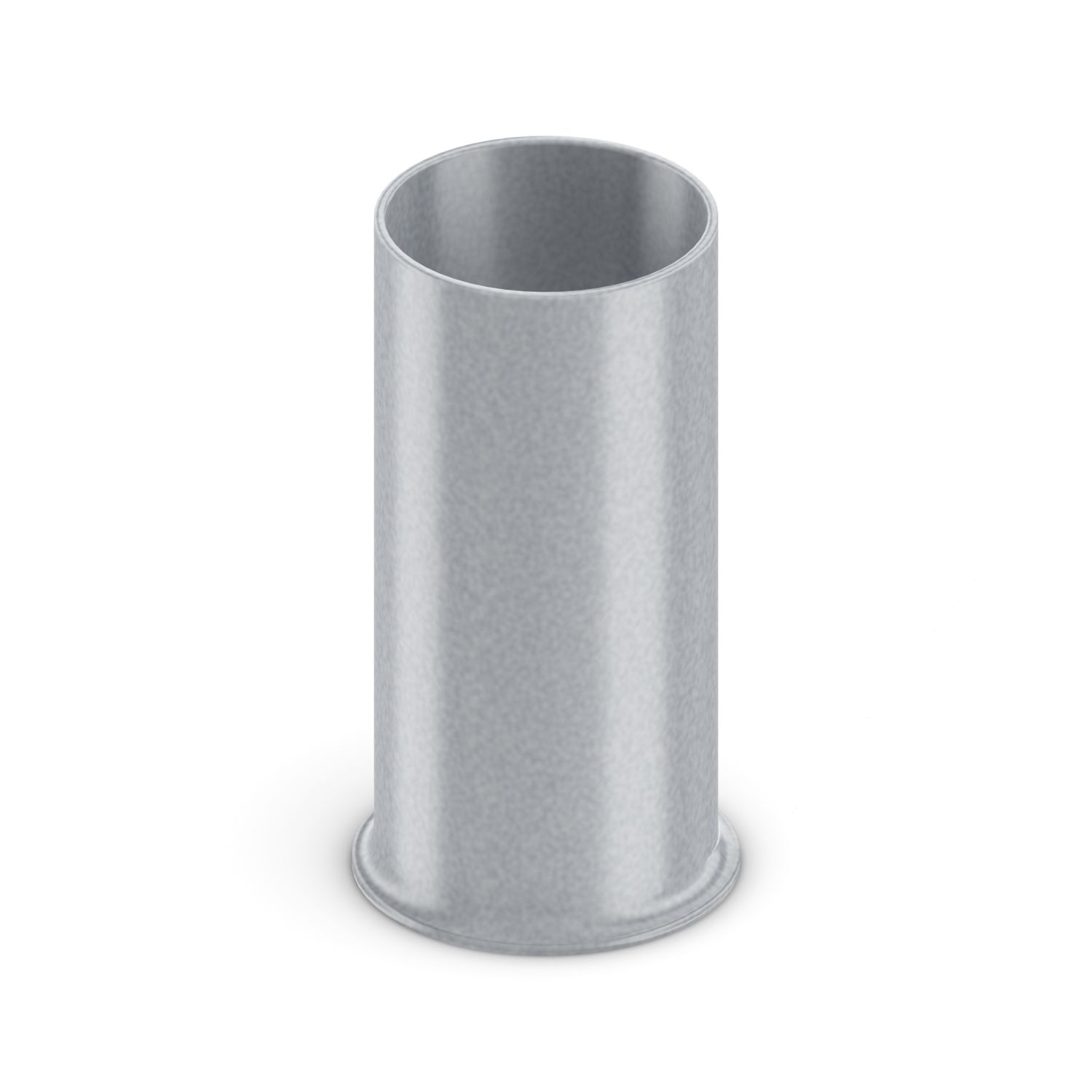

Ferrule
2100022
Ferrule, Length contact range: 25 mm, sleeve length: 25 mm, color: silver-colored
Product details
| General | These ferrules are not included in DIN 46228-1: 1992-08 |
| Product type | Cable end sleeve |
| Product property | Made from soft tin-plated electrolytic copper |
| Correspond to the requirements of DIN 46228-1 and UL 486F in terms of size | |
| Long/short-term temperature: +105°C/+120°C |
| Conductor connection | |
| Conductor cross section flexible max. | 70 mm² |
| Conductor cross section AWG max. | 2/0 |
| Stripping length | 40 mm |
| Dimensional drawing |
|
| Sleeve length | 25 mm |
| Length contact range | 25 mm |
| Maximum stripping length | 40 mm |
| Ferrule diameter | 12.5 mm |
| Sleeve wall thickness | 0.4 mm |
| Inner dimensions of the insulating collar | 15 mm |
| Color | silver-colored |
| Coating | galvanically tin-plated |
| Surface characteristics | Tin-plated |
| Technical data | |
| Sleeve length | 25 mm |
Your advantages
The insulation reliability of close connections is increased and the splicing of wires is prevented
