HC-M-03-PN-M-F
-
Contact insert module
1417433

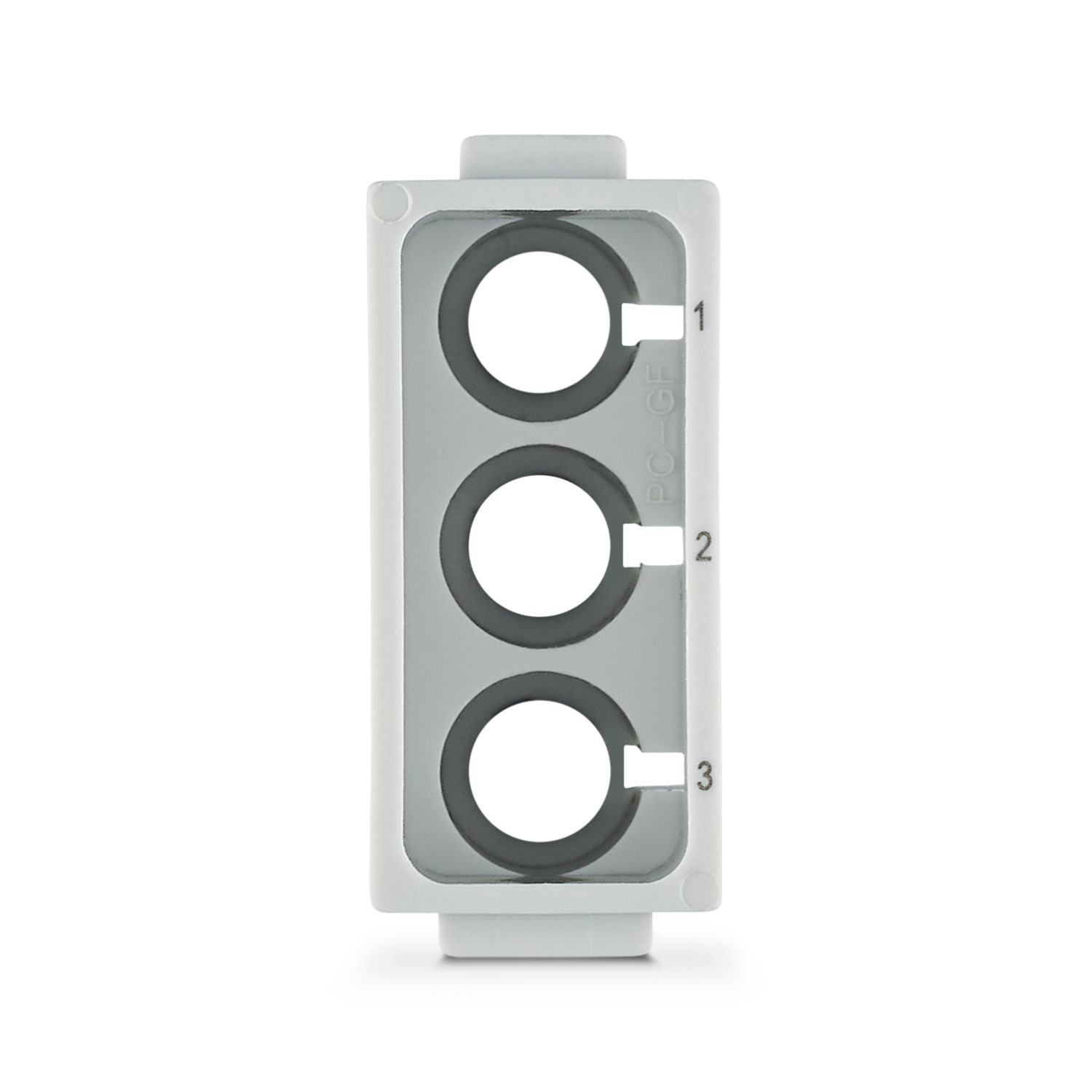

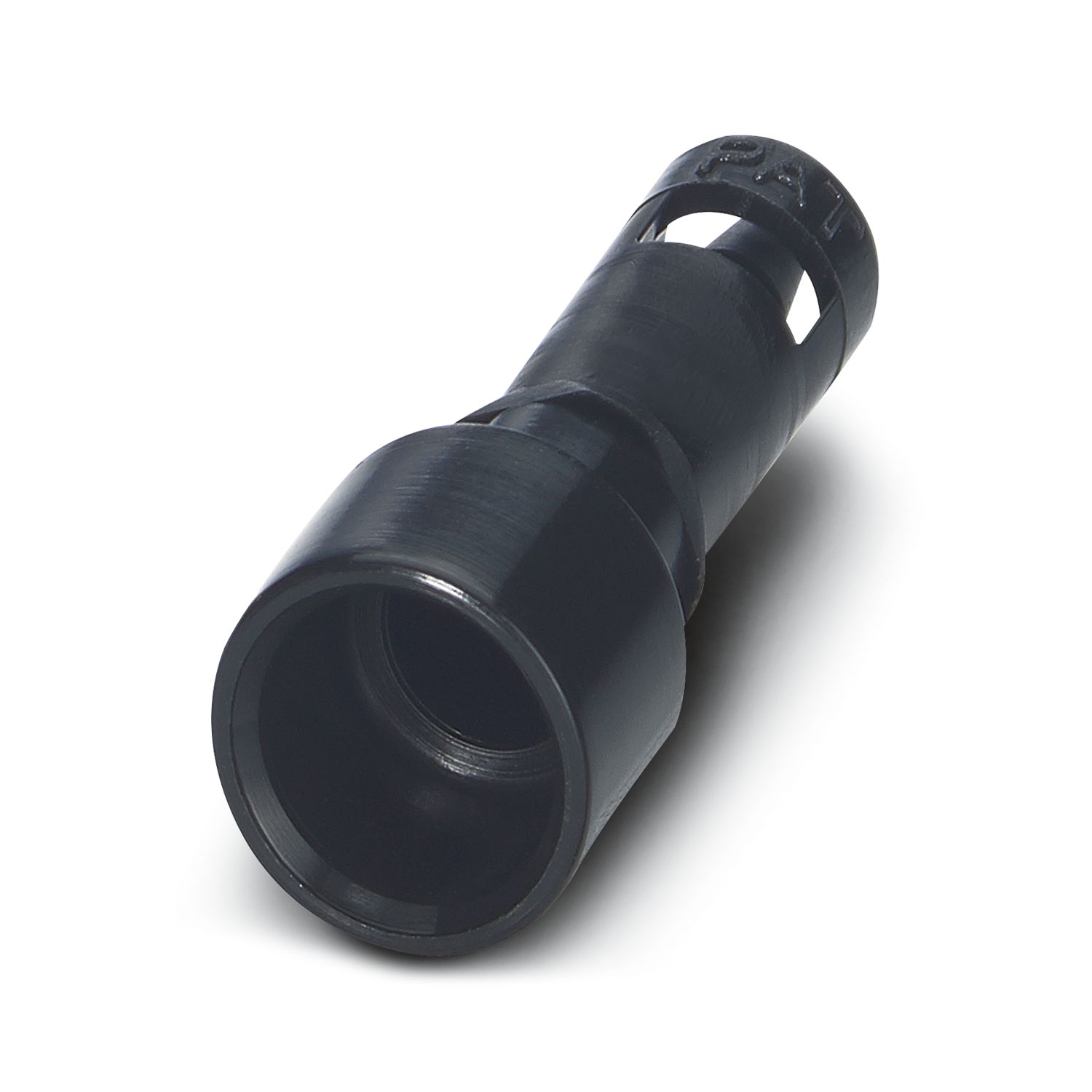

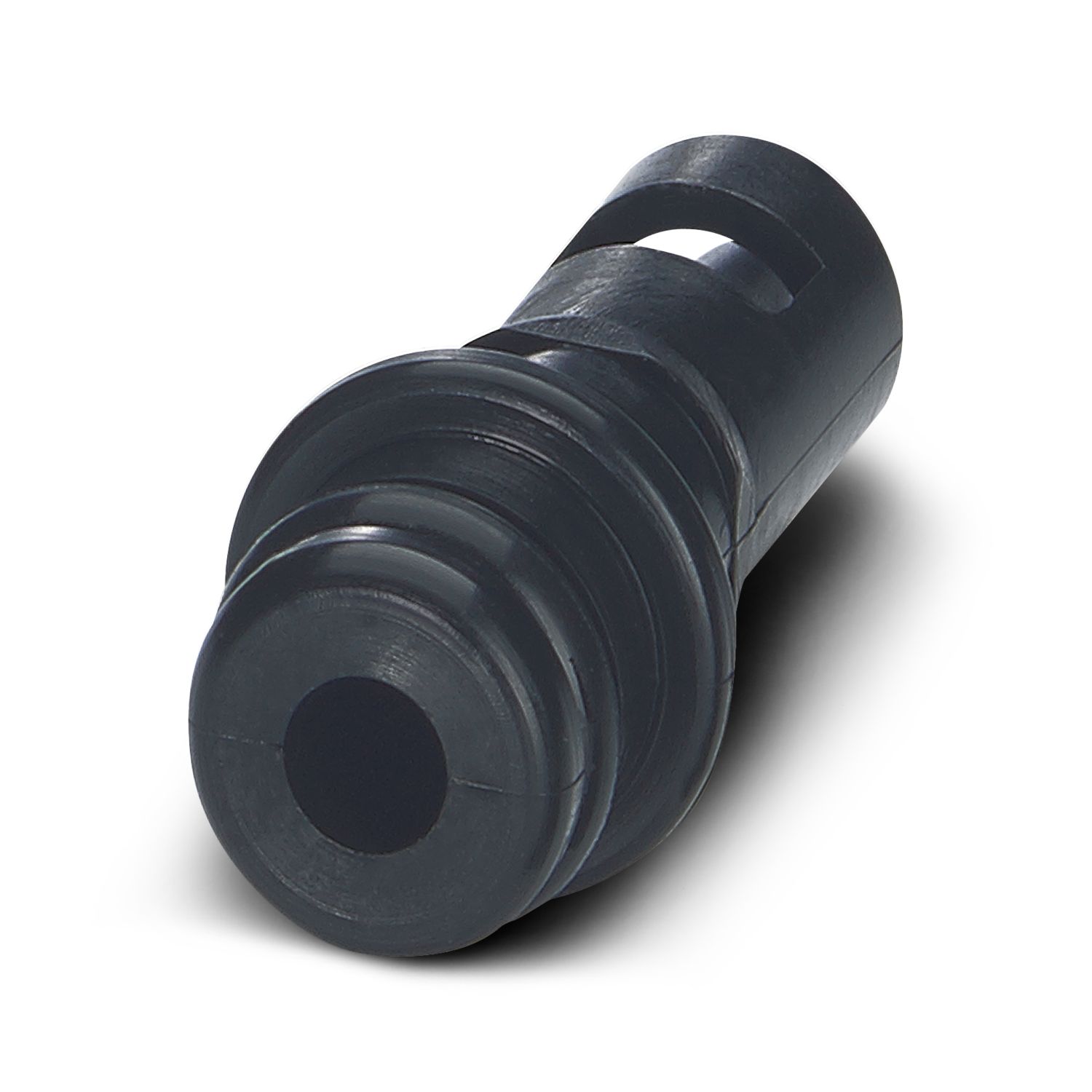

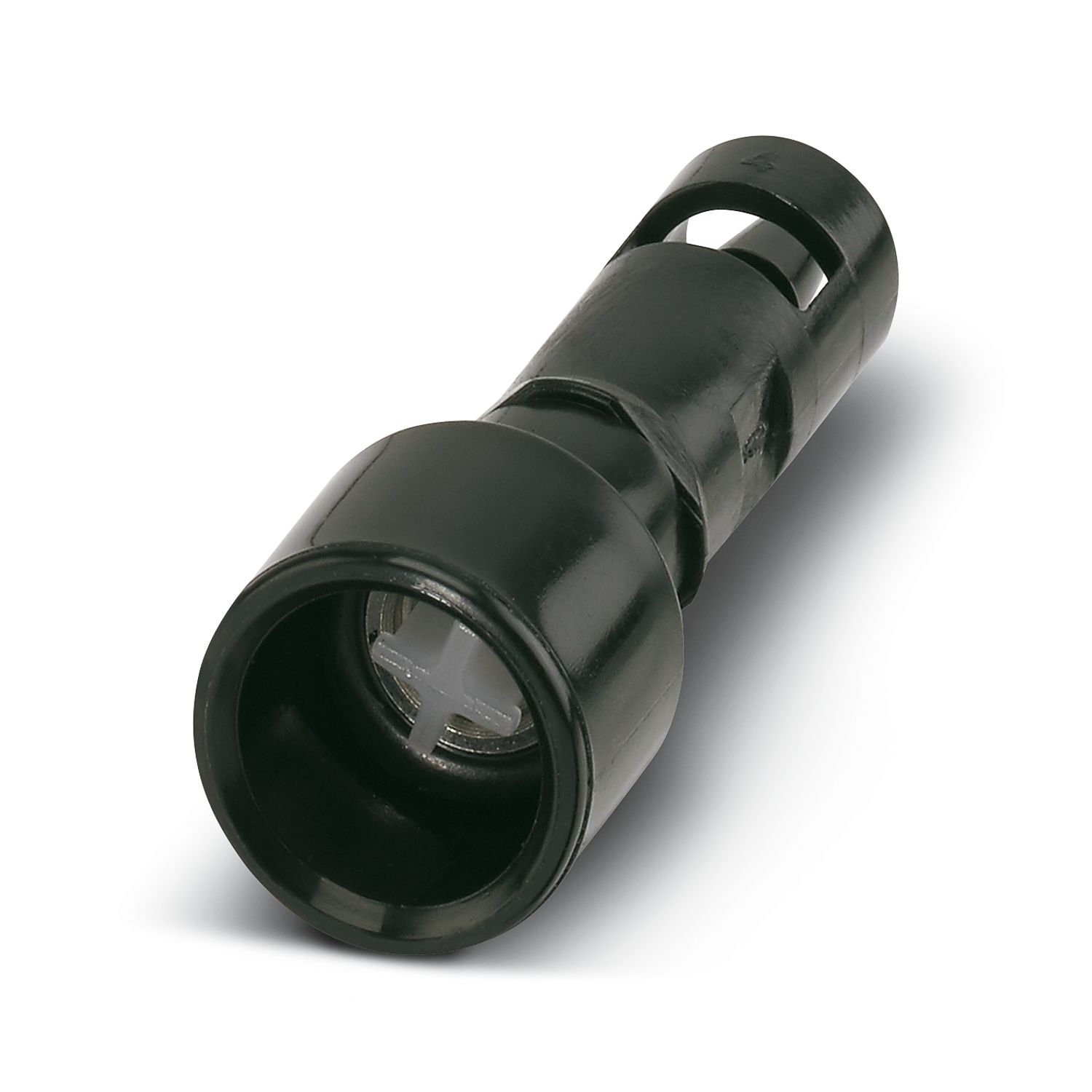

Contact insert module, number of positions: 3, Socket, Pin, application: Pneumatics, for internal hose diameter of 1.6 / 3 / 4 mm
Product details
| General | For HEAVYCON ADVANCE housing type B6 to B24 and HEAVYCON housing type B6 to B48. HEAVYCON HC-M-B...-MF... module carrier frame required, HC-M-PN... pneumatic pins and sockets are not supplied as standard. |
| General | Connectors may be operated only when there is no load/voltage. |
| General | The use of guide pins (HC-CST) and sockets (HC-CBU) is recommended to prevent tip collision due to misalignment. |
| Product type | Pneumatic insert, modular |
| Series | HC-M-03-PN |
| Application | Pneumatics |
| Number of positions | 3 |
| Connection profile | 3 |
| Contact numbering | 1 - 3 |
| Number of module slots | 1 |
| Integrated valve | No |

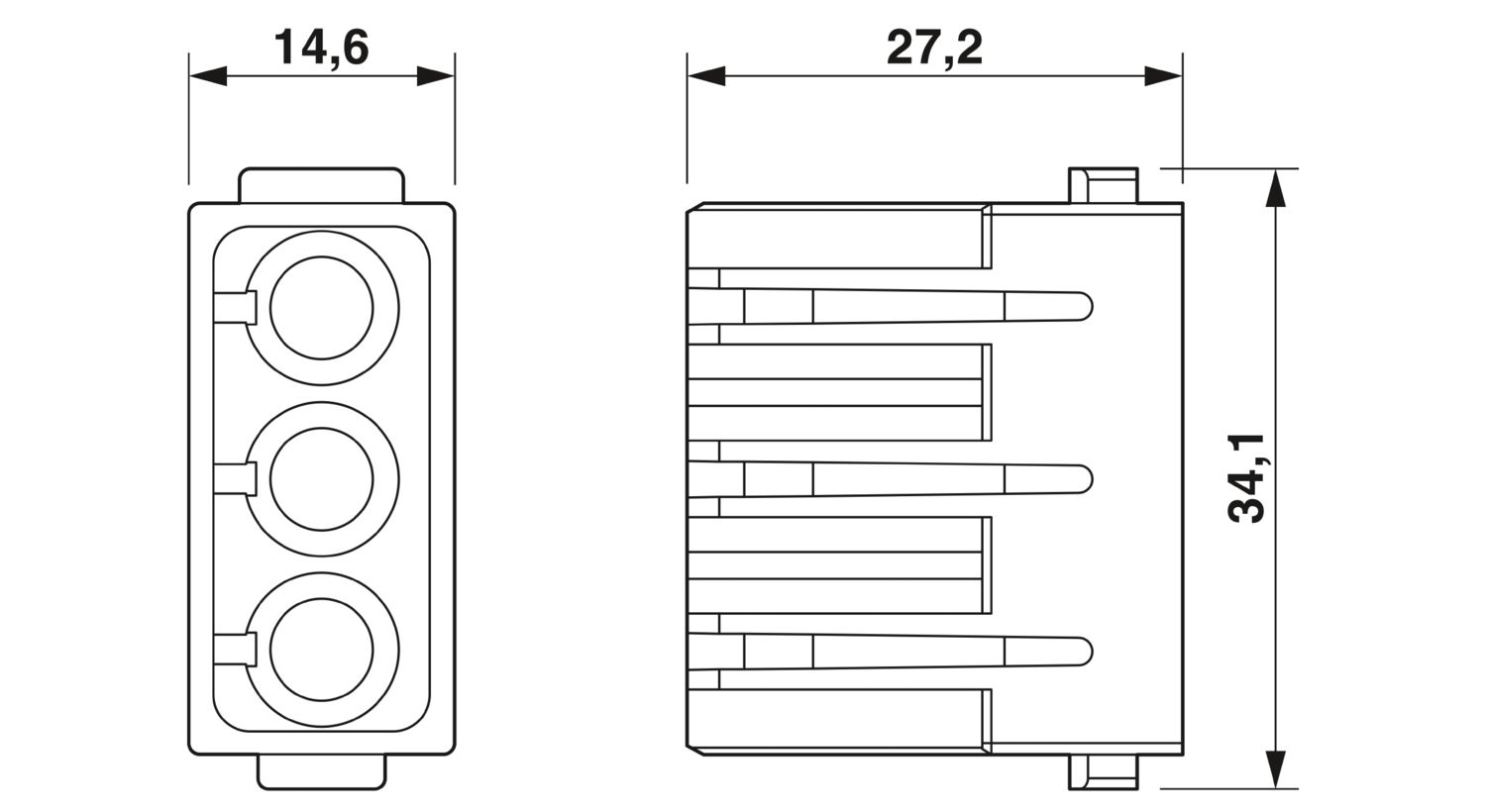

| Dimensional drawing |
|
| Width | 34.1 mm |
| Height | 27.2 mm |
| Length | 14.6 mm |
| Mechanical characteristics | |
| Internal diameter of pressure hose connection | 1.6 mm |
| 3 mm | |
| 4 mm | |
| Contact diameter | 5.2 mm |
| Flammability rating according to UL 94 | V0 |
| Contact carrier material | PC |
| Standards/regulations | PC |
| Mechanical data | |
| Insertion/withdrawal cycles | ≥ 500 |
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 80 °C |
| Testing | |
| Standards/regulations | PC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DIN EN 45545-2 (Risk level HL1 - HL3) |
| Assembly note | To ensure correct use, installation in housing with IP54 protection or better is required |
| - Snap the pneumatic contact and module together. Insert the contact into the module from the front - Place the modules assembled with the contacts in the module carrier frame. - The pneumatic tubes are pushed onto the pneumatic contact from the back of the module. The medium-sized module slots and sleeves/coupling housing with straight cable outlet direction are recommended. |
