HC-M-02-EMC-M
-
Contact insert module
1417374
Contact insert module, number of positions: 2, Pin, Crimp connection, 48 V, 10 A, 0.14 mm2 ... 2.5 mm2, application: Data/signal, for using two EMC connectors (pin), number of positions: 1, 4, 8
Product details

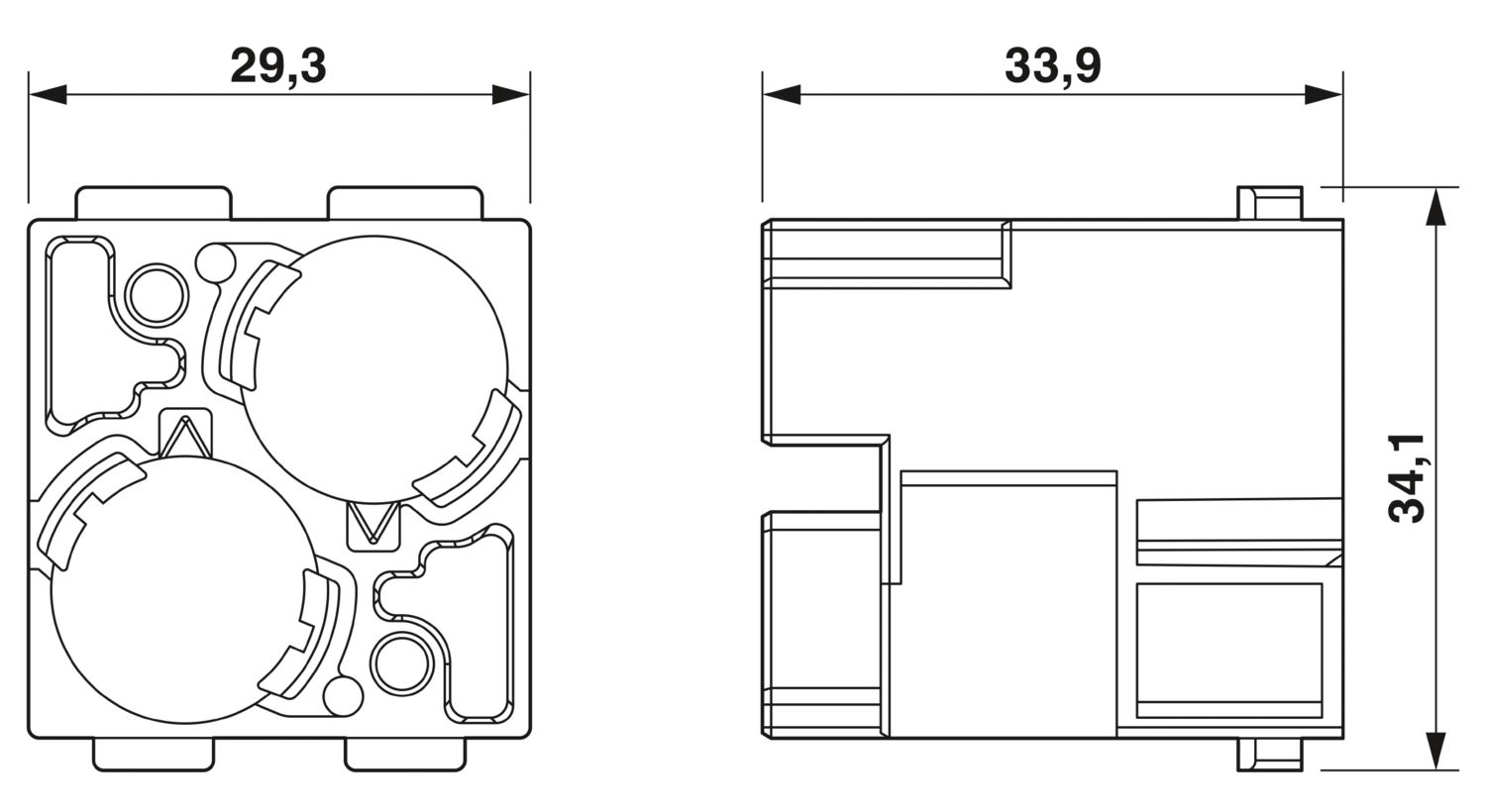

| General | For HEAVYCON housing type B6 to B48, HC-M-B...MF-... module carrier frame required |
| General | Connectors may be operated only when there is no load/voltage. |
| Product type | EMC insert, modular |
| Series | HC-M-EMV |
| Application | Data/signal |
| Number of positions | 2 |
| Connection profile | 2 |
| Contact numbering | 1 - 2 |
| No. of cable outlets | 2 |
| Number of module slots | 2 |
| Number of slots | 2 |
| Contact material type | turned |
| rolled | |
| Shielded | no |
| Insulation characteristics | |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Rated voltage (III/3) | 48 V |
| Rated surge voltage | 0.8 kV |
| Rated current | 10 A |
| Connection technology | |
| Connection technology | Crimp connection |
| Conductor connection | |
| Conductor cross section | 0.14 mm² ... 2.5 mm² |
| Dimensional drawing |
|
| Width | 34.2 mm |
| Height | 34 mm |
| Length | 29.4 mm |
| Mechanical characteristics | |
| Minimum housing height | 72 mm |
| Contact diameter | 1.6 mm |
| Material Line conductor | Zinc alloy |
| Flammability rating according to UL 94 | V0 |
| Contact material | Copper alloy |
| Contact surface material | Ag (power)/Au (signal) |
| Contact carrier material | PC |
| Standards/regulations | PC |
| Mechanical data | |
| Insertion/withdrawal cycles | ≥ 500 |
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 125 °C |
| Testing | |
| Standards/regulations | PC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DIN EN 45545-2 (Risk level HL1 - HL3) |
| Assembly note | To ensure correct use, installation in housing with IP54 protection or better is required |

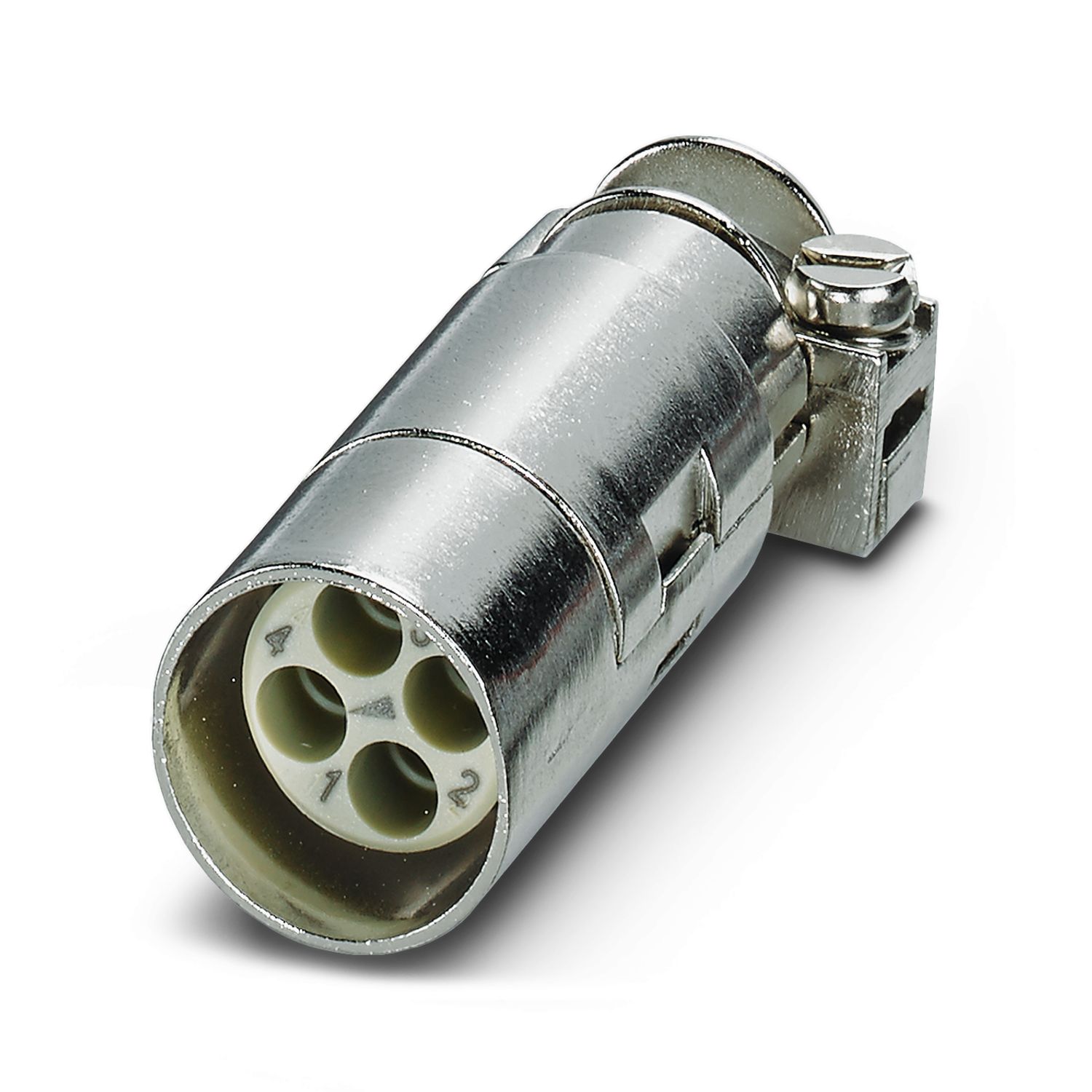

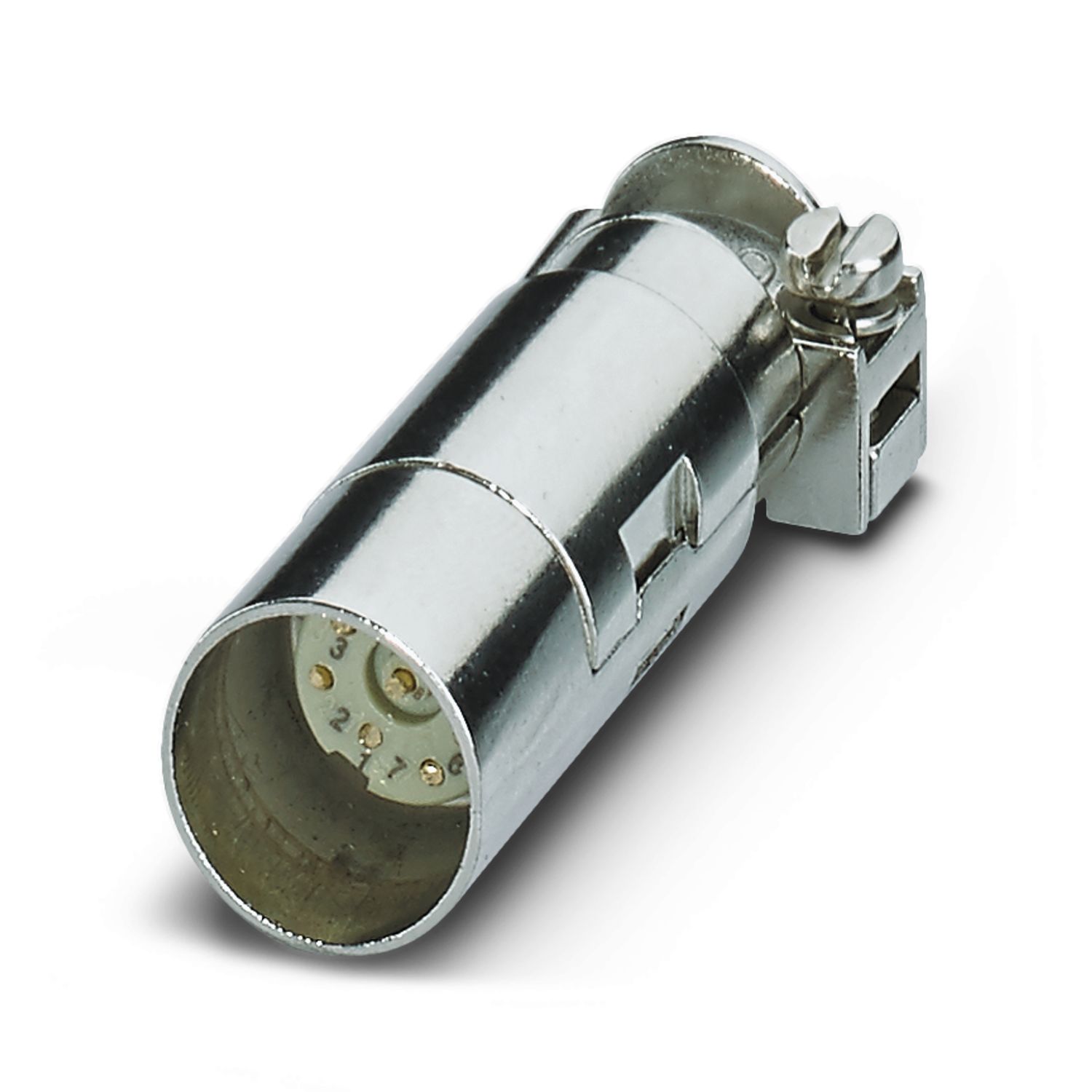

| Plastic module for the HC-M-EMV-ST/3-9.5 EMC connector |
