UL Recognized
Approval ID: E118976| Nominal voltage UN | Nominal current IN | Cross section AWG | Cross section mm2 | |
|---|---|---|---|---|
| Power | 600 V | 100 A | - 2 | |
| Control | 600 V | 16 A | 14 |
HC-K 6/ 6 EBUS
-
Contact insert
1636402
Contact insert, number of positions: 6+6+PE, size: B24, power contacts: 6, control contacts: 6, Socket, Axial screw connection, 690 V, 100 A, 16 mm2 ... 35 mm2, application: Power/signal
Product details
| General | For HEAVYCON ADVANCE and HEAVYCON housing of type B24, with third-party logo |
| General | Connectors may be operated only when there is no load/voltage. |
| Assembly note | To ensure correct use, installation in housing with IP54 protection or better is required |
| Product type | Contact insert with a fixed no. of positions |
| Series | HC-K |
| Application | Power/signal |
| Type | B24 |
| B48 | |
| Number of positions | 12 |
| Connection profile | 6+6+PE |
| Contact numbering | 1 - 6 (power contacts) |
| 1 - 6 (control contacts) | |
| No. of power contacts | 6 |
| No. of control contacts | 6 |
| Insulation characteristics | |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Dimensional drawing |
|

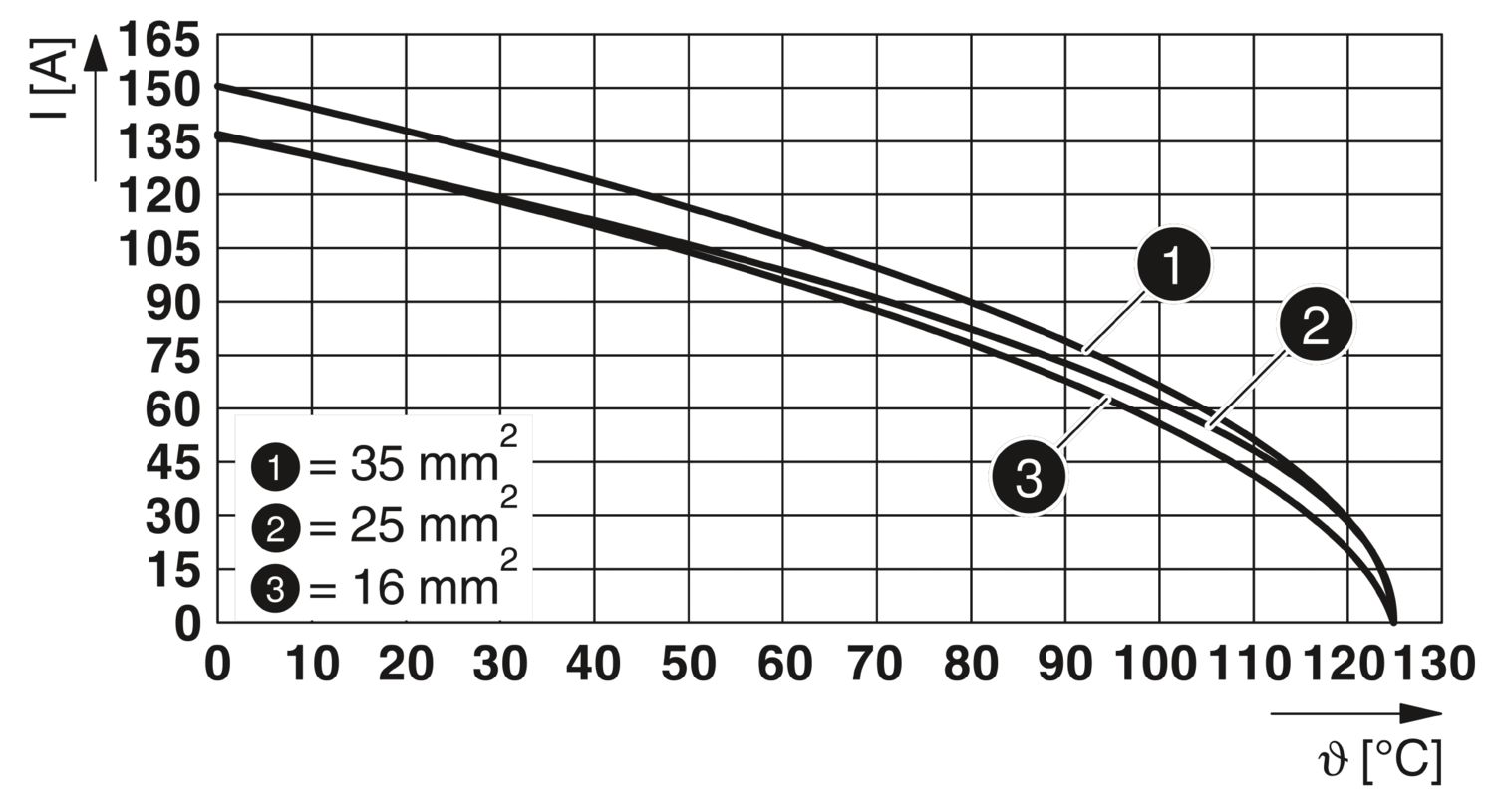

| Width | 34 mm |
| Height | 52.2 mm |
| Length | 111 mm |
| Drill hole distance, horizontal | 104 mm |
| Drill hole distance, vertical | 27 mm |
| Connection technology | |
| Connection technology | Axial screw connection (power contacts) |
| Screw connection (control contacts) | |
| Conductor connection | |
| Conductor cross section | 16 mm² ... 35 mm² (power contacts) |
| 0.2 mm² ... 2.5 mm² (control contacts) | |
| Connection cross section AWG | 5 ... 2 (power contacts) |
| 24 ... 13 (control contacts) | |
| Tightening torque | 0.8 Nm ... 1.2 Nm (PE connection) |
| 0.5 Nm ... 0.8 Nm (Mounting screws for mounting in the HEAVYCON housing) | |
| 6 Nm (Power contacts for 16 mm²) | |
| 7 Nm (Power contacts for 25 mm²) | |
| 0.8 Nm (control contacts) | |
| 8 Nm (Power contacts for 35 mm²) | |
| Stripping length of the individual wire | 13 mm ±1 mm (Power) |
| 7.5 mm (Signal) | |
| Rated voltage (III/3) | 690 V (power contacts) |
| 400 V (control contacts) | |
| Rated surge voltage | 8 kV (power contacts) |
| 6 kV (control contacts) | |
| Rated current | 100 A (power contacts) |
| 16 A (control contacts) |
| Mechanical data | |
| Insertion/withdrawal cycles | ≥ 500 |
| Flammability rating according to UL 94 | V0 |
| Contact material | Cu alloy |
| Contact carrier material | PC |
| Material of contact surface, power contact | Ag |
| Material of contact surface, control contact | Ag |
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 125 °C |
Your advantages
Shock and vibration-resistant in accordance with DIN EN 61373
